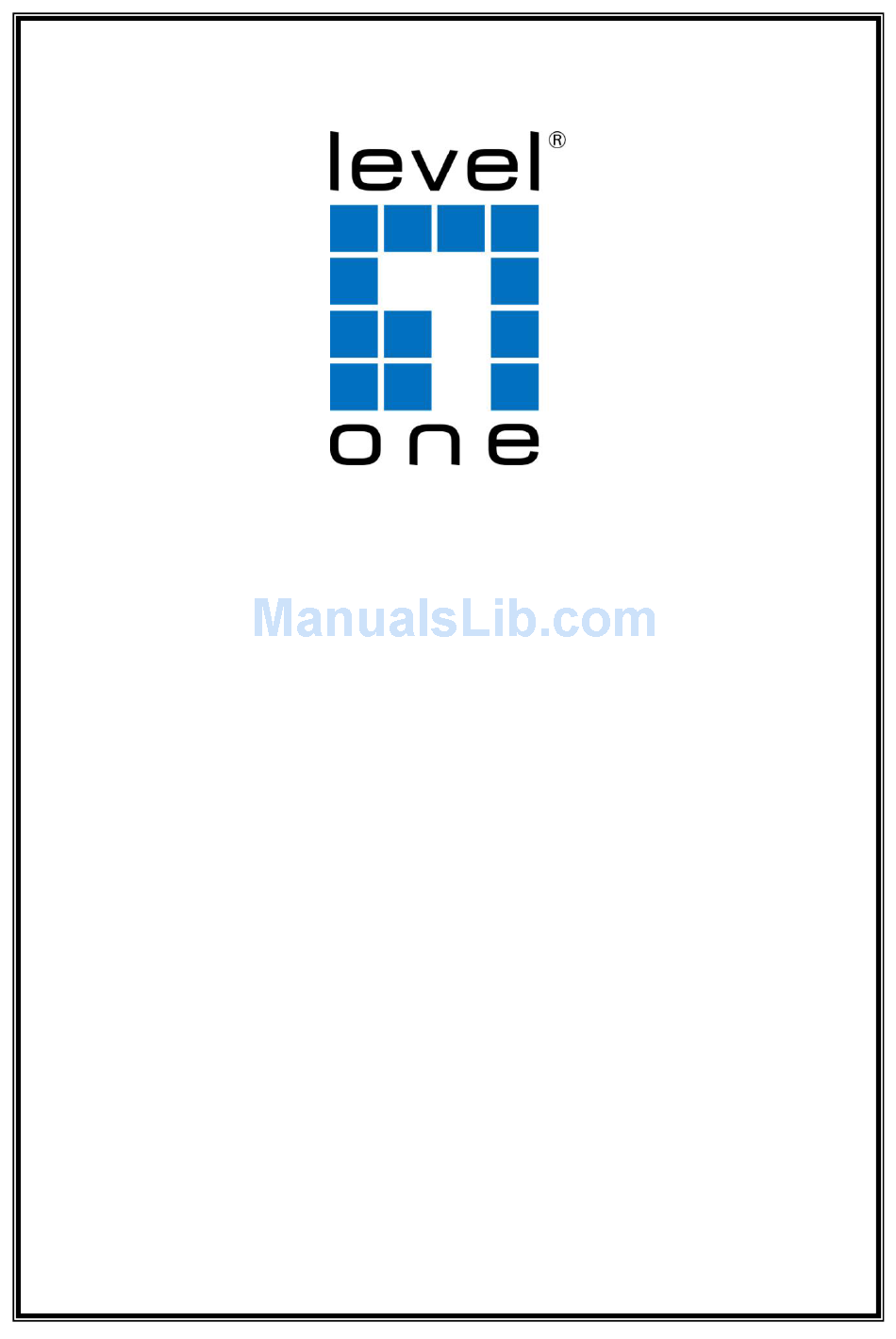

- Page 1 LevelOne User Manual VDS-0130 Ethernet over VDSL2 Converter (PD) V1.0...
- Page 2 Table of Content 1. Introductions ............3 2. Application Notes ..........3 3. Features ............... 4 4. Packing Contents ..........4 5. LED Indicators ............5 6. Dip Switches Settings ........... 5 7. Data Rates & Distances ........7...
- Page 3 Ethernet connectivity. With 100/60Mbps data rate, VDS-0130 supports transmission distance up to 300 meters, and 30/10 Mbps for 1km long range connection. Users may also select a fixed data rate or a fixed SNR margin for different copper line ranging.
- Page 4 4. Packing Contents Inside the package you should find: (1) One VDS-0130 VDSL2 PoE LAN Extender (2) One User Manual CD Please check if the packing is damaged or any component is missing. If so, please contact your...

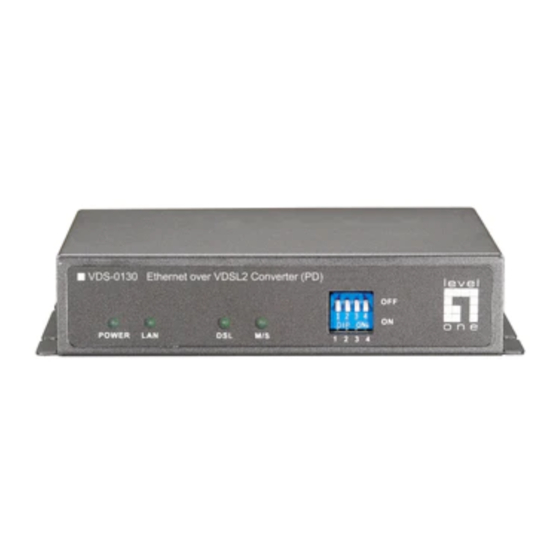

- Page 5 5. LED Indicators On the front panel of VDS-0130, there are four LED indicators as the following VDS-0130 Front Panel VDS-0130 Rear Panel “Green POWER: On” indicates power is on and normal. “Green LAN: On” indicates Ethernet LAN port is in connection.
- Page 6 Pin 1: VTU-C/R Switch VTU-C: VDS-0130 will act as at the Central Office (CO) side. VTU-R: VDS-0130 will act as at the Customer Premise Equipment (CPE) or Remote side. Pin 2: Mode for impulse noise protection Interleave mode: Protection for up to 250ms impulse noises with latency less than 6 ms.
- Page 7 7. Data Rates & Distances Performance in AWG 26 Line at 6dB with full rate Down Stream Up Stream Distance Data Rate (Mbps) Data Rate (Mbps) (feet) 1000 1250 1500 1750 2000 2500 3000 3500 4000...
