Summary of Contents for Gold Medal 4110BG

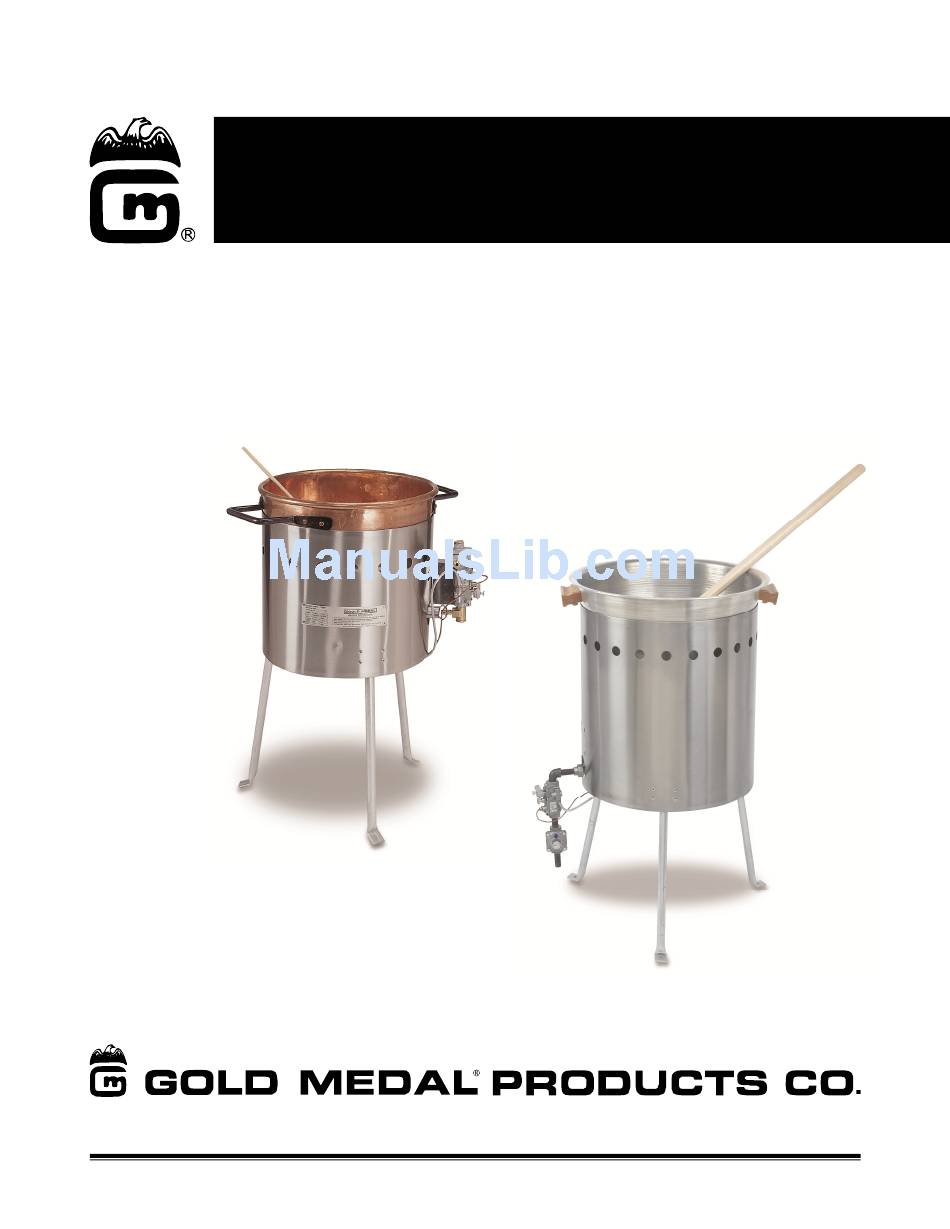

- Page 1 Model No. 4110BG, 4110HD Model 4110BG Shown with Kettle Item No. 4111 (sold separately) Model 4110HD Shown with Kettle Item No. 4009 (sold separately) 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2013 Gold Medal Products Co. Part No. 32006...
-
Page 2: Safety Precautions
Candy Apple Stoves Model No. 4110BG, 4110HD SAFETY PRECAUTIONS gmpopcorn.com Page 2... - Page 3 Candy Apple Stoves Model No. 4110BG, 4110HD SAFETY PRECAUTIONS (continued) gmpopcorn.com Page 3...
-
Page 4: Installation Instructions
Candy Apple Stoves Model No. 4110BG, 4110HD INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control. -
Page 5: Gas Requirements
Model No. 4110BG, 4110HD GAS INSTALLATION INSTRUCTIONS Gas Requirements The 4110BG and 4110HD are designed for Propane only. Converting the unit to an alternate fuel source will void the warranty and may cause a dangerous condition. 4110BG: Propane Gas, 34,557 BTU/HR 4110HD: Propane Gas, 52,000 BTU/HR NOTE: The unit must be attached to a minimum of 40 pound LPG cylinder. -
Page 6: Checking For Gas Leaks
Stop using the appliance immediately if damage is found, and contact a qualified professional to inspect and correct any issue. 3. Securely route all gas lines away from flames and high temperature areas. 4. Contact Gold Medal Technical Support, or a qualified Gas Service Technician with any questions. Altitude Range The factory has sized the orifices for elevations up to 2000 feet above sea level. -
Page 7: Lighting And Shutdown Instructions
Candy Apple Stoves Model No. 4110BG, 4110HD Lighting and Shutdown Instructions Follow these steps to light your unit: 1. Turn the gas safety valve to the “PILOT” position. 2. Depress the safety valve button next to the safety valve handle. Hold this button down for 30-45 seconds. - Page 8 Candy Apple Stoves Model No. 4110BG, 4110HD gmpopcorn.com Page 8...
- Page 9 Candy Apple Stoves Model No. 4110BG, 4110HD gmpopcorn.com Page 9...
- Page 10 Candy Apple Stoves Model No. 4110BG, 4110HD gmpopcorn.com Page 10...
- Page 11 Candy Apple Stoves Model No. 4110BG, 4110HD gmpopcorn.com Page 11...
- Page 12 Candy Apple Stoves Model No. 4110BG, 4110HD gmpopcorn.com Page 12...
- Page 13 Candy Apple Stoves Model No. 4110BG, 4110HD MAKING CANDY APPLES Candy Apple Coating Candy apple coating is a mix of various sugars: sucrose, glucose, and dextrose. Hard candies have traditionally given chefs trouble. However, using fully prepared mixes such as our APPL-EZ eliminates most chances of a bad batch.
- Page 14 Candy Apple Stoves Model No. 4110BG, 4110HD Dipping the Apples Make sure apples are cleaned and sticks inserted. When temperature is 275º F, turn heat OFF. 1. Pick up apple by stick, with thumb and index finger, insert into candy apple coating (immersing entire apple).
-
Page 15: Care And Cleaning
3. Do not leave water in the pans overnight. 4. Clean the stainless steel covers with stainless steel cleaner. Gold Medal Products Co.’s Watchdog Stainless Steel Polish (P/N 2088) is recommended. 5. Clean the unit with soap and hot water. -
Page 16: Maintenance Instructions
Candy Apple Stoves Model No. 4110BG, 4110HD MAINTENANCE INSTRUCTIONS DANGER Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury or death. Read the installation, Operating, and Maintenance Instructions thoroughly before installing or servicing this equipment. DANGER Do Not immerse the equipment in water. Unplug your machine before servicing. -
Page 17: Ordering Spare Parts
Candy Apple Stoves Model No. 4110BG, 4110HD ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. 2. When ordering, please include part number, part name, and quantity needed. 3. Please include your model number, serial number, and date of manufacture (located on the machine nameplate) with your order. - Page 18 Candy Apple Stoves Model No. 4110BG, 4110HD Stove Unit - Parts Breakdown 11, 12 13, 14 gmpopcorn.com Page 18...
- Page 19 Candy Apple Stoves Model No. 4110BG, 4110HD Stove Unit - Parts List Part Number Item Part Description Qty. 4110BG 4110HD JET BURNER UNIT 32001 C-90 BURNER 32036 BURNER CLIP 105003 105003 BURNER MOUNT 105002 105002 PRESSURE REGULATOR 74115 89916 ADAPTER, GAS LINE 3/8 NPT (Flare Pipe...
- Page 20 Candy Apple Stoves Model No. 4110BG, 4110HD Accessories Part Number Item Part Description Qty. 4110BG 4110HD TANK REGULATOR 89920 89920 GAS HOSE (has a Flared Hose Fitting) 109000 109000 WOOD SPOON 46207 36” WOODEN MIXING PADDLE 2093 gmpopcorn.com Page 20...
- Page 21 © 2013 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
