Important
❒ The 4-hole punch type is only capable of punching in the 4-hole format.
❒ You cannot use the bypass tray with this function.

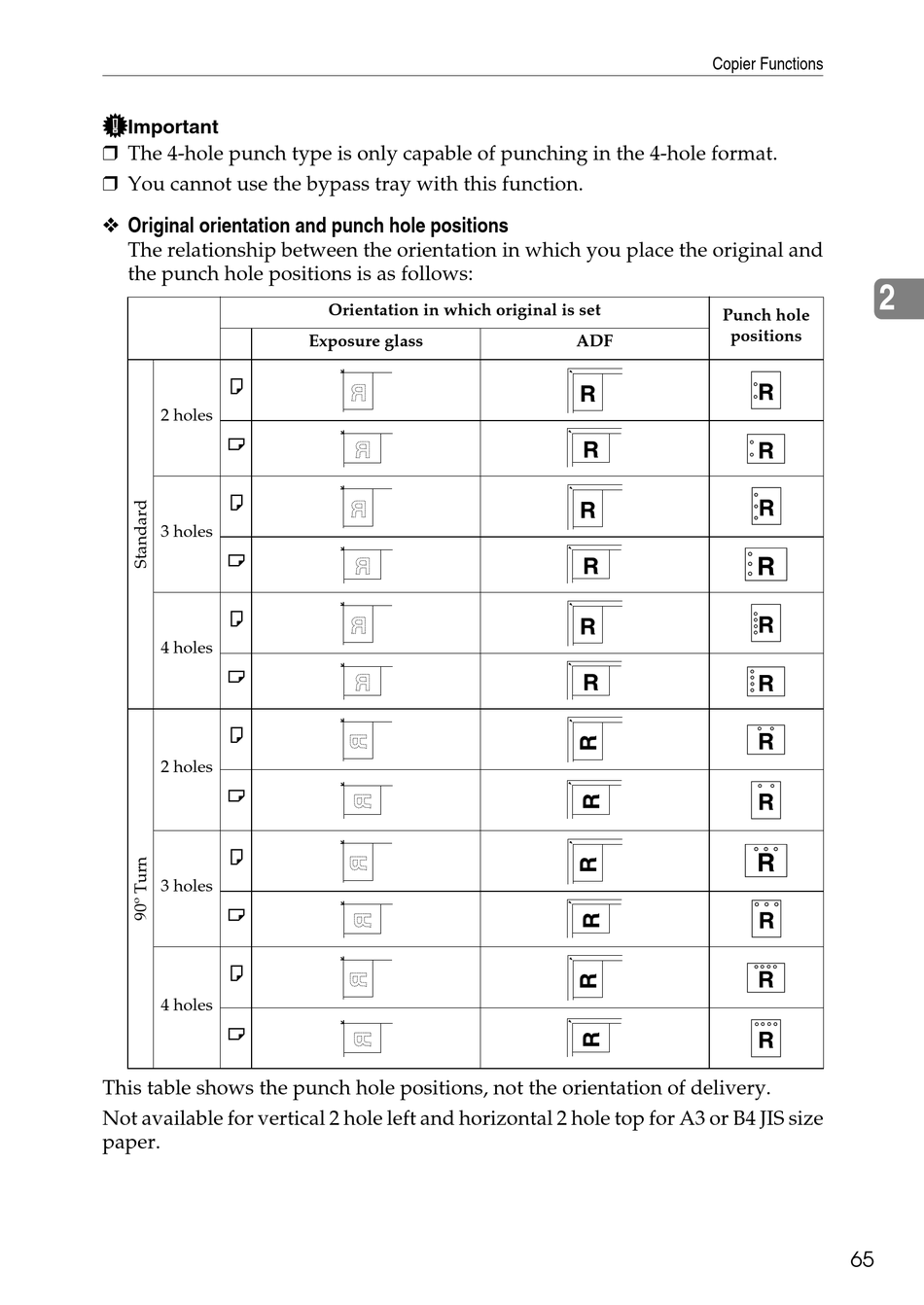

❖ Original orientation and punch hole positions
The relationship between the orientation in which you place the original and
the punch hole positions is as follows:
K
2 holes
L
K
3 holes
L
K
4 holes
L
K
2 holes
L
K
3 holes
L
K
4 holes
L
This table shows the punch hole positions, not the orientation of delivery.
Not available for vertical 2 hole left and horizontal 2 hole top for A3 or B4 JIS size
paper.
