Directional Size Magnification (Mm) - Ricoh Copy/Document Server Operating Instructions Manual

Copying
E
Specify the desired ratio using [n] or [o].
Pressing [n] or [o] changes the ratio in increments of 1%. Pressing and hold-
ing down the relevant key changes the ratio in increments of 10%.
F
Press [Vertical].
G
Specify the desired ratio using [n] or [o].
H
2
Press [OK] twice.
I
Place the originals, and then press the {Start} key.
Note
❒ If you have incorrectly entered the ratio in steps
or [o].

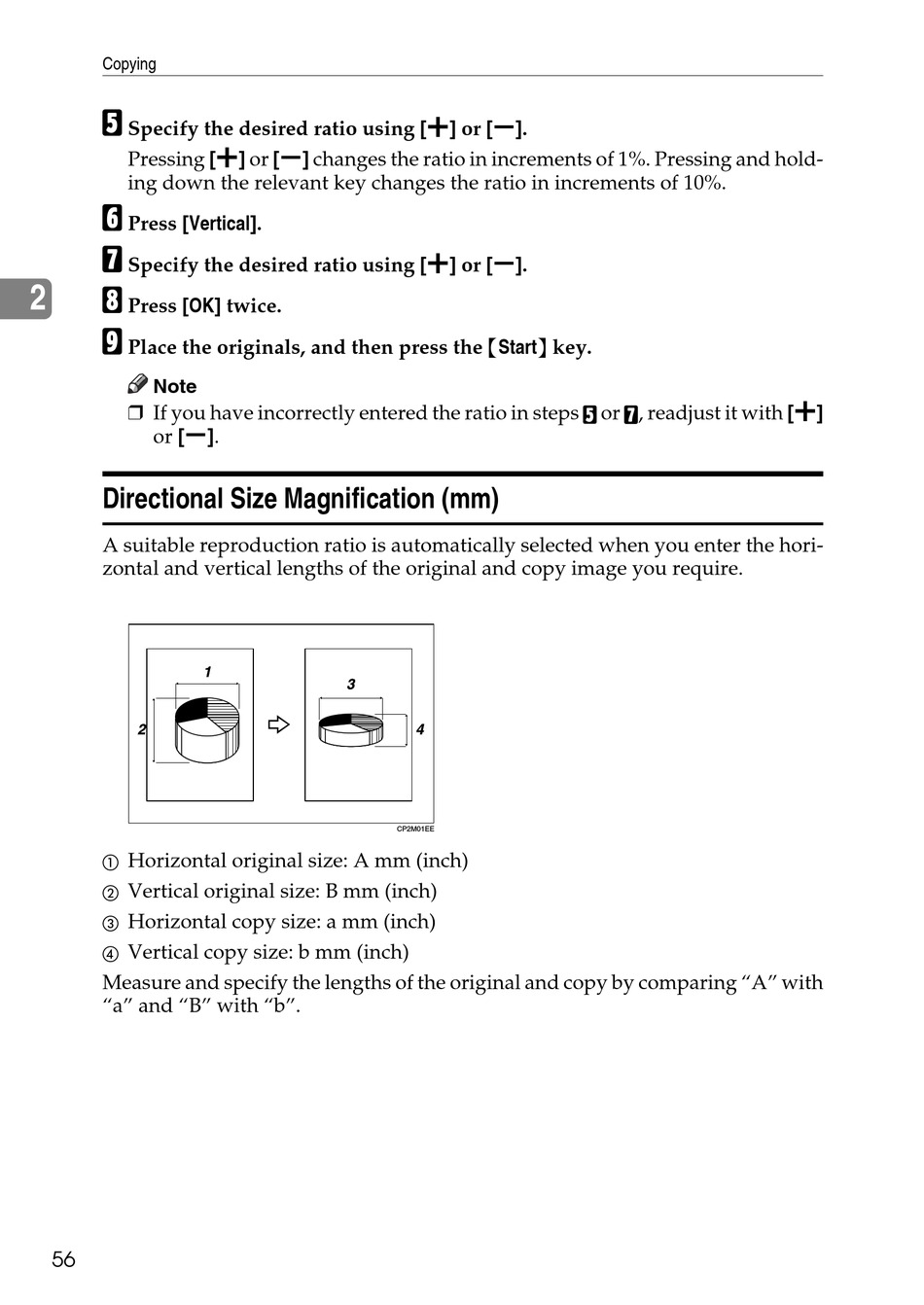

Directional Size Magnification (mm)

A suitable reproduction ratio is automatically selected when you enter the hori-
zontal and vertical lengths of the original and copy image you require.
A Horizontal original size: A mm (inch)
B
Vertical original size: B mm (inch)
C Horizontal copy size: a mm (inch)
D Vertical copy size: b mm (inch)
Measure and specify the lengths of the original and copy by comparing "A" with
"a" and "B" with "b".
56
CP2M01EE
E G
or , readjust it with [n]
