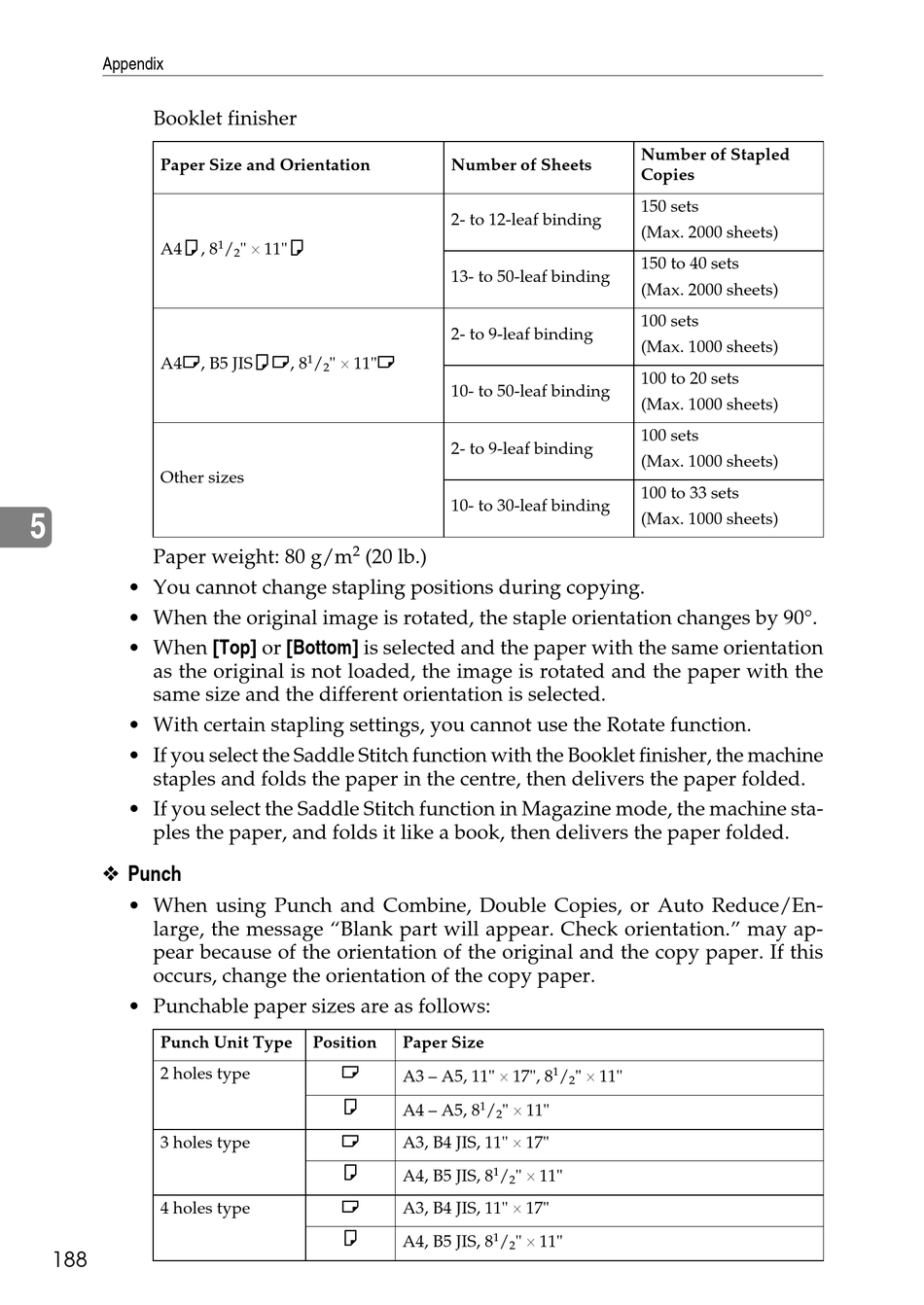

Ricoh Copy/Document Server Operating Instructions Manual page 206

Appendix
Booklet finisher
Paper Size and Orientation
A4K, 8
A4L, B5 JISKL, 8
Other sizes
5
Paper weight: 80 g/m
• You cannot change stapling positions during copying.
• When the original image is rotated, the staple orientation changes by 90°.
• When [Top] or [Bottom] is selected and the paper with the same orientation
as the original is not loaded, the image is rotated and the paper with the
same size and the different orientation is selected.
• With certain stapling settings, you cannot use the Rotate function.
• If you select the Saddle Stitch function with the Booklet finisher, the machine
staples and folds the paper in the centre, then delivers the paper folded.
• If you select the Saddle Stitch function in Magazine mode, the machine sta-
ples the paper, and folds it like a book, then delivers the paper folded.
❖ Punch
• When using Punch and Combine, Double Copies, or Auto Reduce/En-
large, the message "Blank part will appear. Check orientation." may ap-
pear because of the orientation of the original and the copy paper. If this
occurs, change the orientation of the copy paper.
• Punchable paper sizes are as follows:
Punch Unit Type
2 holes type
3 holes type
4 holes type
188
" × 11"K
1
/
2
" × 11"L
1
/
2
2
(20 lb.)
Position
L
K
L
K
L
K
Number of Sheets
2- to 12-leaf binding
13- to 50-leaf binding
2- to 9-leaf binding
10- to 50-leaf binding
2- to 9-leaf binding
10- to 30-leaf binding
Paper Size
A3 – A5, 11" × 17", 8 " × 11"
1
/
2
" × 11"
1
A4 – A5, 8 /
2
A3, B4 JIS, 11" × 17"
" × 11"
1
A4, B5 JIS, 8 /
2
A3, B4 JIS, 11" × 17"
" × 11"
1
A4, B5 JIS, 8 /
2
Number of Stapled
Copies
150 sets
(Max. 2000 sheets)
150 to 40 sets
(Max. 2000 sheets)
100 sets
(Max. 1000 sheets)
100 to 20 sets
(Max. 1000 sheets)
100 sets
(Max. 1000 sheets)
100 to 33 sets
(Max. 1000 sheets)
