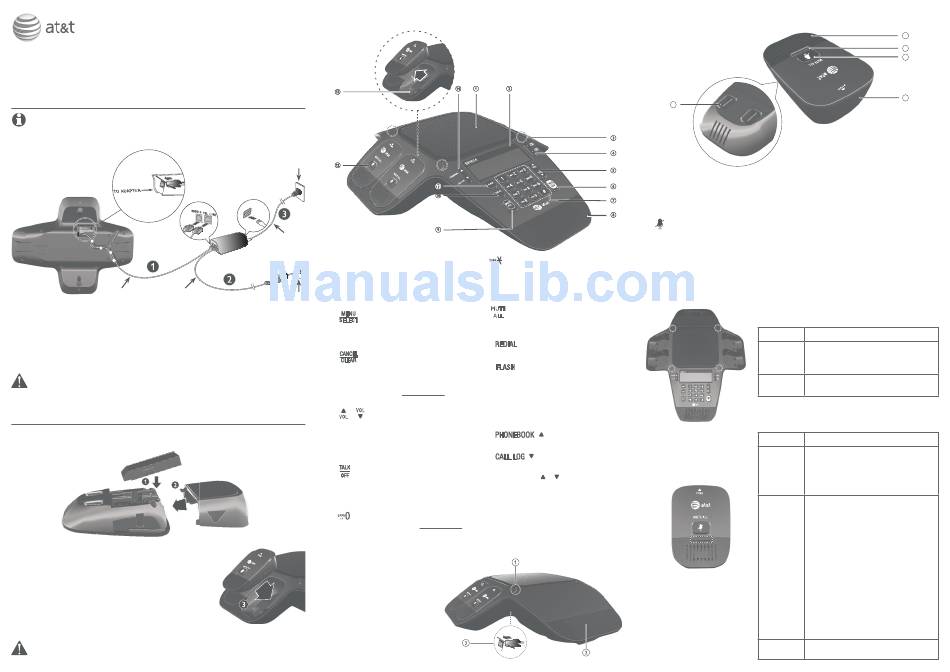

Quick start guide
SB3014
This quick start guide provides you with basic instructions only.
For more complete instructions, refer to your user's manual
provided in the package, or see the online user's manual at
www.smbtelephones.att.com.
Base unit installation
NOTE: If you subscribe to digital subscriber line (DSL) high-speed Internet service through your
telephone line, you must install a DSL filter between the telephone line cord and wall jack.
Contact your DSL service provider for more information about DSL filter.
Slots
DC power cable Telephone
line cord
1. Plug one end of the DC power cable into the base unit, and plug the other end
into the SB3014 jack of the power adapter. Route the cord through the slots.
2. Plug one end of the telephone line cord into the TEL LINE jack of the power
adapter, and plug the other end into a wall jack.
3. Plug the small end of the AC power cord into the power jack of the adapter, and
plug the large end into the wall outlet not controlled by a switch.
Caution: Use only the AC power adapter provided with this product. To obtain a replacement,
www.smbtelephones.att.com
visit our website at
1 (866) 288-4268
In Canada, dial .
Battery installation
Install the battery, as shown below. Charge your wireless mics before initial use.
The battery is fully charged after eight hours of continuous charging.
1. Place the battery with the label THIS SIDE UP
facing up onto the battery compartment.
2. Slide the battery door until it clicks into place.
3. Place the wireless mics on the charging cradles until
they are flush. The status indicator on the wireless
mic turns orange when charging, and turns off when
the battery is fully charged.
Use only the supplied rechargeable battery or replacement battery (model BT191665).
Quick reference guide - base unit
Wall outlet
AC power cord
1. Speakerphone
2. LCD display
3. Status indicators
Indicate the system status. See Status
•
Wall jack
indicators overview.
4.
• Press to show the menu.
• Press to select an item, or save an entry or
setting in a menu.
• While in a menu, press to return to the
previous menu.
1 (800) 222-3111
• While editing numbers or names, press to
or call .
delete a character; or press and hold to
delete all characters.
5. /
• Press to scroll through the menu,
phonebook, or call log.
• Press to adjust the ringer volume.
• During a call, press to adjust the listening
volume.
6.
• Press to make, answer, or end a call.
7. Dialing keys
• Press to enter numbers or characters.
• While entering numbers, press and hold
to insert a dialing pause.
• While editing names, press to add a space.
1. Status indicator
• Indicates the system status. See
Status indicators overview.
2. Rear microphone
3. Adapter jack
Quick reference guide - wireless mic
Base unit (front)
1. Microphone
• Functions as an extended microphone of the base unit during a call.
2. Status indicator
• Indicates the system status. See Status indicators overview.
3.
• During a call, press to mute or end mute all microphones in the system.
4. Battery door
5. Charging contacts
• Press to switch to tone dialing
temporarily when using pulse service
while on a call.
Status indicators overview
8. Front microphone
MUTE
9.
ALL
• During a call, press to mute or end mute all
microphones in the system.
10.
• Press to redial the last number dialed.
11.
• During a call, press to answer an incoming
call when you receive a call waiting alert.
12. Wireless mic
• See Quick reference guide - wireless mic.
13. Charging contacts
14. ( )
• Press to access the phonebook when idle.
( )
• Press to access the call log when idle.
Menu Scroll ( / )
• Press to scroll up or down while in the
menu, phonebook, or call log.
• While entering names or numbers, press
to move the cursor to right or left.
Base unit (rear)
5
(MUTE ALL)
Base unit status indicators
Power up • Turn green for about two seconds.
On a call • Turn green during a call.
• Red when the system is muted during
a call.
Incoming • Flash green when there is an
call incoming call.
Wireless mic status indicator
Power up • Turns orange for about two seconds.
On the • Turns orange when charging in the
cradle cradle except during registration.
• Flashes red and green alternately,
when the non-registered wireless mic
is charging on the cradle.
Off the • Turns green during a call.
cradle
• Turns red when the system is muted
during a call.
• Off when the wireless mic is in idle
mode or without a battery.
• Flashes orange when the wireless mic's
battery is low.
• Flashes green when there is an
incoming call.
(x4) (x4)
• Flashes red slowly when the wireless
mic is:
• out of range; or
• not registered; or
• off cradle during paging (with a
paging tone).
During • Flashes red and green alternately.
User's manual Quick start guide
registration
1
2
3
4
