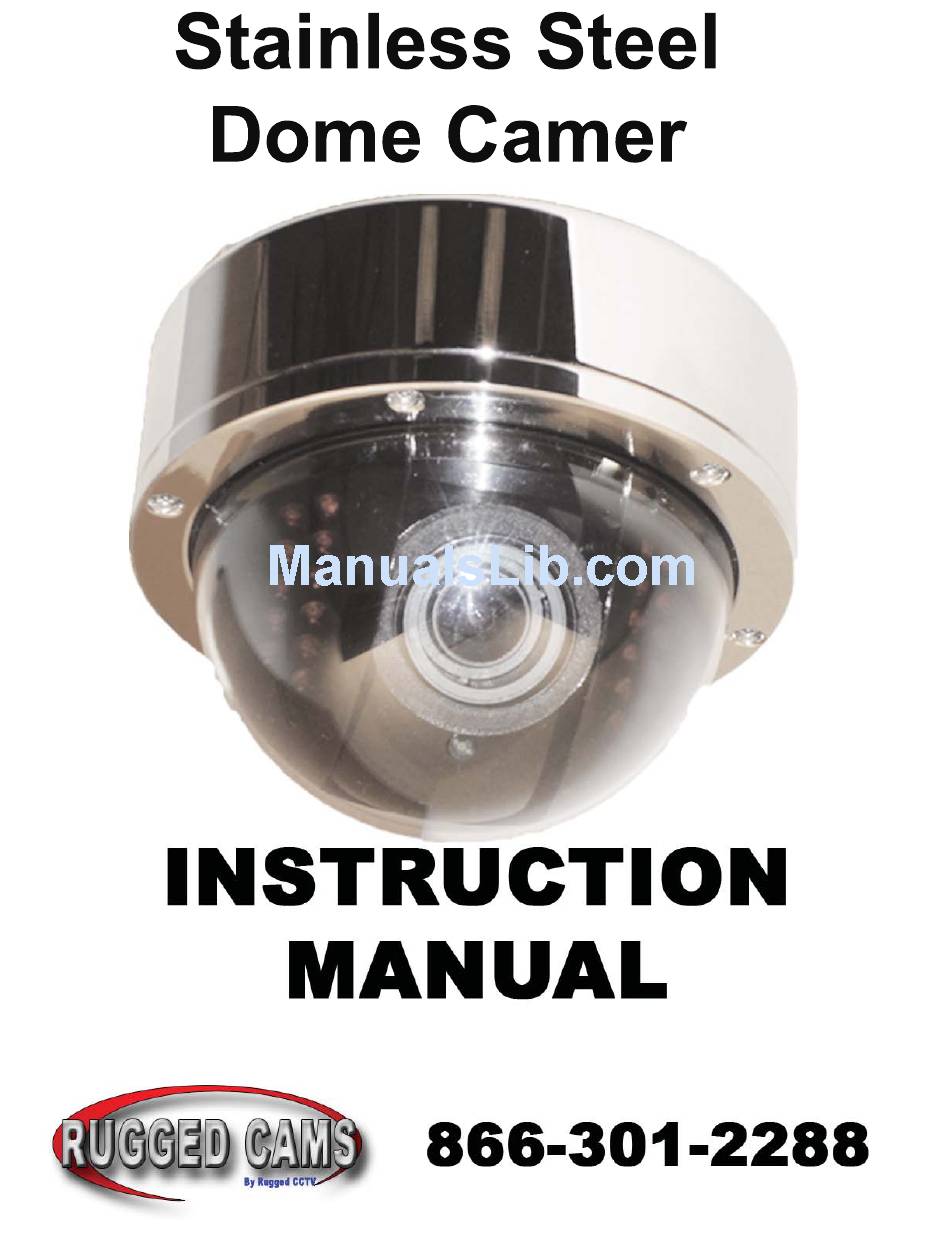

Rugged CCTV stainless steel dome camera Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the stainless steel dome camera and is the answer not in the manual?

Questions and answers

Related Manuals for Rugged CCTV stainless steel dome camera

Summary of Contents for Rugged CCTV stainless steel dome camera

  • Page 2 Features 1/3" 520K/610K Sony Exview HAD CCD II Minimum Resolution 0.1 Lux (F1.2, 50 IRE). S/N Ratio 52dB. High Resolution 680 TV Lines This camera has realized high resolution of 680 TV lines using the top-notch full digital image processing, 12 Bit A/D serial signal processing and special algorithm technologies. DNR (Digital Noise Reduction) The DNR technology eliminates noise thus generating a distinct and clear image.

  • Page 3: Specifications

    General Specifications & Functions Specifications Sub-items Items NTSC Device SONY 1/3" CCD SONY 1/3" CCD Total 1020(H) X 596(V) 1020(H) X 596(V) Effective 976(H) X 494(V) 976(H) X 582(V) Inter. H/V 15,734/59.94Hz 15,625/50Hz Sync LL H/V 15,750/60Hz 15,625/50Hz Horizontal / Verical Resolution 680 TV Lines Minimum illumination (F1.2) Color : 0.1 Lux(50IRE) / 0.02 Lux(15IRE)
  • Page 4 OSD Menu tree Sub-Menu Main Menu Descriptions AUTO DC Auto Iris, speed level LENS MANUAL Manual Iris AUTO Auto Iris, Shut + Auto iris, Brightness, AGC on/off, AGC brightness SHUTTER/AGC MANUAL Shut + AGC , shutter(1/50,1/60 ~1/10k), AGC Speed, Delay time, Frame size, Environment (in/outdoor) PUSH All pull-in USER1...

  • Page 5: Osd Menu Functions

    OSD Menu Functions Main Menu SETUP MENU LENS AUTO↵ SHUTTER/AGC AUTO↵ WHITE BAL ATW↵ BACKLIGHT PICT ADJUST ↵ MOTION DET NEXT↵ EXIT↵ SAVE ALL ●LENS The function is used to set the mechanical iris of the lens. ●SHUTTER/AGC This function is used to set AE or ME. ●WHITE BAL This function is used to set the white balance operation made.

  • Page 6: Key Functions

    NEXT Page SETUP MENU PRIVACY DAY/NIGHT AUTO↵ ATW↵ CAMERA ID SYNC LANGUAGE ENGLISH CAMERA RESET BACK↵ EXIT↵ SAVE ALL ●MOTINON DET The function is used to set the motion detection operation. ●PRIVACY The function is used to set up to eight privacy masks. ●DAY/NIGHT The function is used to set the Day/Night function.
  • Page 7 LENS ● “ " " ” This function can adjust the intensity of radiation incoming to the camera. Use the ○ switch to select a menu item. FUNCTION OPTION DESCRIPTION AUTO SHUTFIX + M IRIS , SHUT + M IRIS LENS MANUAL SHUT...
  • Page 8 SHUTTER/AGC ● “ " " ” FUNCTION OPTION DESCRIPTION SHUTTER/AGC AUTO Sets AE MANUAL Sets ME ■AUTO SETUP ↵ AUTO SETUP HIGH LUMINANCE MODE AUTO IRIS BRIGHTNESS IIIII IIIIII 024 LOW LUMINANCE MODE BRIGHTNESS X0.50 RETURN↵ FUNCTION OPTION DESCRIPTION AUTO IRIS SHUTFIX + MIRIS "...
  • Page 9 WHITE BAL ● “ " " ” White balance can be set to ATW, PUSH, USER1, USER2, ANTI CR, MANUAL or PUSH LOCK. ATW (Auto Tracking White balance) and PUSH (Full pull-in) are continuously monitoring/analyzing the color temperature of the incoming light and correcting the white balance.
  • Page 10 ■USER1 WB USER1 B-GAIN IIIIIIIIII III 045 R-GAIN I IIIIIIIIIIII 026 RETURN↵ FUNCTION OPTION DESCRIPTION B-GAIN 000 - 255 Used for operating the B gain in the WB fixed gain mode R-GAIN 000 - 255 Used for operating the R gain in the WB fixed gain mode ■USER2 WB USER2 B-GAIN...
  • Page 11 BACKLIGHT ● FUNCTION OPTION DESCRIPTION Backlight compensation OFF BACKLIGHT Backlight compensation ON High light compensation ON PICT ADJUST ● “○” PICT ADJUST MIRROR BRIGHTNESS IIIIIIIIIIIII CONTRAST IIIIIIII IIIII 128 SHARPNESS IIIIIIII IIIII 128 IIIIIIII IIIII 128 GAIN IIIIIIII IIIII 128 RETURN↵...
  • Page 12 MOTION DET ● MOTION DET DETECT SENSE IIIIIIIIIII II BLOCK DISP MONITOR AREA OFF AREA SEL II IIIIIIIIIII 022 BOTTOM IIIIIIIIII III 108 LEFT II IIIIIIIIIII 042 RIGHT IIIIIIIIII III 211 RETURN↵ FUNCTION OPTION DESCRIPTION DETECT SENSE 000-127 Sets the motion detection sensitivity. "...
  • Page 13 FUNCTION OPTION DESCRIPTION AREA SEL 1/8,2/8,3/8,4/8,5/8,6/8,7/8,8/8 Selects the mask frame to be adjusted. 000-244(NTSC) Sets the top side of the mask frame selected by the AREA SEL 000-288(PAL) parameter. BOTTOM 000-244(NTSC) Sets the bottom side of the mask frame selected by the AREA 000-288(PAL) SEL parameter.
  • Page 14 ● “○” This item is used to set the noise reduction Y LEVEL II IIIIIIIIIII 004 RETURN↵ FUNCTION OPTION DESCRIPTION Y LEVEL 000-015 Sets the Y filter strength. CAMERA ID ● “ " " ” FUNCTION OPTION DESCRIPTION CAMERA ID Camera ID display OFF.
  • Page 15 SYNC ● “ " " ” This option is not adjustable – it’s always on. The Line-Lock (L/L) feature allows the camera to synchronize its frame rate to the power line phase. The function is only available when the camera is operated by AC power. It allows the reduction of the fluorescent lights color rolling effect. When using 12v DC power, the camera is automatically set to internal (INT) synchronization mode.
