Page 1: User Manual

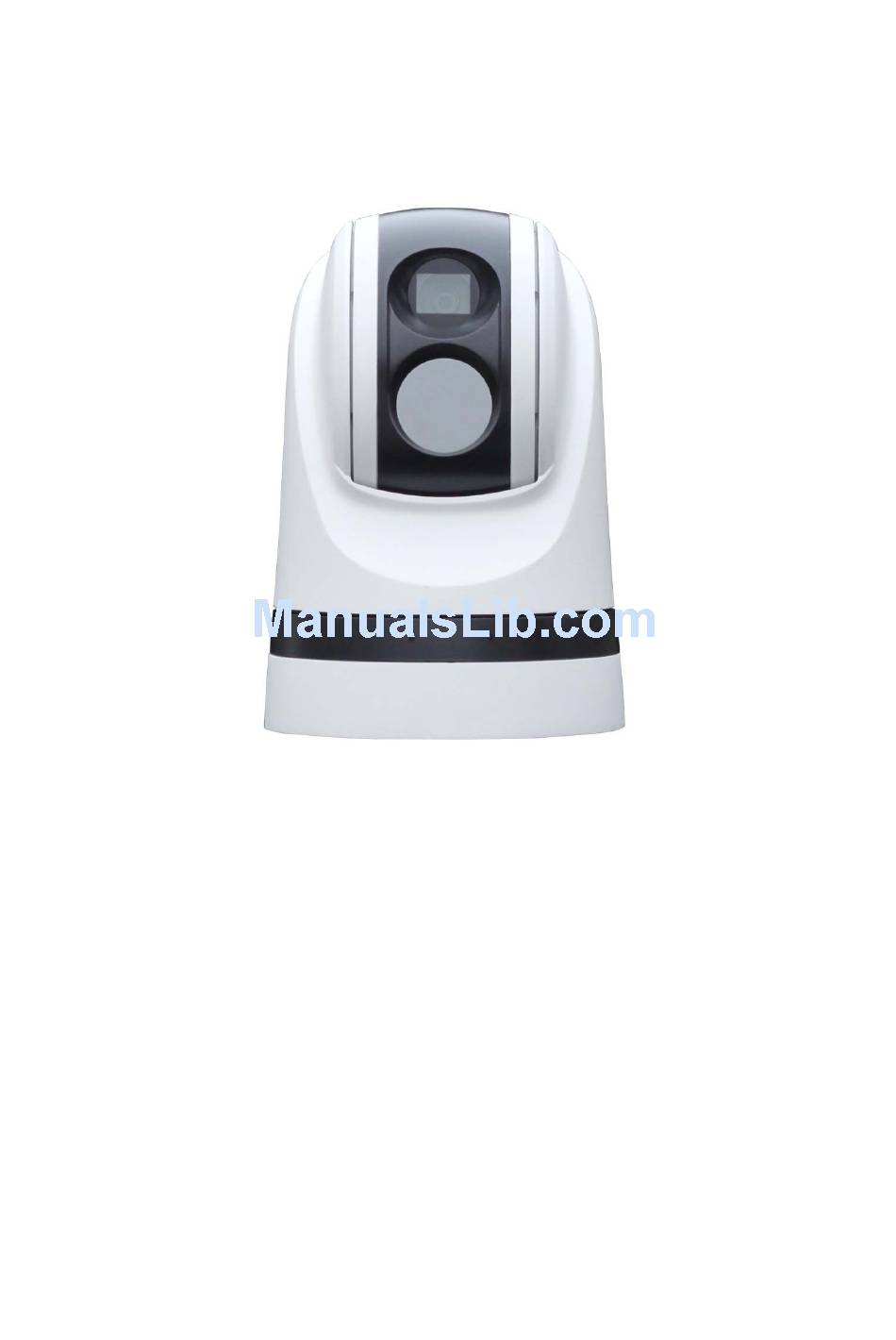

USER MANUAL Portable All-Condition Rugged PTZ Camera (Thermal Imaging Version) ... - Page 3 ...
- Page 4 Safety Notes Thank You for Choosing Our Portable All-Condition Rugged PTZ Camera! When you open the box: 1. Check that the packing and the contents are not visibly damaged. Contact the retailer immediately if any parts are either missing or damaged. 2.
-
Page 5: Table Of Contents
Table of Contents Safety Notes --- Important!!! ................1 About The Product ..................2 Features ......................2 Functions ......................3 Technical Data ....................6 Preparation ...................... 8 Dip Switch ...................... 8 Initial Power On Test ..................9 Installation Place .................. -
Page 7: Safety Notes
Safety Notes --- Important!!! The following important notes must be followed carefully to run the camera and respective accessories in total safety. The camera and relative accessories are called video system in this section. [Note] Do not point the camera modules to the sunlight. Otherwise, serious damage to the PTZ camera may occur. -
Page 8: About The Product
About The Product PATC series Thermal imaging system camera is designed for important video surveillance application such as Police, Rescue, Border Patrol, Marine, etc. (fixed and mobile video surveillance application.) It consists of: thermal imaging sensor, high resolution zoom module, precise PTZ system, optional damping systems. -
Page 9: Functions
About The Product Precise PTZ system with high precision and higher holding torque, PTZ positioning precision up to +/-0.05°; Protocol & Baud rate self-adaptive, soft address supported, convenient for use; Optional damping system, for tough applications; ... -
Page 10: Zoom Control
About The Product Pan/Tilt and camera to that position. User can save and call presets easily and promptly by using keyboard controller or infrared controller. The camera supports up to 256 presets. Zoom control User can adjust zoom wide or tele by controller and get desired image. IRIS control System defaults Auto IRIS. -
Page 11: Auto Flip
About The Product Image Flip Enable you to view image easily when PTZ is either installed on roof of a car or is mounted on the ceiling. Auto Flip When the camera tilts downward and goes just beyond the vertical angle, the camera rotates 180º. When the camera rotates (flips), the camera starts moving upward as you continue to hold joystick in the down position. -
Page 12: Technical Data
About The Product Technical Data Model PATC‐G4028 Thermal Imaging Camera Sensor Type Un‐Cooled αSi Resolutions 384X288 Sensor Size 25μm×25μm Focal 40mm Focus Electronic IRIS 1.0 FOV 13.7°x10.3° 2000m (Vehicle) Detecting Range 800m (Man) 800m (Vehicle) Recognition Range 400m (Man) Digital Zoom 1X, 2X, 4X Video Display White / Black Daylight Imaging Camera Video Sensor 1/4" SONY EX‐View HAD CCD Effective Pixel PAL:752(H)×582(V);NTSC:768(H)×494(V) Resolution ... - Page 13 About The Product Video System PAL / NTSC Control speed:0.3° ~60°/s, adjustable; Tilt Speed Preset speed:90°/s Preset 256 ±0.05° Preset Precision PTZ stability Two Degrees of Freedom gyroscope PTZ stability control system (Optional) General 1Channel Thermal Imaging Video; Video Output 1Channel Daylight Video; 1Channel Switch Video; Address 0~255 Power 35W/50W (Heater On) Working Tem. ‐45℃~+55℃ IP Index IP67 Anti‐Vibration Pan 9g, Tilt 15g Wind Resistance 180 km/h Φ190(mm)×275(mm) w/o damper Dimension Φ190(mm)×300(mm) with damper (optional) 6KGS w/o damper Weight ...
-
Page 14: Preparation
Preparation This section contains detailed instructions for installing the camera. These instructions assume that the installer has a good knowledge of installation techniques and is capable of adopting safe installation methods. Dip Switch The factory default is: Camera Address Protocol Baud Rate 1 ... -
Page 15: Initial Power On Test
Preparation Initial Power On Test To ensure the camera works well after installation, please power on it for an initial test with the following steps: 1. Connect the camera with correct power supply; 2. Connect control cable, video cable; 3. -
Page 16: Installation Place
Preparation If the camera fails at initialization, the following message will show on screen. DOME ID：001 PROTOCOL：PELCO-D/P BAUD：9600 SOFTWARE VER： 1.4.4 CAM FAIL Please refer to the following code to check the failures: PAN FAIL Failure of pan initialization TILT FAIL Failure of tilt initialization CAM FAIL Failure of zoom camera initialization P/T FAIL ... -
Page 17: Installation
Installation Mounts The PTZ camera provides fixed mounts as standard, and damping system as optional. Fig. 4: Fixed Mounts (with and w/o damping system) ... -
Page 18: Installation
Installation Installation To set the baud rate, protocol and camera hard address: 1. Remove the PTZ bottom plate; 2. Set DIP Switch for baud rate, protocol and camera address; 3. Fix the bottom plate. Make sure the sealing is well installed. Fig. -
Page 19: Camera Cable Package
Installation Fig. 7: Mount the Installation Plate 6. Fix the camera to the installation plate with a screw. Fig. 8: Fix the Installation Plate Camera Cable Package Connect the cable with the right pins as per following pictures. ... - Page 20 Installation Fig. 9: Cable Package 12Pin Cable: Pin Definition 1 Daylight Video ‐ RS485 + 2 Daylight Video + RS485 ‐ 3 DC12V Thermal Video ‐ 4 DC12V Thermal Video + 5 Switch Video ‐ 6 Switch Video + [Note] Please make sure the camera is working with a right power supply. Wrong cable connection may cause damage to the device.
-
Page 21: Operation
Operation Special Control Panel Commands The camera can be programmed and operated by using various quick control panel commands. Preset Number Function Default Value ≤20 ~ ≥80 General preset positions *** GO TO Manual switch between daylight video and thermal video. *** GO TO 22 Auto switch between daylight video and thermal video. √ ... -
Page 22: Operation
Operation Table 2 Special Commands means the function is not on or programmed; √ means the function is set as default; On means the function is on as default; Off means the function is off as default. [Note] The camera can automatically detect and set protocol and baud rate as per the whole system. There may be no response to the first several operations after the power on as it is detecting the setting. - Page 23 Operation Digital Noise Reduction The function is off as default. When the camera is in color mode, it is recommended to turn off the function, or there will be video trails. When the camera is in mono mode, call preset 27 to turn on/off the function. There are 1~5 steps from low to high.
- Page 24 Operation Safe Position of Thermal Camera When the PTZ camera is stand by, call preset 65 and the PTZ camera will tilt to -90Deg and hide the thermal camera to a safe position. The PTZ camera does not respond to any command until preset 66 is called and the thermal camera moves away from the position.
-
Page 25: Troubleshooting
Trouble Shooting Problems Possible Causes Solutions Power supply failure Replace power supply No action when powered on Wrong connection of the power Check & reconnect the cables Mechanical failure Repair Abnormal self‐test with Camera inclined Reinstall the camera motor noise Inadequate power supply Replace the power supply Video signal failure Reinstall camera Normal self‐test but no Wrong connection of the video Check & reconnect the cables images Camera damaged Replace the camera Wrong connection of RS485 Check and reconnect the cable ... -
Page 26: Annex: Dip Switch - Camera Address
Annex: Dip Switch – Camera Address ADDRESS 1 2 8 0 OFF OFF OFF OFF 1 ON OFF OFF OFF 2 OFF ON OFF OFF 3 ON ON OFF OFF 4 OFF OFF OFF OFF 5 ON OFF OFF ... - Page 27 Annex: Dip Switch – Camera Address 39 ON ON OFF OFF 40 OFF OFF OFF OFF 41 ON OFF OFF OFF 42 OFF ON OFF OFF 43 ON ON OFF OFF 44 OFF OFF OFF OFF 45 ON ...
- Page 28 Annex: Dip Switch – Camera Address 79 ON ON OFF 80 OFF OFF OFF 81 ON OFF OFF 82 OFF ON OFF 83 ON ON OFF 84 OFF OFF OFF 85 ON OFF OFF 86 OFF ON OFF 87 ...
- Page 29 Annex: Dip Switch – Camera Address 119 ON ON OFF 120 OFF OFF OFF 121 ON OFF OFF 122 OFF ON OFF 123 ON ON OFF 124 OFF OFF OFF 125 ON OFF OFF 126 OFF ON OFF ...
- Page 30 Annex: Dip Switch – Camera Address 159 ON ON OFF ON 160 OFF OFF OFF ON 161 ON OFF OFF ON 162 OFF ON OFF ON 163 ON ON OFF ON 164 OFF OFF OFF ON 165 ON OFF ...
- Page 31 Annex: Dip Switch – Camera Address 199 ON ON ON 200 OFF OFF ON 201 ON OFF ON 202 OFF ON ON 203 ON ON ON 204 OFF OFF ON 205 ON OFF ON 206 OFF ON ON ...
- Page 32 Annex: Dip Switch – Camera Address 239 ON ON ON 240 OFF OFF ON 241 ON OFF ON 242 OFF ON ON 243 ON ON ON 244 OFF OFF ON ...
- Page 33 Modification History Revision Date of Release Modified Contents Ver 1.0 July 1 2012 Official release of first version Ver 1.1 October 31 2012 Official release of second version Ver 1.2 Jan 5th 2013 Official release of third version Ver 1.3 Feb 18 2014 Official release of fourth version ...
