Rugged CCTV Sentry-700 Instruction Manual

Dome & infrared dome camera

Advertisement

Quick Links

Sentry-700
Dome & Infrared Dome Camera

INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Summary of Contents for Rugged CCTV Sentry-700

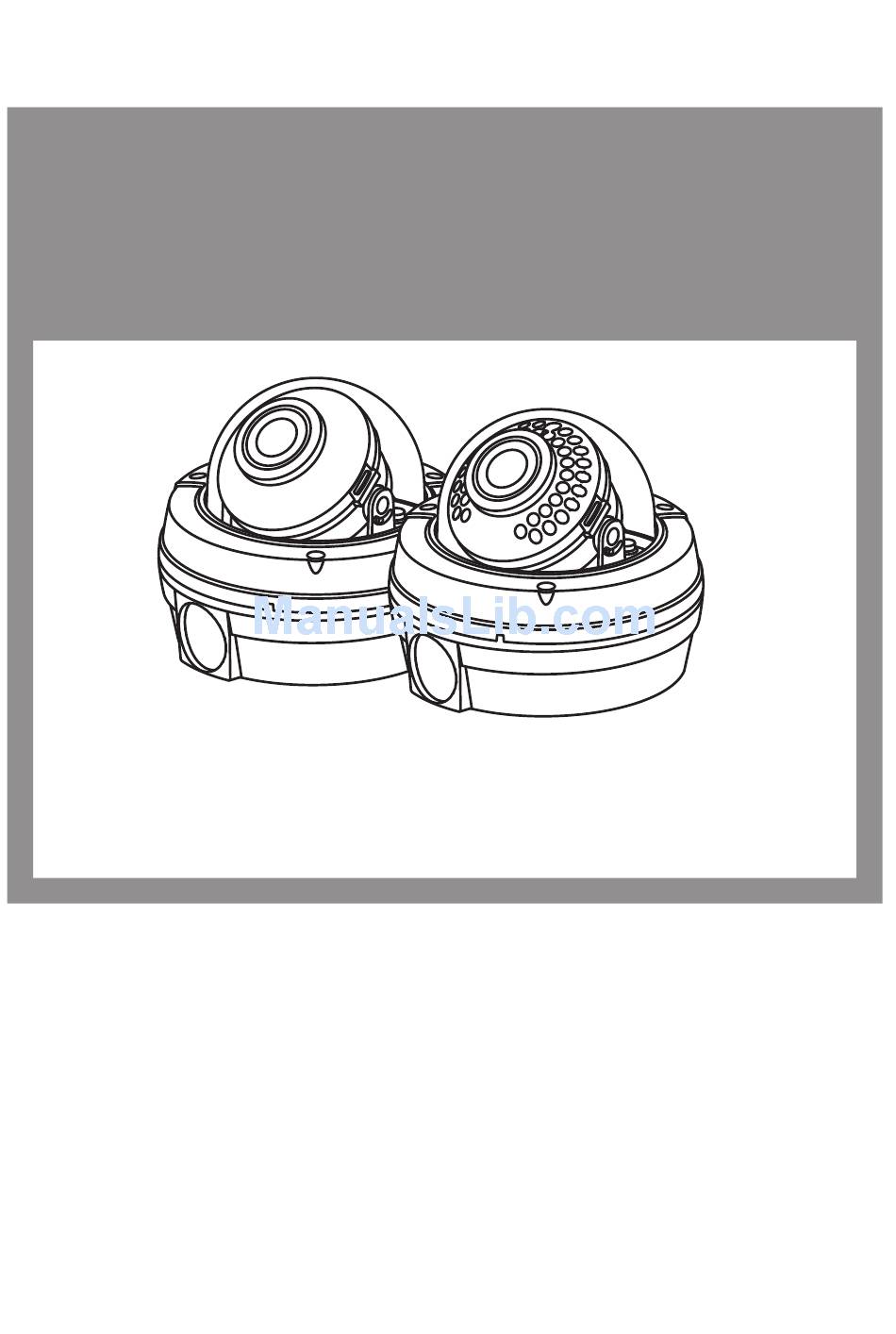

  • Page 1: Instruction Manual

    Sentry-700 Dome & Infrared Dome Camera INSTRUCTION MANUAL...
  • Page 3: Table Of Contents

    CONTENTS WARNING & CAUTION GENERAL FEATURES NAME OF EACH PART INSTALLATION CONNECTION SPECIFICATIONS OSD MENU SETTING TROUBLESHOOTING DIMENSIONS...
  • Page 4: Warning & Caution

    WARNING & CAUTION If you fail to read this information and handle the product incorrectly, death or serious injury may occur. The unit should be installed by the trained Personnel. Switch off immediately if the product emits smoke or abnormal heat. Never install the product in area exposed to oil or gas.
  • Page 5 WARNING & CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"...
  • Page 6: General Features

    GENERAL FEATURES IP-68 rated waterproof frame housing An ideal waterproof frame housing suitable for the outdoor circumstance. 3-Axis bracket (Ceiling, Flush, Wall mount available) This 3-Axis bracket enable you to install easily anywhere. Compatible with a junction box It can compatible with a junction box, therefore easy to install. Easy installation by mount bracket.
  • Page 7 GENERAL FEATURES SMART 3DNR (3D Digital Noise Reduction + Motion Detection) By adopting unique digital processing technology, it can reduces the gain noise and produce clear, obvious images in low illumination environments. F-DNR (Fog Digital Noise Reduction) You will have a distinct image in any severe circumstances: ambient light, fog, rain, snow, etc.
  • Page 8: Name Of Each Part

    NAME OF EACH PART (Built in IR LED Type) Bubble 100 Phi Top Cover Main Body Bottom Cover Mount Bracket Cover Lens OSD Menu Switch Extra Video Output 10. Cap Screw (PT 3/4)
  • Page 9 NAME OF EACH PART (Without IR LED Type) Bubble 100 Phi Top Cover Main Body Bottom Cover Mount Bracket Cover Lens OSD Menu Switch Extra Video Output 10. Cap Screw (PT 3/4)
  • Page 10: Installation

    INSTALLATION 84mm Calblock ( 6x30) Hole Diameter : 6mm Depth : 30mm Template Label Seal Taple Ceiling Mount Screw ( 4x25) Holder Holder Wall Mount 1. When you need to install a camera on the surface of a concrete wall, you can drill a hole like Fig.3 exactly by using a template label offered by accessory.
  • Page 11 INSTALLATION Wrench 1.5mm 5. Like Fig.6, please join bottom cover to clockwise until it stops after inserting, kindly tighten screw on both sides of the mount bracket. 6. After connect Extra Video Connector to the screen, you can place the camera to desired direction.
  • Page 12 INSTALLATION Wrench 2.5mm 8. After close Groove of Top Cover and Jut of Bottom Cover, please tighten screws surely to prevent a leak of water. How to install Flush Mount Hole Diameter: 100mm Holder O-Ring Screw Drill Dia: 4.5mm ( 4x25) 1.
  • Page 13 INSTALLATION How to install Wall Mount Bracket Calblock ( 8x35) Template Label 46mm Hole Diameter : 8mm Depth : 40mm Screw M4x60 Screw ( 5x35) Nut M4 1. When you need to install a camera on the surface of a concrete wall, you can drill a hole like Fig.10 exactly by using a Template Label offered by accessory.
  • Page 14 INSTALLATION Screw (M4x8) 5. After join a Adapter to the Mount Bracket, please combine the camera by the same way like explained in the previous. Seal Tape Wrench 2.5mm Wrench 2.0mm 6. After pass a cable to Wall Mount Bracket, please insert the Camera to clockwise then screw it.
  • Page 15: Connection

    CONNECTION DUAL POWER TYPE *A power source connection is nonpolar. 1. Terminal Block (Accessory) 2. DC Jack Cable (Accessory) 3. Adaptor (DC12V or AC24V) 4. Video Output (CVBS) 5. Seal Tape DC12V POWER TYPE *A power source connection is nonpolar. 1.
  • Page 16: Specifications

    SPECIFICATIONS (Built in IR LED /760H Type) TV SYSTEM NTSC Total pixels 811(H) x 508(V) 795(H) x 595(V) Effective pixels 768(H) x 494(V) 752(H) x 582(V) Frequency 15.734[KHz] (H) / 59.94[Hz] (V) 15.625[KHz] (H) / 50[Hz] (V) Auto/FLK/Manual(1/60~100,000 sec) Auto/FLK/Manual(1/50~100,000 sec) NEXT CHIP HAWK-II 1/3 inch SONY 760H EXVIEW HAD CCD II Sensor...
  • Page 17 SPECIFICATIONS (Built in IR LED /960H Type) TV SYSTEM NTSC Total pixels 1020(H) x 508(V) 1020(H) x 596(V) Effective pixels 976(H) x 494(V) 976(H) x 582(V) Frequency 15.734[KHz] (H) / 59.94[Hz] (V) 15.625[KHz] (H) / 50[Hz] (V) Auto/FLK/Manual(1/60~100,000 sec) Auto/FLK/Manual(1/50~100,000 sec) NEXT CHIP HAWK-II 1/3 inch SONY 960H EXVIEW HAD CCD II Sensor...
  • Page 18 SPECIFICATIONS (Without IR LED /760H Type) TV SYSTEM NTSC Total pixels 811(H) x 508(V) 795(H) x 595(V) Effective pixels 768(H) x 494(V) 752(H) x 582(V) Frequency 15.734[KHz] (H) / 59.94[Hz] (V) 15.625[KHz] (H) / 50[Hz] (V) Auto/FLK/Manual(1/60~100,000 sec) Auto/FLK/Manual(1/50~100,000 sec) NEXT CHIP HAWK-II 1/3 inch SONY 760H EXVIEW HAD CCD II Sensor...
  • Page 19 SPECIFICATIONS (Without IR LED /960H Type) TV SYSTEM NTSC Total pixels 1020(H) x 508(V) 1020(H) x 596(V) Effective pixels 976(H) x 494(V) 976(H) x 582(V) Frequency 15.734[KHz] (H) / 59.94[Hz] (V) 15.625[KHz] (H) / 50[Hz] (V) Auto/FLK/Manual(1/60~100,000 sec) Auto/FLK/Manual(1/50~100,000 sec) NEXT CHIP HAWK-II 1/3 inch SONY 960H EXVIEW HAD CCD II Sensor...
  • Page 20: Osd Menu Setting

    OSD MENU SETTING MENU SUB MENU BRIGHTNESS 0~100 IRIS SPEED LENS VIDEO 0~100 BRIGHTNESS MANUAL AUTO(SHUT.MIN, SHUT.MAX), 1/60(50), FLK, MANUAL(LEVEL1/60, FLK,1/250,1/500, SHUTTER 1/1000,1/2000,1/5000,1/10000,1/20000,1/50000,1/1000000 LOW,MIDDLE,HIGH EXPOSURE SENS-UP AUTO x2,x4,x6,x8,x10,x12,x14,x16,x24,x32,x64,x128,x256 LOW-LEVEL 0~15 D-WDR HIGH-LEVEL 0~15 VALUE LOW, MIDDLE, HIGH AREA SINGLE, DOUBLE DEFAULT BACK LIGHT 0~100...
  • Page 21 OSD MENU SETTING MENU SUB MENU AREA AREA DISPLAY ON,OFF MOTION 0~100 VALUE ON,OFF MOTION VIEW AREA AREA DISPLAY ON,OFF PRIVACY 0~15 COLOR TRANSFER RANGE x1.0~x32 -100~100 D-ZOOM TILT -100~100 RANGE x2.0~x5.0 POSITION SMART D-ZOOM D-EFFECT SENSITIVITY 0~100 FUNCTION TIME 0~15 ON,OFF FREEZE...
  • Page 22: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION No picture Check if the power cable is connected properly. Check if the video cable is connected correctly. Camera with excessive Check if the power supply meets the minimum heat, Abnormal motion requirements and that the power supply is or Black lines on the functioning properly.
  • Page 23: Dimensions

    DIMENSIONS...
  • Page 24 MP86C032...
