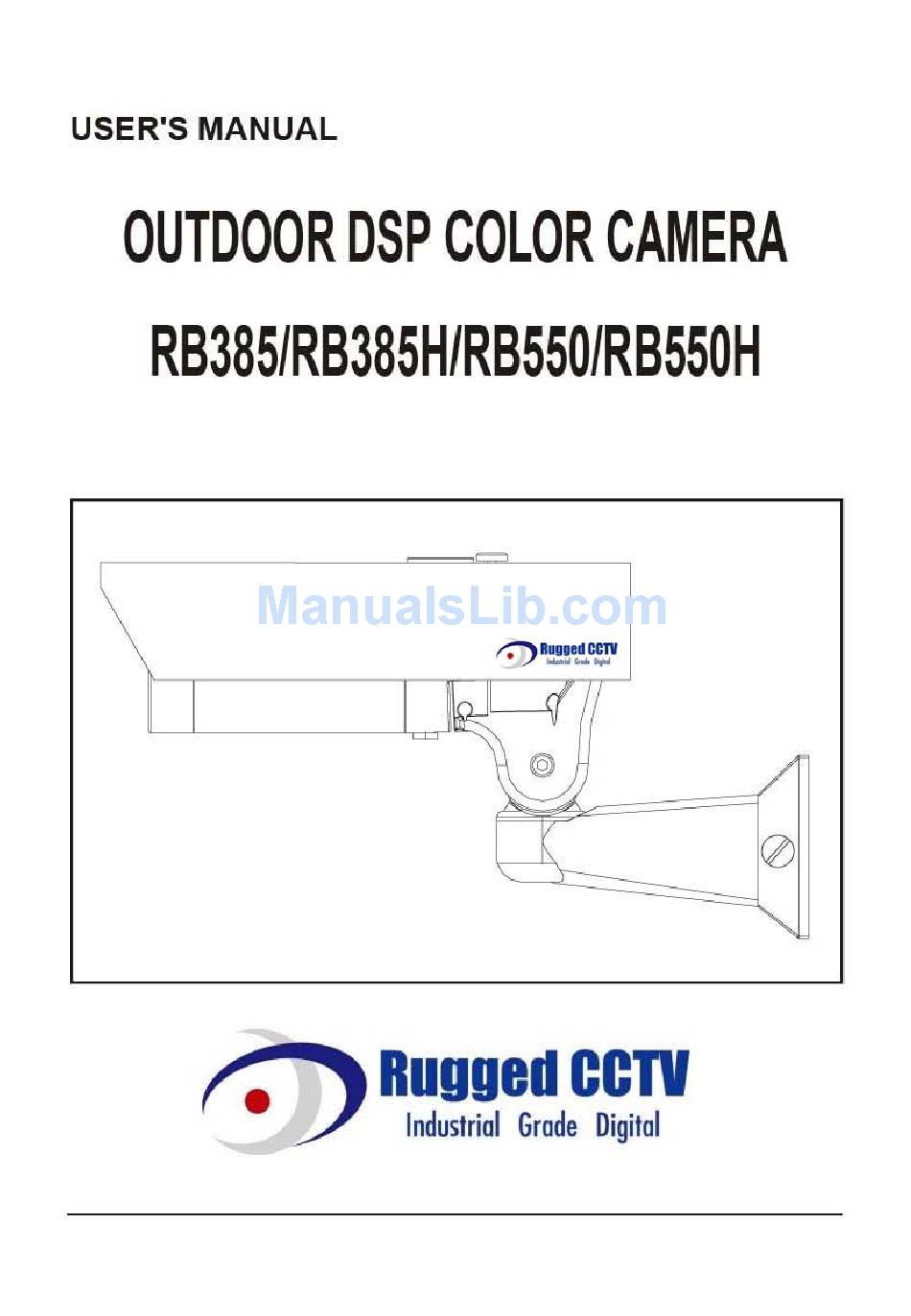

- Page 1 Rugged CCTV 5327 Cedar Creek, Kemp, Texas 75143, USA Tel: 866-301-CCTV, Fax: 903-498-8989...
-
Page 2: Table Of Contents
CAUTION : REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 3 FEATURES Cable managed bracket with stylish designed bracket assembly, with cables concealed inside the bracket. 1/3" Format Sony Super HAD CCD DSP(Digital Signal Processing)to provide a clear, high-resolution image in all types of lighting situations Horizontal Resolution of 480 TV Lines Auto &...
-
Page 4: Part Names
PART NAMES 1. GLASS HOLDER : Retaining ring for front glass. (To keep the unit weather proof, do not unscrew this section) 2. HOUSING : Unscrew this section to gain access to adjust the lens and dip switches. 3. LENS : Vari-Focal Lens provide manual zoom and focus adjustments to Set the field of view for the application. -
Page 5: Controls
CONTROLS ( DC12V FUNCTION CONTROL BOARD 1. INT/LL Internal/Line Lock selection. Internal : only DC12V Linelock : only AC24V ~ 2~4. WHITE BALANCE SWITCHES(ATW=Auto White Balance /MWB =Manual) ATW Mode Default setting. Camera will adjust white balance automatically. Push Mode Places camera in auto white balance mode without the usual range limits to help with certain lighting conditions(Example: a scene with strong red lighting). - Page 6 Set DIP switches to the <Hold/MWB Lock> position to maintain this settings. Note :The camera white balance can also be set manually as shown in the chart above on right. 5. AGC ON/OFF Automatic Gain Control on/off 6. ALC/ELC Auto-iris lens / Electronic shutter 7.
-
Page 9: Installation
INSTALLATION 3 - 2. Connecting the Power Connect the appropriate cable to the power cable of the camera. Referring to the specified label of the camera. (Be sure to match the correct polarity in case of 12V DC) Insert the cable into the shrinkable tube A which shall be around 10mm and tube B which shall be around 3mm. - Page 10 INSTALLATION 4. Sunshield Installation Locate it in a proper place, after inserting the sliding groove part of the sunvisor into the rail of holder stand, and then tighten the fixed bolt to fix it. FIXED BOLT GROOVE RAIL RAIL HOLDER STAND SUNSHIELD...
- Page 11 Unscrew Power on focus for the...
- Page 13 Put the Heater back on, in its original position, after adjustment. HEATER Slide the housing back on as shown below. HOUSING Screw the Housing clockwise to close after setting. (Be sure that the cover should be tightened completely in order to prevent the penetration of water or humidity.) Make sure the O-ring is in place.
- Page 14 INSTALLATION 6. Flexible Camera Angle Settings The bracket assembly allows to tilt +25 ~ - 45 and to pan L/R making it possible to freely adjust the camera angle. 6-1. TILT ADJUSTMENT Loosen the tilt lock screw in a counterclockwise direction and adjust the tilt angle for the camera.
-
Page 15: Troubleshooting
TROUBLESHOOTING If there is no picture on the monitor screen, make sure all the cables are properly connected. make sure the monitor is properly adjusted. If the picture on the monitor screen is not clear, clean the lens. adjust the lens focus. If there is a video noise or other unknown problems, stop using the camera and call your local dealer. -
Page 16: Specifications
Operating Temp. (heater) Operating Temp. (no heater) Operating Humidity Weight Dimensions RB358 RB358H SONY 1/3“ Super HAD CCD sensor NTSC: 768(H)x494(V) 480 TV lines 15.734KHz(H)x59.94Hz(V) 2 : 1 Interface 1/60 - 1/100,000 Sec More than 48dB DC Drive Iris Control 3.5 –... - Page 17 DIMENSIONS DIMENSIONS UNITS:mm -16-...
