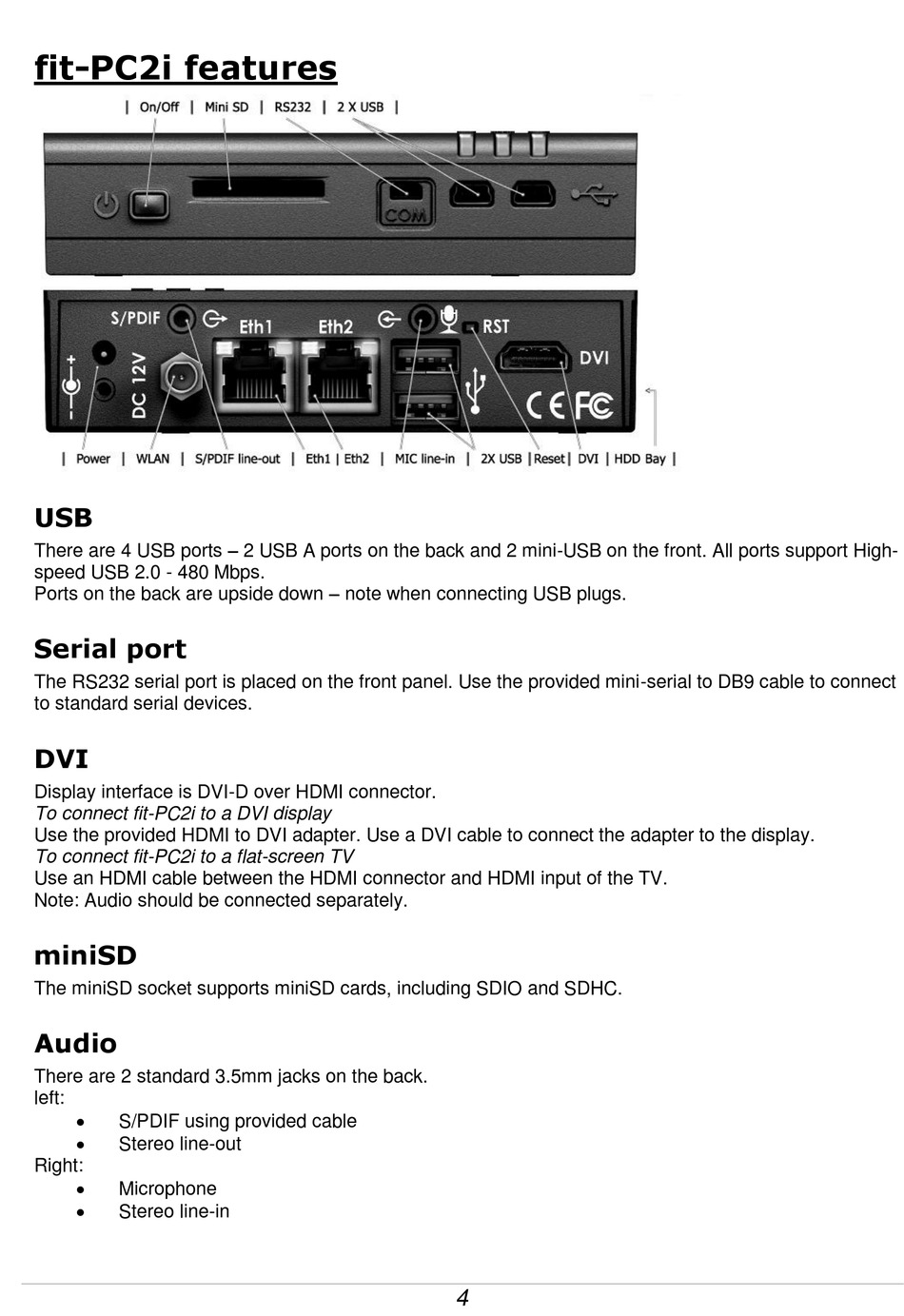

fit-PC2i features
USB
There are 4 USB ports – 2 USB A ports on the back and 2 mini-USB on the front. All ports support High-
speed USB 2.0 - 480 Mbps.
Ports on the back are upside down – note when connecting USB plugs.

Serial port

The RS232 serial port is placed on the front panel. Use the provided mini-serial to DB9 cable to connect
to standard serial devices.
DVI
Display interface is DVI-D over HDMI connector.
To connect fit-PC2i to a DVI display
Use the provided HDMI to DVI adapter. Use a DVI cable to connect the adapter to the display.
To connect fit-PC2i to a flat-screen TV
Use an HDMI cable between the HDMI connector and HDMI input of the TV.
Note: Audio should be connected separately.
miniSD
The miniSD socket supports miniSD cards, including SDIO and SDHC.
Audio
There are 2 standard 3.5mm jacks on the back.
left:

S/PDIF using provided cable

Stereo line-out
Right:

Microphone

Stereo line-in
