X-TRA TV KIT

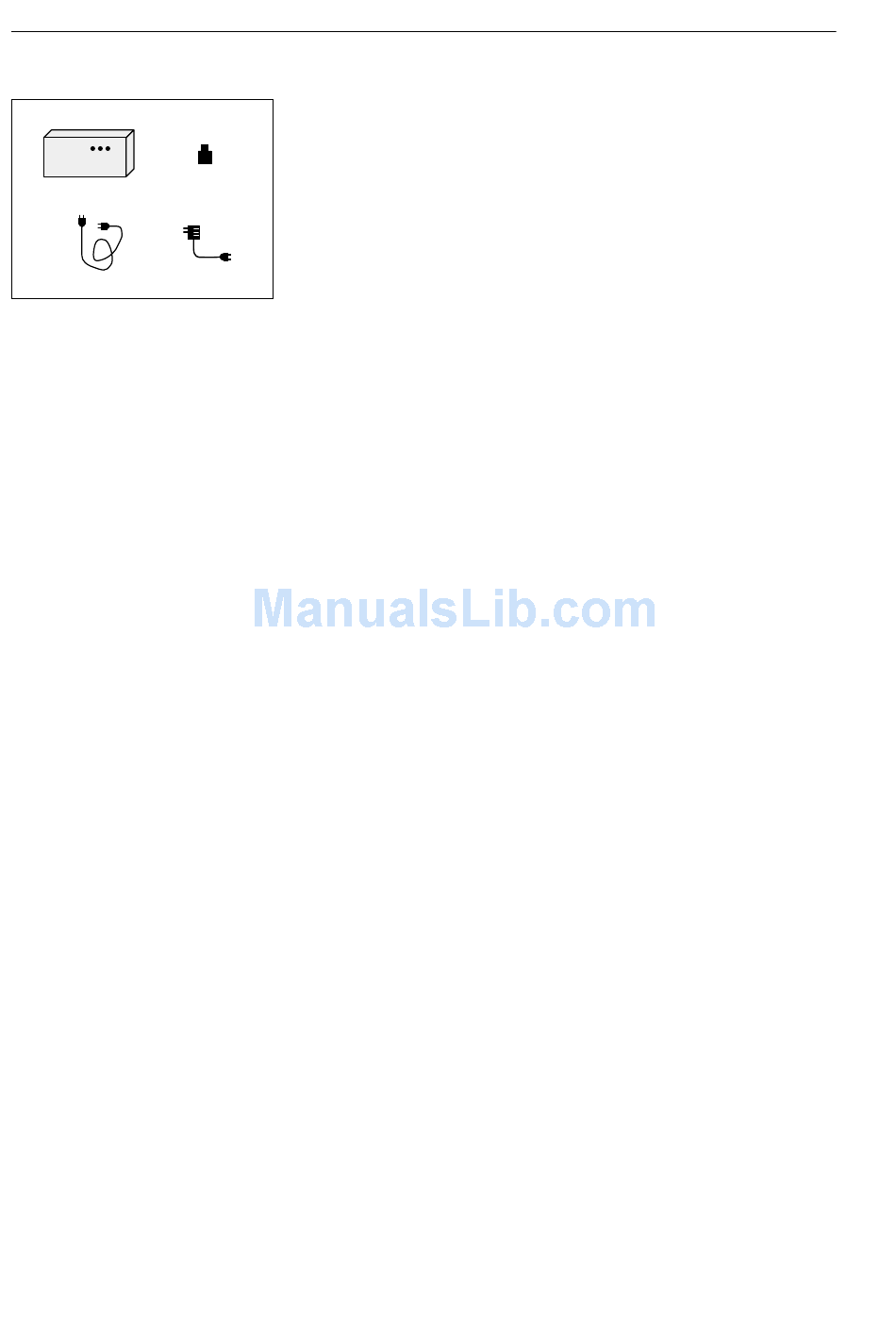

The X-tra TV kit contains an MCL 2AV panel, a mains adaptor, a 7-pin AV
cable, a Beolink 1000 wall fixture as well as fittings for installation.
The X-tra TV kit is used in those rooms where you wish to have sound and
picture via a Bang & Olufsen TV set. The 7-pin AV cable forms the
connection between the MCL 2AV panel and the TV set. The mains
adaptor supplies power to the MCL 2AV panel. The Beolink 1000 wall
fixture is intended as a storage place for the remote control terminal.
In addition to using the centrally placed audio and video system via the X-
tra TV kit, it is possible to connect local sources (CD player and tape
recorder) to the MCL 2AV panel. Connection of local sources allows you
to listen to a CD player or a tape recorder independently of the centrally
placed products. In the link room with the X-tra TV kit, the volume can
be adjusted without affecting the volume in other rooms.
If the centrally placed audio system is set to a very low-volume starting
level, volume adjustment of the X-tra TV in the link room will have a
slight effect on the volume in other rooms.
In addition to the content of the X-tra kit and the TV set, some MCL cable
and perhaps some plugs and connection boxes are required.
(See the section on installation types, page 27, for further information, if
required).
When planning an installation, remember that both the TV set and the
MCL 2AV panel have to be connected to the mains.
