Summary of Contents for Williams Sound T2 863
- Page 1 T2 863 Transmitter, R2 863 Receiver 863 MHz Portable FM Listening System - Europe QUICK SETUP GUIDE MAN 182E...
-
Page 2: Operating Instructions
AND SLIDE IN DIRECTION OF ARROW) LANYARD SLOT 3. Plug a Williams Sound microphone into the microphone jack on the transmitter (Fig. B). Plug a Williams Sound A469 earphone into the headphone jack on each of the receivers (Fig. D). - Page 3 FIG. B: T2 863 Transmitter Top / Front LANYARD SLOT POWER SWITCH CHARGING MICROPHONE INDICATOR JACK LCD DISPLAY ADJUST BUTTONS MINI-B CHARGING < > LOCK PORT VOLUME SELECT LOCK BUTTON T2 863 CHARGING CONTACTS 4. Power on the transmitter by sliding the power switch from “OFF”...
- Page 4 CHARGING INDICATOR FIG. C: T2 863 Transmitter Display RF SIGNAL LOCK BATTERY STRENGTH SYMBOL LIFE LCD DISPLAY ADJUST BUTTONS CHANNEL MICROPHONE VOLUME LEVEL locked status, and battery level. (Fig. C, above) VOLUME SELECT LOCK BUTTON 6. Select the desired operating channel on the transmitter.

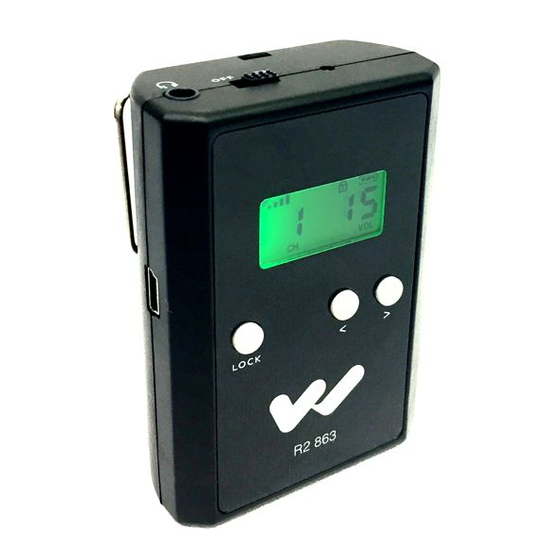

- Page 5 FIG. D: R2 863 Receiver Top/Front LANYARD SLOT POWER SWITCH CHARGING HEADPHONE INDICATOR JACK LCD DISPLAY ADJUST BUTTONS MINI-B CHARGING < > LOCK PORT * LOCK BUTTON R2 863 * Requires a standard USB A to Mini-B Cable to charge CHARGING CONTACTS Power on the receiver(s) by sliding the power switch...
- Page 6 CHARGING INDICATOR FIG. E: R2 863 Receiver Display RF SIGNAL LOCK BATTERY STRENGTH SYMBOL LIFE LCD DISPLAY ADJUST BUTTONS CHANNEL HEADPHONE VOLUME LEVEL LOCK BUTTON volume level, received RF signal strength, locked status, and battery level (Figure E). 10. Select the desired operating channel on the receiver (the same channel chosen in step 6).
-
Page 7: System Specifications
System Specifications T2 863 Transmitter Battery Type: Two AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), or Two AA 1.5 V rechargeable NiMH batteries (BAT 026-2), charge with USB A to Mini-B cable. Battery Life: Alkaline: 12 hours NiMH: 11 hours Operating Selectable, 16 channels, 863 –... - Page 8 System Specifications R2 863 Receiver Battery Type: Two AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), or Two AA 1.5 V rechargeable NiMH batteries (BAT 026-2), charge with USB A to Mini-B cable. Battery Life: Alkaline: 30 hours NiMH: 20 hours Operating Selectable, 16 channels, 863 –...
-
Page 9: Safety Information
Safety Information HEARInG SAFETy CAUTIOn! This product is designed to amplify sounds to a high volume. To protect your hearing and the hearing of others: 1. Make sure the unit is OFF or the volume is turned down before putting on the earphones. 2. -
Page 10: Recycling Instructions
Take batteries to a retail or community recycling location. Battery Information The T2 863 and R2 863 each use 2 AA batteries. We recommend using Williams Sound Alkaline batteries (BAT 001-2) or NiMH rechargeable batteries (BAT 026-2) for longer battery life than other brand batteries. -
Page 11: Year Warranty
Williams Sound warrants the T2 863 and R2 863 against defects in materials and workmanship under normal use and conditions for up to 2 years from the date of purchase. -
Page 12: Customer Service
If it is necessary to return the system for service, your Customer Service Representative will give you a Return Authorization Number (RA) and shipping instructions. 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2015 Williams Sound, LLC MAN 182E...
