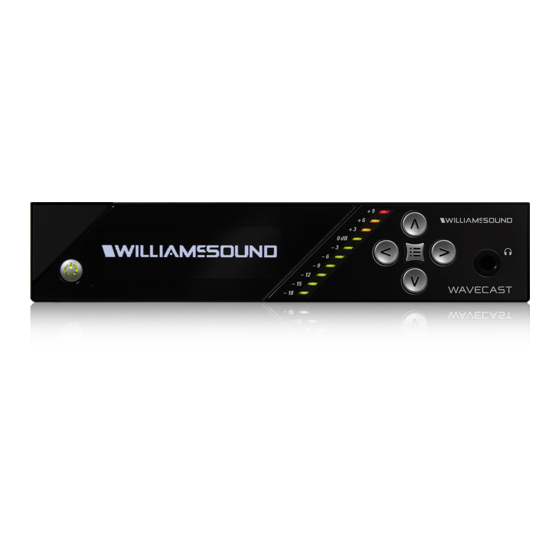

WaveCAST
Assistive Listening System WF T5
USER MANUAL
MAN 242A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WaveCAST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Williams Sound WaveCAST

Summary of Contents for Williams Sound WaveCAST

  • Page 1 WaveCAST Assistive Listening System WF T5 USER MANUAL MAN 242A...

  • Page 2: Table Of Contents

    WaveCAST Table of Contents Safety Warnings and Instructions   Recycling Instructions   System Overview   Quick Setup Instructions   Wi-Fi Network Required   Router and Network Equipment Selection   Wiring and Connections   Power Supply Connection   Ethernet and Dante RJ-45 Connection   Audio Source Connections   Connecting Additional Sound Systems  ...
  • Page 3 WaveCAST Web Control Interface   WaveCAST App   Connect to Wi-Fi Network   Connecting the App to the Channel   Listening via the App   Troubleshooting   Website problems   Audio problems   Reception or App difficulties   Device is not working over the hardwired Ethernet network   Specifications   2-Year Warranty  ...

  • Page 4: Safety Warnings And Instructions

    3. Do Not Plug in the input, output, Ethernet, or Dante connections while the power switch is switched to the ON position. 4. Do Not Touch the WaveCAST [D] with wet hands. Do not handle the WaveCAST [D] or power cord when your hands are wet or damp.

  • Page 5: Recycling Instructions

    WaveCAST provides true, professional audio quality over Wi-Fi , and features DSP audio processing. Setting up and configuring the WaveCAST for the Wi-Fi network is straightforward and simple. Up to four WaveCAST systems can be connected to the same Wi-Fi network to provide multiple listening channels, supporting 45 connections in unicast mode, or 1500+ in multicast mode with a strong network configuration (see "Router and Network Equipment Selection"...

  • Page 6: Quick Setup Instructions

    Dante source to the WaveCAST. 8. With the audio source playing, adjust the Audio Level on the WaveCAST so that the green 0 dB LED generally lights and the red +9 dB LED lights occasionally. To do this while on the main info screen, press the ^ button to increase the audio level in 1.0 dB steps, or press the v button to decrease the audio level in 1.0 dB steps.

  • Page 7: Wi-Fi Network Required

    Router and Network Equipment Selection The WaveCAST does not come with its own router or networking equipment. It is intended to be set up on an already existing Wi-Fi network; however, upgrades to your network equipment may be necessary depending on the performance desired from the WaveCAST.

  • Page 8: Connecting Additional Sound Systems

    WaveCAST WARNING: The WaveCAST is not designed to accept 70 volt speaker signals! This may result in damage to your system. The sound source should come directly from the system mixer or Dante source as a low-level or unprocessed signal.

  • Page 9: Controls And Features

    The OLED Display shows an overload warning screen each time the audio signal exceeds the capacity of the input circuit. Either the source of the audio coming in to the WaveCAST needs to be adjusted to correct this or the Audio Input Gain needs to be adjusted.

  • Page 10: System Settings

    System Settings Settings can be selected using the arrows on the front panel of the WaveCAST to navigate the OLED menu system or be set via the web interface by using a computer. Not all settings are available in the front panel menu or through the web interface, and using both may be necessary for your initial set up.

  • Page 11: Audio Presets

    WaveCAST Audio Presets The Audio Presets allow the user to quickly and easily configure the WaveCAST for common applications. In some cases, the Audio Presets may be the only setup needed for properly configuring the WaveCAST server. There are three pre-configured and one custom Audio Preset to choose from: Hearing Assist, Music, Voice and Custom. When one of these selections is made, the performance of the WaveCAST is immediately optimized for the needs of that application (an adjustment is automatically made to the Low-pass Filter, High-pass Filter, and Compression).

  • Page 12: Headphone Volume

    Network Configuration Network Settings can only be edited from the web interface. An IP address will be automatically assigned to the WaveCAST once an Ethernet cable has been connected to the device and network connection found. Additional configuration would need to be made through the web interface.

  • Page 13: Dante Settings

    WaveCAST. See "Network Settings Page" on page 16 for details on how to use the web interface. See your Dante device manual for information on setting up and working with your Dante network. The Dante settings will only show up in the menu if the optional Dante feature is installed (WaveCAST D). It will not be present for other models.

  • Page 14: Web Control Interface

    WaveCAST Web Control Interface The WaveCAST provides a web interface to manage the device settings. These web pages can be accessed over either a hardwired or wireless network connection with most modern internet browsers. Changes take effect when applied or saved. Any updates made through the front panel will show up on the web interface once the current page has been navigated away from, either by refreshing the page or going to a new page.
  • Page 15 WaveCAST Audio Settings Page The Audio Settings page displays all current audio settings, as well as corresponding WaveCAST web-based controls. It is the first page to appear when logging into the website. An audio monitor is visible at the top of the page. It is for informational purposes only, and does not set any settings.
  • Page 16 If available, Dante information will be displayed at the bottom of the page. This information cannot be edited via the WaveCAST and should be edited via your Dante or other audio setup.
  • Page 17 Upload Image An image can be uploaded that will display for any users listening using the WaveCAST app. This image can be used to easily distinguish the content of your audio broadcast. The image must be under 128kB and be in PNG or JPG format.

  • Page 18: Wavecast App

    WaveCAST App The WaveCAST app allows listeners to hear the audio on their personal, Wi-Fi connected devices, such as a mobile phone. The WaveCAST App can be downloaded from the Google Play for Android devices or the Apple App Store for iOS devices.

  • Page 19: Troubleshooting

    The full website is unavailable. • If you are only able to install a firmware update, the website stored on the WaveCAST has been corrupted, likely by a power outage. Install the firmware for your current version (or newer) of the WaveCAST via the firmware update page to restore the website.

  • Page 20: Device Is Not Working Over The Hardwired Ethernet Network

    1. In order to perform these steps you will need the IP address of the WaveCAST and the router. You can find the IP address of the WaveCAST via the menu on the front screen of the device.
  • Page 21 2. Make sure the WaveCAST and router are both ON. 3. Make sure the Ethernet cable going to the WaveCAST is plugged into one of the LAN ports on the router (not the WAN port). 4. Is the mobile device connected to the router? On the mobile device, go into the Wi-Fi Settings, and make sure Wi-Fi is turned on or enabled.

  • Page 22: Specifications

    WaveCAST Specifications Dimensions 8.45” W x 8.25” D x 1.72”H (21.5 cm x 21 cm x 4.4 cm) Weight Transmitter: 3.0 lbs (1.36 kg) Color Black/Silver with silver legends on the front, white legends on the back Rack Mount Standard 19” Rack, one EIA rack space high, 1/2 space wide 1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits...

  • Page 23: 2-Year Warranty

    Williams AV has no control over the conditions under which this product is used. Williams AV, therefore, disclaims all warranties not set forth above, both express and implied, with respect to the WaveCAST, including but not limited to, any implied warranty of merchantability or fitness of use of such equipment including, without limitation, any warranty that the use of such equipment for any purpose will comply with applicable laws and regulations.

  • Page 24: Regulatory Statements

    WaveCAST Regulatory Statements Caution: Unauthorized modifications or changes not expressly approved by Williams AV could void compliance with reg- ulatory rules, and thereby your authority to use this equipment. United States - FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 25 WaveCAST This page is intentionally blank.
