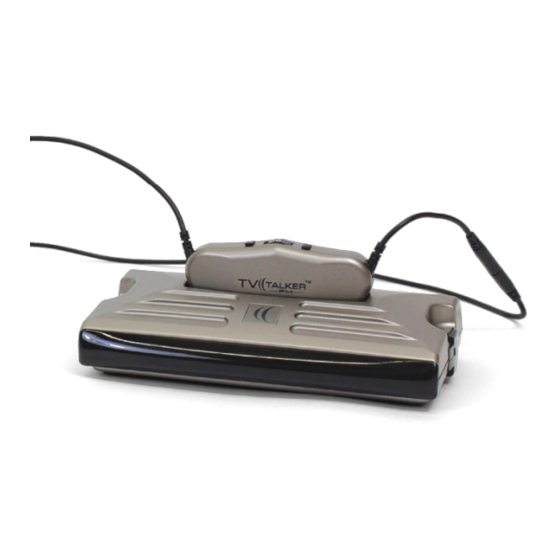

- Page 1 Model WFM 270 TV Talker FM System Manual and User Guide Transmitter Model WFM TX260 Receiver Model WFM RX270 MAN 151i...
-
Page 2: Table Of Contents
Model WFM 270 TV Talker FM System Model WFM 270 TV Talker FM System Contents System Overview ......................3 System Components ......................3 Safety Information ......................4 Recycling Instructions ....................... 5 Operating Instructions ...................... 6 WFM TX260 ......................6 WFM RX270 ......................10 In Case of Difficulty ...................... -
Page 3: System Overview
Model WFM 270 TV Talker FM System System Overview Thank you for purchasing the TV Talker FM System from Williams Sound Corp. Anyone needing auditory assistance to overcome background noise, reverberation, or distance from the sound source can benefit from the TV Talker FM System. -
Page 4: Safety Information
Model WFM 270 TV Talker FM System Safety Information HEARING SAFETY: CAUTION! This product is designed to amplify sounds to a high volume level which could potentially cause hearing damage if used improperly. To protect your hearing and the hearing of others: 1. -
Page 5: Recycling Instructions
Model WFM 270 TV Talker FM System Recycling Instructions Help Williams Sound protect the environment! Please take the time to dispose of your equipment properly. Product Recycling for Customers in the European Union Please do NOT dispose of your Williams Sound equipment in the household trash. -
Page 6: Wfm Tx260
Model WFM 270 TV Talker FM System Setting up the TX260 Transmitter NOTICE: THE RECHARGEABLE BATTERIES ARE SHIPPED IN A DISCHARGED STATE. THE BATTERIES MUST BE CHARGED OVERNIGHT BEFORE USING THE TV TALKER FM SYSTEM. The WFM TX260 Transmitter may be placed on top of a TV or shelf. - Page 7 Model WFM 270 TV Talker FM System TX260 Transmitter (Rear View) A B C ❹ ❶ ❷ Channel Selector ❸ TX260 TV Microphone ❺ If an RCA connection is unavailable, use the provided TV microphone to pickup the sound source directly from the TV loud speaker as shown on left.
- Page 8 Model WFM 270 TV Talker FM System Step 2: (continued) NOTE: Some televisions have FIXED output and others have VARIABLE output. If available, FIXED output should be selected. Consult your television manual for more information. “Fixed” output means the volume on the television will not change when the volume is increased, decreased, or muted.
- Page 9 Model WFM 270 TV Talker FM System RX270 Receiver Step 4 If an RCA connection is unavailable, use the provided TV MICROPHONE n to pickup the desired sound source. Plug in the microphone into the Mic Jack on the rear of the TX260 Transmitter m. Use the velcro strip supplied to attach the microphone near the loudspeaker m of your TV or stereo.
- Page 10 Model WFM 270 TV Talker FM System Setting up the RX270 Receiver Step 1: Install the Receiver Batteries Insert the rechargeable battery into the bottom of the RX270 Receiver (see page 12). Place the receiver into the charger cradle built into the top of the TX260 Transmitter and let charge overnight.
-
Page 11: Wfm Rx270
Model WFM 270 TV Talker FM System WFM RX270 NECKLOOP VOLUME CONTROL STEREO BATTERY HEADPHONE (BAT AP11A) JACK A196 CHANNEL BALANCE CONTROL SELECTOR STEREO HEADPHONE JACK A199 MAN 151i... -
Page 12: In Case Of Difficulty
TV volume up slightly. Also, try positioning the TV mic directly over the TV speaker. 7. If using RX270 with hearing aid, make sure the hearing aid has the T-coil switch turned on. 8. If the system still does not function, call Williams Sound at: 1-800-843-3544. MAN 151i... -
Page 13: Fcc Caution
Model WFM 270 TV Talker FM System Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 14: System Specifications
Model WFM 270 TV Talker FM System System Specifications: WFM TX260 Transmitter: Size, Weight, Color: 6.25”L x 4”W x 1.4”H (15.9cm x 10.2cm x 3.6cm), 200g, Silver Power Input: 12VDC (center is positive), 200 mA Class II wall transformer TFP 042 100 - 240 VAC 12VDC Out 50/60Hz Subcarrier Frequency:* CH A: 916.25 MHz... -
Page 15: Warranty
Model WFM 270 TV Talker FM System System Specifications: WFM RX270 Receiver: Weight: 59 g Material and Color: ABS plastic, Silver Battery Type, Life: BAT AP11A NiMH Battery Pack, 4 to 6 hrs Modulation Frequency:* CH A: 916.25 MHz CH B: 916.75 MHz CH C: 917.75 MHz... - Page 16 Williams Sound products are engineered, designed and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the TV TALKER FM System against defects in materials and workmanship for TWO (2) years. During the first two years from the purchase date, we will promptly repair or replace the TV TALKER FM System.
- Page 17 Model WFM 270 TV Talker FM System If you experience difficulty with your system, call Toll-Free for Customer Assistance: 1-800-843-3544 If it is necessary to return the system for service, your Customer Service Representative will give you a Return Authorization Number (RA) and shipping instructions.
- Page 18 Model WFM 270 TV Talker FM System MAN 151i...
- Page 19 Model WFM 270 TV Talker FM System MAN 151i...
- Page 20 Model WFM 270 TV Talker FM System 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2012 Williams Sound • All Rights Reserved MAN 151i...
