Cisco SPA500DS Quick Start Manual page 6

15-button digital attendant console for spa500 family phones
Hide thumbs


Advertisement

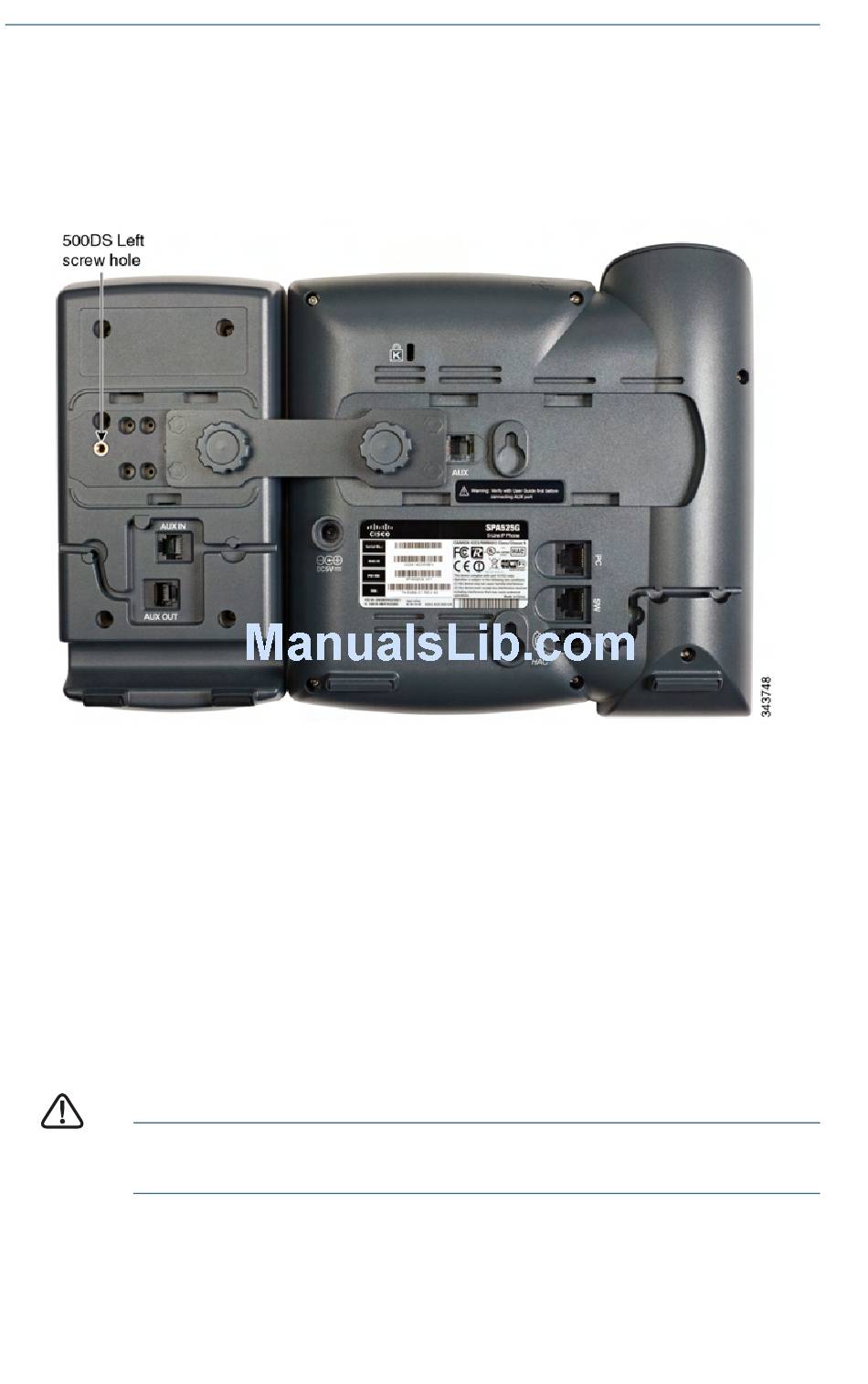

Attach the first Cisco SPA500DS to the IP phone and connect the
S
1
TEP
auxiliary cable as described in Section 1,
Equipment.
Align the left screw hole in the first Cisco SPA500DS with one of the
S
2
TEP
holes on the attachment arm.
Insert the pegs on the attachment arm into the peg holes on the
S
3
TEP
Cisco SPA500DS.
Using the attachment arm screw, secure the attachment arm to the
S
4
TEP
first Cisco SPA500DS.
Align the right screw hole in the second Cisco SPA500DS with the
S
5
TEP
unused hole on the attachment arm.
Insert the pegs on the attachment arm into the peg holes on the
S
6
TEP
Cisco SPA500DS.
Using the attachment arm screw, secure the attachment arm to the
S
7
TEP
second Cisco SPA500DS.
Do not plug a telephone line cord into the AUX port. Use only
C
AUTION
the auxiliary cable provided with the Cisco SPA500DS.
