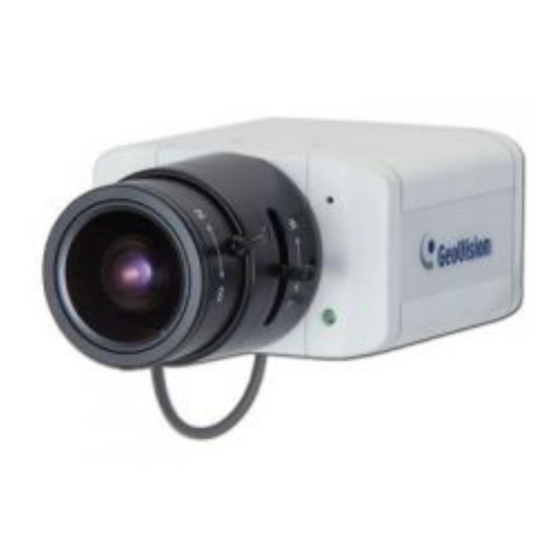

GV-IPCam H.264
User's Manual
Before attempting to connect or operate this product,
ICH264TGV101-A
please read these instructions carefully and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-IPCam H.264 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-IPCam H.264 Series

Summary of Contents for GeoVision GV-IPCam H.264 Series

  • Page 1 GV-IPCam H.264 User's Manual Before attempting to connect or operate this product, ICH264TGV101-A please read these instructions carefully and save this manual for future use.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 3 Safety Notice FCC Compliance for GV-CBW120/220 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.
  • Page 4 Preface Welcome to the GV-IPCAM H.264 User’s Manual. The GV-IPCAM H.264 has a series of models designed to meet different needs. This Manual is designed for the following models and firmware versions: Note: To upgrade the camera firmware from V2.07 or earlier to the latest version, back up the files in the camera’s storage device first before the upgrade and it is required to re-format the memory card after the upgrade.
  • Page 5 Firmware Model Model Number Version GV-BX1200-0F ~ 2F GV-BX1300-0F ~ 2F GV-BX1500-0F ~ 2F Fixed Lens GV-BX2400-0F ~ 2F GV-BX2500-0F ~ 2F GV-BX3400-0F ~ 2F GV-BX1200-3V GV-BX1300-3V GV-BX1500-3V GV-BX2400-3V V2.11 Box Camera GV-BX2500-3V Varifocal Lens GV-BX2400-4V GV-BX3400-4V GV-BX3400-5V GV-BX5300-6V GV-BX1500-8F GV-BX2400-8F GV-BX2500-8F Fixed Lens...
  • Page 6 Firmware Model Model Number Version GV-EBX1100-0F Target Box V1.01 Fixed Lens Camera GV-EBX1100-2F GV-BX120D-E GV-BX220D-E GV-BX320D-E GV-BX520D-E IR Arctic Box V2.11 Varifocal Lens GV-BX1500-E Camera GV-BX2400-E GV-BX3400-E GV-BX5300-E GV-MFD120 GV-MFD130 GV-MFD220 GV-MFD320 GV-MFD520 Mini Fixed V2.11 Fixed Lens Dome GV-MFD1501 Series GV-MFD2401 Series GV-MFD2501 Series GV-MFD3401 Series...
  • Page 7 Firmware Model Model Number Version GV-MDR120 GV-MDR220 V2.11 GV-MDR320 GV-MDR520 Mini Fixed Fixed Lens GV-MDR1500 Series Rugged Dome GV-MDR2400 Series V2.12 GV-MDR2500 Series GV-MDR3400 Series GV-MDR5300 Series GV-EFD1100-0F Target Mini GV-EFD1100-2F V1.01 Fixed Lens Fixed Dome GV-EFD2100-0F GV-EFD2100-2F GV-EBL1100-1F GV-EBL1100-2F Target Bullet Fixed Lens V1.01...
  • Page 8 Firmware Model Model Number Version GV-BL120D GV-BL130D GV-BL220D GV-BL320D GV-BL1200 Varifocal Lens GV-BL1300 GV-BL1500 V2.11 GV-BL2400 Bullet Camera GV-BL2500 GV-BL3400 GV-BL1210 GV-BL1510 GV-BL2410 Motorized GV-BL2510 Varifocal Lens GV-BL3410 V2.12 GV-BL5310 NTSC V1.09 PTZ Camera GV-PTZ010D GV-PT130D V2.11 PT Camera GV-PT220D Fixed Lens GV-PT320D...
  • Page 9 Firmware Model Model Number Version GV-VD120D (IK10+, Transparent Cover) GV-VD121D (IK10+, Smoked Cover) GV-VD122D (IK7, Transparent Cover) GV-VD123D (IK7, Smoked Cover) GV-VD220D (IK10+, Transparent Cover) GV-VD221D (IK10+, Smoked Cover) GV-VD222D Vandal Proof (IK7, Transparent Cover) Varifocal Lens V2.11 IP Dome GV-VD223D (IK7, Smoked Cover) GV-VD320D...
  • Page 10 Firmware Model Model Number Version GV-VD1530 Varifocal Lens, GV-VD2430 high power IR GV-VD2530 LEDs GV-VD3430 V2.11 GV-VD1540 Motorized GV-VD2440 Varifocal Lens, Vandal Proof GV-VD2540 high power IR IP Dome GV-VD3440 LEDs GV-VD5340 V2.12 Motorized GV-VD2540-E V2.11 Varifocal Lens, high power IR LEDs, extreme GV-VD5340-E V2.12...
  • Page 11 Firmware Model Model Number Version GV-FD120D V2.11 GV-FD220D GV-FD320D GV-FD1200 Varifocal GV-FD1500 Lens GV-FD2400 GV-FD2500 Fixed IP Dome GV-FD3400 GV-FD5300 V2.12 GV-FD1210 GV-FD1510 Motorized GV-FD2410 Varifocal Lens GV-FD2510 GV-FD3410...

  • Page 12: Table Of Contents

    Contents Preface……… ..............II Contents……..............X Naming and Definition..........XXII Options………...............XXIII Note for Connecting to GV-System......XXVI Note for Recording ............ XXVII Note for Adjusting Focus and Zoom....... XXVIII Note for Installing Camera Outdoor......XXIX Note for Closing the Bullet Camera Cover....XXXI Note for USB Storage and WiFi Adapter ....
  • Page 13 Series / 2500 Series / 3400 Series / 5300 Series......16 2.5 Accessory Installation ............... 18 2.5.1 C-Mount Lenses..............18 2.5.2 Infrared Illuminators (Optional)..........19 2.6 I/O Terminal Block ..............20 2.6.1 Pin Assignment ..............20 2.6.2 Connecting to GV-Relay V2 (Optional) .........21 Chapter 3 Ultra Box Camera ......... 22 3.1 Packing List ................
  • Page 14 5.6.2 Disabling Status LED under Low Light Conditions....47 Chapter 6 Mini Fixed Dome & Mini Fixed Rugged Dome................48 6.1 Packing List ................51 6.2 Features ..................52 6.3 Overview ..................55 6.3.1 GV-MFD120 / 130 / 220 / 320 / 520 ........55 6.3.2 GV-MFD1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series................57 6.3.3 GV-MDR120 / 220 / 320 / 520..........59...
  • Page 15 8.4.1 Connecting the Camera ............87 8.4.2 Adjusting the Angles .............91 8.4.3 Adjusting Lens and Inserting a Memory Card .......95 8.4.4 Installing the Sun-Shield Cover..........98 Chapter 9 Ultra Bullet Camera........99 9.1 Packing List ................101 9.2 Features ..................102 9.3 Overview ................... 104 9.4 Installation ................
  • Page 16 11.7.2 Voltage Load Expansion (Optional)........137 11.8 PTZ Control ................138 11.8.1 The PTZ Control Panel ............138 11.8.2 Automatic Focus ..............140 11.8.3 PTZ Camera Settings............140 11.8.4 Image Settings ..............142 11.8.5 Preset Settings..............145 11.8.6 Sequence Settings .............148 11.8.7 Auto Pan Settings ..............150 11.8.8 System Configuration............153 Chapter 12 PT Camera ..........
  • Page 17 13.5.1 Wire Definition..............179 13.5.2 Power Connection.............180 13.5.3 Voltage Load Expansion (Optional)........181 Chapter 14 Vandal Proof IP Dome (Part II) ....182 14.1 Packing List ................184 14.2 Features .................. 187 14.3 Overview ................. 189 14.4 Installation ................191 14.5 Connecting the Camera ............202 14.5.1 Power Connection.............202 14.5.2 I/O Device Connections ............202 14.5.3 Voltage Load Expansion (Optional)........203...
  • Page 18 16.2 Features .................. 227 16.3 Overview ................. 228 16.4 Installation ................229 16.5 Connecting the Camera ............231 Chapter 17 Advanced Cube Camera......232 17.1 Packing List ................233 17.2 Features .................. 234 17.3 Overview ................. 235 17.4 Installation ................237 17.5 Connecting the Camera ............
  • Page 19 19.2.7 Video and Audio Configuration .........277 19.2.8 Remote Configuration ............279 19.2.9 Camera Name Display ............279 19.2.10 Image Enhancement ............279 19.2.11 Visual PTZ ..............280 19.2.12 Digital PTZ ..............283 19.2.13 I/O Control...............285 19.2.14 Visual Automation ............286 19.2.15 Network Status..............287 Chapter 20 Administrator Mode ......... 288 20.1 Video and Motion ..............
  • Page 20 20.3.9 Speaker................333 20.4 Monitoring ................334 20.4.1 Monitoring Settings for Target Series........335 20.5 Recording Schedule............... 336 20.5.1 Recording Schedule Settings..........336 20.5.2 I/O Monitoring Settings............337 20.6 Remote ViewLog ..............338 20.7 Network ................... 339 20.7.1 LAN Configuration.............339 20.7.2 Wireless Client Mode ............341 20.7.3 Advanced TCP/IP..............343 20.7.4 IP Filter Settings..............347 20.7.5 SNMP Settings..............348...
  • Page 21 Chapter 22 Advanced Applications ......374 22.1 Upgrading System Firmware..........374 22.1.1 Using the Web Configuration Interface ......376 22.1.2 Using the IP Device Utility..........377 22.2 Backing Up and Restoring Settings ........380 22.3 Restoring to Factory Default Settings........382 22.4 Verifying Watermark .............. 394 22.4.1 Accessing AVI Files ............394 22.4.2 Running Watermark Proof..........395 22.4.3 The Watermark Proof Window ..........396...
  • Page 22 Appendix……..............427 A. Settings for Internet Explorer 8 ..........427 B. Supported Lenses for Box Camera.......... 428 C. Resolution and Frame Rate ............429 D. Support Lists................435 E. RTSP Protocol Command ............441 F. The CGI Command ..............442 G.
  • Page 23 Specifications: Cube Camera............623 Specifications: Advanced Cube Camera ........628...

  • Page 24: Naming And Definition

    Naming and Definition GeoVision Analog and Digital Video Recording Software. The GV-System also refers to GV-Multicam GV-System System, GV-NVR System, GV-DVR System and GV- Hybrid DVR System at the same time. XXII...

  • Page 25: Options

    Options Optional devices can expand your camera’s capabilities and versatility. Contact your dealer for more information. Device Description The power adapter is available for all GV-IP Camera (except Arctic Box Camera and Mini Fixed Rugged • Dome). The supported regions are listed below: GV-BL Series (except GV-BL2500 / 2510), GV- BX Series (except GV-BX2500), GV-CB/CBW Series, GV-CA/CAW Series, GV-FD Series...
  • Page 26 Device Description The GV-PA191 PoE adapter is designed to provide GV-PA191 PoE power and network connection to the cameras over Adapter a single Ethernet cable. The GV-PA481 PoE adapter is designed to provide GV-PA481 PoE power and network connection to GV-BX1500-E / Adapter 2400-E / 3400-E / 5300-E over a single Ethernet cable.
  • Page 27 Device Description The smoked cover is an IK7, tinted camera cover Smoked Cover designed for GV-Fixed IP Dome to conceal the direction of the camera lens.

  • Page 28: Note For Connecting To Gv-System

    Note for Connecting to GV-System The GV-IPCAM H.264 is designed to work with GV-System, a hybrid or digital video management system. Note the following when GV-IPCAM H.264 is connected to GV-System: By default, the images are recorded to the memory card inserted in the GV-IP Camera H.264 (except GV-IR Arctic Box Camera and Target Series, which are not equipped with a memory card slot).

  • Page 29: Note For Recording

    Note for Recording By default, the images are recorded to the memory card inserted in the GV-IP Camera H.264 (except GV-IR Arctic Box Camera and Target Series, which are not equipped with a memory card slot). Make sure the Write recording data into local storage option (see 20.1.1 Video Settings) is enabled.

  • Page 30: Note For Adjusting Focus And Zoom

    Note for Adjusting Focus and Zoom When adjusting the Focus and Zoom Screws (on Box Camera, IR Arctic Box Camera, Bullet Camera, Vandal Proof IP Dome and Fixed IP Camera), do not over tighten the Focus and Zoom screws. The screws only need to be as tight as your finger can do it.

  • Page 31: Note For Installing Camera Outdoor

    Note for Installing Camera Outdoor When installing the IR Arctic Box Camera, Bullet Camera, Ultra Bullet Camera, Target Bullet Camera, Vandal Proof IP Dome or Mini Fixed Rugged Dome outdoor, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables.
  • Page 32 After opening the camera cover, ensure the screws are tightened and the cover is in place. The silica gel bag loses its effectiveness when the dry camera is opened. To prevent the lens from fogging up, replace the silica gel bag every time you open the camera, and conceal the gel bag in camera within 2 minutes of exposing to open air.

  • Page 33: Note For Closing The Bullet Camera Cover

    Note for Closing the Bullet Camera Cover To ensure that the camera performs its full capacity against water and dust, adhere to the following guidelines when closing the Bullet Camera cover: Line up the dots Tighten the camera cover until the dots on the cover and the body line up as indicated below.

  • Page 34: Note For Usb Storage And Wifi Adapter

    Note for USB Storage and WiFi Adapter Mind the following limitations and requirements for using USB storage and GV-WiFi Adapter: The USB hard drive must be of 2.5’’ or 3.5’’, version 2.0 or above. The USB hard drive’s storage capacity must not exceed 2TB. USB flash drives and USB hubs are not supported.

  • Page 35: Chapter 1 Introduction

    Chapter 1 Introduction The GV-IPCAM H.264 series offers a comprehensive range of IP cameras supporting your needs for IP surveillance in various environmental conditions. For detailed features of each model, refer to the corresponding chapter. 1.1 System Requirement To perform the GV-IPCAM H.264 operations through Web browser, ensure...

  • Page 36: Chapter 2 Box Camera

    Chapter 2 Box Camera The Box Camera is a series of indoor IP cameras consisting of fixed focal and varifocal models in different resolutions. The Box Camera supports lens replacement and features an automatic infrared-cut filter for day and night surveillance. The super low lux models are capable of displaying color live view in near darkness.
  • Page 37 Box Camera Model No. Specifications Description Auto Iris, f: 2.8 ~ 12 Varifocal 2 MP, H.264, mm, F/1.4, 1/3’’ CS GV-BX220D-3 Lens Lens Auto Iris, f:3.1 ~ 8 mm, F/1.2, 1/3” CS GV-BX320D-0 Lens 3 MP, H.264, Auto Iris, f: 2.8 ~ 6 Varifocal GV-BX320D-1 mm, F/1.3, 1/3’’...
  • Page 38 Model No. Specifications Description 1.3 MP, H.264, GV-BX1200-1F Low Lux, D/N 1.3 MP, H.264, GV-BX1300-1F 1.3 MP, H.264, GV-BX1500-1F Super Low Fixed Iris, f: 8 mm, Lux, D/N F/1.6, 1/2.5’’ CS 2 MP, H.264, Lens GV-BX2400-1F D/N, WDR Pro 2 MP, H.264, GV-BX2500-1F Super Low Lux, D/N...
  • Page 39 Box Camera Model No. Specifications Description 1.3 MP, H.264, GV-BX1200-3V Low Lux, D/N 1.3 MP, H.264, GV-BX1300-3V 1.3 MP, H.264, Auto Iris, f:2.8 ~ 12 GV-BX1500-3V Super Low mm, F/1.4, 1/2.7” CS Lux, D/N Lens 2 MP, H.264, GV-BX2400-3V D/N, WDR Pro 2 MP, H.264, Varifocal GV-BX2500-3V...

  • Page 40: Packing List

    2.1 Packing List • Box Camera • Terminal Block • Fixed Focal or Varifocal Megapixel Lens • Six Lens Rings • One 0.125 mm Lens Ring (for GV-BX140DW only) • Video Out Wire • Camera Holder • GV-IPCAM H.264 Software CD •...

  • Page 41: Features

    Box Camera 2.2 Features • Image sensor Camera Model Image Sensor GV-BX120D 1/3’’ progressive scan low lux CMOS GV-BX1200 Series GV-BX130D Series GV-BX1300 Series GV-BX220D Series 1/2.5’’ progressive scan CMOS GV-BX320D Series GV-BX520D GV-BX5300 Series GV-BX140DW 1/3’’ progressive scan CMOS GV-BX1500 Series 1/3’’...
  • Page 42 • Frame rate: Camera Model Frame Rate GV-BX120D GV-BX130D Series GV-BX1200 Series Up to 30 fps at 1280 x 1024 GV-BX1300 Series GV-BX1500 Series GV-BX140DW Up to 30 fps at 1280 x 720 GV-BX220D Series GV-BX2400 Series Up to 30 fps at 1920 x 1080 GV-BX2500 Series GV-BX320D Series Up to 20 fps at 2048 x 1536...

  • Page 43: Wide Dynamic Range Pro

    Box Camera 2.2.1 Wide Dynamic Range Pro Objects may appear as silhouettes when they are backed with intense lights. The Wide Dynamic Range Pro (WDR Pro) is designed to solve this problem using a WDR sensor. In GV-BX140DW, GV-BX2400 Series and GV-BX3400 Series, the WDR sensor is able to process the image and show details in bright and dark areas at the same time.

  • Page 44: Overview

    2.3 Overview 2.3.1 GV-BX120D / 130D Series / 140DW / 220D Series / 320D Series / 520D 12 13 Figure 2-1 Note: 1. The Auto Iris connector (No. 7) is only functional in GV-BX120D, GV-BX130D-0, GV-BX220D and GV-BX320D. 2. The Light Sensor (No.11) is only available in GV-BX140DW. Keep the Light Sensor unobscured for accurate light detection.
  • Page 45 Box Camera Name Description Audio Out Connects a speaker for audio output. Audio In Connects a microphone for audio input. I/O Terminal For details, see 2.6 I/O Terminal Block. Block Indicates the power is supplied. For detail, see Power LED the table below.

  • Page 46: Gv-Bx1200 Series / 1300 Series / 1500 Series / 2400 Series / 2500 Series / 3400 Series / 5300 Series

    2.3.2 GV-BX1200 Series / 1300 Series / 1500 Series / 2400 Series / 2500 Series / 3400 Series / 5300 Series Figure 2-2 Note: The Auto Iris Connector (No. 8) is only functional for varifocal models of GV-BX1200 / 1300 / 1500 / 2400 / 2500 / 3400. The Iris Screw (No.
  • Page 47 Box Camera Name Description Audio Out Connects a speaker for audio output. Audio In Connects a microphone for audio input. I/O Terminal Connects to I/O devices. For details, see 2.6 Block I/O Terminal Block. Indicates the power is supplied. For detail, Power LED see the table below.

  • Page 48: Connecting The Camera

    2.4 Connecting the Camera The Box Camera is designed for indoor use. Please make sure the installing site is shielded from rain and moisture. 2.4.1 GV-BX120D / 130D Series / 140DW / 220D Series / 320D Series / 520D Figure 2-3 If you are using an auto iris model, plug the iris control cable to the Auto Iris Connector on the camera.
  • Page 49 Box Camera • Connect power using one of the following methods: • plugging the power adapter to the power port. using the Power over Ethernet (PoE) function and the power will be provided over the network cable. The status LED of the camera will be on. You are ready to access the live view, adjust the image clarity and configure the basics.

  • Page 50: Series / 2500 Series / 3400 Series / 5300 Series

    2.4.2 GV-BX1200 Series / 1300 Series / 1500 Series / 2400 Series / 2500 Series / 3400 Series / 5300 Series Figure 2-4 If you are using an auto iris model, plug the iris control cable to the Auto Iris Connector on the camera. •...
  • Page 51 Box Camera Optionally connect to input / output devices or an infrared illuminator. For details, see 2.5.2 Infrared Illuminator and 2.6 I/O Terminal Block. • Connect power using one of the following methods: plugging the power adapter to the power port. The power adapter •...

  • Page 52: Accessory Installation

    2.5 Accessory Installation 2.5.1 C-Mount Lenses If you use a C-mount lens, it requires a certain distance from the camera’s imaging chip to focus the lens. Mount the supplied C-mount lens adapter / lens ring to the camera, and then secure the lens onto the camera body. Three types of C-mount lens rings are provided for Box Camera: •...

  • Page 53: Infrared Illuminators (Optional)

    Box Camera 2.5.2 Infrared Illuminators (Optional) If you use an infrared (IR) illuminator with I/O function, follow the steps below to install it. Connect the infrared illuminator to the terminal block on the camera. See 2.6 The I/O Terminal Block. Access the Web interface of the camera.

  • Page 54: I/O Terminal Block

    2.6 I/O Terminal Block The terminal block, located on the back panel of the Box Camera, provides the interface to one input and one output devices. The I/O terminal block can be used for applications such as motion detection, event alerts via E- Mail and FTP, and center monitoring through Center V2 and VSM.

  • Page 55: Connecting To Gv-Relay V2 (Optional)

    Box Camera 2.6.2 Connecting to GV-Relay V2 (Optional) The Box Camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product). Refer to the figure and table below.

  • Page 56: Chapter 3 Ultra Box Camera

    Chapter 3 Ultra Box Camera The Ultra Box Camera is a series of light-weighted cameras designed for indoor usage. Equipped with IR-cut filter and built-in IR LEDs, the Ultra Box Camera provides excellent image quality. The camera supports PoE and can be installed intuitively.

  • Page 57: Packing List

    Ultra Box Camera 3.1 Packing List • Ultra Box Camera • Supporting rack • Screw x 3 • Screw anchor x 3 • GV-IPCAM H.264 Software CD • GV-IPCAM H.264 Quick Start Guide • GV-NVR Software DVD • GV-NVR Quick Start Guide Note: Power adapter can be purchased upon request.

  • Page 58: Features

    3.2 Features • 1/2.5’’ progressive scan CMOS • Dual streams from H.264 or MJPEG • Frame rate Camera Model Frame Rate GV-UBX1301 Series Up to 30 fps at 1280 x 1024 GV-UBX2301 Series Up to 30 fps at 1920 x 1080 GV-UBX3301 Series Up to 20 fps at 2048 x 1536 •...

  • Page 59: Overview

    Ultra Box Camera 3.3 Overview Figure 3-1 Name Description Audio Out Connects a speaker for audio output. Resets the camera to factory defaults. Default See 22.3 Restoring to Factory Default Settings. LAN / PoE Connects to a 10/100 Ethernet or PoE. Microphone Records sounds.

  • Page 60: Installation

    3.4 Installation You can stand the Ultra Box Camera on a plain surface or install it to wall and ceiling. Follow the steps below to install, connect and adjust your Ultra Box Camera. To install the device on the wall/ceiling, put the supporting rack on the desired location and make marks for screw anchors.
  • Page 61 Ultra Box Camera Connect the network and power cables to the camera. See 3.5 Connecting the Camera. Access the live view. See 18.1 Accessing the Live View. Adjust the angle of the camera based on live view and fasten the indicated screw.

  • Page 62: Connecting The Camera

    3.5 Connecting the Camera Figure 3-5 • Connect power using one of the following methods: Plug the power adapter to the 5V terminal block. The power adapter is an optional device. For detail, see Options in the • manual. Use the Power over Ethernet (PoE) function and the power will be provided over the network cable.

  • Page 63: Chapter 4 Target Box Camera

    Chapter 4 Target Box Camera The Target Box Camera (GV-EBX) is a series of light-weighted cameras designed for indoor usage. Equipped with IR­cut filter and built­in IR LEDs, the camera is an entry-level surveillance solution with all the essential features and excellent image quality. The camera supports PoE and can be installed intuitively.

  • Page 64: Features

    4.2 Features • 1/3” progressive scan low lux CMOS for GV-EBX1100 Series • Dual streams from H.264 or MJPEG Up to 30 fps at 1280 x 1024 for GV-EBX1100 Series • Intelligent IR • Day and night function (with removable IR-cut filter) •...

  • Page 65: Overview

    Target Box Camera 4.3 Overview Figure 4-1 Name Description Resets the camera to factory defaults. Default See 22.3 Restoring to Factory Default Settings. LAN / PoE Connects to a 10/100 Ethernet or PoE. Microphone Records sounds. DC 12V Terminal Block Connects to power.

  • Page 66: Installation

    4.4 Installation You can stand the Target Box Camera on a plain surface or install it to wall and ceiling. Follow the steps below to install, connect and adjust your Target Box Camera. To install the device on the wall/ceiling, put the supporting rack on the desired location and make marks for screw anchors.
  • Page 67 Target Box Camera Connect the network and power cables to the camera. See 4.5 Connecting the Camera. Access the live view. See 18.1 Accessing the Live View. Adjust the angle of the camera based on live view and fasten the indicated screw.

  • Page 68: Connecting The Camera

    4.5 Connecting the Camera Figure 4-5 • Connect power using one of the following methods: Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options in the • manual. Use the Power over Ethernet (PoE) function and the power will be provided over the network cable.

  • Page 69: Chapter 5 Ir Arctic Box Camera

    Chapter 5 IR Arctic Box Camera The IR Arctic Box Camera is a series of outdoor cameras designed for environments of extreme temperatures. The cameras adhere to IP67 and IK10 protection standards, and are equipped with IR LEDs and removable IR-cut filter for day and night surveillance.

  • Page 70: Packing List

    5.1 Packing List • IR Arctic Box Camera • Screw Anchor x 4 • Screw x 4 • Washer x 4 • Big Torx Wrench • Small Torx Wrench • Silica Gel Bag x 2 • GV-IPCAM H.264 Software CD •...

  • Page 71: Features

    IR Arctic Box Camera 5.2 Features • Image sensor Camera Model Image Sensor GV-BX120D-E 1/3" progressive scan low lux CMOS GV-BX1500-E 1/3" progressive scan super low lux CMOS GV-BX220D-E GV-BX320D-E 1/3.2" progressive scan CMOS GV-BX520D-E GV-BX5300-E GV-BX2400-E 1/2.5” progressive scan CMOS GV-BX3400-E •...
  • Page 72 • Motion detection • Tampering alarm • Privacy mask • Text overlay • IP address filtering • Power supplied through PoE (IEEE 802.3at) • Megapixel lens • Support for iPhone, iPad, Android and 3GPP • 31 languages on Web interface •...

  • Page 73: Overview

    IR Arctic Box Camera 5.3 Overview Figure 5-1 Note: The Iris Screw (No. 7) is only available in GV-BX520D-E and GV-BX5300-E. Name Description Silica gel bag Desiccant that keeps the camera housing dry. IR power plug Supplies power to the built-in IR LEDs. Focus Screw Adjusts the focus of the camera.

  • Page 74: Installation

    5.4 Installation The IR Arctic Box Camera is designed for outdoor use. Mark the installation site and drill four holes for screw anchors. Insert the supplied screw anchors. Secure the camera to the wall using the supplied washers and screws. Figure 5-2 Connect the camera to the network and supply power via the PoE cable.
  • Page 75 IR Arctic Box Camera Tilt Adjustment Figure 5-4 Pan Adjustment Figure 5-5 Based on the live view, adjust the focus, zoom and iris (in GV-BX520D-E and GV-BX5300-E only) of the camera. Unscrew the cover with the supplied small torx wrench. Figure 5-6...
  • Page 76 Hold the connectors and unplug them. Figure 5-7 IMPORTANT: Unscrew and remove the cover carefully. Pulling the cover off may cause damages to the inner wiring of the camera. Adjust the focus, zoom and iris screws. Figure 5-8...
  • Page 77 IR Arctic Box Camera Replace the silica gel bag. Paste the sticker to the front side of the silica gel bag. Press the sticker several times to make sure it adheres properly. Paste the silica gel bag to the indicated place. Figure 5-9 IMPORTANT: The gel bag loses its effectiveness when the dry camera is...

  • Page 78: Connecting The Camera

    5.5 Connecting the Camera 5.5.1 Wire Definition Figure 5-10 Wire Color Definition Black (thick) Black BNC TV out Green RCA Audio Out Pink RCA Audio In Optionally connect a speaker (green) and an external microphone (pink). Optionally connect a monitor using a Video Out wire. Enable this function by selecting your signal format at the TV Out field on the Web interface.
  • Page 79 IR Arctic Box Camera Optionally connect the camera’s cable to the GV-PA481 PoE adapter as illustrated below. The power and network will be supplied simultaneously. POWER & DATA OUT DATA IN Rear Panel Ethernet Cable Power Hub/Router GV-BX-E Figure 5-11 The status LED of the camera will be on.

  • Page 80: Notice For Using The Ir Arctic Box Camera

    5.6 Notice for Using the IR Arctic Box Camera Ensure that you: • enable IR LED function on the Web interface after loading the default settings. • disable the status LED to reduce reflection when a green light spot appears on the live view. 5.6.1 Enabling IR LED after Loading Default Each GV-IR Arctic Box Camera is equipped with 4 IR LEDs to provide infrared illumination at night.

  • Page 81: Disabling Status Led Under Low Light Conditions

    IR Arctic Box Camera 5.6.2 Disabling Status LED under Low Light Conditions If you have a green light spot on the live view, this is likely due to insufficient light at the installation site, which causes the status LED to reflect on the camera cover.

  • Page 82: Chapter 6 Mini Fixed Dome & Mini Fixed Rugged Dome

    Chapter 6 Mini Fixed Dome & Mini Fixed Rugged Dome The Mini Fixed Dome (GV-MFD) and Mini Fixed Rugged Dome (GV-MDR) are fixed, mini-sized ceiling-mount network cameras. The GV-MDR series is designed for outdoor surveillance, conforming to IK10 and IP67 standards. The camera is adjustable in 3 axis (pan, tilt and rotate) and can be connected through PoE.
  • Page 83 Mini Fixed & Rugged Dome Mini Fixed Rugged Dome (GV-MDR) Model No. Specifications Description Fixed Iris, f: 4.05 1.3 MP, H.264, Low GV-MDR120 mm, F/1.5, 1/3’’ Lux, Color M12 Mount GV-MDR220 Fixed Iris, f: 2.54 2 MP / 3 MP / 5MP, GV-MDR320 mm, F/2.8, 1/2.5’’...
  • Page 84 Mini Fixed Dome (GV-MFD) Model No. Specifications Description Fixed Iris, f: 4 mm, 1.3 MP Low GV-MFD120 F/1.5, 1/3’’ M12 Lux, H.264, Mount Color GV-MFD130 Fixed Iris, f: 2.54 mm, 1.3 MP / 2 MP / GV-MFD220 F/2.8, 1/2.5’’ M12 3 MP / 5MP, GV-MFD320 Mount...

  • Page 85: Packing List

    Mini Fixed & Rugged Dome 6.1 Packing List • Mini Fixed Dome or Mini Fixed Rugged Dome with 3 options for its LAN connector (M12, Waterproof or Non-Waterproof) • Torx Wrench • Self Tapping Screw x 2 • Screw Anchor x 2 •...

  • Page 86: Features

    6.2 Features • Image sensor GV-MFD Camera Model Image Sensor GV-MFD120 1/3’’ progressive scan low lux CMOS GV-MFD130 GV-MFD220 1/2.5’’ progressive scan CMOS GV-MFD320 GV-MFD520 GV-MFD1501 series 1/3’’ progressive scan super low lux CMOS 1/2.8’’ progressive scan super low lux GV-MFD2501 series CMOS GV-MFD2401 series...
  • Page 87 Mini Fixed & Rugged Dome • Frame rate GV-MFD Camera Model Frame Rate GV-MFD120 GV-MFD130 Up to 30 fps at 1280 x 1024 GV-MFD1501 series GV-MFD220 Up to 30 fps at 1920 x 1080 GV-MFD2401 series GV-MFD2501 series GV-MFD320 Up to 20 fps at 2048 x 1536 GV-MFD3401 series GV-MFD520 Up to 10 fps at 2560 x 1920...
  • Page 88 • Ingress protection (IP67 for GV-MDR series only) • EN50155 compliance for rolling stock applications (for GV-MDR series only) • Endurable to low environment temperatures (-30°C ~ 50°C / -22°F ~ 122°F) (for GV-MDR series only) • 2-axis mechanism (GV-MFD series); 3-axis mechanism (GV-MDR series) Camera Type Tilt...

  • Page 89: Overview

    Mini Fixed & Rugged Dome 6.3 Overview 6.3.1 GV-MFD120 / 130 / 220 / 320 / 520 Figure 6-1 Name Description Resets the camera to factory default. See Default Button 22.3 Restoring to Factory Default Settings. Lens Receives image inputs. Tilt Screw Loosens the screw to adjust tilt angle.
  • Page 90 LED Name Description 1. Link Turns on when the network is connected. 2. ACT Turns on when data are being transmitted. 3. PWR Turns on when power is on. 4. SW RDY (Status) Turns on when the system is ready.

  • Page 91: Gv-Mfd1501 Series / 2401 Series / 2501 Series / 3401

    Mini Fixed & Rugged Dome 6.3.2 GV-MFD1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series Figure 6-2 Name Description Microphone Receives sound. Pan Screw Loosens the screw to pan. Lens Receives image inputs. Tilt Screw Loosens the screw to adjust tilt angle.
  • Page 92 Figure 6-3 LED Name Description 1. Link Turns on (green) when the network is connected. 2. ACT Turns on (orange) when data are being transmitted. 3. Status Turns on (red) when the system is ready. 4. Power Turns on (green) when power is on. Note: For details on limitations and requirements of the USB port, refer to Note for USB Storage and WiFi Adapter at the beginning of this manual.

  • Page 93: Gv-Mdr120 / 220 / 320 / 520

    Mini Fixed & Rugged Dome 6.3.3 GV-MDR Figure 6-4 Name Description Silica gel bag Absorbs the moisture inside the camera. Prevents water or moisture from entering Conceal paper the camera. Lens Receives image inputs. Rotation Disc Rotates the camera lens. Pan Disc Pans the camera lens.
  • Page 94 Name Description Resets the camera to factory default. See Default Button 22.3 Restoring to Factory Default Settings. Turns red when the power is on. Flashes Power and status orange light twice when the system is ready. LAN LED Turns on when the network is connected. Inserts a micro SD card (SD/SDHC, Memory Card Slot version 2.0 only, Class 10) to store...
  • Page 95 Mini Fixed & Rugged Dome Waterproof Connector For this connector type, see 6.4.2 GV-MDR to install the supplied cable connector. Ø27 mm (1.06'') Non-waterproof (Smaller) Connector 16.8 mm (0.66'') 13.8 mm (0.54'')

  • Page 96: Installation

    6.4 Installation To install a Mini Fixed Dome, make sure the installing site is shielded from rain and moisture. 6.4.1 GV-MFD Series Unscrew the housing cover using the supplied torx wrench. Put the camera on the desired location and make 2 marks on the ceiling for screw anchors.
  • Page 97 Mini Fixed & Rugged Dome Insert a Micro SD card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot (No. 7, Figure 6-1). Secure the housing cover using the supplied torx wrench. 10. Optionally conceal the cable opening with the supplied cable stopper. Cable stopper Figure 6-7...

  • Page 98: Gv-Mdr Series

    6.4.2 GV-MDR Series Paste the installation sticker on the desired location. The arrow should point toward the direction that the camera faces. Drill one hole on each of the two curves for screw anchors. Drill the circle (30 mm in diameter) if you want to run the cable into the ceiling. 30 mm Drill a hole on each...
  • Page 99 Mini Fixed & Rugged Dome Install the cable connector to waterproof the cable. You should have 5 parts: Figure 6-10 Prepare an cable with the RJ-45 connector on one end only. Figure 6-11 Connect the ernet cable to the camera cable. Paste the sticker to the camera cable and slide in all the components as shown below.
  • Page 100 Move all the components toward the RJ-45 connector, fit item 4 to item 2, secure item 3 to the camera cable and finally secure item 5 to item 2 tightly. Figure 6-13 IMPORTANT: Item 5 must be secured tightly to waterproof the cable.
  • Page 101 Mini Fixed & Rugged Dome Tilt Adjustment Figure 6-15 Rotational Adjustment Figure 6-16 Insert a Micro SD card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot (No. 11, Figure 6-2). 10. Replace the silica gel bag. IMPORTANT: The silica gel bag loses it effectiveness when the dry camera is opened.
  • Page 102 11. Secure the housing cover using the supplied torx wrench. 12. Optionally conceal the cable opening with the supplied cable stopper. Cable stopper Figure 6-17...

  • Page 103: Connecting The Camera

    Mini Fixed & Rugged Dome 6.5 Connecting the Camera Refer to the wire definition and illustrations below to connect the power and network. 6.5.1 Wire Definition GV-MFD120 / 130 / 220 / 320 / 520 The data cable provides connections for power and network access. The wires are illustrated and defined below: Figure 6-18 Wire Color...

  • Page 104: Power And Network Connection

    6.5.2 Power and Network Connection Use one of the following methods to power on and connect your camera to • network: Wired connection with PoE: Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.

  • Page 105: Vehicle Installation

    Mini Fixed & Rugged Dome 6.5.3 Vehicle Installation To install the Mini Fixed Rugged Dome on a vehicle, clip the ferrite core to the camera cable. In accordance to EN 50155, the ferrite core is used for reduction of the cable-based and radiated interferences, ensuring stable image quality.

  • Page 106: Chapter 7 Target Mini Fixed Dome

    Chapter 7 Target Mini Fixed Dome The Target Mini Fixed Dome (GV-EFD) is an indoor, fixed, mini-sized network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 2 axis (pan and tilt), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

  • Page 107: Features

    Target Mini Fixed Dome 7.2 Features • 1/3’’ progressive scan low lux CMOS for GV-EFD1100 Series; 1/2.8’’ progressive scan low lux CMOS for GV-EFD2100 Series • Dual streams from H.264 or MJPEG • Up to 30 fps at 1280 x 1024 Up to 25 fps at 1920 x 1080 •...

  • Page 108: Overview

    7.3 Overview Figure 7-1 Name Description Lens Receives image inputs. Pan Screw Loosens the screw to adjust pan angle. Tilt Screw Loosens the screw to adjust tilt angle. Microphone Receives sound. Default Resets the camera to factory default. See 22.3 Button Restoring to Factory Default Settings.

  • Page 109: Installation

    Target Mini Fixed Dome 7.4 Installation The Target Mini Fixed Dome can be installed on the wall or the ceiling. Before installing the camera, make sure the installing site is shielded from rain and moisture. Open the housing cover by turning. Figure 7-2 Place the camera where you want to install it and make 2 marks on the ceiling or the wall for screw anchors.
  • Page 110 Drill the marks and insert the screw anchors. Thread the power and / or network cable(s) through the oval-shaped hole or the cable opening on the side, and connect the camera to network and power. For details, see 7.5 Connecting the Camera. Figure 7-4 Secure the Target Mini Fixed Dome to the ceiling or the wall with the supplied screws.
  • Page 111 Target Mini Fixed Dome Loosen the tile screw and pan screw, adjust the angles based on the live view as needed, and tighten the screws again. Tilt Screw Pan Screw Figure 7-5 Place the housing cover back and turn to secure it.

  • Page 112: Connecting The Camera

    7.5 Connecting the Camera Figure 7-6 • Connect power using one of the following methods: Plug the power adapter to the 12V terminal block. The power adapter is an optional device. For detail, see Options in the • manual. Use the Power over Ethernet (PoE) function and the power will be provided over the network cable.

  • Page 113: Chapter 8 Bullet Camera

    Chapter 8 Bullet Camera The Bullet Cameras are specifically designed for outdoors and are weatherproof (IP66 or IP67). They are equipped with IR LEDs for infrared illumination in night vision applications. The WDR Pro models (see 2.2.1 Wide Dynamic Range Pro for details) enhance the image by processing contrasting intensity of light.
  • Page 114 Model No. Specifications Description 1.3 MP, H.264, Low Lux, GV-BL1210 3X Optical Zoom 1.3 MP, H.264, Super GV-BL1510 Low Lux, 3X Optical (Coming) Zoom Auto Iris, f: 3 ~ 9 2 MP, H.264, WDR Pro, Motorized GV-BL2410 mm, F/1.2, 1/2.7’’ 3X Optical Zoom Varifocal ø...

  • Page 115: Packing List

    Bullet Camera 8.1 Packing List • Bullet Camera • Lens (Megapixel and Built-In 16 IR LEDs) • Self Tapping Screw x 3 • Plastic Screw Anchor x 3 • Torx Wrench x 2 • Sun-Shield Cover Kit (Sun-Shield Cover, Philips Head Screw x 2, Plastic Screw Spacer x 2 and Hexagon Screw x 2) •...

  • Page 116: Features

    8.2 Features • Image sensor Camera Model Image Sensor GV-BL120D 1/3’’ progressive scan low lux CMOS GV-BL1200 / 1210 GV-BL1500 1/3’’ progressive scan super low lux CMOS GV-BL1510 GV-BL130D / 220D / 320D 1/2.5’’ progressive scan CMOS GV-BL1300 / 5310 GV-BL2400 / 2410 1/3.2’’...
  • Page 117 Bullet Camera • Ingress protection (IP66 for GV-BL120D / 130D / 220D / 320D) (IP67 for GV-BL1200 / 1300 / 1500 / 2400 / 2500 / 3400 / 1210 / 1510 / 2410 / 2510 / 3410 / 5310) • Vandal resistance (IK10 for metal casing, GV-BL1200 / 1300 / 1500 / 2400 / 2500 / 3400 / 1210 / 1510 / 2410 / 2510 / 3410 / 5310 only) •...

  • Page 118: Overview

    8.3 Overview Figure 8-1 Name Description Receives a micro SD card (SD/SDHC, Memory Card Slot version 2.0 only, Class 10). Zoom Screw Holds the zoom lens in place. Focus Screw Holds the focus lens in place Resets all configurations to factory default. Default Button See 22.3.

  • Page 119: Installation

    Bullet Camera 8.4 Installation These instructions describe the basic installation of the Bullet Camera. Slide the cable clamp to the camera base. Cable Clamp Figure 8-2 Install the Bullet Camera to the wall. Figure 8-3 Remove the protection sticker from the camera’s cover Connect the power, network and other wires to the Bullet Camera.
  • Page 120 Access the live view. For details, see 18.1. Accessing the Live View. Adjust angles of the camera body based on the live view. Three shafts can be adjusted. See 8.4.2 Adjusting the Angles. Loosen the camera’s cover, adjust the focus of the camera and optionally insert a micro SD card (SD/SDHC, version 2.0, Class 10) into the SD card slot.

  • Page 121: Connecting The Camera

    Bullet Camera 8.4.1 Connecting the Camera Wire Definition The 7-Pin Data Cable provides connections for power, ground, 1 sensor input, 1 alarm output, audio input and audio output. The wires are illustrated and defined below: Digital In (Red) DC 12V+ / AC 24V + (Brown) Digital Out (Orange) DC 12V- / AC 24V - (Black) GND (Yellow)
  • Page 122 Note that the Audio In and Out connectors may also come as terminal blocks: Digital In (Red) DC 12V+ / AC 24V + (Brown) Digital Out (Orange) DC 12V- / AC 24V - (Black) GND (Yellow) Audio In (Brown) Audio Out (Green) Ethernet (PoE) Figure 8-5 Wire Color...
  • Page 123 Bullet Camera Power Connection • There are two ways to supply power to the camera: Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. • Plug the power adaptor to the terminal block as shown below.
  • Page 124 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product). Refer to the figure and table below.

  • Page 125: Adjusting The Angles

    Bullet Camera 8.4.2 Adjusting the Angles The Bullet Camera is designed to be adjustable in three shafts for easy and flexible installation. First Shaft You can adjust the camera body by 360 degrees to the right or the left. Unscrew the panning lock screw with the torx wrench. Panning Lock Screw Torx Wrench Figure 8-9...
  • Page 126 Second Shaft You can adjust the camera body up and down by 90, 112.5, 135, 157.5 or 180 degrees by using the gears inside the camera body and the camera base. Unscrew the tilting lock screw with the torx wrench. Tilting Lock Screw Torx Wrench Figure 8-11...
  • Page 127 Bullet Camera Adjust the angle of camera body to 90°, 112.5°, 135°, 157.5° or 180°. Then move the camera base to the left to combine the gears. 180 ° 157.5° 135 ° 112.5° 90° Figure 8-13 Fasten the tilting lock screw. Third Shaft You can adjust the camera base by 360°.
  • Page 128 Adjust the angle of camera base, and fasten the base fixing screw. 0~360° Figure 8-15...

  • Page 129: Adjusting Lens And Inserting A Memory Card

    Bullet Camera 8.4.3 Adjusting Lens and Inserting a Memory Card To adjust the camera’s lens to produce a clear image and insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the SD card slot, follow the steps below. Loosen the camera’s cover.
  • Page 130 If you want to insert a micro SD card, follow the steps below. Loosen the fixing screw. Fixing Screw Figure 8-18 Slightly pull out the camera module. Insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the memory card slot. Memory Card Slot Figure 8-19 Push the camera module back and fasten the fixing screw.
  • Page 131 Bullet Camera IMPORTANT: 1. The silica gel loses its effectiveness when the dry camera is opened. To prevent the lens from fogging up, replace the silica gel bag every time when you open the camera and conceal the gel bag in the camera within two minutes of exposing to the open air.

  • Page 132: Installing The Sun-Shield Cover

    8.4.4 Installing the Sun-Shield Cover After setting up the Bullet Camera, now you can install the sun-shield cover to the camera. Fasten the hexagon screws either on top or below the camera. Hexagon Screws Figure 8-20 Put the sun-shield cover on top of hexagon screws. Make sure to aim the rear hexagon screw at the edge of the sun-shield cover’s aperture for optimal sun-shield performance.

  • Page 133: Chapter 9 Ultra Bullet Camera

    Chapter 9 Ultra Bullet Camera The Ultra Bullet Camera is a series of light-weighted cameras designed for outdoor environments. The camera adheres to the IP67 standard and has full protection against dust and jets of water. The Ultra Bullet Cameras are available in motorized varifocal lens and fixed lens at 1.3, 2 and 3 megapixels.
  • Page 134 Model No. Specifications Description Fixed Iris, f: 2.8 mm, GV-UBL1301-0F F/2.0, 1/3’’ M12 Lens Mount 1.3 MP, Low Lux, H.264, D/N Fixed Iris, f: 4 mm, GV-UBL1301-1F F/1.5, 1/3’’ M12 Lens Mount Fixed Iris, f: 4 / 8 mm, GV-UBL1301-2F 1.3 MP, Low F/1.6, 1/3’’...

  • Page 135: Packing List

    Ultra Bullet Camera 9.1 Packing List • Ultra Bullet Camera (with Waterproof or Non-Waterproof LAN connector) • Camera Stand • Black Rubber • Self Tapping Screw x 3 • Plastic Screw Anchor x 3 • Torx Wrench • Sun-Shield Cover Kit (Sun-Shield Cover, Philips Head Screw x 2, Plastic Screw Spacer x 2 and Hexagon Screw x 2) •...

  • Page 136: Features

    9.2 Features • Image sensor Camera Model Image Sensor GV-UBL1211 1/3’’ progressive scan CMOS GV-UBL1301 Series 1/2.5’’ progressive scan CMOS GV-UBL1511 1/3’’ progressive scan super low lux CMOS 1/2.8’’ progressive scan super low lux GV-UBL2511 CMOS GV-UBL2411 / 3411 GV-UBL2401 Series 1/3.2’’...
  • Page 137 Ultra Bullet Camera • Micro SD card slot (SD/SDHC) for local storage • Intelligent IR • Motion detection • Tampering alarm • Visual automation • Text overlay • Privacy mask • IP address filtering • DC 5V / PoE • Megapixel lens •...

  • Page 138: Overview

    9.3 Overview Panel Figure 9-1 Name Description Power & I/O Connects to the data cable. For details, see Connector 9.4.2 Connecting the Camera. Resets all configurations to factory default. Default Button See 22.3. Restoring to Factory Default Settings. LAN / PoE Cable Connects to a 10/100 Ethernet or PoE.
  • Page 139 Ultra Bullet Camera LAN Connector The Ultra Bullet Camera provides two connector types. Select an option based on your installation environment. • Option 1 (Waterproof) To waterproof the cable, install the supplied cable connector. See 9.4.1 Waterproofing the Cable. • Option 2 (Smaller and non-waterproof)

  • Page 140: Installation

    Put the sun-shield cover on top of the hexagon screws. For optimal sun-shield performance, make sure the rear hexagon screw is at the end of the opening. Figure 9-3 IMPORTANT: The GeoVision logo on the sun-shield cover should be closer to the front of the camera.
  • Page 141 Ultra Bullet Camera Fasten the Philips head screws with the plastic screw spacers. Philips Head Screw Plastic Screw Spacer Figure 9-4 Optionally insert a micro SD card to the camera. Unscrew and open the back panel with the supplied torx wrench. Figure 9-5 Insert a micro SD card (SD/SDHC, version 2.0 only, Class 10) into the card slot.
  • Page 142 Replace the silica gel bag. IMPORTANT: 1. The silica gel loses its effectiveness when the dry camera is opened. To keep the interior dry, replace the silica gel bag every time you open the camera and conceal the gel bag in the camera within two minutes of exposing to the open air.
  • Page 143 Ultra Bullet Camera Install the camera to the wall or ceiling using the screw anchors and self-tapping screws. You can also stand the camera on a plain surface Figure 9-8 Remove the protection sticker from the camera’s cover. Connect the wires and cable connector to the camera. See 9.4.1 Waterproofing the Cable and 9.4.2 Connecting the Camera.

  • Page 144: Waterproofing The Cable

    9.4.1 Waterproofing the Cable Waterproof the option 1 LAN / PoE cable (see 9.3 Overview) using the supplied cable connector. The cable connector can be dissembled into 5 parts: Figure 9-9 Cut off the RJ-45 connector on one end of the Ethernet cable. Figure 9-10 Connect the Ethernet cable to the LAN / PoE connector (No.
  • Page 145 Ultra Bullet Camera Move all the components toward the LAN / PoE connector, fit item 4 to item 2, secure item 3 to the LAN / PoE connector (Item A) and finally secure item 5 to item 2 tightly. Figure 9-12 IMPORTANT: Item 5 must be secured tightly to waterproof the LAN / PoE connector.

  • Page 146: Connecting The Camera

    9.4.2 Connecting the Camera Wire Definition The camera’s 4-pin data cable provides connections for power, ground, 1 sensor input and 1 alarm output. The wires are defined below: Figure 9-13 Wire Color Definition DC 5V Green Digital In Blue Digital Out Black Ground...
  • Page 147 Ultra Bullet Camera Power Connection • Connect the camera to power using one of the following methods: Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. •...
  • Page 148 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product). Refer to the figure and table below.

  • Page 149: Chapter 10 Target Bullet Camera

    Chapter 10 Target Bullet Camera The Target Bullet Camera (GV-EBL) is a series of light-weighted cameras designed for outdoor environments. The camera adheres to the IP67 standard and has full protection against dust and jets of water. The camera offers an entry­level surveillance solution with all the essential features and excellent image quality.

  • Page 150: Features

    10.2 Features • 1/3” progressive scan low lux CMOS for GV-EBL1100 Series 1/2.8’’ progressive scan low lux CMOS for GV-EBL2100 Series • Dual streams from H.264 or MJPEG • Up to 30 fps at 1280 x 1024 Up to 25 fps at 1920 x 1080 •...

  • Page 151: Overview

    Target Bullet Camera 10.3 Overview Panel Figure 10-1 Name Description Power Connects to the data cable. For details, see Connector 10.5 Connecting the Camera. Resets all configurations to factory default. Default Button See 22.3. Restoring to Factory Default Settings.
  • Page 152 IMPORTANT: 1. The silica gel loses its effectiveness when the camera cover is opened. If you open the camera to access the load default button, replace the silica gel tape by taping the new silica gel tape to the inside of the camera cover. Make sure you conceal the silica gel tape in the camera within two minutes of exposing to the open air.

  • Page 153: Installation

    Slide the sun-shield cover onto the top of the camera. Figure 10-2 Note: The GeoVision logo on the sun-shield cover should be closer to the front of the camera. Line up the screw hole on the camera with the opening on the sun- shield cover.
  • Page 154 Ceiling Mount: Secure the supporting rack to the opening on the sun-shield cover Figure 10-4 Wall Mount: Insert and tighten the supplied screw on the sun-shield cover. Secure the supporting rack to the bottom. Figure 10-5...
  • Page 155 Target Bullet Camera Install the camera to the wall or ceiling using the screw anchors and self-tapping screws. You can also stand the camera on a plain surface. Figure 10-6 Remove the protection sticker from the camera’s cover. Connect the wires and cable connector to the camera. See 10.5 Connecting the Camera.

  • Page 156: Connecting The Camera

    10.5 Connecting the Camera Wire Definition The data cable provides connections for power, ground and network access. The wires are defined below: Figure 10-7 Wire Color Definition DC 12V Black Ground Black (thick) PoE, Ethernet...
  • Page 157 Target Bullet Camera Power Connection • There are two ways to supply power to the camera: Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time. •...

  • Page 158: Chapter 11 Ptz Camera

    Chapter 11 PTZ Camera The GV-PTZ010D camera is a ceiling-mount device that provides panning, tilting and zooming functions. The camera is designed to monitor a wide area and also to focus on a specific part on the live view when suspicious events occur.

  • Page 159: Packing List

    PTZ Camera 11.1 Packing List • GV-PTZ010D • Mounting Base • Mounting Cover • Wall Mount Bracket • Screw Anchor x 3 • Long Screw x 3 • Short Screw x 3 • Round Screw x 3 • GV-PTZ010D Software CD •...

  • Page 160: Features

    11.2 Features • 1/4" CCD image sensor • Dual streams from H.264, MPEG4 or MJPEG • Up to 30 fps at 704 x 480 / Up to 25 fps at 704 x 576 • Day and night function (electronic) • 10x optical zoom lens •...

  • Page 161: Overview

    PTZ Camera 11.3 Overview Figure 11-1 Name Description DC 12V / AC 24V Connects to a DV 12V or AC 24V Power Terminal Block Adapter. LAN/PoE Connects to a 10/100 Ethernet or PoE. I/O Terminal Block For details, see 11.7 I/O Terminal Block. Inserts a micro SD card (SD/SDHC, version Memory Card Slot 2.0 only, Class 10) to store recording data.
  • Page 162 Name Description Turns green when the power is on and Power LED turns off when the power is off. Microphone Records the sounds. Resets to system default settings. For Default details, see 22.3 Restoring to Factory Default Settings.

  • Page 163: Installation

    PTZ Camera 11.4 Installation The GV-PTZ010D / GV-PT series is designed for indoor usage. Make sure that the installing location is shielded from rain and moisture. There are two ways to mount the PTZ / PT Camera: Ceiling Mount and L-Shaped Wall Mount.
  • Page 164 Fix the mounting base (now with the PTZ / PT Camera attached) to the wall with 3 long screws. Figure 11-4 Put on the mounting cover. To fit the installation environment, you can cut the parts indicated by arrows to make an opening for wires and cables.

  • Page 165: L-Shaped Wall Mount

    PTZ Camera 11.4.2 L-Shaped Wall Mount You may wall-mount the GV-PTZ010D / GV-PT series with or without the mounting cover. Take the wall mount bracket and make 2 marks on the wall for screw anchors. wall Figure 11-6 Drill the marks and insert 2 screw anchors. Insert the long screws and leave enough distance (approximately 2 mm) to hang the wall mount bracket later.
  • Page 166 Hang the wall mount bracket on the screws and push the wall mount bracket downward. Make sure the long screws are tightened. Figure 11-8 Without Mounting Cover  Attach the wall mount bracket with the PTZ / PT Camera using 3 washers and 3 round screws.
  • Page 167 PTZ Camera With Mounting Cover  To install the mounting cover, attach the mounting base to the camera and then put on the mounting cover. See steps 3 and 5 in the Ceiling Mount section.  Attach the wall mount bracket with the PTZ / PT Camera using 3 round screws.

  • Page 168: Connecting The Camera

    11.5 Connecting the Camera Figure 11-11 Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. • Connect power using one of the following methods: plugging the power adapter to the power port. The power adapter •...

  • Page 169: Focus Adjustment

    PTZ Camera 11.6 Focus Adjustment On initial installation, it is advised that you adjust the focus for image clarity. Print out the diagram of radiating lines included on Software DVD and hang up the diagram at the surveillance area. Use the Zoom In / Out and Focus In / Out buttons on the PTZ control panel from the Web interface (No.4 and 5, Figure 11-15) and adjust the PTZ Camera until it displays clear radiating lines as shown in picture on the left.

  • Page 170: I/O Terminal Block

    11.7 I/O Terminal Block The 3-pin terminal block, located on the back panel of the PTZ Camera, provides the interface to one digital input and one digital output. The I/O terminal block can be used for applications such as motion detection, event alerts via E-Mail and FTP, and center monitoring through Center V2 and VSM.

  • Page 171: Voltage Load Expansion (Optional)

    PTZ Camera 11.7.2 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product). Refer to the figure and table below.

  • Page 172: Ptz Control

    11.8 PTZ Control After you have installed the PTZ Camera on network and accessed the camera’s Web interface you are ready to configure the PTZ Camera. To see how to install the PTZ Camera on network, see Getting Started, Chapter 18. To see how to access to live image, see 18.1 Accessing Your Surveillance Images.
  • Page 173 PTZ Camera Buttons on the PTZ control panel: Name Description Exit Closes the PTZ control panel. Moves the PTZ Camera to 8 directions: Pan / Tilt Control up, down, left, right, left up, left down, right up and right down. Brings the camera view back to the home Home point where the camera faces front at a 90...

  • Page 174: Automatic Focus

    11.8.2 Automatic Focus When the camera view is fuzzy, you may use the auto focus feature to obtain a sharper view. On the PTZ control panel, click the Option button (No. 6, Figure 11-15) and select AF for automatic focus. 11.8.3 PTZ Camera Settings Accessing the PTZ Camera Settings To access PTZ camera settings, click the Option button (No.
  • Page 175 PTZ Camera  PT Speed: Determines the panning (horizontal movement) and tilting (vertical movement) speed when using the Pan / Tilt Control buttons on the PTZ control panel. The drop-down list contains 5 speed settings: 1 is the slowest and 5 the fastest. ...

  • Page 176: Image Settings

    11.8.4 Image Settings Image Setting provides features on iris control, white balance, image orientation and other image processing tools to generate clearer images. To access these features, open the VISCA OSD Configuration dialog box and select Image Setting. [Iris] adjusts the amount of exposure. ...
  • Page 177 PTZ Camera  AWB: Automatic White Balance (AWB) automatically compensates for colors under different light levels. AWB is ideal for scenes with a fixed light source. Use the slider to select from 0 to 8. A higher value produces a brighter image and a lower value produces a dimmer image.
  • Page 178   Freeze: Instantly freezes the live view image when On is selected.  AGC: Automatic Gain Control (AGC) utilizes an electronic circuit which amplifies video signal when the signal strength falls below a given value due to lack of the light on the camera. Adjust camera sensitivity to provide clear images.

  • Page 179: Preset Settings

    PTZ Camera 11.8.5 Preset Settings For PTZ Camera to automatically move toward a point in live view, establish a Preset. A Preset is a point in live view that can be configured and saved for future use. The PTZ Camera allows up to 256 Preset points. For details on the maximum number of Preset points, see 11.8.3 PTZ Camera Settings.
  • Page 180 Renaming a Preset Point To rename a Preset point: Click the Option button (No. 6, Figure 11-15), select Preset Set and select Naming. The dialog box appears. Figure 11-18 Click the Preset point you wish to rename and type the new name in the blank at the top.
  • Page 181 PTZ Camera Starting and Stopping a Preset Point To start a Preset movement, click the Option button (No. 6, Figure 11-15), select Preset Go, and select a Preset number which has been set previously. Alternatively, you may use the number pad on the PTZ control panel to enable a Preset movement: Click the Show Preset button (No.

  • Page 182: Sequence Settings

    11.8.6 Sequence Settings For PTZ Camera to automatically perform a series of movements, you can configure a Sequence. A Sequence links up more than two Preset points to form a sequence of movements. Up to 8 Sequences can be created. Configuring a Sequence After you have configured the Preset points you wish the camera to follow (for details, see 11.8.5 Preset Settings), you are ready to...
  • Page 183 PTZ Camera Use the Preset drop-down list to select the Preset points for the Sequence. Use the Dwell Time drop-down list to select the staying time that the camera stays at the Preset point. The dwell time ranges from 0 to 127 seconds at an interval of 0.5 second.

  • Page 184: Auto Pan Settings

    11.8.7 Auto Pan Settings For the PTZ Camera to survey a horizontal view, establish an Auto Pan. Up to 4 sets of Auto Pan can be created. Configuring an Auto Pan To configure a horizontal movement: Adjust the angle of the camera view using the Up and Down Control buttons since any vertical movements of the camera will not be recorded by Auto Pan.
  • Page 185 PTZ Camera Configuring the Speed of Auto Pan You can configure the speed for each set of Auto Pan differently: Open the VISCA OSD Configuration dialog box and select Advance. Figure 11-20 Select the Auto Pan number you wish to configure and select the Speed.
  • Page 186 Starting and Stopping Autopan To start an Auto Pan, click the Option button (No. 6, Figure 11-15), select Auto and select a desired Auto Pan number. The PTZ Camera will first return to the starting position of the selected Auto Pan and proceeds with the selected Auto Pan movement.

  • Page 187: System Configuration

    PTZ Camera 11.8.8 System Configuration To configure lens settings, open the VISCA OSD Configuration dialog box and select System Configure. Figure 11-21  Zoom + AF: Automatically focuses after zooming. It is advised to use this feature with a zooming distance of at least 1 meter. ...

  • Page 188: Chapter 12 Pt Camera

    Chapter 12 PT Camera The GV-PT camera is a series of indoor pan and tilt camera that is designed to monitor a wide surveillance area. The camera support remote pan and tilt control and is capable of storing pre-established panning/tilting movements and points on live view for immediate monitoring.
  • Page 189 PT Camera • Short Screw x 3 • Round Screw x 3 • Terminal Block • Washer x 3 • GV-IPCAM H.264 Software CD • GV-IPCAM H.264 Quick Start Guide • GV-NVR Quick Start Guide • GV-NVR Software DVD Note: Power adapter can be purchased upon request.

  • Page 190: Features

    12.2 Features • 1/2.5’’ progressive scan CMOS • Dual streams from H.264 and MJPEG • Frame rate Camera Model Frame Rate GV-PT130D 30 fps at 1280 x 1024 GV-PT220D 30 fps at 1920 x 1080 GV-PT320D 20 fps at 2048 x 1536 •...

  • Page 191: Overview

    PT Camera 12.3 Overview 6 7 8 Figure 12-1 Name Description DC 12V / AC 24V Connects to a DV 12V or AC 24V Power Terminal Block Adapter. LAN / PoE Connects to a 10/100 Ethernet or PoE. I/O Terminal Block For details, see 12.7 I/O Terminal Block.
  • Page 192 Name Description Turns green when the system operates Status LED normally and turns off when system error occurs. Turns green when the power is on and turns Power LED off when the power is off. Manually rotates this ring left or right to Focus Ring adjust focus.

  • Page 193: Installation

    PT Camera 12.4 Installation For installation procedures of the GV-PT Camera, see 11.4 Installation. 12.5 Connecting the Camera For procedures of connecting the GV-PT Camera, see 11.5 Connecting the Camera. 12.6 Focus Adjustment After you have followed 11.5 Connecting the Camera and connected all the necessary cables and wires, follow the steps below to adjust image clarity.

  • Page 194: I/O Terminal Block

    12.7 I/O Terminal Block The 3-pin terminal block, located on the back panel of the PT Camera, provides the interface to one digital input and one digital output. The I/O terminal block can be used for applications such as motion detection, event alerts via E-Mail and FTP, and center monitoring through Center V2 and VSM.

  • Page 195: Pt Control

    PT Camera 12.8 PT Control The GV-PT Camera shares similar user interfaces and features with the GV-PTZ010D camera. See below for the supported functions and reference. Supported Function Description PT Control Panel The PT camera supports the following buttons on the control panel: Exit, Pan / Tilt Control, Home, Option and Show Preset.
  • Page 196 Supported Function Description Sequence A Sequence consists of a series of Preset points. Configure a Sequence to direct the camera to perform s series of movements. For details, see 11.8.6 Sequence Settings. Auto Pan The camera can be configured to monitor the surveillance area in a horizontal movement.

  • Page 197: Chapter 13 Vandal Proof Ip Dome (Part I)

    Chapter 13 Vandal Proof IP Dome (Part I) The Vandal Proof IP Dome is a series of outdoor camera designed for vandal protection. They are equipped with automatic infrared cut filters and IR LED for day and night surveillance. The WDR Pro models can produce clear image for scenes containing contrasting intensity of lights (see 2.2.1 Wide Dynamic Range Pro for details).The super low lux models can display color live view in near darkness.
  • Page 198 Model No. Specification Description GV-VD220D (IK10+, Transparent Cover) GV-VD221D 2 MP, H.264, (IK10+, Smoked Cover) Vandal Proof IP GV-VD222D Dome (IK7, Transparent Cover) GV-VD223D Auto Iris, f:3 ~ 9 Varifocal (IK7, Smoked Cover) mm, F/1.3, 1/2.7” ø 14 mm lens Lens GV-VD320D mount...

  • Page 199: Packing List

    Vandal Proof IP Dome (Part I) 13.1 Packing List • Vandal Proof IP Dome • Silica Gel Bag x 2 • Screw Anchor x 4 • Torx Wrench • Ceiling Screw x 4 • Blue Screw x 3 • T-Cap Screw x 3 •...

  • Page 200: Features

    13.2 Features • Image sensor Camera Model Image Sensor GV-VD120D / 121D / 122D / 1/3" progressive scan low lux 123D CMOS 1/3’’ progressive scan super low GV-VD1500 lux CMOS 1/2.8’’ progressive scan super GV-VD2500 low lux CMOS GV-VD2400 / 3400 1/3.2"...
  • Page 201 Vandal Proof IP Dome (Part I) • 3-axis mechanism (pan / tilt / roll) • Micro SD card slot (SD/SDHC) for local storage • Two-way audio • One sensor input and alarm output • TV-out support • Motion detection • Tampering alarm •...

  • Page 202: Overview

    13.3 Overview Figure 13-1 Name Description Turns on (green) when the power is on and Power LED turns off when there is no power supply. Turns on (green) when the system operates Status LED normally and turns off when system error occurs.
  • Page 203 Vandal Proof IP Dome (Part I) Name Description Rotational Screw Loosens to adjust the camera angle. Zoom Screw Adjusts the zoom of the camera. Focus Screw Adjusts the focus of the camera. Silica Gel Bag Absorbs moisture in the camera body.

  • Page 204: Installation

    13.4 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, there are two ways to install the Vandal Proof IP Dome: hard- ceiling mount and in-ceiling mount. Note: You can also install the camera: • on a power box (of the 4"...

  • Page 205: Hard-Ceiling Mount

    Vandal Proof IP Dome (Part I) 13.4.1 Hard-Ceiling Mount Figure 13-2 Unpack the camera package and take out the camera body. Unscrew the housing cover Unscrew thread lock...
  • Page 206 Unscrew the inner housing Take out the camera body...
  • Page 207 Vandal Proof IP Dome (Part I) Mark the position of four screw holes on the desired installation location, and drill holes in the marked locations. Drill the ellipse part if you wish to put the wires through it. Figure 13-3 Insert the screw anchors to the 4 holes on the ceiling.
  • Page 208 Connect the network, power and other cables to the camera. See 13.5 Connecting the Camera. Access the live view. See 18.1 Accessing the Live View. Based on the live view, adjust the camera to a desired angle as illustrated below. Tip: The 3-axis mechanism offers flexible and easy installation.
  • Page 209 Vandal Proof IP Dome (Part I) Rotational Adjustment Figure 13-7 10. Adjust image clarity using the GV-IP Device Utility program. For details, see 18.2 Adjusting Image Clarity. 11. Screw on the thread lock as shown in step 1. 12. Replace the silica gel bag on the camera body within 2 minutes of opening the silica gel bag package.

  • Page 210: In-Ceiling Mount

    13.4.2 In-Ceiling Mount Figure 13-8 Follow step 1 in 13.4.1 Hard-Ceiling Mount section to remove the housing cover, thread lock and back cover, and take out the camera body. Cut out a circle with a diameter of 142 mm on the ceiling. Insert a blue screw to the indicated holes on the camera body.
  • Page 211 Vandal Proof IP Dome (Part I) Screw in a plastic clip to the blue screw, hold it with one hand and use a screw driver to rotate the blue screw until the plastic clip moves half way down. Plastic Clip Figure 13-10 Secure a T-cap on top of the blue screw with a small screw cap and a T-cap screw.
  • Page 212 Insert the camera to the ceiling with the plastic screws moved inward. Figure 13-12 Move the blue screws out and rotate the blue screw with a screw driver until the plastic clip and the bottom of the camera body clamps the ceiling tightly.

  • Page 213: Connecting The Camera

    Vandal Proof IP Dome (Part I) 13.5 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other cables needed. 13.5.1 Wire Definition The cables of Vandal Proof IP Dome are illustrated and defined below. Shielding ground DC 12V- / AC 24V- DC 12V+ / AC 24V+ Digital in (oragne)

  • Page 214: Power Connection

    13.5.2 Power Connection • There are two ways to supply power to the camera: Use a Power over Ethernet (PoE) adapter to connect the camera to the • network, and the power will be provided at the same time. Plug the power adapter to the 12V terminal block as shown below. The power adapter is an optional device.

  • Page 215: Voltage Load Expansion (Optional)

    Vandal Proof IP Dome (Part I) 13.5.3 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product).

  • Page 216: Chapter 14 Vandal Proof Ip Dome (Part Ii)

    Chapter 14 Vandal Proof IP Dome (Part II) This chapter describes the features, physical overview and installation of GV-VD1530 / 2430 / 2530 / 3430, GV-VD1540 / 2440 / 2540 / 3440 / 5340 and GV-VD2540-E / 5340-E. These Vandal Proof IP Domes are outdoor cameras designed with IK10+ vandal resistance and IP67 ingress protection.
  • Page 217 Vandal Proof IP Dome (Part II) Model No. Specification Description 1.3 MP Super Low Lux / 2 MP WDR GV-VD1530 Pro / 2 MP Super GV-VD2430 Varifocal Low Lux / 3 MP GV-VD2530 lens WDR Pro, H.264, GV-VD3430 Vandal Proof IP Dome 1.3 MP Super Low Auto Iris,...

  • Page 218: Packing List

    14.1 Packing List • Vandal Proof IP Dome • Torx Wrench • 3-Pin Terminal Block • Audio wires • Power Adapter • TV out wire • RJ-45 Connector x 2 • Back Plate...
  • Page 219 Vandal Proof IP Dome (Part II) • Installation sticker • Screw Anchor x 4 • Long Screw x 4 • Flat Screw • Short Screw x 2 • Silica Gel Bag x 2 • Sticker (for Silica Gel Bag) • Ruler •...
  • Page 220 Note: Power adapter can be purchased upon request. You can choose to run the wires through a conduit pipe. After you have threaded all the wires, install the supplied conduit converter with a self-prepared PG21 conduit connector and conduit pipe (of 1/2’’, 3/4’’...

  • Page 221: Features

    Vandal Proof IP Dome (Part II) 14.2 Features • Image sensor Camera Model Image Sensor GV-VD1530 / 1540 1/3" progressive scan super low lux CMOS GV-VD2430 / 2440 1/3.2" progressive scan CMOS GV-VD3430 / 3440 GV-VD2530 / 2540 1/2.8’’ progressive scan super low lux CMOS GV-VD2540-E GV-VD5340...
  • Page 222 • Ingress protection (IP67 rating) • Wide temperature tolerance: -40°C ~ 50°C / -40°F ~ 122°F (for GV-VD2540-E / 5340-E) • 3-axis mechanism (pan / tilt / roll) • Micro SD card slot (SD/SDHC) for local storage • Two-way audio •...

  • Page 223: Overview

    Vandal Proof IP Dome (Part II) 14.3 Overview Figure 14-1...
  • Page 224 Name Description The power LED (top) turns on (green) when the power is on and turns off when there is no power supply. The status LED (bottom) LED Indicators turns on (green) when the system operates normally and turns off when system error occurs.

  • Page 225: Installation

    Vandal Proof IP Dome (Part II) 14.4 Installation The Vandal Proof IP Dome is designed for outdoors. With the standard package, you can install the camera on the ceiling. Note: You can also install the camera: • on a power box (of the 4" square and double gang type) using the standard package •...
  • Page 226 B. Unplug the conduit connector inside the housing and disintegrate the connector. You should have 4 parts: Figure 14-3 C. Remove the terminal block from the power adapter. D. Thread the audio wires (optional), TV out wire (optional), adapter wires and I/O wires (optional) through the conduit entry and then through part 1, 2, 3 and 4 of the conduit connector.
  • Page 227 Vandal Proof IP Dome (Part II) 2.6 mm: Audio, BNC 2 mm: DC12V / AC24V 1.8 mm: DIDO Figure 14-5 IMPORTANT: 1. Use the supplied ruler and leave about 10 cm of power and I/O wires between their connectors and the cable seal; leave at least 11 cm of audio/TV-out wires between their connectors and the cable seal.
  • Page 228 Push off the cable seal in the indicated direction. Thread an Ethernet cable (with RJ-45 connector only on one end) through the cable seal and re-install the cable seal. Figure 14-6 IMPORTANT: 1. Use the supplied ruler and leave about 11 cm of the Ethernet cable between the connector and the cable seal.
  • Page 229 Vandal Proof IP Dome (Part II) Tip: Unscrew the indicated screws and lift the camera to help you connect the wires. Arrange the wires in the conduit connector and re-install it to the camera.
  • Page 230 Sort out the wires at the back. You can have the wires come out from position A, B or both. The instructions here describe sorting wires for position A. Figure 14-7 From the back of the camera housing, unscrew and rotate the plate to one side, sort out the wires and secure the plate back.
  • Page 231 Vandal Proof IP Dome (Part II) Secure the back plate to the ceiling. A. Paste the sticker to the ceiling. The arrow on the sticker indicates the direction that the camera faces. Ceiling mount template Figure 14-9 B. Drill 3 holes for screws. The recommended ones are indicated as ‘1’.
  • Page 232 Secure the camera to the ceiling. Secure the safety lock to the camera using a short screw. Use flat screw for number 1 and small screw for number 2. Figure 14-10 Thread all the wires into the ceiling and connect them. Note: To use the TV out function, connect the black BNC connector to a monitor and select your signal format (NTSC or PAL) at the TV Out field on the Web interface.
  • Page 233 Vandal Proof IP Dome (Part II) Secure the camera using the torx wrench Figure 14-11 Access the live view. See 18.1 Accessing the Live View. Adjust the camera’s angle, focus and zoom of the camera. Pan Adjustment Figure 14-12...
  • Page 234 Tilt Adjustment Figure 14-13 Rotational Adjustment Figure 14-14...
  • Page 235 Vandal Proof IP Dome (Part II) Replace the silica gel bag and secure the camera cover using the torx wrench. IMPORTANT: The gel bag loses its effectiveness when the dry camera is opened. To prevent the lens from fogging up, replace the silica gel bag every time you open the camera and conceal the silica gel bag within 2 minutes of exposing to open air.

  • Page 236: Connecting The Camera

    14.5 Connecting the Camera Connect your Vandal Proof IP Dome to power, network and other wires needed. 14.5.1 Power Connection • There are two ways to supply power to the camera: Use a Power over Ethernet (PoE) adapter to connect the camera to the •...

  • Page 237: Voltage Load Expansion (Optional)

    Vandal Proof IP Dome (Part II) 14.5.3 Voltage Load Expansion (Optional) The camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product).

  • Page 238: Chapter 15 Fixed Ip Dome

    Chapter 15 Fixed IP Dome The Fixed IP Dome is a series of indoor camera designed with 3-axis mechanism for easy and flexible installation. The Fixed IP Dome features IR LED for infrared illumination for night surveillance. The WDR Pro models can produce clear image for scenes containing contrasting intensity of lights (see 2.2.1 Wide Dynamic Range Pro for details).
  • Page 239 Fixed IP Dome Model No. Specification Description 1.3 MP Low Lux, H.264, D/N, 3x GV-FD1210 Optical Zoom, Fixed IP Dome 1.3 MP / 2 MP Super Motorized Auto Iris, f: 3 ~ 9 Low Lux, H.264, GV-FD1510 mm, F/1.2, 1/2.7’’ ø D/N, 3x Optical varifocal GV-FD2510...

  • Page 240: Packing List

    15.1 Packing List 15.1.1 Packing List for Hard-Ceiling Mount • Fixed IP Dome • Torx Wrench • Mounting Plate • Short Screw Anchor x 3 • Ceiling Screw x 3 • Plate Screw x 3 • TV-out Wire • Sticker •...

  • Page 241: Packing List For In-Ceiling Mount

    Fixed IP Dome 15.1.2 Packing List for In-Ceiling Mount • In-Ceiling Housing Cover • Mounting Plate • Mounting Bracket x 3 • Copper Pillar x 3 • Copper Pillar Screw x 6 • Bracket Screw x 3 • Thread Lock Screw •...

  • Page 242: Features

    15.2 Features • Image sensor Camera Model Image Sensor GV-FD120D 1/3’’ progressive scan low lux CMOS GV-FD1200 / 1210 GV-FD1500 / 1510 1/3’’ progressive scan super low lux CMOS 1/2.8’’ progressive scan super low lux GV-FD2500 / 2510 CMOS GV-FD2400 / 2410 1/3.2’’...
  • Page 243 Fixed IP Dome • 3-axis mechanism (pan / tilt / roll) • Built-in IR LED • Micro SD card slot (SD/SDHC) for local storage • Two-way audio • One sensor input and alarm output • TV-out support • Motion detection •...

  • Page 244: Overview

    15.3 Overview 10 11 12 13 14 15 Figure 15-1 Name Description Focus Screw Adjusts the focus of the camera. Zoom Screw Adjusts the zoom of the camera. Rotational Screw Loosens to adjust the camera angle. Tilt Screw Loosens the screw to tilt the camera. Pan Disc Loosens to pan the camera.
  • Page 245 Fixed IP Dome Name Description Audio In Connects a microphone for audio input. Audio Out Connects a speaker for audio output. LAN / PoE Connects to a 10/100 Ethernet or PoE. Connects I/O devices. For details, see I/O Terminal Block 12.6 I/O Terminal Block.

  • Page 246: Installation

    15.4 Installation The Fixed IP Dome is designed for indoors. With the standard packing, there are three ways to install the Fixed IP Dome: hard-ceiling mount, in- ceiling mount and wall-surface mount. Note: You may also install the camera to ceilings, wall corners (concave or convex), and poles with optional mounting kits.
  • Page 247 Fixed IP Dome Unpack the camera package and take out the camera body. Use the torx wrench to loosen the housing cover at the front and the back. Figure 15-3 Take out the camera body Figure 15-4 Secure the camera body to the mounting plate with three ceiling screws.
  • Page 248 Connect the network, power and other cables to the camera. See 15.5 Connecting the Camera. Access the live view. See 18.1 Accessing the Live View. Based on the live view, adjust the camera to a desired angle as illustrated below. Tip: The 3-axis mechanism offers flexible and easy ceiling / wall installation.
  • Page 249 Fixed IP Dome Rotational Adjustment Figure 15-8 Adjust image clarity using the GV-IP Device Utility program. For details, see 18.2 Adjusting Image Clarity. Secure the housing cover as shown in step 2. Remove the indicated part when necessary. Figure 15-9 Note: Adjust the black mask inside the housing cover to make sure the camera view is not obscured.

  • Page 250: In-Ceiling Mount

    15.4.2 In-Ceiling Mount Figure 15-10 Follow step 2 in the 15.4.1 Hard-Ceiling Mount to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the ceiling and cut a circle on the ceiling along the edge of the sticker. On the mounting plate, locate the 3 holes labeled as 1 and insert the 3 copper pillars from the back side.
  • Page 251 Fixed IP Dome From the side with the numbering, secure the copper pillars with 3 copper pillar screws. Figure 15-12 Place the 3 mounting brackets at the indent next to the copper pillars (labeled as 2 on the mounting plate) and secure them using the 3 bracket screws.
  • Page 252 Place the mounting plate on the camera body with the copper pillars inserted in the locations indicated below. The arrow on the mounting plate should be pointing toward the front of the camera. Figure 15-14 From the bottom of the camera, secure the copper pillars using the 3 copper pillars screws.
  • Page 253 14. Use the housing cover thread and the thread lock screw to attach the housing cover to the camera body. Figure 15-16 15. Place the housing cover on the camera body with the GeoVision logo pointing toward the front of the camera. Figure 15-17...

  • Page 254: Wall-Surface Mount

    15.4.3 Wall-Surface Mount Figure 15-18 Follow step 2 in 15.4.1 Hard-Ceiling Mount section to remove the housing cover and take out the camera body. Paste the supplied sticker onto a desired location on the wall. Drill the three red dots, and the ellipse mark only if you wish to run the wires into the wall.
  • Page 255 Fixed IP Dome Access the live view. See 18.1 Accessing the Live View. Follow steps 6 and 7 in 15.4.1 Hard-Ceiling Mount section to adjust the angle, focus and zoom of the camera. Follow step 8 in 15.4.1 Hard-Ceiling Mount section to secure the housing cover.

  • Page 256: Connecting The Camera

    15.5 Connecting the Camera Figure 15-20 Use a standard network cable to connect the camera to your network. Optionally connect a speaker and an external microphone. Optionally connect a monitor using a Video Out wire. Enable this function by selecting your signal format at the TV Out field on the Web interface.

  • Page 257: I/O Terminal Block

    Fixed IP Dome 15.6 I/O Terminal Block The terminal block, located on the back panel of the Fixed IP Dome, provides the interface to one input and one output devices. The I/O terminal block can be used for applications such as motion detection, event alerts via E-Mail and FTP, and center monitoring through Center V2 and VSM.

  • Page 258: Voltage Load Expansion (Optional)

    15.6.2 Voltage Load Expansion (Optional) The camera on its own can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC / 10A 125V AC / 5A 100V DC), connect the camera to a GV-Relay V2 module (optional product).

  • Page 259: Chapter 16 Cube Camera

    Chapter 16 Cube Camera The Cube Camera is a light weighted wired / wireless network camera designed for indoor usage. Its simple design allows for fast and easy installation and fixed-spot surveillance once installed. Four models are available: Model No. Specification Description 1.3 MP, H.264, Cube...

  • Page 260: Packing List

    16.1 Packing List • Cube Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 • GV-IPCAM H.264 Quick • GV-IPCAM H.264 Software Start Guide • GV-NVR Quick Start Guide • GV-NVR Software DVD Note: Power adapter can be purchased upon request.

  • Page 261: Features

    Cube Camera 16.2 Features • 1/2.5’’ progressive scan CMOS • Dual streams from H.264 or MJPEG • Frame rate Camera Model Frame Rate GV-CB120 / CBW120 Series 30 fps at 1280 x 1024 GV-CB220 / CBW220 Series 30 fps at 1920 x 1080 •...

  • Page 262: Overview

    16.3 Overview Figure 16-1 Name Description Microphone Receives sounds. Speaker Plays sounds. Connects to a 10/100 Ethernet. Turns red when the system powers on. Status LED Turns orange when the system is ready. Turns green when the camera is connected to the Internet through wires.

  • Page 263: Installation

    Cube Camera 16.4 Installation Follow the steps below to install, connect to and adjust your Cube Camera and Wireless Cube Camera. Put the supporting rack on the desired location and make marks for screw anchors. Figure 16-2 Drill the marks and insert the screw anchors. Secure the supporting rack onto the wall using the supplied screws.
  • Page 264 Connect the network and power cables to the camera. See 16.5 Connecting the Camera. Access the live view. See 18.1 Accessing the Live View. Adjust the angle of the camera based on live view and fasten the indicated screw. Figure 16-4 For GV-CBW120/220, to connect to the Internet through wireless service, follow the steps in 18.1.3 Configuring the Wireless Connection.

  • Page 265: Connecting The Camera

    For detail, see Options in the manual. The status LED of the camera will be orange. IMPORTANT: Be sure to use the GeoVision power adapter to power up the camera. To use your own power cable, make sure you look up the...

  • Page 266: Chapter 17 Advanced Cube Camera

    Chapter 17 Advanced Cube Camera The Advanced Cube Camera integrates the passive infrared (PIR) sensor and the alarm LED to illuminate the scene automatically when the motion is detected. It also offers wireless connection to the network for flexible installation. It is small, light, and easy-to-use for indoor security. We provide four models: Model No.

  • Page 267: Packing List

    Advanced Cube Camera 17.1 Packing List • Advanced Cube Camera • Supporting Rack • Screw x 3 • Screw Anchor x 3 • GV-IPCAM H.264 Quick • GV-IPCAM H.264 Software Start Guide • GV-NVR Quick Start Guide • GV-NVR Software DVD Note: Power adapter can be purchased upon request.

  • Page 268: Features

    17.2 Features • 1/2.5’’ progressive scan CMOS • Dual streams from H.264 or MJPEG • Frame rate Camera Model Frame Rate GV-CA120 / CAW120 30 fps at 1280 x 1024 GV-CA220 / CAW220 30 fps at 1920 x 1080 • Micro SD card slot (SD/SDHC) for local storage •...

  • Page 269: Overview

    Advanced Cube Camera 17.3 Overview 2 3 4 5 6 7 Figure 17-1 Name Description Plays sounds for tampering and motion alarm, and listens to the audio around the Speaker camera. To set up alarm sound, see 20.3.9 Speaker. PIR sensor Passive infrared sensor.
  • Page 270 Name Description Reflects system status of the camera. See Ready LED the below table. Reflects LAN status of the camera. See the LAN LED below table. Inserts a micro SD card (SD/SDHC, Memory Card Slot version 2.0 only, Class 10) to store recording data.

  • Page 271: Installation

    Advanced Cube Camera 17.4 Installation Follow the steps below to install, connect to and adjust your Advanced Cube Camera and Wireless Advanced Cube Camera. Put the supporting rack on the desired location and make marks for screw anchors. Figure 17-2 Drill the marks and insert the screw anchors.
  • Page 272 Connect the network and power cables to the camera. See 17.5 Connecting the Camera. Access the live view. See 18.1 Accessing the Live View. Adjust the angle of the camera based on live view and fasten the indicated screw. Figure 17-4 For GV-CAW120/220, to connect to the Internet through wireless service, follow the steps in 18.1.3 Configuring the Wireless Connection.

  • Page 273: Connecting The Camera

    Advanced Cube Camera 17.5 Connecting the Camera Figure 17-5 Use a standard network cable to connect the camera to your network. • Connect power using one of the following methods: plugging the power adapter to the power port. The power adapter •...

  • Page 274: Chapter 18 Getting Started

    Chapter 18 Getting Started This section provides the initial and basic configurations of the GV-IPCAM H.264. 18.1 Accessing the Live View Access or configure your camera according to the camera type and its firmware version: Camera Type & Default Connection Type •...
  • Page 275 GV-PTZ010D camera is connected to the network. To avoid IP conflict with other GeoVision IP devices, it is advisable to re-assign a different IP address. See 18.1.2 Configuring the IP Address for more detail.

  • Page 276: Checking The Dynamic Ip Address

    18.1.1 Checking the Dynamic IP Address Follow the steps below to look up the IP address and access the Web interface. Install the GV-IP Device Utility program included on the GV-IPCAM H.264 Software CD. Note: The PC installed with GV-IP Device Utility must be under the same LAN with the GV-IPCAM H.264 you wish to configure.
  • Page 277 Getting Started Find the camera with its Mac Address, click on its IP address and select Web Page. Figure 18-2 The login page appears. Figure 18-3 Type the default ID and password admin and click Apply to log in.

  • Page 278: Configuring The Ip Address

    18.1.2 Configuring the IP Address Follow the steps below to configure the IP address. Open your web browser, and type the default IP address http://192.168.0.10. In both Login and Password fields, type the default value admin. Click Apply. In the left menu, select Network and then LAN to begin the network settings.
  • Page 279 Getting Started IMPORTANT: If Dynamic IP Address or PPPoE is enabled, you need to know which IP address the camera will get from DHCP server or ISP to log in. If your camera is installed in the LAN, use the GV-IP Device Utility to look up its current dynamic IP address.

  • Page 280: Configuring The Wireless Connection

    18.1.3 Configuring the Wireless Connection You may create wireless connection to the Internet for: • Box Camera: GV-BX1200 series / 1300 series / 1500 series / 2400 series / 2500 series / 3400 series / 5300 series • Wireless Cube Camera: GV-CBW120 / 220 •...
  • Page 281 Getting Started B. Type the Network Name (SSID) or click the Access Point Survey button to search and select for the available Access Points/wireless stations. C. Select Ad-Hoc or Infrastructure for the Network type. D. Select the Authentication Type using the drop-down list. You can also obtain this information by clicking the Access Point Survey button.
  • Page 282 Enable wireless LAN. A. On the Web interface, select Network and LAN. This page appears. Figure 18-6 B. Select Wireless for Optional Network Type. C. To use a dynamic IP address assigned by the DHCP server, select Dynamic IP address. To use a fixed IP address, select Static IP address and type the IP address information.
  • Page 283 Getting Started Click Apply. The Camera will start creating a wireless connection to the access point. Note: For GV-CBW120/220 and GV-CAW120/220, the LAN LED (No. 5, Figure 16-1; No.11, Figure 17-1) turns blue when the connection is established. Unplug the Ethernet cable.

  • Page 284: Adjusting Image Clarity

    18.2 Adjusting Image Clarity Note the procedures described in this section only apply to Box Camera, IR Arctic Box Camera, Bullet Camera, PT Camera, Vandal Proof IP Dome, Mini Fixed Dome, Mini Fixed Rugged Dome and Fixed IP Dome. To adjust focus of a PTZ camera, refer to 11.6 Focus Adjustment; for Cube Camera and Advanced Cube Camera, refer to Camera Adjustment in 19.2.2 The Control Panel on the Live View Window.
  • Page 285 Getting Started On the GV-IP Utility window, click the button to search for the IP devices connected in the same LAN. Click the IP Address of the camera you desire. A drop-down list appears. Figure 18-7 Select Focus Value. The Login dialog box appears. Figure 18-8...
  • Page 286 Type the user name and password of the camera selected. The default is admin for both user name and password. This window appears. Figure 18-9 For GV-VD120D / 121D / 220D / 221D / 320D / 321D / 1500 / 2400 / 2500 / 3400, hold the supplied Focus Adjustment Cap over the camera view.

  • Page 287: Using Focus Adjustment Cap

    Getting Started 18.2.1 Using Focus Adjustment Cap The Focus Adjustment Cap is only supplied for IK10+ models (GV-VD120D / 121D / 220D / 221D / 320D / 321D / 1500 / 2400 / 2500 / 3400). Hold the Focus Adjustment Cap on top of the camera view and keep it close to the camera.

  • Page 288: Locations Of Adjustment Screws

    18.2.2 Locations of Adjustment Screws Models Adjustment Screws Zoom Screw Focus Screw Box Camera Zoom Screw Focus Screw Bullet Camera Focus Screw Zoom Screw Vandal Proof IP Dome Focus Screw Zoom Screw Fixed IP Dome...
  • Page 289 Getting Started Models Adjustment Screws Mini Fixed Dome Mini Fixed Rugged Dome Note: The adjustment screws of Box Camera may vary for different models. To focus GV-MFD and GV-MDR, loosen the lens screw first and slowly adjust the focus ring. Some models may need a T6 screw driver to loosen the camera lens.

  • Page 290: Configuring The Basics

    18.3 Configuring the Basics Once the camera is properly installed, the following important features can be configured using the browser-based configuration page and are discussed in the following sections in this manual: • • Date and time adjustment: see 20.8.1 Date & Time Settings. Login and privileged passwords: see 20.8.3 User Account •...

  • Page 291: Chapter 19 Accessing The Camera

    Chapter 19 Accessing the Camera Two types of users are allowed to log on to the GV-IPCAM H.264: Administrator and Guest. The Administrator has full access to all system configurations, while the Guest can only access the live view (except the Camera Adjustment settings) and network status.

  • Page 292: Accessing Your Surveillance Images

    Click Apply. A video image, similar to the example on Figure 19-2, is now displayed in your browser. Note: To enable the updating of images in Internet Explorer, you must set your browser to allow ActiveX Controls and perform a once-only installation of GeoVision’s ActiveX component onto your computer.

  • Page 293: Functions Featured On The Main Page

    Accessing the Camera 19.2 Functions Featured on the Main Page This section introduces the features of the Live View window and Network Status on the main page. The two features are accessible by both Administrator and Guest. Main Page of Guest Mode ▼...

  • Page 294: The Live View Window

    19.2.1 The Live View Window Internet Explorer When accessing the live view using Internet Explorer, the following window appears. Figure 19-3A...
  • Page 295 Accessing the Camera Figure 19-3B No. Name Function 1 Play Plays live video. 2 Stop Stops playing video. Broadcasts to the surveillance site from a remote 3 Microphone PC. Note this function is not available for Ultra Bullet Camera and Target Series .
  • Page 296 No. Name Function Transfers sounds of the surveillance site to a remote PC. Note this function is not available for 4 Speaker GV-MFD120D / 130D / 220D / 320D / 520D , Mini Fixed Rugged Dome , Ultra Bullet Camera , and Target Bullet Camera .
  • Page 297 Accessing the Camera No. Name Function Enables the I/O Control Panel or the Visual Automation. --- See 19.2.13 I/O Control. 10 I/O Control Note this function is only supported by cameras with I/O function. Click to turn the Alarm LED on and/or adjust the brightness sensitivity.
  • Page 298 Non-IE Browsers When accessing the live view using Google Chrome, Firefox or Safari, this window appears. Note the following functions are not supported on non-IE browsers: Motion Detection, Tampering Alarm, Visual Automation, Text Overlay, Two-Way Audio and GPS Settings. Figure 19-4...

  • Page 299: The Control Panel Of The Live View Window

    Accessing the Camera 19.2.2 The Control Panel of the Live View Window To open the control panel of the Live View window, click the arrow button on top of the window. You can access the following functions by using the right and left arrow buttons on the control panel.
  • Page 300 [Information] Displays the version of the camera, time of the local computer, time of the camera (host time), the number of users logging in the camera and the OCX registration path. [Video] Displays the current video codec, resolution and data rate. [Audio] Displays the audio data rates when the microphone and speaker devices are enabled.
  • Page 301 Accessing the Camera Image Orientation: Changes the image orientation on the Live View window. Slowest Shutter Speed : Shutter speed controls the amount of the lights enters the image sensor and directly impacts the quality of image presentation. A slow shutter speed allows higher light exposure that creates a brighter overall image by blurring moving objects and bringing out background details, and a faster shutter speed lowers color and image clarity in order to capture motions.
  • Page 302 Focus Change: Click the Focus In and Focus Out buttons to adjust the focus. To focus automatically, click the Auto Focus button. Focus Mode: Select Normal Scan , Regional Scan or Full Scan and then click the Start button to automatically adjust the camera focus. The Normal Scan mode focuses the camera the fastest.
  • Page 303 Accessing the Camera Figure 19-6B Figure 19-6C Figure 19-6A...
  • Page 304 Note: GV-PTZ010D only contains the Gamma feature. Saturation is not available for GV-PTZ010D. Slowest Shutter Speed and Defog is not available for GV- BX140DW . D/N , Slowest Shutter Speed and Defog are not available for GV- PTZ010D. D/N sensitivity adjustment is not available for GV-BX140DW which automatically detects light with its built-in light sensor.

  • Page 305: Snapshot Of Live Video

    Accessing the Camera 19.2.3 Snapshot of Live Video To take a snapshot of live video, follow these steps: Click the Snapshot button (No. 5, Figure 19-3). The Save As dialog box appears. Specify Save in , type the File name , and select JPEG or BMP as Save as Type .

  • Page 306: Picture-In-Picture And Picture-And-Picture View

    19.2.5 Picture-in-Picture and Picture-and-Picture View The full screen mode provides two types of close-up views: Picture-in- Picture (PIP) and Picture-and Picture (PAP) . The two views are useful to provide clear and detailed images of the surveillance area. Picture-in-Picture View With the Picture in Picture (PIP) view, you can crop the video to get a close-up view or zoom in on the video.
  • Page 307 Accessing the Camera Picture-and-Picture View With the Picture and Picture (PAP) view, you can create a split video effect with multiple close-up views on the image. A total of 7 close-up views can be defined. Figure 19-8 Right-click the live view and select PAP . A row of three inset windows appears at the bottom.
  • Page 308 To delete a navigation box, right-click the desired box, select Focus Area of PAP Mode and click Delete . To exit the PAP view, right-click the image and click PAP again.

  • Page 309: Alarm Notification

    Accessing the Camera 19.2.6 Alarm Notification After input triggers and motion detection, you can be alerted by a pop-up live video and view up to four captured images. Pop-up live Captured video images video Figure 19-9 To configure this function, click the Show System Menu button (No. 8, Figure 19-3), and select Alarm Notify .
  • Page 310  I/O Alarm Notify: Once the input device is triggered, the captured images are displayed on the control panel of the Live View window. For this function to work, the Administrator needs to install the input device properly. See 20.2.1 Input Setting. ...

  • Page 311: Video And Audio Configuration

    Accessing the Camera 19.2.7 Video and Audio Configuration You can enable the microphone and speaker for two-way audio communication and adjust the audio volume. To change audio configuration, click the Show System Menu button (No. 8, Figure 19-3), and select Video and Audio Configuration . ...
  • Page 312  Audio Configure: You can enable the microphone and speaker, and adjust the audio volume Figure 19-12...

  • Page 313: Remote Configuration

    Accessing the Camera 19.2.8 Remote Configuration You can upgrade firmware over the network. Click the Show System Menu button (No. 8, Figure 19-3), and select Remote Config . The Remote Config dialog box will appear. [Firmware Upgrade] In this tab, you can upgrade the firmware over the Internet.

  • Page 314: Visual Ptz

    19.2.11 Visual PTZ Note this feature is only available in PTZ Camera and PT Camera . The Visual PTZ provides two types of PTZ control panels on live images for easy and direct PTZ operation. Activating Visual PTZ Click the PTZ Control button (No.
  • Page 315 Accessing the Camera Figure 19-15 The Visual PTZ Panel provides the following features: Name Description Shortens the apparent distance between the Zoom In camera and the view. Lengthens the apparent distance between the Zoom Out camera and the view. Focus In Adjusts the sharpness of the camera view.
  • Page 316 Setting Visual PTZ Panel Click the .button on the top left corner and select Visual PTZ, the following options will appear.  PTZ Control Type: Two types of visual PTZ control panels are available.  Type 1: Appears only when a movement of the cursor is detected and disappears when it is static.

  • Page 317: Digital Ptz

    Accessing the Camera 19.2.12 Digital PTZ Note this function is only supported by firmware V2.06 . This function allows non-PTZ cameras to simulate PTZ movements on live view. Right-click the live view and select Digital PTZ . The live view is labeled with “DPTZ”...
  • Page 318 To pan and tilt the view, zoom the image first and then click and hold the arrow on the image. The arrow appears when you place the cursor in one of the eight directions, i.e. up, down, left, right, left up, left down, right up and right down.

  • Page 319: I/O Control

    Accessing the Camera 19.2.13 I/O Control Note this function is only supported by cameras with I/O function. The I/O Control window provides a real-time graphic display of camera status, I/O status, and alarm events. Additionally, you can remotely force output to be triggered. Figure 19-19 •...

  • Page 320: Visual Automation

    19.2.14 Visual Automation Note this function is only supported by cameras with I/O function. The Visual Automation allows you to change the current state of the electronic device by simply clicking on its image, e.g. turning the light ON. This feature is only available when the Visual Automation is set ahead by the Administrator.

  • Page 321: Network Status

    Accessing the Camera 19.2.15 Network Status To view the network status, in the left menu, click Network and select Status . Figure 19-21...

  • Page 322: Chapter 20 Administrator Mode

    Chapter 20 Administrator Mode The Administrator can access the system configuration through the network. Eight categories of configurations are involved in the system configuration: Video and Motion , I/O Control or Digital I/O and PTZ , Events and Alerts , Monitoring , Recording Schedule , Remote ViewLog , Network and Management .
  • Page 323 Administrator Mode List of Menu Options Find the topic of interest by referring to the section number prefixed to each option. The available options vary among camera models. 20.1.1 Video Settings 20.1.1 Motion Detection 20.1.3 Privacy Mask 20.1 Video and Motion 20.1.4 Text Overlay 20.1.5 Tampering Alarm 20.1.6 Visual Automation...
  • Page 324 20.8.1 Date and Time Settings 20.8.2 Storage Settings 20.8.3 User Account 20.8 Management 20.8.4 Log Information 20.8.5 System Log 20.8.6 Tools 20.8.7 Language...

  • Page 325: Video And Motion

    Administrator Mode 20.1 Video and Motion The GV-IPCAM H.264 can simultaneously process one video source in two different codec and resolutions. The dual-stream design benefits for lower bandwidth environment, allowing Streaming 2 to be set with lower resolution and codec for live streaming, and Streaming 1 set with highest resolution and codec H.264 for best recording quality.

  • Page 326: Video Settings

    20.1.1 Video Settings Figure 20-2A...
  • Page 327 Administrator Mode Figure 20-2B...
  • Page 328 [Name] Rename the video stream. To display the name of video stream on the Live View window, see 19.2.9 Camera Name Display. [Connection Template] Select the type of your network connection. Unless you select Customized , this option will automatically bring up the recommended video resolution, frame rate, bandwidth and GOP size.
  • Page 329 Administrator Mode Camera Type Default Max. Bitrate for VBR Stream 1 6 Mbit 1.3 MP Stream 2 4 Mbit Stream 1 8 Mbit 2 MP Stream 2 4 Mbit Stream 1 12 Mbit 3 MP Stream 2 4 Mbit 4 MP Stream 1 16 Mbit Stream 1...
  • Page 330 Select Enable and click ROI Setting to configure: On the popup window, use your mouse and draw directly on the live view to specify a region. Figure 20-3 To set up a region with enhanced clarity, select ROI , select High , Medium or Low using the drop-down list and then drag on the image to outline a region.
  • Page 331 Administrator Mode [Video Slice Mode] Note this function is not supported for Target Series . Corrects the display mode of the camera when it is displayed on a third- party NVR/DVR software and the live view is incomplete or broken. Select Single Slice or Multi Slice to display the live view.
  • Page 332  Overlaid with time stamps: Includes time stamps on live and recorded videos.  Overlaid with digital input description: Note this function is only supported by cameras with I/O function. Includes the name of the selected input on live and recorded videos. [Watermark Setting] Note this function is not supported for Target Series .
  • Page 333 Administrator Mode  LAN LED, WAN LED, Monitoring LED: Note this option is only available in Advanced Cube Camera . Select Disable if you do not wish to use the LEDs. For details on LED status, see 17.3 Overview.  Alarm LED: Sets the white illumination LED (No.
  • Page 334  Off: The default setting. The infrared illuminator will be constantly off. It is advisable to enable this option when the color temperature of outdoor lighting is 6000 K or above.  On: The infrared illuminator will be constantly on. ...
  • Page 335 Administrator Mode Camera , PT Camera , Vandal Proof IP Dome and Fixed IP Dome . Select Auto for automatic switch between day mode and night mode depending on the amount of light detected. Select Off to completely disable IR LEDs.

  • Page 336: Motion Detection

    20.1.2 Motion Detection Note for firmware V1.07 or later and the Target Series (except GV- PTZ010D), motion detection is disabled by default; for GV-PTZ010D, motion detection is enabled by default. Motion detection is used to generate an alarm whenever movement occurs in the video image.
  • Page 337 Administrator Mode Select the desired sensitivity by moving the slider. There are ten values. The higher the value, the more sensitive the camera is to motion. Drag an area on the image. Click Add when you are prompted to confirm the setting. To create several areas with different sensitivity values, repeat steps 1 and 2.

  • Page 338: Privacy Mask

    20.1.3 Privacy Mask The Privacy Mask function is used to block out sensitive areas on live view and recorded clips for cameras connecting to GeoVision software. This feature is ideal for locations with displays, keyboard sequences (e.g. passwords), and for anywhere else you don’t want sensitive information visible.

  • Page 339: Text Overlay

    Administrator Mode 20.1.4 Text Overlay The Text Overlay allows you to overlay any text in any place on the camera view. Up to 16 text messages can be created on one camera view. The overlaid text will be saved in the recordings. Figure 20-6 Select the font, font style and font size in a pop-up window.
  • Page 340 Click Set Font to modify the font settings. Click Save to apply the settings, or click Load (Undo) to revert to the last saved setting. Click Preview to see how the text will appear on the image. Click Close to end the preview.

  • Page 341: Tampering Alarm

    Administrator Mode 20.1.5 Tampering Alarm Note this function is not available for PTZ Camera and PT Camera . The Tampering Alarm is used to detect whether a camera is being physically tampered. An alarm can be generated when the camera is moved, covered up, or out of focus.
  • Page 342 To configure the tampering alarm: Select the Enable option. If you want the camera to ignore any movement or scene change in certain areas, click the button to drag areas on the camera view. Select the desired detection sensitivity by moving the slider. The higher the value, the more sensitive the camera is to scene changes.

  • Page 343: Visual Automation

    Administrator Mode 20.1.6 Visual Automation Note this function is only supported by cameras with I/O function. This intuitive feature helps you automate any electronic device by triggering the connected output device. When you click on the image of the electronic device, you can simply change its current state, e.g. light ON. Figure 20-9 Select the Enable option.
  • Page 344 Assign the connected module and output device. In the Note field, type a note to help you manage the device. Click OK to save the settings. To change the frame color of the set area, click the Set Color button. To emboss the set area, select Float Up ;...

  • Page 345: I/O Settings

    Administrator Mode 20.2 I/O Settings Note the I/O settings are only available for Box Camera , Bullet Camera, Ultra Bullet Camera , PTZ Camera , PT Camera , Vandal Proof IP Dome and Fixed IP Dome . After installing the I/O device, you need to enable the I/O settings on the camera.

  • Page 346: Input Settings

    20.2.1 Input Settings To activate the sensor input, select Enable . Figure 20-11  Normal State: You can set the input state to trigger actions by selecting Open Circuit (N/O) or Grounded Circuit (N/C) .  Latch Mode: Enable this option to have a momentary output alarm. ...
  • Page 347 Administrator Mode  PTZ Settings: Note this function is only available for PTZ Camera and PT Camera .  Input On: Select a preset point to which the camera turns when an input is triggered.  Input Off: Select a preset point to which the camera returns when the input triggering is off.

  • Page 348: Output Settings

    20.2.2 Output Settings Select Enable to start the output device. Choose the output signal that mostly suits the device you are using: N/O (Open Circuit), N/C (Grounded Circuit), N/O Toggle, N/C Toggle, N/O Pulse or N/C Pulse. For Toggle output type, the output continues to be triggered until a new input trigger ends the output.

  • Page 349: Ptz Settings

    Administrator Mode 20.2.3 PTZ Settings Note this function is only available in PTZ Camera and PT Camera . You can change the image settings, configure sequences, and access settings including autopan speed, motor reset, digital zoom and system default loading. For details, see Accessing the VISCA OSD Configuration in 8.7.3 PTZ Camera Settings.

  • Page 350: Events And Alerts

    20.3 Events and Alerts For the events of motion detection or I/O trigger, the Administrator can set up two trigger actions: 1. Send a captured still image by E-mail or FTP. 2. Notify Center Monitoring Station, Center V2 or VSM, by video or text alerts.

  • Page 351: E-Mail

    Administrator Mode 20.3.1 E-mail After a trigger event, the camera can send the e-mail to a remote user containing a captured still image. Figure 20-14 [Enable] Select to enable the e-mail function.  Sever URL/IP Address: Type the URL address or IP address of the SMTP Server.
  • Page 352  Alerts Interval Time: Specify the interval between e-mail alerts. The interval is between 0 and 60 minutes. The option is useful for the frequent event occurrence, by which any event triggers during the interval period will be ignored. [Need authentication to login] If the SMTP Server needs authentication, enable this option and type a valid username and password to log in the SMTP server.

  • Page 353: Ftp

    Administrator Mode 20.3.2 FTP You can also send the captured still image to a remote FTP server for alerts. Figure 20-15 [Upload to an FTP Server]  Enable: Select to enable the FTP function.  Server URL/IP Address: Type the URL address or IP address of the FTP Server.
  • Page 354  User Name: Type a valid username to log into the FTP Server.  Password: Type a valid password to log into the FTP Server.  Remote Directory: Type the name of the storage folder on the FTP Server.  Alerts Interval time in minute: Specify the interval between FTP alerts.
  • Page 355 Administrator Mode To access the internal FTP server through a web browser, enter the IP address or the domain name of the camera in your browser like this: ftp://192.168.0.10 When you are prompted for Username and Password, enter the default value username ftpuser and password 123456 .

  • Page 356: Center V2

    20.3.3 Center V2 After a motion or an I/O triggered event, the central monitoring station Center V2 can be notified by live videos and text alerts. For the live monitoring through Center V2, you must already have a subscriber account on Center V2.
  • Page 357 Administrator Mode To enable the Center V2 connection: Activate Link: Enable the monitoring through Center V2. Host Name or IP Address: Type the host name or IP address of Center V2. Port Number : match the port to the Port 2 value on Center V2 or keep the default value 5551 .

  • Page 358: Vsm

    20.3.4 VSM After a motion or an I/O triggered event, the central monitoring station VSM can get notified by text alerts. For the monitoring through VSM, you must already have a subscriber account on VSM. A camera can connect up to 2 VSM simultaneously.
  • Page 359 Administrator Mode To enable the VSM connection: Activate Link: Enable the monitoring through VSM. Host Name or IP Address: Type the host name or IP address of VSM. Port Number: Match the port to the Port 2 value on VSM. Or keep the default value 5609.

  • Page 360: Backup Center

    20.3.5 Backup Center For the supported version of different models, see Appendix D. Note that Backup Center is not supported for Target Series . The connection to the GV-Backup Center allows you to back up another copy of recordings and system log to the GV-Backup Center on an offsite location while the camera is saving these data to the memory card.
  • Page 361 Administrator Mode To enable connection to GV-Backup Center: Activate Link : Enable the connection to the GV-Backup Center. Host Name or IP Address : Type the host name or IP address of the GV-Backup Center. Port Number : Match the communication port on the GV-Backup Center or keep the default value 30000 .
  • Page 362 Host Name or IP Address : Type the host name or IP address of the failover GV-Backup Center. Port Number : Match the communication port on the failover GV- Backup Center or keep the default value 30000 . User Name : Type a valid user name to log into the failover GV- Backup Center.

  • Page 363: Video Gateway / Recording Server

    Administrator Mode 20.3.6 Video Gateway / Recording Server For the supported version of different models, see Appendix D. The GV-Video Gateway / GV-Recording Server is a video streaming server designed for large-scale video surveillance deployments. The GV-Video Gateway / GV-Recording Server (with recording capability) can receive up to 128 channels from various IP video devices, and distribute up to 300 channels to its clients.
  • Page 364 The supported GV-IPCAM H.264 can connect up to two GV-Video Gateway / GV-Recording Server. To send the video images to the GV- Video Gateway or GV-Recording Server, follow the steps below. Activate Link : Enable the connection to the GV-Video Gateway / GV- Recording Server.

  • Page 365: Viewlog Server

    Administrator Mode 20.3.7 ViewLog Server Note that ViewLog Server is not supported for Target Series . The ViewLog Server is designed for remote playback function. This server allows you to remotely access the recorded files saved at the GV-IPCAM H.264 and play back video with the ViewLog player. This function is enabled by default using port 5552 .

  • Page 366: Rtsp

    20.3.8 RTSP The RTSP enables video and audio streaming to your 3G-enabled mobile phone. The RTSP streaming is enabled by default. Figure 20-21  Activate Link: Enable the RTSP service.  RTSP/TCP Port: Keep the default value 8554, or modify it if necessary.

  • Page 367: Speaker

    Administrator Mode 20.3.9 Speaker Note this function is only available for Advanced Cube Camera . The Advanced Cube camera is equipped with an alarm. With the Speaker settings, your camera can sound the speaker (No. 1, Figure 17-1) when it is being tampered or when motions are detected.

  • Page 368: Monitoring

    20.4 Monitoring Recording function is not supported in Target Series . Refer to 20.4.1 Monitoring Settings for Target Series for the corresponding page. You can start monitoring manually, by schedule or by input trigger. Note: See Note for Connecting to GV-System at the beginning of the manual.

  • Page 369: Monitoring Settings For Target Series

    Administrator Mode  Input: Note this function is only supported by cameras with I/O function. Manually starts I/O monitoring. When the sensor input is triggered, its associated camera and output will be activated for recording and alerting. For this setting, see 20.2.1 Input Setting. [Schedule] The system starts motion detection and I/O monitoring according to the schedule you have set.

  • Page 370: Recording Schedule

    20.5 Recording Schedule Note this function is not available for Target Series . The schedule is provided to activate recording and I/O monitoring on a specific time each day. 20.5.1 Recording Schedule Settings You can set the schedule for recording. Figure 20-25 ...

  • Page 371: I/O Monitoring Settings

    Administrator Mode 20.5.2 I/O Monitoring Settings Note this function is only supported by cameras with I/O function. You can set the schedule for I/O monitoring to start. Figure 20-26  Span 1- Span 3: Set different time frames during the day to enable I/O monitoring.

  • Page 372: Remote Viewlog

    20.6 Remote ViewLog Note this function is not available for Target Series . With the Remote ViewLog player, you can play back the files recorded at the GV-IPCAM H.264 over TCP/IP network. For the first-time user, you need to install the Remote ViewLog program from the Software CD.

  • Page 373: Network

    Administrator Mode 20.7 Network The Network section includes some basic but important network configurations that enable the camera to be connected to a TCP/IP network. 20.7.1 LAN Configuration According to your network environment, select among Static IP, DHCP and PPPoE. Figure 20-27...
  • Page 374 [Optional Network Type] Note the Wireless Settings are only available in GV-BX1200 Series / 1300 Series / 1500 Series / 2400 Series / 2500 Series / 3400 Series / 5300 Series , GV-CBW120 / 220 , GV-CAW120 / 220 and GV-MFD1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series .

  • Page 375: Wireless Client Mode

    Administrator Mode 20.7.2 Wireless Client Mode Note this function is only supported in GV-BX1200 Series / 1300 Series / 1500 Series / 2400 Series / 2500 Series / 3400 Series / 5300 , GV- CBW120 / 220 , GV-CAW120 / 220 and GV-MFD1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series and when GV-WiFi Adapter is installed.
  • Page 376  Network name (SSID): The SSID (Service Set Identify) is a unique name that identifies a particular wireless network. Type SSID of the Wireless LAN group or Access Point you are going to connect to.  Access Point Survey: Click this button to search all the available Access Points (Infrastructure mode) and wireless stations (AD-Hoc mode) within the LAN.

  • Page 377: Advanced Tcp/Ip

    Administrator Mode 20.7.3 Advanced TCP/IP This section provides the advanced TCP/IP settings, including DDNS Server, HTTP port, HTTPS, streaming port, UPnP, QoS and network connection check. Figure 20-29A...
  • Page 378 DHCP Server or ISP (in xDSL connection) has changed. Before enabling the following DDNS function, the Administrator should have applied for a Host Name from the DDNS service provider’s website. There are 2 providers listed in the camera: GeoVision DDNS Server and DynDNS.org. To enable the DDNS function: Enable: Enable the DDNS function.
  • Page 379 Administrator Mode Host Name: Type the host name used to link to the camera. For the users of GeoVision DDNS Server, it is unnecessary to fill the field because the host name will be detected and brought up automatically. User Name: Type the username used to enable the service from the DDNS.
  • Page 380 [QoS Settings] The Quality of Service (QoS) is a bandwidth control mechanism that guarantees delay-sensitive data flows such as voice and video streams, obtain a certain amount of bandwidth to keep the streaming smooth. To apply QoS to GV-IPCAM H.264, all network routers must support QoS and QoS must be enabled on these devices.

  • Page 381: Ip Filter Settings

    Administrator Mode 20.7.4 IP Filter Settings The Administrator can set IP filtering to restrict access to the camera. Figure 20-30 To enable the IP Filter function: Enable IP Filtering: Enable the IP Filter function. Filtered IP: Type one IP address or a range of IP addresses you want to restrict the access.

  • Page 382: Snmp Settings

    20.7.5 SNMP Settings The Simple Network Management Protocol (SNMP) allows you to monitor the status of the camera through SNMP network management software. Figure 20-31...
  • Page 383 Administrator Mode Select Enable SNMPv1 SNMPv2c to enable the function. To enable access to Read/Write community , type a community string. This will serve as a password to allow read and write access to the camera from the SNMP software. To enable Read only community , type a community string to allow read-only access to the camera from the SNMP software.

  • Page 384: Management

    20.8 Management The Management section includes the settings of data and time and user account. You can also view the firmware version and execute certain system operations. 20.8.1 Date & Time Settings The date and time settings are used for date and time stamps on the image. Figure 20-32...
  • Page 385 Administrator Mode [Date & Time on GV-IP Camera] Displays the current date and time on the camera. [Time Zone] Sets the time zone for local settings. Select Enable Daylight Saving Time to automatically adjust the camera for daylight saving time. Type the Start Time and End Time to enable the daylight saving function.

  • Page 386: Storage Settings

    20.8.2 Storage Settings Note this function is not available for Target Series . Based on Linux file system, the GV-IPCAM H.264 supports memory cards for video and audio recordings. You need to format the storage device by using the following Storage Settings. After being formatted, the storage device will be ready to use by Linux OS of the camera.
  • Page 387 Administrator Mode [Storage Settings]  Enable recycling: If Enable recycling is selected, when the space of the storage device is lower than the specified space, the system will overwrite the oldest recorded files. If Enable recycling is not selected, the system will stop recording when the specified space is reached. ...
  • Page 388 To remove a storage device: Click the Remove button. When you are prompted to ensure the action, click Yes . The page will be refreshed and the partition information will be cleaned. Remove the storage device from the camera. The storage device status is indicated in the status column: Status Description Formatting...
  • Page 389 Administrator Mode Note: 1. If Enable Recycle is selected, the available space of the storage device must be higher than the space you specified at the Stop recording or recycle disk when free space of disk is smaller than x option. Otherwise no video will be recoded. 2.

  • Page 390: User Account

    20.8.3 User Account You can change the login name and password of Administrator and Guest. The default Administrator login name and password are admin ; the default Guest login name and password are guest . To allow a Guest user log in without entering name and password, select Disable authentication for guest account .

  • Page 391: Log Information

    Administrator Mode 20.8.4 Log Information The log information contains dump data that is used by service personnel for analyzing problems. The logs available may vary depending on the camera model. Figure 20-36-1...
  • Page 392 Figure 20-36-2...

  • Page 393: System Log

    Administrator Mode 20.8.5 System Log Note this function is not available for Target Series . For the supported versions, see Appendix F. The System Log records the events in the four types of logs: System Event , Monitoring Event , I/O Event and Login/Logout Event . With the System Log, you can search and obtain the detailed information of an event.
  • Page 394 Click Query . The filtering results may look like the figure below. Figure 20-38...

  • Page 395: Tools

    Administrator Mode 20.8.6 Tools You can execute certain system operations and view the firmware version. Figure 20-39...
  • Page 396 [Host Settings] Enter a descriptive name for the camera. [Auto Reboot Setup] Select Enable to activate automatic reboot and specify the time for reboot in the sub fields.  Day Interval: Type the day interval between each reboot.  Reboot Time: Use the drop-down lists to specify the time for automatic reboot.

  • Page 397: Language

    Administrator Mode 20.8.7 Language Note this function is not available in GV-PTZ010D . You can select the language for the Web interface. Figure 20-40 Use the Language drop-down list to select a language for the Web interface. By default, the language on the Web interface will be the same with the one used for the operating system.

  • Page 398: Chapter 21 Recording And Playback

    Chapter 21 Recording and Playback Note that Recording and Playback function is not available for Target Series . The GV-IPCAM H.264 can record video and audio directly to the memory card. You can play back the recorded files on the GV-System or over the TCP/IP network.

  • Page 399: Playback

    Recording and Playback 21.2 Playback These methods are available to play back the video files recorded at the • GV-IPCAM H.264: Playback from the memory card by connecting it directly to the GV- • System through a card reader Playback by using the Remote ViewLog function over the TCP/IP •...
  • Page 400 Install the Ext2Fsd from the Software CD. Note: If you are using Windows 8 or Windows Server 2012, change its compatibility before installing the Ext2Fsd program: Right-click the Ext2Fsd program and select Properties. This dialog box appears. Figure 21-1 Select the Compatibility tab. Select Windows 7 using the drop-down list.
  • Page 401 Recording and Playback On Your desktop, click Start , select Programs , locate the Ext2Fsd folder and select Ext2 Volume Manager . All the connected drives are shown. Figure 21-2...
  • Page 402 For the first-installation, execute the Ext2Fsd Service. A. From the Ext2 Volume Manager window, select Tools and select Service Management . This dialog box appears. Figure 21-3 B. Click Apply .
  • Page 403 Recording and Playback Mount the storage drive to your computer. A. From the Ext2Fsd Volume Manager window, right-click the storage drive and select Ext2 Management . This dialog box appears. Figure 21-4 B. Under the Mount point & driver letter section, select Automatically mount via Ext2Mgr , specify a disk drive using the drop-down list and click Apply .
  • Page 404 C. On the Ext2 Volume Manager window, the storage drive is successfully mounted to your computer when it is indicated with the disk drive you specified. Figure 21-5 Access the recording files from the specified drive of your computer.

  • Page 405: Playback Over Network

    Recording and Playback 21.2.2 Playback over Network With the Remote ViewLog function, you can play back the files recorded at the GV-IPCAM H.264 over TCP/IP network. The camera needs to allow the remote access with ViewLog Server activated. See 20.3.7 ViewLog Server. For the first-time user, run the Remote ViewLog program from the Software CD.

  • Page 406: Access To The Recorded Files Through Ftp Server

    Media Player. For details to download files, see [Act as FTP Server], 20.3.2 FTP. Note: To play back videos, ensure you have installed Geovision codec on the computer. The codec is available on the Software CD. If you have installed the Remote Playback player on the computer, it is not required to install the codec.
  • Page 407 Recording and Playback To remotely connect to the camera from GV-System, click the Tools button and select Remote ViewLog Service . The Connect to Remote ViewLog Service dialog box appears. Enter the connection information of the camera, and click Connect . Once the connection is established, the video events will be displayed on the Video Event list.

  • Page 408: Chapter 22 Advanced Applications

    This chapter introduces more advanced applications. 22.1 Upgrading System Firmware GeoVision periodically releases updated firmware on the website. Simply download the new firmware into the GV-IPCAM H.264 using the Web interface or IP Device Utility included in the Software CD.
  • Page 409 In this case, please contact your sales representative and send your device back to GeoVision for repair. Do not turn the power off within 10 minutes after the firmware is updated.

  • Page 410: Using The Web Configuration Interface

    22.1.1 Using the Web Configuration Interface In the Live View window, click the Show System Menu button (No. 8, Figure 19-3) and select Remote Config. This dialog box appears. Figure 22-2 Click the Browse button to locate the firmware file (.img) saved at your local computer.

  • Page 411: Using The Ip Device Utility

    GV-IPCAM H.264. Note the computer used to upgrade firmware must be under the same network of the camera. Insert the Software CD, select GeoVision IP Device Utility, and follow the onscreen instructions to install the program. Double-click the IP Device Utility icon created on your desktop. This dialog box appears.
  • Page 412 Double-click one camera in the list. This dialog box appears. Figure 22-4...
  • Page 413 Advanced Applications 5. Click the Firmware Upgrade tab. This dialog box appears. Figure 22-5 Click the Browse button to locate the firmware file (.img) saved at your local computer. If you like to upgrade all the cameras in the list, select Upgrade all devices.

  • Page 414: Backing Up And Restoring Settings

    22.2 Backing Up and Restoring Settings With the IP Device Utility included in the Software CD, you can back up the configurations in the GV-IPCAM H.264, and restore the backup data to the current camera or import it to another camera. To back up the settings: Run IP Device Utility and locate the desired camera.
  • Page 415 Advanced Applications Type Password, and click the Export Settings button to save the backup file. To restore the settings: In Figure 22-4, click the Import Settings tab. This dialog box appears. Figure 22-7 Click the Browse button to locate the backup file (.dat). Select Upgrade all devices to import the settings into the same type of device in the same LAN.

  • Page 416: Restoring To Factory Default Settings

    22.3 Restoring to Factory Default Settings Please refer to the corresponding section of your camera type and follow the steps to restore factory default settings. Box Camera Keep the power and network cables connected to the camera. Use a pin to press and hold the default button on the back panel of the camera.
  • Page 417 Advanced Applications Ultra Box Camera and Target Box Camera Keep the power and network cables connected to the camera. Use a pin to press and hold the default button on the back panel of the camera. Figure 22-10 Release the default button when the status LED blinks. This shall take about 8 seconds.
  • Page 418 Mini Fixed Dome Keep the power and network cables (or PoE) connected to the camera. Press and hold the default button. Default button Status LED Figure 22-12 (GV-MFD120 / 130 / 220 / 320 / 520) Figure 22-13 (GV-MFD1501 Series / 2401 Series / 2501 Series / 3401 Series / 5301 Series) Release the default button when the status LED blinks.
  • Page 419 Advanced Applications Mini Fixed Rugged Dome Keep the PoE cable connected to the camera. Press and hold the default button. Status LED Default button Figure 22-14 Release the default button when the status LED blinks. This shall take about 8 seconds. When the status LED fades, the process of loading default settings is completed and the camera reboots automatically.
  • Page 420 Release the default button when the status LED blinks. When the status LED fades, the process of loading default settings is completed and the camera reboots automatically. Bullet Camera Keep the power and network cables connected to the camera. Loosen the camera’s cover and remove the Silica Gel Bag. Press and hold the default button for 8 seconds.
  • Page 421 Advanced Applications Press and hold the default button. Figure 22-17 Release the default button when the status LED blinks. This shall take about 8 seconds. When the status LED fades, the process of loading default settings is completed and the camera reboots automatically. Target Bullet Camera Keep the power and network cables (or PoE) connected to the camera.
  • Page 422 Release the default button. When the process of loading default settings is completed, the camera reboots automatically. Replace the Silica Gel Tape inside the camera cover and fasten the camera’s cover immediately. PTZ Camera There are two types of default settings: camera default settings and system default settings.
  • Page 423 Advanced Applications To load system default settings: Unplug the power cable and the network cable (or the PoE cable). Press and hold the default button (No. 10, Figure 11-1). Power on the camera using the power cable or the PoE cable. Hold the default button until the two network LEDs fade.
  • Page 424 Release the default button when the status LED blinks. This shall take about 8 seconds. When the status LED turns orange, the process of loading default settings is completed and the camera is ready for use. Vandal Proof IP Dome Keep the power and network cables (or PoE) connected to the camera.
  • Page 425 Advanced Applications Release the default button when the status LED blinks. This shall take about 8 seconds. When the status LED fades, the process of loading default settings is completed and the camera reboots automatically. Fixed IP Dome Keep the power and network cables (or PoE) connected to the camera.
  • Page 426 Cube Camera Keep the power and network cables connected to the camera. Use a pin to press and hold the default button on the panel. Default button Status LED Figure 22-24 Release the default button when the status LED blinks. This shall take about 8 seconds.
  • Page 427 Advanced Applications Release the default button when the status LED blinks. This shall take about 8 seconds. When the status LED turns green, the process of loading default settings is completed and the camera is ready for use.

  • Page 428: Verifying Watermark

    22.4 Verifying Watermark The watermark is an encrypted and digital signature embedded in the video stream during the compression stage, protecting the video from the moment of creation. Watermarking ensures that an image is not edited or damaged after it is recorded. To enable the watermark function, see [Watermark Setting], 20.1.1 Video Settings.

  • Page 429: Running Watermark Proof

    Advanced Applications 22.4.2 Running Watermark Proof Install Watermark Proof from the Software CD. After installation, a WMProof icon is created on your desktop. Double-click the created icon. The Water Mark Proof window appears. Click File from the menu bar, select Open and locate the recording (.avi).

  • Page 430: The Watermark Proof Window

    22.4.3 The Watermark Proof Window Figure 22-26 The controls in the window: No. Name Description Open File Opens the recording. First Frame Goes to the first frame of the file. Play Plays the file. Previous Frame Goes to the previous frame of the file. Next Frame Goes to the next frame of the file.

  • Page 431: Downloading Videos From The Micro Sd Card

    Advanced Applications 22.5 Downloading Videos from the Micro SD Card When connections of GV-IP Cameras to the GV-System are lost, recordings are automatically saved to the memory cards inserted in the GV-IP Cameras. To automatically synchronize and download recordings from the micro SD cards to a local folder, install and execute the GV-SDCardSync Utility program.

  • Page 432: Installing The Gv-Sdcardsync Utility

    22.5.1 Installing the GV-SDCardSync Utility Download the GV-SD Card Sync Utility program from http://ftp.geovision.tw/FTP/neo/Utility/GvSDCardSync_Setup.zip Note: The GV-SD Card Sync Utility must be installed on the computer installed with GV-System V8.5.4 or later. Execute the GV-SDCard Sync Utility program. The main window and the Setting window appear.
  • Page 433 Advanced Applications To configure synchronization, network and startup settings, see the steps below. Figure 22-28 [Synchronization]  Synchronize automatically at an interval: Automatically synchronize videos from micro SD cards to a local folder at the specified interval.  Synchronize automatically at: Automatically synchronize videos from micro SD cards to a local folder at the specified time.
  • Page 434 [Network]  Max. download speed of each device (Kb/sec): To make sure the bandwidth is not completely taken up while downloading files from the memory card, specify a maximum download speed. If you do not want to set a bandwidth limit, type 0. [General] ...
  • Page 435 Advanced Applications [Recycle]  Recycle when the storage space is less than (GB): Specify a minimum free space of your local storage for file recycling.  Keep the downloaded files for (Days): Specify the number of days to keep the download files at the local hard drive. [Storage Location] To configure the storage path, click the button next to the location field and specify a storage location.

  • Page 436: The Gv-Sdcardsync Utility Window

    22.5.2 The GV-SDCardSync Utility Window After you have installed the GV-SDCardSync Utility, point to Start, select Programs, select GV-SDCardSync and select to launch the program. This window appears. Figure 22-30 No. Name Description Plays downloaded recordings of the selected GV-IP Cameras using the ViewLog player.
  • Page 437 Advanced Applications No. Name Description Displays up to 100 event entries of the GV- Log Tab SDCardSync Utility. Once the entries are full, recycling will start from the oldest file. Shows the storage space of the designated hard Storage Space drive.

  • Page 438: Chapter 23 Dvr Configurations

    Chapter 23 DVR Configurations The GV-System provides hybrid solution, integrating the digital videos from IP cameras with other analog videos. For the digital videos, the GV-System provides the complete video management, such as video viewing, recording, playback, alert settings and almost every feature of the system. Following is the integration specifications: TCP/ IP IP Camera...
  • Page 439 DVR Configurations • The compatible version of GV-System for each camera model: Compatible version Camera Models of GV-System GV-BX120D GV-BX220D Series V8.4 or later GV-BX320D Series GV-BX130D Series GV-BX140DW V8.5 or later GV-BX520D GV-BX1200-0F ~ 2F GV-BX1200-3V GV-BX1300-0F ~ 2F GV-BX1300-3V GV-BX2400-0F ~ 2F V8.5.5 or later...
  • Page 440 Compatible version Camera Models of GV-System GV-BX120D-E GV-BX220D-E V8.4 or later GV-BX320D-E GV-BX520D-E IR Arctic Camera GV-BX1500-E V8.5.8 or later GV-BX2400-E GV-BX3400-E V8.5.7 or later GV-BX5300-E GV-MFD120 GV-MFD130 GV-MFD220 V8.5 or later GV-MFD320 GV-MFD520 Mini Fixed GV-MFD1501 Series V8.5.7 or later Dome GV-MFD2401 Series V8.5.8 or later...
  • Page 441 DVR Configurations Compatible version Camera Models of GV-System GV-BL120D V8.4 (with patch GV-BL220D files) or later GV-BL320D GV-BL130D V8.5 or later GV-BL1200 GV-BL1300 GV-BL2400 GV-BL3400 V8.5.6 or later Bullet Camera GV-BL1210 GV-BL2410 GV-BL3410 GV-BL5310 V8.5.7 (with patch GV-BL1500 files) or later GV-BL1510 V8.5.8 GV-BL2500...
  • Page 442 Compatible version Camera Models of GV-System PTZ Camera GV-PTZ010D V8.4 or later GV-PT130D PT Camera V8.5.7 or later GV-PT220D GV-PT320D GV-VD120D Series V8.4 (with patch files) GV-VD220D Series or later GV-VD320D Series GV-VD1500 V8.5.8 or later GV-VD2400 V8.5.6 or later GV-VD3400 Vandal Proof IP GV-VD1530/1540...
  • Page 443 DVR Configurations Compatible version Camera Models of GV-System GV-FD1210 GV-FD2410 V8.5.7 or later GV-FD3410 Fixed IP Dome GV-FD1500 V8.5.8 or later GV-FD1510 GV-FD2500 V8.5.9 or later GV-FD2510 GV-CB120 V8.4.3 (with patch GV-CB220 files) or later Cube Camera GV-CBW120 V8.5 or later GV-CBW220 GV-CA120 GV-CA220...
  • Page 444 Note: By default, GV-IPCAM H.264 is in dual streams and will take up 2 streams when connected to GV-System. • The hardware compression and the “Pre-Recording Using RAM” feature cannot work on the videos from GV-IPCAM H.264.

  • Page 445: Setting Up An Ip Camera

    DVR Configurations 23.1 Setting up an IP Camera To set up the GV-IPCAM H.264 on the GV-System, follow these steps: On the main screen, click the Configure button, select System Configure, select Camera Install and click IP Camera Install. This dialog box appears.
  • Page 446 Click Add Camera. The dialog box appears. Figure 23-3 Type the IP address, username and password of the IP camera. Select the camera brand and device from the drop-down lists. This dialog box appears. Figure 23-4 The GV-System will automatically query for the IP camera, and the status will be indicated as “Standby”.
  • Page 447 DVR Configurations The options in the setup dialog box may vary depending on the camera model.  Dual Stream: Click this button to set the codec type to H.264 in the main stream and to MJPEG in the sub stream, and each stream with a different resolution.

  • Page 448: Customizing Ip Camera Settings

    23.1.1 Customizing IP Camera Settings After the IP camera is connected and assigned with a display position, you can configure the camera’s settings such as frame rate, codec type and resolution. Right-click the desired camera to see the following list of options: Figure 23-6 ...
  • Page 449  Recording Codec Format: Specifies whether to record in standard or GeoVision type of JPEG or H.264 codec.  GIS Setting: Records the video with the GPS data. To record the GPS data, remember to also enable the GIS function of the GV- System (Configure button <...

  • Page 450: Remote Monitoring With Multi View

    23.2 Remote Monitoring with Multi View You can use the Multi View to monitor and manage the GV-IPCAM H.264. 23.2.1 Connecting to the IP Camera On the Multi View window, click the Edit Host button. The Edit Host window appears. To create a host, click the New button.

  • Page 451: Remote Monitoring With E-Map

    DVR Configurations 23.3 Remote Monitoring with E-Map You can use the Remote E-Map to monitor and manage the GV-IPCAM H.264. 23.3.1 Creating an E-Map for the IP Camera With the E-Map Editor, you can create an E-Map for the GV-IPCAM H.264. The E-Map Editor is available in the two applications: Main System and E- Map Server.
  • Page 452 Click OK to save the settings. Expand the created host folder. Drag and drop the icons of camera and I/O devices onto the imported E-Map. Close the E-Map Editor. Click Yes when you are promoted to save the file. For details on creating an E-Map file on the E-Map Server, see “E-Map Server”, E-Map Application, DVR User’s Manual on the Surveillance System Software DVD.

  • Page 453: Connecting To The Ip Camera

    DVR Configurations 23.3.2 Connecting to the IP Camera Depending on where you save the created E-Map file (DVR, E-Map Server or Control Center), the steps to open the Remote E-Map window for monitoring may vary slightly. The following is the connection example when you store the E-Map file on the DVR.

  • Page 454: Chapter 24 Cms Configurations

    Chapter 24 CMS Configurations This section introduces the related settings to enable connecting to the GV- IPCAM H.264 in the central monitoring stations Center V2, VSM and Dispatch Server. 24.1 Center V2 The Center V2 can monitor and manage the camera and I/O devices connected to the GV-IPCAM H.264.
  • Page 455 CMS Configurations • To set the appropriate port for IP camera connection, click the Preference Settings button, select System Configure, click the Network tab, and select Accept connections from GV-Compact DVR, Video Server & IP Cam. Keep default port 5551, or modify it to match the Center V2 port on the IP camera.
  • Page 456  Manual close channel: Closes the triggered camera view manually.  Close the camera view when motion stopped: Closes the triggered camera view automatically when motion stops.  Post Motion: Specify the duration of the camera view remaining on the monitoring window after a motion stops. ...

  • Page 457: Vsm

    CMS Configurations 24.2 VSM The VSM is designed to monitor and manage the camera and I/O devices connected to the GV-IPCAM H.264 under low bandwidth network. Figure 24-4 • To set the appropriate port connecting to the IP camera, click Configure on the window menu, and select System Configure to display this dialog box.

  • Page 458: Dispatch Server

    24.3 Dispatch Server The Dispatch Server minimizes overloading of Center V2 Servers by re- distributing GV-IPCAM H.264 subscribers to the least busy Center V2 Server. Figure 24-6...
  • Page 459 CMS Configurations • To set the appropriate port connecting to the IP camera, click the Server Setting button on the toolbar, and select Allow GV IP devices to login as subscriber from port. Keep the default port as 5551, or modify it to match the Center V2 port on the IP camera. Figure 24-7 For further information on how to mange the video received from the IP camera, see GV-CMS Series User’s Manual.

  • Page 460: Chapter 25 Smart Device Connection

    Touch are supported. For details on system requirements, installation and setup, visit our website: http://www.geovision.com.tw/english/5_4_iview.asp Note: To receive the live video from the camera, enter the TCP/IP port on your mobile phone. To play video back, enable ViewLog Server on...

  • Page 461: Appendix

    Appendix Appendix A. Settings for Internet Explorer 8 If you use Internet Explorer 8, it is required to complete the following setting. Set the Security to Medium-high (default). Enable Allow previously unused ActiveX controls to run without prompt. Disable Only allow approved domains to use ActiveX without prompt.

  • Page 462: Supported Lenses For Box Camera

    B. Supported Lenses for Box Camera Provider Model No. RV0409D.IR Fujian Forecam Optics RV0515D.IR RV0820D.IR EVD03618F-IR EVD04218F-IR EVD06018F-IR EVETAR EVD08018F-IR EVD12018F-IR EVD16018F-IR Pentax TS3VP213ED-M...

  • Page 463: Resolution And Frame Rate

    Appendix C. Resolution and Frame Rate Note that the frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). Max. Frame GV-IP Camera Stream Ratio Resolution Rate GV-BL120D 1280 x 960 GV-BL130D GV-BL1200 Main 16:9...
  • Page 464 Max. Frame GV-IP Camera Stream Ratio Resolution Rate 1280 x 960 GV-UBL1301 Series GV-UBL1511 16:9 1280 x 720 Main GV-UBX1301 Series 1280 x 1024 GV-VD120D GV-VD121D 640 x 480 30 fps GV-VD122D 320 x 240 GV-VD123D 640 x 360 16:9 GV-VD1500 448 x 252 GV-VD1530...
  • Page 465 Appendix Max. Frame GV-IP Camera Stream Ratio Resolution Rate GV-BL220D 1600 x 1200 1280 x 960 GV-BL2400 GV-BL2410 1920 x 1080 Main 16:9 GV-BL2500 1280 x 720 GV-BL2510 1280 x 1024 GV-BX220D Series 640 x 480 GV-BX2400 Series 320 x 240 GV-BX2500 Series 640 x 360 GV-BX220D-E...
  • Page 466 Max. Frame GV-IP Camera Stream Ratio Resolution Rate 1280 x 960 640 x 480 320 x 240 1920 x 1080 1280 x 720 Main 16:9 640 x 360 448 x 252 GV-EBL2100 Series 1280 x 1024 GV-E 2100 Series 25 fps 640 x 512 320 x 256 640 x 480...
  • Page 467 Appendix Max. Frame GV-IP Camera Stream Ratio Resolution Rate GV-BL320D 2048 x 1536 20 fps GV-BL3400 1600 x 1200 GV-BL3410 Main 1280 x 960 GV-BX320D Series 1920 x 1080 GV-BX3400 Series 16:9 1280 x 720 GV-BX320D-E 1280 x 1024 GV-BX3400-E GV-FD320D 640 x 480 GV-FD3400...
  • Page 468 Max. Frame GV-IP Camera Stream Ratio Resolution Rate 2560 x 1920 10 fps GV-BL5310 2048 x 1536 20 fps GV-BX520D 1600 x 1200 GV-BX5300 Series Main 1280 x 960 GV-BX520D-E 1920 x 1080 16:9 GV-BX5300-E 1280 x 720 GV-FD5300 1280 x 1024 GV-MDR520 30 fps 640 x 480...

  • Page 469: Support Lists

    Appendix D. Support Lists • Support List for GV-Backup Center, GV-Video Gateway and GV- Recording Server GV-IP Camera Model Supported Version GV-BX120D V1.03 or later GV-BX220D Series GV-BX320D Series GV-BX130D Series V1.04 or later GV-BX520D V1.05 or later Box Camera GV-BX1200 Series GV-BX1300 Series V1.15 or later...
  • Page 470 GV-IP Camera Model Supported Version GV-BL120D V1.03 or later GV-BL220D Bullet Camera GV-BL320D GV-BL130D V1.04 or later GV-PTZ010D V1.08 or later PTZ Camera GV-VD120D Series GV-VD220D Series Vandal Proof IP Dome V1.03 or later GV-VD320D Series GV-FD120D GV-FD220D Fixed IP Dome V1.03 or later GV-FD320D GV-CB120...
  • Page 471 Appendix • Support List for Transmit Audio GV-IP Camera Model Supported Version GV-BX120D GV-BX220D Series V1.05 or later GV-BX320D Series GV-BX130D Series V1.04 or later GV-BX520D V1.05 or later Box Camera GV-BX1200 Series GV-BX1300 Series V1.15 or later GV-BX2400 Series GV-BX3400 Series GV-BX5300 Series GV-BX120D-E...
  • Page 472 GV-IP Camera Model Supported Version GV-BL120D GV-BL220D V1.05 or later Bullet Camera GV-BL320D GV-BL130D V1.04 or later GV-PTZ010D V1.08 or later PTZ Camera GV-VD120D Series Vandal Proof IP Dome GV-VD220D Series V1.05 or later GV-VD320D Series GV-FD120D GV-FD220D V1.05 or later Fixed IP Dome GV-FD320D GV-CB120...
  • Page 473 Appendix • Support List for System Log GV-IP Camera Model Supported Version GV-BX120D GV-BX220D Series GV-BX320D Series V1.11 or later GV-BX130D Series GV-BX520D Box Camera GV-BX1200 Series GV-BX1300 Series GV-BX2400 Series V1.15 or later GV-BX3400 Series GV-BX5300 Series GV-BX120D-E GV-BX220D-E V1.11 or later IR Arctic Box Camera GV-BX320D-E...
  • Page 474 GV-IP Camera Model Supported Version GV-BL120D GV-BL130D Bullet Camera V1.11 or later GV-BL220D GV-BL320D PTZ Camera GV-PTZ010D V1.08 or later GV-VD120D Series Vandal Proof IP Dome GV-VD220D Series V1.11 or later GV-VD320D Series GV-FD120D GV-FD220D Fixed IP Dome V1.11 or later GV-FD320D GV-CB120 GV-CB220...

  • Page 475: Rtsp Protocol Command

    Appendix E. RTSP Protocol Command The GV-IPCAM H.264 can support RTSP protocol for both audio and video streaming. If you use the QuickTime player, enter: rtsp://<IP of the GV-IPCAM H.264:8554/<CH No.>.sdp For example, rtsp://192.168.3.111:8554/CH001.sdp If you use the VLC, and if authentication is required, enter: rtsp://username:password@<IP of the GV-IPCAM H.264:8554/<CH No.>.sdp For example, rtsp://admin:admin@192.168.3.111:8554/CH001.sdp...

  • Page 476: The Cgi Command

    F. The CGI Command Please note the supported version of the CGI command in different models: GV-IP Camera Supported Version GV-PTZ010D V1.07 or later GV-BX120D V1.00 or later GV-BX220D-2 / 223D-3 GV-BX320D-0 / 320D-1 GV-BL120D / 220D / 320D GV-VD120D / 121D / 122D / 123D V1.02 or later GV-VD220D / 221D / 222D / 223D GV-VD320D / 321D / 322D / 323D...
  • Page 477 Appendix GV-IP Camera Supported Version GV-BX1200 Series GV-BX1300 Series GV-BX2400 Series V1.15 or later GV-BX3400 Series GV-BX5300 Series GV-CA120 / 220 GV-CAW120 / 220 You can use the CGI command to obtain a snapshot of the live view or access the User Account Web interface. For a GV-IPCAM H.264 with the following details: IP address: 192.168.2.11 Username: admin...

  • Page 478: Dual Stream Support List

    G. Dual Stream Support List The table lists the firmware versions of GV-IP Cameras that support dual stream and the default resolutions after the camera is added to GV-System. Resolution Supported GV-IP Camera Firmware Main Stream Sub Stream Version (H.264) (MJPEG) GV-BX120D V1.00 or later...
  • Page 479 Appendix Resolution Supported Firmware GV-IP Camera Main Stream Sub Stream Version (H.264) (MJPEG) GV-BL130D V1.04 or later GV-BX130D Series 1280 x 1024 320 x 256 GV-MFD130 GV-BX1300 Series V1.15 or later GV-BX140DW V1.10 or later 1280 x 720 640 x 360 GV-BX220D Series V1.00 or later GV-BX2400 Series...
  • Page 480 Resolution Supported Firmware GV-IP Camera Main Stream Sub Stream Version (H.264) (MJPEG) GV-BX320D Series V1.00 or later GV-BX3400 Series V1.15 or later GV-MFD320 V1.05 or later GV-BX320D-E V1.07 or later GV-MDR320 2048 x 1536 320 x 240 GV-BL320D GV-VD320D V1.02 or later GV-VD321D GV-VD322D GV-VD323D...

  • Page 481: Power Supply Support List

    Appendix H. Power Supply Support List The supported power type is indicated with a tick ( ) and the unsupported power type with a cross ( ). GV-IP Camera DC Power AC Power Box Camera Ultra Box Camera Target Box Camera IR Arctic Box Camera Mini Fixed Dome Mini Fixed Rugged Dome...

  • Page 482: Supported Firmware For Flash Memory

    I. Supported Firmware for Flash Memory The 128 MB flash memory is supported in V1.09 or later in all models of GV-IPCam H.264 Series except GV-PTZ010D. To look up if the camera contains a 128 MB type flash memory, access the...

  • Page 483: Specifications

    Specifications: Box Camera (Part 1) This section details the specifications on GV-BX120D / 130D Series / 140DW / 220D Series / 320D Series / 520D. Camera 1/3" progressive scan low lux GV-BX120D CMOS GV-BX140DW 1/3" progressive scan CMOS Image GV-BX130D Series Sensor GV-BX220D Series 1/2.5”...
  • Page 484 Color 0.2 Lux GV-BX140DW 0.08 Lux IR On 0 Lux Minimum Illumination Color 0.15 lux GV-BX220D Series 0.10 Lux GV-BX320D Series GV-BX520D 0 Lux IR On Automatic GV-BX140DW GV-BX120D Shutter GV-BX130D Series Automatic, Manual (1/5 ~ 1/8000 Speed GV-BX220D Series sec) GV-BX320D Series GV-BX520D...
  • Page 485 Specifications: Box Camera (Part 1) Up to 100 dB GV-BX140DW GV-BX120D Dynamic GV-BX130D Series Range Up to 72 dB GV-BX220D Series GV-BX320D Series GV-BX520D Fixed Focal Lens (GV-BX130D-1 only) Megapixel Day/Night Yes (with removable IR-cut filter) 4.0 mm Focal Length Maximum Aperture F/1.5 Mount...
  • Page 486 GV-BX120D GV-BX130D-0 2.8 ~ 12 mm GV-BX140DW GV-BX220D-3 Focal 3.1 ~ 8 mm GV-BX320D-0 Length GV-BX220D-2 2.8 ~ 6 mm GV-BX320D-1 GV-BX520D 4.5 ~ 10 mm GV-BX120D GV-BX130D-0 F/1.4 GV-BX140DW GV-BX220D-3 Maximum GV-BX320D-0 F/1.2 Aperture GV-BX220D-2 F/1.3 GV-BX320D-1 F/1.6 GV-BX520D Mount GV-BX120D GV-BX130D-0...
  • Page 487 Specifications: Box Camera (Part 1) Manual (w/lock) Focus Zoom Manual (w/lock) GV-BX120D GV-BX130D-0 DC drive Operation GV-BX220D Series Iris GV-BX320D Series Fixed GV-BX140DW GV-BX520D Manual (w/lock) Max. Torque 0.049 N.m (Focus/ Zoom Screws) Operation Video Compression H.264, MJPEG Video Stream Dual streams from H.264 or MJPEG GV-BX120D 30 fps at 1280 x 1024...

  • Page 488: Video Resolution

    Audio Support Two-Way Audio 1 input (Dry Contact) Sensor Input 1 Digital Output (200mA 5V DC) Alarm Output Note: The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). GV-BX140DW does not support D/N sensitivity, backlight compensation, manual shutter speed, WDR and defog adjustment settings.
  • Page 489 Specifications: Box Camera (Part 1) 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 16:9 Stream 640 x 360, 448 x 252 GV-BX320D Series 1280 x 1024, 640 x 512, 320 x 256 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252...
  • Page 490 Mechanical Temperature Detector Power 2-pin terminal block, PoE Ethernet Ethernet (10/100 Base-T), RJ-45 cable 1 In (Using the built-in microphone or externally connecting a microphone) Audio 1 Out (Stereo phone jack, 3.5 mm / 0.14’’) GV-BX130D-1 Not functional GV-BX140DW GV-BX520D Connectors Auto Iris GV-BX120D...

  • Page 491: Power Over Ethernet

    Specifications: Box Camera (Part 1) General Environment Temperature 0°C ~ 50°C (32°F ~ 122°F) Humidity 10% to 90% (no condensation) 12V DC / PoE Power Source Max. Power Consumption 7 W 75.5 x75 x 54 mm (2.97’’ x 2.95’’ x 2.13’’) Dimensions (L X W X H) (without lens) 321 g (0.71 lb)
  • Page 492 Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Language Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish...

  • Page 493: Specifications: Box Camera (Part 2)

    Specifications: Box Camera (Part 2) Specifications: Box Camera (Part 2) This section details the specifications on GV-BX1200 Series / 1300 Series / 1500 Series / 2400 Series / 2500 Series / 3400 Series / 5300 Series. Camera 1/3" progressive scan low lux GV-BX1200 Series CMOS 1/3’’...
  • Page 494 0.15 Lux Color GV-BX1300 Series 0.10 Lux GV-BX5300 Series 0 Lux IR ON Color 0.01 Lux GV-BX1500 Series IR ON 0 Lux Minimum Color 0.02 Lux Illumination GV-BX2500 Series 0.02 Lux IR On 0 Lux 0.08 Lux Color GV-BX2400 Series 0.05 Lux GV-BX3400 Series IR On...
  • Page 495 Specifications: Box Camera (Part 2) GV-BX1200 Series GV-BX1300 Series Up to 72 dB GV-BX1500 Series Dynamic GV-BX2500 Series Range GV-BX5300 Series GV-BX2400 Series Up to 100 dB GV-BX3400 Series Fixed Focal Lens (GV-BX1200-0F~2F / BX1300-0F~2F / BX1500-0F~2F / BX2400-0F~2F / BX2500-0F~2F / BX3400-0F~2F / BX1500-8F / BX2400-8F / BX2500-8F / BX3400-8F / BX5300-8F) Megapixel...
  • Page 496 GV-BX1200-2F GV-BX1300-2F GV-BX1500-2F 12 mm GV-BX2400-2F GV-BX2500-2F GV-BX3400-2F Focal Length GV-BX1500-8F GV-BX2400-8F GV-BX2500-8F 2.8 mm GV-BX3400-8F GV-BX5300-8F GV-BX1200-0F GV-BX1300-0F GV-BX1500-0F F/1.5 GV-BX2400-0F GV-BX2500-0F GV-BX3400-0F GV-BX1200-1F GV-BX1200-2F GV-BX1300-1F Maximum Aperture GV-BX1300-2F GV-BX1500-1F GV-BX1500-2F F/1.6 GV-BX2400-1F GV-BX2400-2F GV-BX2500-1F GV-BX2500-2F GV-BX3400-1F GV-BX3400-2F...
  • Page 497 Specifications: Box Camera (Part 2) GV-BX1500-8F GV-BX2400-8F F/1.8 Maximum Aperture GV-BX2500-8F GV-BX3400-8F GV-BX5300-8F Mount GV-BX1200-0F GV-BX1300-0F GV-BX1500-0F 1/3” GV-BX2400-0F GV-BX2500-0F GV-BX3400-0F GV-BX1200-1F GV-BX1200-2F GV-BX1300-1F GV-BX1300-2F GV-BX1500-1F Image Format GV-BX1500-2F GV-BX2400-1F GV-BX2400-2F GV-BX2500-1F 1/2.5” GV-BX2500-2F GV-BX3400-1F GV-BX3400-2F GV-BX1500-8F GV-BX2400-8F GV-BX2500-8F GV-BX3400-8F GV-BX5300-8F...
  • Page 498 63° GV-BX1200-0F 49° GV-BX1300-0F 63° GV-BX1500-0F 58° GV-BX2400-0F 72° GV-BX2500-0F GV-BX3400-0F 61° GV-BX1200-1F 36° 26° GV-BX1300-1F 36° GV-BX1500-1F 32° GV-BX2400-1F GV-BX2500-1F 40° Horizontal FOV GV-BX3400-1F 35° GV-BX1200-2F 23° 17° GV-BX1300-2F 23° GV-BX1500-2F GV-BX2400-2F 21° GV-BX2500-2F 25° GV-BX3400-2F 23° GV-BX1500-8F 90° 83°...
  • Page 499 Specifications: Box Camera (Part 2) 0.049 N.m Torque (Focus Screw) Varifocal Lens (GV-BX1200-3V / BX1300-3V / BX1500-3V / BX2400-3V / BX2400-4V / BX2500-3V / BX3400-4V / BX3400-5V / BX5300-6V) Megapixel Day/Night Yes (with removable IR-cut filter) GV-BX1200-3V GV-BX1300-3V GV-BX1500-3V 2.8 ~ 12 mm GV-BX2400-3V GV-BX2500-3V Focal Length...
  • Page 500 GV-BX1200-3V GV-BX1300-3V GV-BX1500-3V 1/2.7’’ GV-BX2400-3V GV-BX2500-3V Image Format GV-BX2400-4V GV-BX3400-4V 1/3’’ GV-BX3400-5V 1/2’’ GV-BX5300-6V 87° ~ 31° GV-BX1200-3V 64° ~ 23° GV-BX1300-3V 86° ~ 31° GV-BX1500-3V GV-BX2400-3V 77° ~ 28° Horizontal FOV GV-BX2500-3V 105° ~ 36° GV-BX2400-4V 73° ~ 27° 78°...
  • Page 501 Specifications: Box Camera (Part 2) Torque 0.049 N.m (Focus / Zoom screws) Operation H.264, MJPEG Video Compression Dual streams from H. 264 or MJPEG Video Stream GV-BX1200 Series 30 fps at 1280 x 1024 GV-BX1300 Series GV-BX1500 Series GV-BX2400 Series Frame 30 fps at 1920 x 1080 GV-BX2500 Series...
  • Page 502 Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main 16:9 1280 x 720, 640 x 360, 448 x 252 Stream GV-BX1200 Series 1280 x 1024, 640 x 512, 320 x 256 GV-BX1300 Series 640 x 480, 320 x 240 GV-BX1500 Series 16:9 640 x 360, 448 x 252...
  • Page 503 Specifications: Box Camera (Part 2) 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main Stream 1920 x 1080, 1280 x 720, 16:9 640 x 360, 448 x 252 GV-BX5300 Series 1280 x 1024, 640 x 512, 320 x 256 640 x 480, 320 x 240 640 x 360, 448 x 252...
  • Page 504 1 In (Using the built-in microphone or externally connecting a microphone) Audio 1 Out (Stereo phone jack, 3.5 mm / 0.14”) GV-BX1200 Series GV-BX1300 Series GV-BX1500 Series Auto Iris Yes (with varifocal lens) GV-BX2400 Series GV-BX2500 Series Connectors GV-BX3400 Series GV-BX5300 Series Not functional Local...
  • Page 505 Specifications: Box Camera (Part 2) General 0°C ~ 50°C (32°F ~ 122°F) Environment Temperature Humidity 10% to 90% (no condensation) 12V DC / PoE Power Source GV-BX1200 Series GV-BX1300 Series GV-BX1500 Series 9.5 W Max. Power GV-BX2400 Series Consumption GV-BX3400 Series GV-BX5300 Series GV-BX2500 Series 7.99 W (Without lens) 75.5 x 75 x 54 mm...
  • Page 506 Web Interface Web-based configuration Installation Management Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture Access from Web Browser in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ Arabic / Bulgarian / Czech / Danish / Dutch...

  • Page 507: Specifications: Ultra Box Camera

    Specifications: Ultra Box Camera Specifications: Ultra Box Camera Camera 1/2.5’’ progressive scan Image Sensor CMOS 1280 (H) x 1024 (V) GV-UBX1301 Series Picture GV-UBX2301 Series 1920 (H) x 1080 (V) Elements GV-UBX3301 Series 2048 (H) x 1536 (V) 0.15 Lux Color Minimum 0.10 Lux...
  • Page 508 GV-UBX1301-1F GV-UBX2301-1F 4 mm GV-UBX3301-1F Focal Length GV-UBX1301-2F GV-UBX2301-2F 8 mm GV-UBX3301-2F GV-UBX1301-0F F/2.0 GV-UBX2301-0F GV-UBX3301-0F GV-UBX1301-1F Maximum GV-UBX2301-1F Aperture GV-UBX3301-1F F/1.6 GV-UBX1301-2F GV-UBX2301-2F GV-UBX3301-2F Mount M12, Pitch 0.5 mm Image Format 1/3” GV-UBX1301-0F 69° 49° GV-UBX1301-1F 25° GV-UBX1301-2F 79° GV-UBX2301-0F Horizontal 58°...
  • Page 509 Specifications: Ultra Box Camera Operation Video Compression H.264, MJPEG Video Stream Dual streams from H. 264 or MJPEG 30 fps at 1280 x 1024 GV-UBX1301 Series Frame Rate GV-UBX2301 Series 30 fps at 1920 x 1080 20 fps at 2048 x 1536 GV-UBX3301 Series Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance,...
  • Page 510 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 640 x Stream 16:9 360, 448 x 252 GV-UBX2301 Series 1280 x 1024, 640 x 512, 320 x 256 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252 Stream...
  • Page 511 Specifications: Ultra Box Camera Mechanical Temperature Detector Power 2-pin terminal block, PoE Ethernet Ethernet (10/100 Base-T), RJ-45 cable 1 In (Using the built-in microphone) Connectors Audio 1 Out (Stereo phone jack, 3.5 mm / 0.14”) Micro SD card slot Local Storage (SD/SDHC, version 2.0 only, Class 10) 2 LEDs: Power, Status LED Indicator...
  • Page 512 Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser Maintenance or Utility Camera live view, video recording, change video quality, bandwidth control, image Access from Web Browser snapshot, audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Digital PTZ Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German /...

  • Page 513: Specifications: Target Box Camera

    Specifications: Target Box Camera Specifications: Target Box Camera Camera Image Sensor 1/3’’ progressive scan low lux CMOS Picture Elements 1280 (H) x 1024 (V) Color 0.05 Lux Minimum Illumination 0.03 Lux 0 Lux IR ON Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec) White Balance Automatic, Manual (2800K ~ 8500K) Gain Control...
  • Page 514 Operation (Focus / Zoom / Fixed Iris) IR LED Quantity 8 IR LEDs Max. IR Distance 15 m (50 ft) Operation Video Compression H.264, MJPEG Video Stream Dual streams from H. 264 or MJPEG Frame Rate 30 fps at 1280 x 1024 Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Image Setting...
  • Page 515 Specifications: Target Box Camera Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main 16:9 1280 x 720, 640 x 360, 448 x 252 Stream 1280 x 1024, 640 x 512, 320 x 256 GV-EBX1100 Series 640 x 480, 320 x 240 640 x 360, 448 x 252 16:9 Stream...
  • Page 516 Regulatory CE, FCC, C-Tick, RCM, RoHS compliant Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PD PoE Power Supply Type End-Span PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts Web Interface Installation Management Web-based configuration Maintenance Firmware upgrade through Web Browser or Utility Camera live view, video recording, change video...
  • Page 517 Specifications: Target Box Camera Application Network Storage GV-NVR, GV-System, GV-Recording Server GV-Eye for Android smartphone, tablet, iPhone, iPod Smart Device Access Touch and iPad Live Viewing IE, mobile phone CMS Server support GV-Control Center, GV-Center V2, GV-VSM All specifications are subject to change without notice.

  • Page 518: Specifications: Ir Arctic Box Camera

    Specifications: IR Arctic Box Camera Camera GV-BX120D-E 1/3" progressive scan low lux CMOS 1/3" progressive scan super low lux CMOS GV-BX1500-E GV-BX2400-E 1/3.2" progressive scan CMOS Image GV-BX3400-E Sensor GV-BX220D-E GV-BX320D-E 1/2.5” progressive scan CMOS GV-BX520D-E GV-BX5300-E GV-BX120D-E 1280 (H) x 1024 (V) GV-BX1500-E GV-BX220D-E 1920 (H) x 1080 (V)
  • Page 519 Specifications: IR Arctic Box Camera Color 0.08 Lux GV-BX2400-E 0.05 Lux GV-BX3400-E 0 Lux IR ON Minimum GV-BX220D-E Color 0.15 Lux Illumination GV-BX320D-E 0.10 Lux GV-BX520D-E IR ON 0 Lux GV-BX5300-E Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec) White Balance Automatic, Manual (2800K ~ 8500K) Gain Control Automatic...
  • Page 520 Lens Megapixel Day/Night Yes (with removable IR-cut filter) Lens Type Varifocal Focal GV-BX120D-E 2.8 ~ 12 mm Length GV-BX220D-E 2.8 ~ 6 mm GV-BX320D-E GV-BX1500-E Focal 3 ~ 10.5 mm GV-BX2400-E Length GV-BX3400-E GV-BX520D-E 4.5 ~ 10 mm GV-BX5300-E GV-BX120D-E GV-BX1500-E F/1.4 GV-BX2400-E...
  • Page 521 Specifications: IR Arctic Box Camera 81° ~ 29° GV-BX1500-E 73° ~ 27° GV-BX2400-E Horizontal 78° ~ 28° GV-BX3400-E 70° ~ 34° GV-BX5300-E Focus Manual (w/lock) Operation Zoom Manual (w/lock) GV-BX120D-E GV-BX1500-E GV-BX220D-E DC drive GV-BX2400-E Operation Iris GV-BX320D-E GV-BX3400-E GV-BX520D-E Manual (w/lock) GV-BX5300-E IR Quantity...
  • Page 522 GV-BX120D-E 30 fps at 1280 x 1024 GV-BX1500-E GV-BX220D-E 30 fps at 1920 x 1080 GV-BX2400-E Frame Rate GV-BX320D-E 20 fps at 2048 x 1536 GV-BX3400-E 30 fps at 1920 x 1080 GV-BX520D-E 10 fps at 2560 x 1920 GV-BX5300-E Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter...
  • Page 523 Specifications: IR Arctic Box Camera 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, Stream 16:9 640 x 360, 448 x 252 GV-BX220D-E 1280 x 1024, 640 x 512, 320 x 256 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252...
  • Page 524 1280 x 960, 640 x 480, 320 x 240 Main 1280 x 720, 640 x 360, 448 x 252 16:9 Stream 1280 x 1024, 640 x 512, 320 x 256 GV-BX1500-E 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252 Stream 640 x 512, 320 x 256 1600 x 1200, 1280 x 960, 640 x...
  • Page 525 Specifications: IR Arctic Box Camera 2560 x 1920, 2048 x 1536, 4 : 3 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 640 x Stream 16 :9 360, 448 x 252 GV-BX5300-E 5 : 4 1280 x 1024, 640 x 512, 320 x 256...
  • Page 526 Power Ethernet Ethernet (10/100 Base-T), RJ-45 cable 1 In (externally connecting a microphone) Audio 1 Out (Stereo phone jack, 3.5 mm / 0.14”) GV-BX120D-E GV-BX1500-E Connectors GV-BX220D-E DC Drive GV-BX2400-E Auto Iris GV-BX320D-E GV-BX3400-E GV-BX520D-E Not functional GV-BX5300-E BNC connector (640 x 480 resolution) TV-Out LED Indicator 1 LED: Status...
  • Page 527 Specifications: IR Arctic Box Camera GV-BX2400-E 23 W Max. Power GV-BX3400-E Consumption 21.6 W GV-BX5300-E 100.5 x 100.5 x 317.5 mm Dimensions (3.96’’ x 3.96’’ x 12.5’’) 3.2 kg (7.11 lb) Weight GV-BX120D-E GV-BX220D-E GV-BX320D-E GV-BX520D-E CE, FCC, C-Tick, RoHS compliant Regulatory GV-BX2400-E GV-BX3400-E...
  • Page 528 Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change video quality, bandwidth control, image Access from Web Browser snapshot, audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Digital PTZ Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek...
  • Page 529 Specifications: IR Arctic Box Camera Max 100 m / 328 ft from GV-PA481 to IP Ethernet Cable Length device, CAT5 Power Input AC 100V ~ 240V, 2A Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) 138 x 104 x 38 mm (5.43’’ x 4.09’’ x 1.5’’) Dimensions (L x W x H) Weight 610 g (13.42 lbs)

  • Page 530: Specifications: Mini Fixed Dome (Part 1)

    Specifications: Mini Fixed Dome (Part 1) This section details the specifications on GV-MFD120 / 130 / 220 / 320 / 520. Camera GV-MFD120 1/3" progressive scan low lux CMOS GV-MFD130 Image GV-MFD220 Sensor 1/2.5’’ progressive scan CMOS GV-MFD320 GV-MFD520 GV-MFD120 1280 (H) x 1024 (V) GV-MFD130 Picture...
  • Page 531 Specifications: Mini Fixed Dome (Part 1) 50 dB GV-MFD120 GV-MFD130 S/N Ratio GV-MFD220 45 dB GV-MFD320 GV-MFD520 Dynamic Range Up to 72 dB Lens Megapixel Day/Night Yes (electronic) Fixed Lens Type GV-MFD120 4.05 mm GV-MFD130 Focal GV-MFD220 Length 2.54 mm GV-MFD320 GV-MFD520 F/1.5...
  • Page 532 GV-MFD120 67° GV-MFD130 85° Horizontal GV-MFD220 101° GV-MFD320 110° GV-MFD520 138° Operation Fixed (Focus / Zoom / Iris) Note: For GV-MFD, the day/night function is only supported by V1.07 or later. Operation Video Compression H.264, MJPEG Video Stream Dual streams from H.264 or MJPEG GV-MFD120 30 fps at 1280 x 1024 GV-MFD130...
  • Page 533 Specifications: Mini Fixed Dome (Part 1) Note: The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). Video Resolution 1280 x 960, 640 x 480, 320 x 240 GV-MFD120 16:9 1280 x 720, 640 x 360, 448 x 252 Main Stream GV-MFD130 1280 x 1024, 640 x 512, 320 x 256...
  • Page 534 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main Stream 1920 x 1080, 1280 x 720, 16:9 640 x 360, 448 x 252 GV-MFD520 1280 x 1024, 640 x 512, 320 x 256 640 x 480, 320 x 240 640 x 360, 448 x 252 16:9...
  • Page 535 Specifications: Mini Fixed Dome (Part 1) GV-MFD120 GV-MFD130 Audio GV-MFD220 1 In (Built-in microphone) GV-MFD320 Connectors GV-MFD520 Micro SD card slot (SD/SDHC, Local Storage version 2.0 only, Class 10) LED Indicator 4 LEDs: Link, ACT, Power, Status Note: SDXC and UHS-I card types are not supported. General Environment Temperature 0°C ~ 50°C (32°F ~ 122°F)
  • Page 536 GV-MFD120 275 g (0.61 lb) GV-MFD130 Weight GV-MFD220 280 g (0.62 lb) GV-MFD320 GV-MFD520 CE, FCC, C-Tick, UL, RoHS Regulatory compliant Power over Ethernet IEEE 802.3af Power over Ethernet / PD PoE Standard End-Span and Mid-Span PoE Power Supply Type Per Port 48V DC, 350 mA.
  • Page 537 Specifications: Mini Fixed Dome (Part 1) Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Language Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai /...

  • Page 538: Specifications: Mini Fixed Dome (Part 2)

    Specifications: Mini Fixed Dome (Part 2) This section details the specifications on GV-MFD1501 series / 2401 series / 2501 series / 3401 series / 5301 series. Camera 1/3’’ progressive scan super low GV-MFD1501 Series lux CMOS 1/2.8’’ progressive scan super GV-MFD2501 Series low lux CMOS Image...
  • Page 539 Specifications: Mini Fixed Dome (Part 2) Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec) White Balance Automatic, Manual (2800K ~ 8500K) Gain Control Automatic GV-MFD1501 Series GV-MFD2401 Series 55 dB GV-MFD3401 Series Ratio GV-MFD5301 Series 52 dB GV-MFD2501 Series GV-MFD2401 Series WDR Pro GV-MFD3401 Series GV-MFD1501 Series...
  • Page 540 GV-MFD1501-1F GV-MFD2401-1F 4 mm GV-MFD2501-1F GV-MFD3401-1F GV-MFD5301-1F GV-MFD1501-2F GV-MFD2401-2F 8 mm GV-MFD2501-2F GV-MFD3401-2F GV-MFD5301-2F GV-MFD1501-3F GV-MFD2401-3F Focal Length 12 mm GV-MFD2501-3F GV-MFD3401-3F GV-MFD5301-3F GV-MFD1501-4F GV-MFD2401-4F 2.1 mm GV-MFD2501-4F GV-MFD3401-4F GV-MFD1501-0F GV-MFD2401-0F F/2.0 GV-MFD2501-0F GV-MFD3401-0F GV-MFD5301-0F Maximum Aperture GV-MFD1501-1F GV-MFD2401-1F F/1.5 GV-MFD2501-1F GV-MFD3401-1F GV-MFD5301-1F...
  • Page 541 Specifications: Mini Fixed Dome (Part 2) GV-MFD1501-2F GV-MFD1501-3F GV-MFD2401-2F GV-MFD2401-3F GV-MFD2501-2F F/1.6 GV-MFD2501-3F GV-MFD3401-2F Maximum Aperture GV-MFD3401-3F GV-MFD5301-2F GV-MFD5301-3F GV-MFD1501-4F GV-MFD2401-4F F/1.8 GV-MFD2501-4F GV-MFD3401-4F M12, Pitch 0.5 mm Mount Image Format 1/3’’ 87° GV-MFD1501-0F 79° GV-MFD2401-0F 99° GV-MFD2501-0F 80° GV-MFD3401-0F 103°...
  • Page 542 38° GV-MFD2501-2F 33° GV-MFD3401-2F 41° GV-MFD5301-2F 22° GV-MFD1501-3F 20° GV-MFD2401-3F 25° GV-MFD2501-3F Horizontal 21° GV-MFD3401-3F 26° GV-MFD5301-3F 124° GV-MFD1501-4F 112° GV-MFD2401-4F 150° GV-MFD2501-4F 120° GV-MFD3401-4F Operation Fixed (Focus / Zoom / Iris) Note: The day/night function is only supported by V1.07 or later. Operation Video Compression H.264, MJPEG...
  • Page 543 Specifications: Mini Fixed Dome (Part 2) Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less 50/60 Hz, Image Image Setting Orientation, Shutter Speed, Backlight Compensation, D/N sensitivity, WDR, Defog, Super Low Lux Audio Compression G.711, AAC (Optional) Two-Way Audio Audio Support Sensor Input Alarm Output Note:...
  • Page 544 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 1920 x 1080, 1280 x 720, Main Stream 16:9 640 x 360, 448 x 252 GV-MFD3401 1280 x 1024, 640 x 512, Series 320 x 256 640 x 480, 320 x 240 640 x 360, 448 x 252 16:9...
  • Page 545 Specifications: Mini Fixed Dome (Part 2) Temperature Detector PoE, 2-pin terminal block Power Ethernet Ethernet (10/100 Base-T), RJ-45 cable 1 In (Built-in microphone) Audio 1 Out (RCA female for speaker) Connectors GV-WiFi adapter or USB hard drive Local Micro SD card slot (SD/SDHC, version 2.0 only, Class 10) Storage LED Indicator...
  • Page 546 Power over Ethernet IEEE 802.3af Power over Ethernet / PD PoE Standard End-Span PoE Power Supply Type Per Port 48V DC, 350 mA. Max. 15.4 watts PoE Power Output Web Interface Installation Web-based configuration Management Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change...

  • Page 547: Specifications: Mini Fixed Rugged Dome

    Specifications: Mini Fixed Rugged Dome Specifications: Mini Fixed Rugged Dome Camera GV-MDR120 1/3" progressive scan low lux CMOS 1/3" progressive scan super low lux GV-MDR1500 Series CMOS GV-MDR220 GV-MDR320 Image 1/2.5’’ progressive scan CMOS GV-MDR520 Sensor GV-MDR5300 Series GV-MDR2400 Series 1/3.2’’...
  • Page 548 Color 0.05 Lux GV-MDR120 0.03 Lux GV-MDR220 Color 0.15 Lux GV-MDR320 0.10 Lux GV-MDR520 Color GV-MDR1500 Series 0.01 Lux Minimum Illumination Color 0.08 Lux GV-MDR2400 Series GV-MDR3400 Series 0.05 Lux Color GV-MDR2500 Series 0.02 Lux Color 0.15 Lux GV-MDR5300 Series 0.10 Lux Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)
  • Page 549 Specifications: Mini Fixed Rugged Dome GV-MDR120 GV-MDR1500 Series GV-MDR220 Up to 72 dB GV-MDR2500 Series Dynamic GV-MDR320 Range GV-MDR520 GV-MDR5300 Series GV-MDR2400 Series Up to 100 dB GV-MDR3400 Series Lens Megapixel Yes (electronic) Day/Night Lens Type Fixed GV-MDR120 4 mm GV-MDR220 2.54 mm GV-MDR320...
  • Page 550 GV-MDR1500-2F GV-MDR2400-2F 3.8 mm GV-MDR2500-2F GV-MDR3400-2F GV-MDR5300-2F GV-MDR1500-3F GV-MDR2400-3F 8 mm GV-MDR2500-3F GV-MDR3400-3F GV-MDR5300-3F GV-MDR1500-4F GV-MDR2400-4F 12 mm Focal Length GV-MDR2500-4F GV-MDR3400-4F GV-MDR5300-4F F/1.5 GV-MDR120 GV-MDR220 F/2.8 GV-MDR320 GV-MDR520 GV-MDR1500-0F GV-MDR2400-0F Maximum GV-MDR2500-0F Aperture GV-MDR3400-0F F/1.8 GV-MDR1500-2F GV-MDR2400-2F GV-MDR2500-2F GV-MDR3400-2F GV-MDR5300-2F...
  • Page 551 Specifications: Mini Fixed Rugged Dome GV-MDR1500-1F GV-MDR2400-1F F/2.0 GV-MDR2500-1F GV-MDR3400-1F GV-MDR5300-1F GV-MDR1500-3F GV-MDR2400-3F Maximum GV-MDR2500-3F Aperture GV-MDR3400-3F GV-MDR5300-3F F/1.6 GV-MDR1500-4F GV-MDR2400-4F GV-MDR2500-4F GV-MDR3400-4F GV-MDR5300-4F M12, Pitch 0.5 mm Mount GV-MDR120 GV-MDR1500 Series GV-MDR2400 Series 1/3’’ GV-MDR2500 Series GV-MDR3400 Series Image Format GV-MDR5300 Series GV-MDR220 1/2.5’’...
  • Page 552 126° 88° GV-MDR1500 64° 34° 22° GV-MDR2400 113° 80° 60° GV-MDR2400 30° 20° 135° 98° Horizontal GV-MDR2500 72° 38° 25° 121° 85° GV-MDR3400 63° 32° 21° 104° 76° GV-MDR5300 41° 27° Operation (Focus / Zoom / Iris) Fixed...
  • Page 553 Specifications: Mini Fixed Rugged Dome Operation Video Compression H.264, MJPEG Video Stream Dual streams from H.264 or MJPEG GV-MDR120 30 fps at 1280 x 1024 GV-MDR1500 Series Frame Rate GV-MDR220 GV-MDR2400 Series 30 fps at 1920 x 1080 GV-MDR2500 Series GV-MDR320 20 fps at 2048 x 1536 GV-MDR3400 Series...
  • Page 554 Video Resolution 1280 x 960, 640 x 480, 320 x 240 16:9 1280 x 720, 640 x 360, 448 x 252 Main Stream 1280 x 1024, 640 x 512, 320 x 256 GV-MDR120 GV-MDR1500 Series 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252 Sub Stream...
  • Page 555 Specifications: Mini Fixed Rugged Dome Network Interface 10/100 Ethernet DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile Protocol S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA Mechanical Camera Angle -45° ~ 45° GV-MDR Adjustment 0° ~ 90° Tilt Camera Angle GV-MDR...
  • Page 556 GV-MDR520 3.6 W GV-MDR1500 Series 3.47 W Max. Power GV-MDR2400 Series 4.28 W Consumption GV-MDR3400 Series GV-MDR2500 Series 4.23 W GV-MDR5300 Series 3.81 W ø115 x 59.2 mm (4.5’’ x 2.3’’) Camera Body Cable Length 1.054 m (41.5’’) Cable Diameter ø6.2 mm (0.24’’) Dimensions ø14.7 mm (0.58’’)
  • Page 557 Specifications: Mini Fixed Rugged Dome Power over Ethernet IEEE 802.3af Power over Ethernet / PD PoE Standard GV-MDR120 GV-MDR220 End-Span and Mid-Span GV-MDR320 GV-MDR520 PoE Power GV-MDR1500 Series Supply Type GV-MDR2400 Series End-Span GV-MDR2500 Series GV-MDR3400 Series GV-MDR5300 Series Per Port 48V DC, 350 mA. Max. 15.4 watts PoE Power Output Web Interface Installation Management...
  • Page 558 Applications GV-NVR, GV-System, GV-Backup Center, GV- Network Storage Recording Server GV-Eye for Android smartphone, tablet, iPhone, Smart Device Access iPod Touch and iPad Live Viewing IE, mobile phone CMS Server support GV-Control Center, GV-Center V2, GV-VSM All specifications are subject to change without notice.

  • Page 559: Specifications: Target Mini Fixed Dome

    Specifications: Target Mini Fixed Dome Specifications: Target Mini Fixed Dome Camera 1/3’’ progressive scan low lux CMOS GV-EFD1100 Series Image Sensor GV-EFD2100 Series 1/2.8’’ progressive scan low lux CMOS GV-EFD1100 Series 1280 (H) x 1024 (V) Picture Elements GV-EFD2100 Series 1920 (H) x 1080 (V) Color 0.05 Lux...
  • Page 560 Lens Megapixel Day/Night Yes (with removable IR-cut filter) Lens Type Fixed GV-EFD1100-0F 2.8 mm GV-EFD2100-0F Focal Length GV-EFD1100-2F 3.8 mm GV-EFD2100-2F GV-EFD1100-0F F/2.0 GV-EFD2100-0F Maximum Aperture GV-EFD1100-2F F/1.8 GV-EFD2100-2F Mount M12, Pitch 0.5 mm Image Format 1/2.7” 93° GV-EFD1100-0F 64° GV-EFD1100-2F Horizontal 99°...

  • Page 561: Audio Support

    Specifications: Target Mini Fixed Dome Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Image Setting Flicker-less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog Audio Compression G.711, AAC (Optional) Audio Support One-Way Audio Note: The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
  • Page 562 Network Interface 10/100 Ethernet DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), Protocol QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA Mechanical -45° ~ 45° Camera Angle Adjustment Tilt 0° ~ 63° Power 2-pin terminal block, PoE Connectors Ethernet Ethernet (10/100 Base-T), RJ-45 cable Audio...
  • Page 563 Specifications: Target Mini Fixed Dome Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PD PoE Power Supply End-Span Type PoE Power Output Per Port 48V DC, 350 mA. Max. 15.4 watts Web Interface Installation Web-based configuration Management Maintenance Firmware upgrade through Web Browser or Utility Camera Live View, Video Recording, Change...

  • Page 564: Specifications: Bullet Camera (Part 1)

    Specifications: Bullet Camera (Part 1) This section details the specifications on GV-BL120D / 130D / 220D / 320D and GV-BL1200 / 1300 / 1500 / 2400 / 2500 / 3400. Camera GV-BL120D 1/3" progressive scan low lux CMOS GV-BL1200 GV-BL130D GV-BL220D 1/2.5’’...
  • Page 565 Specifications: Bullet Camera (Part 1) GV-BL320D Picture 2048 (H) x 1536 (V) Elements GV-BL3400 Color 0.05 Lux GV-BL120D 0.03 Lux GV-BL1200 0 Lux IR ON GV-BL130D 0.15 Lux Color GV-BL220D 0.10 Lux GV-BL320D 0 Lux IR On GV-BL1300 0.01 Lux Color Minimum Illumination...
  • Page 566 GV-BL130D GV-BL220D 45 dB GV-BL320D GV-BL1300 S/N Ratio 55 dB GV-BL1500 52 dB GV-BL2500 GV-BL2400 47 dB GV-BL3400 GV-BL2400 WDR Pro Yes (with WDR sensor) GV-BL3400 GV-BL120D GV-BL1200 GV-BL130D GV-BL1500 Up to 72 dB GV-BL220D Dynamic GV-BL2500 Range GV-BL320D GV-BL1300 GV-BL2400 Up to 100 dB GV-BL3400...
  • Page 567 Specifications: Bullet Camera (Part 1) 3 ~ 9 mm Focal Length Maximum Aperture F/1.2 ø 14 mm Mount Image Format 1/2.7’’ GV-BL1200 86° ~ 32° 60° ~ 23° GV-BL1300 GV-BL1500 90° ~ 32° Horizontal GV-BL2400 82° ~ 30° GV-BL2500 103° ~ 36° GV-BL3400 86°...
  • Page 568 Operation H.264, MJPEG Video Compression Dual streams from H.264 or MJPEG Video Stream GV-BL120D GV-BL130D 30 fps at 1280 x 1024 GV-BL1200 GV-BL1300 Frame Rate GV-BL1500 GV-BL220D 30 fps at 1920 x 1080 GV-BL2400 GV-BL2500 GV-BL320D 20 fps at 2048 x 1536 GV-BL3400 Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance,...
  • Page 569 Specifications: Bullet Camera (Part 1) Video Resolution 1280 x 960, 640 x 480, 320 x 240 GV-BL120D Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252 GV-BL1200 1280 x 1024, 640 x 512, 320 x 256 GV-BL130D 640 x 480, 320 x 240 GV-BL1300 16:9 640 x 360, 448 x 252...
  • Page 570 Network 10/100 Ethernet Interface DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF Protocol (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA Mechanical 0° ~ 360° Camera Tilt 90° ~ 180° Angle Adjustment Rotate 0° ~ 360° Temperature Detector Power 2-pin terminal block, PoE Ethernet...
  • Page 571 Specifications: Bullet Camera (Part 1) General GV-BL120D GV-BL130D -20°C ~ 50°C (-4°F ~ 122°F) GV-BL220D GV-BL320D Environment GV-BL1200 Temperature GV-BL1300 GV-BL1500 -30°C ~ 50°C (-22°F ~ 122°F) GV-BL2400 GV-BL2500 GV-BL3400 10% to 90% (no condensation) Humidity Power Source 12V DC / 24V AC / PoE GV-BL120D GV-BL130D 12 W...
  • Page 572 GV-BL120D GV-BL130D GV-BL220D GV-BL320D 1.35 kg (2.98 lb) GV-BL1200 Weight GV-BL1300 GV-BL2400 GV-BL3400 GV-BL1500 1.4 Kg (3.08 lb) GV-BL2500 GV-BL120D GV-BL130D IP66 GV-BL220D GV-BL320D Ingress GV-BL1200 Protection GV-BL1300 GV-BL1500 IP67 GV-BL2400 GV-BL2500 GV-BL3400 GV-BL1200 GV-BL1300 GV-BL1500 Vandal IK10 for metal casing Resistance GV-BL2400 GV-BL2500...
  • Page 573 Specifications: Bullet Camera (Part 1) GV-BL120D GV-BL130D GV-BL220D GV-BL320D GV-BL1200 CE, FCC, C-Tick, RoHS compliant GV-BL1300 Regulatory GV-BL1500 GV-BL2400 GV-BL3400 GV-BL1500 CE, FCC, RCM, RoHS compliant GV-BL2500 Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PD End-Span PoE Power Supply Type Per Port 48V DC, 350mA.
  • Page 574 Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Language Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish...

  • Page 575: Specifications: Bullet Camera (Part 2)

    Specifications: Bullet Camera (Part 2) This section details the specifications on GV-BL1210 / 1510 / 2410 / 2510 / 3410 / 5310. Camera 1/3" progressive scan low lux CMOS GV-BL1210 GV-BL1510 1/3" progressive scan super low lux CMOS Image 1/2.8" progressive scan super low lux GV-BL2510 Sensor CMOS...
  • Page 576 Color 0.01 Lux 0.01 Lux GV-BL1510 0 Lux IR ON 0.02 Lux Color GV-BL2510 0.02 Lux IR ON 0 Lux Minimum Illumination Color 0.08 Lux GV-BL2410 0.05 Lux GV-BL3410 0 Lux IR ON Color 0.15 Lux GV-BL5310 0.10 Lux IR ON 0 Lux Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)
  • Page 577 Specifications: Bullet Camera (Part 2) GV-BL1210 GV-BL1510 Up to 72 dB GV-BL2510 Dynamic GV-BL5310 Range GV-BL2410 Up to 100 dB GV-BL3410 Lens Megapixel Yes (with removable IR-cut filter) Day / Night Motorized varifocal lens Lens Type GV-BL1210 GV-BL1510 GV-BL2410 3 ~ 9 mm Focal GV-BL2510 Length...
  • Page 578 Auto Focus Focus GV-BL1210 GV-BL1510 GV-BL2410 3x Optical Zoom Operation Zoom GV-BL2510 GV-BL3410 GV-BL5310 2x Optical Zoom Iris DC Drive IR LED Quantity 16 IR LEDs GV-BL1210 40 m (131 ft) GV-BL5310 GV-BL1510 70 m (230 ft) Max. IR Distance GV-BL2410 50 m (164 ft) GV-BL2510...
  • Page 579 Specifications: Bullet Camera (Part 2) Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Image Setting Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Zoom, Focus Change, Super Low Lux Audio Compression G.711, AAC (Optional) Audio Support Two-Way Audio 1 Input (Dry Contact) Sensor Input Alarm Output...
  • Page 580 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 1920 x 1080, 1280 x 720, Main Stream 16:9 640 x 360, 448 x 252 GV-BL2410 1280 x 1024, 640 x 480, 320 x 240 GV-BL2510 640 x 480, 320 x 240 Sub Stream 16:9 640 x 360, 448 x 252 640 x 480, 320 x 240...
  • Page 581 Specifications: Bullet Camera (Part 2) Network 10/100 Ethernet Interface DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS Protocol (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA Mechanical 0° ~ 360° Camera Tilt 90° ~ 180° Angle Adjustment Rotate 0°...
  • Page 582 GV-BL1210 11.52 W GV-BL2410 GV-BL1510 13.8 W Max. Power Consumption 13.4 W GV-BL2510 GV-BL3410 12.48 W GV-BL5310 289.02 x 87.75 x 148.95 mm Camera Body (11.4” x 3.45” x 5.86’’) Cable 1 m (3.28 ft) Length Dimensions Max. Cable ø7.1 mm (0.28”) Diameter Max.
  • Page 583 Specifications: Bullet Camera (Part 2) Power over Ethernet IEEE 802.3af Power over Ethernet / PD PoE Standard PoE Power Supply Type End-Span Per Port 48V DC, 350mA. Max. 15.4 watts PoE Power Output Web Interface Web-based configuration Installation Management Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change...
  • Page 584 Live Viewing IE, mobile phone GV-Control Center, GV-Center V2, CMS Server support GV-VSM All specifications are subject to change without prior notice.

  • Page 585: Specifications: Ultra Bullet Camera

    Specifications: Ultra Bullet Camera Camera 1/3" progressive scan low lux CMOS GV-UBL1211 GV-UBL1301 Series 1/2.5’’ progressive scan CMOS 1/3" progressive scan super low lux GV-UBL1511 CMOS Image 1/2.8" progressive scan super low lux Sensor GV-UBL2511 CMOS GV-UBL2411 GV-UBL3411 1/3.2’’ progressive scan CMOS GV-UBL2401 Series GV-UBL3401 Series GV-UBL1211...
  • Page 586 Color 0.01 Lux GV-UBL1511 0.01 Lux IR ON 0 Lux Color 0.02 Lux 0.02 Lux GV-UBL2511 IR ON 0 Lux Color 0.08 Lux Minimum GV-UBL2411 0.05 Lux Illumination GV-UBL3411 0 Lux IR ON 0.15 Lux Color GV-UBL1301 Series 0.10 Lux IR ON 0 Lux 0.08 Lux...
  • Page 587 Specifications: Ultra Bullet Camera GV-UBL1211 GV-UBL1301 Series Up to 72 dB GV-UBL1511 GV-UBL2511 Dynamic Range GV-UBL2411 GV-UBL3411 Up to 100 dB GV-UBL2401 Series GV-UBL3401 Series Lens Megapixel Yes (with removable IR-cut filter) Day / Night GV-UBL1211 GV-UBL1511 Motorized varifocal Lens GV-UBL2411 GV-UBL2511 Lens Type...
  • Page 588 GV-UBL1301-1F GV-UBL2401-1F 4 mm GV-UBL3401-1F GV-UBL1301-2F Focal GV-UBL2401-2F 8 mm Length GV-UBL3401-2F GV-UBL1301-3F 12 mm GV-UBL2401-3F GV-UBL3401-3F GV-UBL1211 GV-UBL1511 GV-UBL2411 F/1.2 GV-UBL2511 GV-UBL3411 GV-UBL1301-0F F/2.0 GV-UBL2401-0F GV-UBL3401-0F Maximum GV-UBL1301-1F Aperture F/1.5 GV-UBL2401-1F GV-UBL3401-1F GV-UBL1301-2F GV-UBL2401-2F GV-UBL3401-2F F/1.6 GV-UBL1301-3F GV-UBL2401-3F GV-UBL3401-3F...
  • Page 589 Specifications: Ultra Bullet Camera GV-UBL1211 GV-UBL1511 GV-UBL2411 ø 14 mm GV-UBL2511 Mount GV-UBL3411 GV-UBL1301 Series GV-UBL2401 Series GV-UBL3401 Series GV-UBL1211 GV-UBL1511 GV-UBL2411 1/2.7” GV-UBL2511 Image GV-UBL3411 Format GV-UBL1301 Series GV-UBL2401 Series 1/3” GV-UBL3401 Series GV-UBL1211 86° ~ 32° GV-UBL1511 90° ~ 32° GV-UBL2411 82°...
  • Page 590 16° GV-UBL1301-3F Horizontal 20° GV-UBL2401-3F GV-UBL3401-3F 21° GV-UBL1211 Focus Auto Focus GV-UBL1511 GV-UBL2411 Zoom 3x Optical Zoom GV-UBL2511 Operation Iris DC Drive GV-UBL3411 Focus GV-UBL1301 Series GV-UBL2401 Series Zoom Fixed GV-UBL3401 Series Iris IR LED Quantity 4 IR LEDs Max. IR Distance 10 m (32.81 ft) Operation Video Compression...
  • Page 591 Specifications: Ultra Bullet Camera Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, D/N Image Setting Sensitivity, Backlight Compensation, WDR, Defog, Zoom, Focus Change, Super Low Lux Audio Support Note: The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
  • Page 592 640 x 480, 320 x 240 GV-UBL2411 GV-UBL2401 Series 16:9 640 x 360, 448 x 252 Stream GV-UBL2511 640 x 512, 320 x 256 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, Stream 16:9...
  • Page 593 Specifications: Ultra Bullet Camera Digital I/O I/O Wire Connectors Local Micro SD card slot (SD/SDHC, Storage version 2.0 only, Class 10) Note: SDXC and UHS-I card types are not supported. General GV-UBL1211 GV-UBL1511 -10°C ~ 45°C (14°F ~ 113°F) GV-UBL2411 GV-UBL2511 GV-UBL3411 Environment...
  • Page 594 GV-UBL1301 Series Max. Power 5.52 W GV-UBL2401 Series Consumption GV-UBL3401 Series GV-UBL1211 GV-UBL1511 148.75 x 65 x 69 mm GV-UBL2411 (5.9” x 2.6” x 2.7”) GV-UBL2511 Dimensions GV-UBL3411 GV-UBL1301 Series 124 x 65 x 69 mm GV-UBL2401 Series (4.8” x 2.6” x 2.7”) GV-UBL3401 Series GV-UBL1211 GV-UBL1511...
  • Page 595 Specifications: Ultra Bullet Camera GV-UBL1511 Regulatory CE, FCC, RCM, RoHS compliant GV-UBL2511 Power over Ethernet IEEE 802.3af Power over Ethernet / PD PoE Standard PoE Power Supply Type End-Span Per Port 48V DC, 350mA. Max. 15.4 PoE Power Output watts Web Interface Web-based configuration Installation Management...
  • Page 596 Application GV-NVR, GV-System, GV-Backup Center, Network Storage GV-Recording Server GV-Eye for Android smartphone, tablet, Smart Device Access iPhone, iPod Touch and iPad Live Viewing IE, mobile phone CMS Server support GV-Control Center, GV-Center V2, GV-VSM All specifications are subject to change without prior notice...

  • Page 597: Specifications: Target Bullet Camera

    Specifications: Target Bullet Camera Camera GV-EBL1100 Series 1/3" progressive scan low lux CMOS Image Sensor GV-EBL2100 Series 1/2.8" progressive scan low lux CMOS 1280 (H) x 1024 (V) GV-EBL1100 Series Picture Elements GV-EBL2100 Series 1920 (H) x 1080 (V) Color 0.05 Lux GV-EBL1100 0.03 Lux...
  • Page 598 GV-EBL1100-1F 6 mm GV-EBL2100-1F Focal Length GV-EBL1100-2F 3.8 mm GV-EBL2100-2F Maximum Aperture F/1.8 Mount M12, Pitch 0.5 mm Image Format 1/2.7’’ GV-EBL1100-1F 44° GV-EBL1100-2F 64° Horizontal GV-EBL2100-1F 51° GV-EBL2100-2F 72° Operation (Focus / Zoom / Iris) Fixed IR LED Quantity 24 IR LEDs Max.
  • Page 599 Specifications: Target Bullet Camera Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252 1280 x 1024, 640 x 512, 320 x 256 GV-EBL1100 640 x 480, 320 x 240 Series Sub Stream 16:9...
  • Page 600 General Start-up -20°C ~ 50°C (-4°F ~ 122°F) Environment Temperature Operation -30°C ~ 50°C (-22°F ~ 122°F) Humidity 10% to 90% (no condensation) Power Source 12V DC / PoE Max. Power Consumption 7.8 W Dimensions 115 x 76 x 73 mm (4.5” x 3.0” x 2.9”) Weight 547 g (1.20 lb) Ingress Protection...
  • Page 601 Specifications: Target Bullet Camera Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Language Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai /...

  • Page 602: Specifications: Ptz Camera

    Specifications: PTZ Camera Camera Model Name GV-PTZ010D-N GV-PTZ010D-P Image Sensor 1/4" CCD image sensor Picture Elements 704 (H) x 480 (V) 704 (H) x 576 (V) Color 2.5 Lux at F/1.8 Minimum Illumination 0.07 Lux at F/1.8 Automatic, Automatic, Shutter Speed Manual (1/60 ~ Manual (1/50 ~ 1/120,000 sec)
  • Page 603 Specifications: PTZ Camera Operation Model Name GV-PTZ010D-N GV-PTZ010D-P Video Format NTSC Video Compression H.264, MPEG4, MJPEG Dual Streams from two of H.264, MPEG4 or Video Stream MJPEG 704 x 480 704 x 576 Main Stream 704 x 240 704 x 288 Video 352 x 240 352 x 288...
  • Page 604 Mechanical -175° ~ 175° Camera Angle Adjustment Tilt -45° ~ 90° Temperature Detector Power 2-pin terminal block, PoE Ethernet Ethernet (10/100 Base-T), RJ-45 cable 1 In (Using a built-in or an externally connected microphone) Audio 1 Out (Stereo phone jack, 3.5 mm / Connectors 0.14”) 3-pin terminal block...
  • Page 605 Specifications: PTZ Camera Power over Ethernet IEEE 802.3af Power over Ethernet / PD PoE Standard PoE Power Supply Type End-Span Per Port 48V DC, 350mA. Max. 15.4 PoE Power Output watts Web Interface Installation Management Web-based configuration Firmware upgrade through Web Maintenance Browser or Utility Camera live view, video recording,...
  • Page 606 Application GV-NVR, GV-System, GV-Backup Network Storage Center, GV-Recording Server GV-Eye for Android smartphone, tablet, Smart Device Access iPhone, iPod Touch and iPad IE, mobile phone Live Viewing GV-Center V2, GV-VSM, GV-Control CMS Server support Center Note: GV-Backup Center and GV-Recording Server are only supported in V1.08 or later.

  • Page 607: Specifications: Pt Camera

    Specifications: PT Camera Specifications: PT Camera Camera Image Sensor 1/2.5" progressive scan CMOS 1280 (H) x 1024 (V) GV-PT130D Picture 1920 (H) x 1080 (V) GV-PT220D Elements 2048 (H) x 1536 (V) GV-PT320D 0.15 Lux Color Minimum 0.10 Lux Illumination IR ON 0 Lux Shutter Speed...
  • Page 608 GV-PT130D 49° Horizontal 58° GV-PT220D GV-PT320D 62° Focus Manual (w/lock) Zoom Fixed Operation Iris Fixed IR LED Quantity 10 IR LEDs 15 m (50 ft) Max. IR Distance Operation Video Compression H.264, MJPEG Video Stream Dual streams 1280 x 960, 640 x 480, 320 x 240 Main 1280 x 720, 640 x 360,...
  • Page 609 Specifications: PT Camera 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 16:9 Stream 640 x 360, 448 x 252 1280 x 1024, 640 x 512, GV-PT220D 320 x 256 640 x 480, 320 x 240 16:9 640 x 360, 448 x 252 Stream...
  • Page 610 Sensor Input 1 Input (Dry Contact) 1 Output (200mA 5V DC) Alarm Output Note: The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). Network Interface 10/100 Ethernet DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, Protocol ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA...
  • Page 611 Specifications: PT Camera General 0°C ~ 50°C (32°F ~ 122°F) Environment Temperature 10% to 90% (no condensation) Humidity 12V DC / 24V AC / PoE Power Source 12.5 W (max. 1.25A at 12V DC) Max. Power Consumption 167.75 x 166.78 x 135.2 mm With mounting base and cover (6.6”...
  • Page 612 Bulgarian / Czech / Danish / Dutch / English / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Language Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Thai / Traditional Chinese / Turkish Application...

  • Page 613: Specifications: Vandal Proof Ip Dome (Part 1)

    Specifications: Vandal Proof IP Dome (Part 1) Specifications: Vandal Proof IP Dome (Part 1) This section details the specifications on GV-VD120D / 121D / 122D / 123D, GV-VD220D / 221D / 222D / 223D, GV-VD320D / 321D / 322D / 323D and GV-VD1500 / 2400 / 2500 / 3400.
  • Page 614 GV-VD120D GV-VD121D 1280 (H) x 1024 (V) GV-VD122D GV-VD123D GV-VD1500 GV-VD220D GV-VD221D GV-VD222D Picture 1920 (H) x 1080 (V) Elements GV-VD223D GV-VD2400 GV-VD2500 GV-VD320D GV-VD321D 2048 (H) x 1536 (V) GV-VD322D GV-VD323D GV-VD3400 GV-VD120D Color 0.05 Lux GV-VD121D 0.03 Lux GV-VD122D IR ON 0 Lux...
  • Page 615 Specifications: Vandal Proof IP Dome (Part 1) 0.15 Lux GV-VD220D Color GV-VD221D 0.10 Lux GV-VD222D GV-VD223D GV-VD320D IR ON 0 Lux Minimum GV-VD321D Illumination GV-VD322D GV-VD323D Color 0.08 Lux GV-VD2400 0.05 Lux GV-VD3400 0 Lux IR ON Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec) White Balance Automatic, Manual (2800K ~ 8500K) Gain Control...
  • Page 616 GV-VD2400 S/N Ratio 47 dB GV-VD3400 GV-VD2400 WDR Pro GV-VD3400 GV-VD120D GV-VD121D GV-VD122D GV-VD123D GV-VD1500 GV-VD220D GV-VD221D Up to 72 dB GV-VD222D Dynamic Range GV-VD223D GV-VD2500 GV-VD320D GV-VD321D GV-VD322D GV-VD323D GV-VD2400 Up to 100 dB GV-VD3400 Lens Megapixel Day/Night Yes (with removable IR-cut filter) Lens Type Varifocal 3 ~ 9 mm...
  • Page 617 Specifications: Vandal Proof IP Dome (Part 1) GV-VD120D GV-VD121D GV-VD122D GV-VD123D GV-VD220D GV-VD221D F/1.3 GV-VD222D GV-VD223D Maximum GV-VD320D Aperture GV-VD321D GV-VD322D GV-VD323D GV-VD1500 GV-VD2400 F/1.2 GV-VD2500 GV-VD3400 ø 14 mm Mount GV-VD120D GV-VD121D GV-VD122D GV-VD123D GV-VD1500 GV-VD220D Image GV-VD221D 1/3’’ Format GV-VD222D GV-VD223D...
  • Page 618 GV-VD2400 Image GV-VD2500 1/2.7’’ Format GV-VD3400 GV-VD120D 86° ~ 32° GV-VD220D 82° ~ 30° 86° ~ 31° GV-VD320D Horizontal 90° ~ 32° GV-VD1500 GV-VD2400 82° ~ 30° GV-VD2500 103° ~ 36° GV-VD3400 86° ~ 31° Manual (w/lock) Focus Manual (w/lock) Operation Zoom DC drive...
  • Page 619 Specifications: Vandal Proof IP Dome (Part 1) GV-VD1500 15 m (50 ft) GV-VD2400 GV-VD3400 Max. IR GV-VD1500 Distance GV-VD2400 30 m (98.4 ft) GV-VD2500 GV-VD3400 Max. Torque 0.049 N.m (Focus / Zoom Screws) Operation Video Compression H.264, MJPEG Video Stream Dual streams from H.264 or MJPEG GV-VD120D GV-VD121D...
  • Page 620 GV-VD320D GV-VD321D Frame 20 fps at 2048 x 1536 GV-VD322D Rate GV-VD323D GV-VD3400 Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Backlight Image Setting Compensation, D/N Sensitivity, Shutter Speed, WDR, Defog, Super Low Lux G.711, AAC (Optional) Audio Compression Audio Support Two-Way Audio Sensor Input...
  • Page 621 Specifications: Vandal Proof IP Dome (Part 1) 640 x 512, 320 x 256 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 GV-VD220D 1920 x 1080, 1280 x 720, Main Stream 16:9 GV-VD221D 640 x 360, 448 x 252 GV-VD222D 1280 x 1024, 640 x 512, GV-VD223D...
  • Page 622 Mechanical 0° ~ 350° Camera Angle Tilt 10° ~ 90° Adjustment Rotate 0° ~ 340° Temperature Detector Power 2-pin terminal block, PoE Ethernet Ethernet (10/100 Base-T), RJ-45 cable Connectors 1 In (RCA female for microphone) Audio 1 Out (RCA female for speaker) I/O Wires Digital I/O Micro SD card slot (SD/SDHC, version...
  • Page 623 Specifications: Vandal Proof IP Dome (Part 1) ø165 x 125 mm (6.49” x 4.92’’) Camera Body Cable Length 1 m (3.28 ft) Dimensions ø16.7 mm (0.66’’) Cable Diameter Max. Connector ø16.7 mm (0.66’’) Diameter Weight 1.7 kg (3.75 lb) IP67 Ingress Protection GV-VD120D GV-VD121D...
  • Page 624 Power over Ethernet IEEE 802.3af Power over Ethernet / PD PoE Standard End-Span PoE Power Supply Type Per Port 48V DC, 350mA. Max. 15.4 PoE Power Output watts Web Interface Installation Management Web-based configuration Firmware upgrade through Web Maintenance Browser or Utility Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control,...
  • Page 625 Specifications: Vandal Proof IP Dome (Part 1) Application GV-NVR, GV-System, GV-Backup Network Storage Center, GV-Recording Server GV-Eye for Android smartphone, tablet, Smart Device Access iPhone, iPod Touch and iPad IE, mobile phone Live Viewing GV-Control Center, GV-Center V2, CMS Server support GV-VSM Note: GV-Backup Center, GV-Video Gateway and GV-Recording Server are only supported for V1.03 or later.

  • Page 626: Specifications: Vandal Proof Ip Dome (Part 2)

    Specifications: Vandal Proof IP Dome (Part 2) This section details the specifications on GV-VD1530 / 1540 / 1540-E / 2430 / 2440 / 2440-E / 2530 / 2540 / 2540-E / 3430 / 3440 / 3440-E / 5340 / 5340-E. Camera GV-VD1530 1/3"...
  • Page 627 Specifications: Vandal Proof IP Dome (Part 2) GV-VD2430 GV-VD2440 1920 (H) x 1080 (V) GV-VD2530 GV-VD2540 GV-VD2540-E Picture Elements GV-VD3430 2048 (H) x 1536 (V) GV-VD3440 GV-VD5340 2560 (H) x 1920 (V) GV-VD5340-E Color 0.01 Lux GV-VD1530 0.01 Lux GV-VD1540 0 Lux IR ON Color...
  • Page 628 Automatic, Manual (2800K ~ 8500K) White Balance Gain Control Automatic GV-VD1530 55 dB GV-VD1540 GV-VD2430 GV-VD2440 47 dB GV-VD3430 GV-VD3440 S/N Ratio GV-VD2530 52 dB GV-VD2540 GV-VD2540-E GV-VD5340 45 dB GV-VD5340-E GV-VD2430 GV-VD2440 WDR Pro Yes (with WDR sensor) GV-VD3430 GV-VD3440 GV-VD1530 GV-VD1540...
  • Page 629 Specifications: Vandal Proof IP Dome (Part 2) GV-VD2430 GV-VD2440 Dynamic Up to 100 dB Range GV-VD3430 GV-VD3440 Lens Megapixel Day/Night Yes (with removable IR-cut filter) GV-VD1530 GV-VD2430 Varifocal lens GV-VD2530 GV-VD3430 GV-VD1540 Lens Type GV-VD2440 GV-VD2540 Motorized varifocal lens GV-VD2540-E GV-VD3440 GV-VD5340 GV-VD5340-E...
  • Page 630 GV-VD5340 3.3 ~ 9 mm GV-VD5340-E Maximum Aperture F/1.2 Mount ø 14 mm Image Format 1/2.7’’ GV-VD1530 90° ~ 32° GV-VD1540 GV-VD2430 82° ~ 30° GV-VD2440 GV-VD2530 Horizontal GV-VD2540 103° ~ 36° GV-VD2540-E GV-VD3430 86° ~ 31° GV-VD3440 GV-VD5340 100° ~ 39° GV-VD5340-E GV-VD1530 Focus...
  • Page 631 Specifications: Vandal Proof IP Dome (Part 2) GV-VD1530 30 m (98.4 ft) GV-VD1540 GV-VD2430 GV-VD2440 GV-VD3430 20 m (65.6 ft) Max. IR Distance GV-VD3440 GV-VD5340 GV-VD5340-E GV-VD2530 25 m (82.0 ft) GV-VD2540 GV-VD2540-E GV-VD1530 Max. Torque GV-VD2430 0.049 N.m (Focus / Zoom GV-VD2530 Screws) GV-VD3430...
  • Page 632 GV-VD3440 GV-VD5340 10 fps at 2560 x 1920 GV-VD5340-E Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Backlight Image Setting Compensation, D/N Sensitivity, Shutter Speed, WDR, Defog, Super Low Lux, Zoom, Focus Change G.711, AAC (Optional) Audio Compression Audio Support Two-Way Audio Sensor Input...
  • Page 633 Specifications: Vandal Proof IP Dome (Part 2) Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252 1280 x 1024, 640 x 512, 320 x 256 GV-VD1530 640 x 480, 320 x 240 GV-VD1540 640 x 360, 448 x 252...
  • Page 634 640 x 480, 320 x 240 GV-VD5340 Sub Stream 16:9 640 x 360, 448 x 252 GV-VD5340-E 640 x 512, 320 x 256 Network Interface 10/100 Ethernet DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF Protocol (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA Mechanical Temperature Detector...
  • Page 635 Specifications: Vandal Proof IP Dome (Part 2) Note: SDXC and UHS-I card types are not supported. The TV-Out function only works in 640 x 480 resolution. For TV-Out to work properly, you must set the video resolution to 1280 x 1024 or lower.
  • Page 636 Consumption GV-VD2430 GV-VD2530 GV-VD3430 GV-VD1540 GV-VD2440 GV-VD2540 22.48 W GV-VD3440 GV-VD5340 GV-VD5340- 30 W Dimensions ø176.5 x 118 mm (6.9” x 4.6’’) GV-VD1530 GV-VD2430 1.76 kg (3.88 lb) GV-VD2530 GV-VD3430 GV-VD1540 Weight GV-VD2440 GV-VD2540 1.83 kg (4.03 lb) GV-VD3440 GV-VD5340 GV-VD5340-E Ingress Protection IP67...
  • Page 637 Specifications: Vandal Proof IP Dome (Part 2) Web Interface Web-based configuration Installation Management Firmware upgrade through Web Browser Maintenance or Utility Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture Access from Web Browser in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ...

  • Page 638: Specifications: Fixed Ip Dome (Part 1)

    Specifications: Fixed IP Dome (Part 1) This section details the specifications on GV-FD120D / 220D / 320D. Camera 1/3" progressive scan low lux CMOS GV-FD120D Image GV-FD220D Sensor 1/2.5’’ progressive scan CMOS GV-FD320D 1280 (H) x 1024 (V) GV-FD120D Picture GV-FD220D 1920 (H) x 1080 (V) Elements...
  • Page 639 Specifications: Fixed IP Dome (Part 1) Up to 72 dB Dynamic Range Lens Megapixel Day/Night Yes (with removable IR-cut filter) Lens Type Varifocal 3 ~ 9 mm Focal Length F/1.3 ± 5% Maximum Aperture Mount ø 14 mm 1/3’’ Image Format 86°...
  • Page 640 Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Image Setting Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog Audio Compression G.711, AAC (Optional) Audio Support Two-Way Audio Sensor Input 1 Input (Dry Contact) 1 Output (200mA 5V DC) Alarm Output Note: The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
  • Page 641 Specifications: Fixed IP Dome (Part 1) 640 x 512, 320 x 256, 640 x 512, 320 x 256 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main 1920 x 1080, 1280 x 720, 640 x 360, Stream 16:9 448 x 252...
  • Page 642 Digital I/O 3-pin terminal block, pitch 2.5 mm / 0.1” Micro SD card slot Local Storage (SD/SDHC, version 2.0, Class 10) Connectors TV-Out BNC connector (640 x 480 resolution) LED Indicator 2 LEDs: Power, Status Note: SDXC and UHS-I card types are not supported. The TV-Out function only works in 640 x 480 resolution.
  • Page 643 Specifications: Fixed IP Dome (Part 1) Web Interface Web-based configuration Installation Management Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change video quality, bandwidth control, image Access from Web snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Browser Visual Automation, Tampering Alarm, Text...

  • Page 644: Specifications: Fixed Ip Dome (Part 2)

    Specifications: Fixed IP Dome (Part 2) This section details the specifications on GV-FD1200 / 1210 / 1500 / 1510 / 2400 / 2410 / 2500 / 2510 / 3400 / 3410 / 5300. Camera GV-FD1200 1/3" progressive scan low lux CMOS GV-FD1210 GV-FD1500 1/3"...
  • Page 645 Specifications: Fixed IP Dome (Part 2) GV-FD3400 2048 (H) x 1536 (V) Picture GV-FD3410 Elements 2560 (H) x 1920 (V) GV-FD5300 Color 0.05 GV-FD1200 0.03 Lux GV-FD1210 0 Lux IR ON Color 0.01 Lux GV-FD1500 0.01 Lux GV-FD1510 IR ON 0 Lux 0.02 Lux Color...
  • Page 646 GV-FD2500 52 dB GV-FD2510 GV-FD2400 S/N Ratio GV-FD2410 47 dB GV-FD3400 GV-FD3410 GV-FD5300 45 dB GV-FD2400 GV-FD2410 WDR Pro GV-FD3400 GV-FD3410 GV-FD1200 GV-FD1210 GV-FD1500 GV-FD1510 Up to 72 dB GV-FD2500 Dyanmic GV-FD2510 Range GV-FD5300 GV-FD2400 GV-FD2410 Up to 100 dB GV-FD3400 GV-FD3410 Lens...
  • Page 647 Specifications: Fixed IP Dome (Part 2) GV-FD1200 GV-FD1500 GV-FD2400 Varifocal GV-FD2500 GV-FD3400 GV-FD5300 Lens Type GV-FD1210 GV-FD1510 Motorized varifocal GV-FD2410 GV-FD2510 GV-FD3410 GV-FD1200 GV-FD1210 GV-FD1500 GV-FD1510 GV-FD2400 3 ~ 9 mm Focal GV-FD2410 Length GV-FD2500 GV-FD2510 GV-FD3400 GV-FD3410 GV-FD5300 4.5 ~ 10 mm...
  • Page 648 GV-FD1200 GV-FD1210 GV-FD1500 GV-FD1510 GV-FD2400 F/1.2 Maximum GV-FD2410 Aperture GV-FD2500 GV-FD2510 GV-FD3410 GV-FD3400 F/1.6 GV-FD5300 GV-FD1200 GV-FD1210 GV-FD1500 GV-FD1510 GV-FD2400 ø 14 mm GV-FD2410 Mount GV-FD2500 GV-FD2510 GV-FD3400 GV-FD3410 GV-FD5300 CS Mount...
  • Page 649 Specifications: Fixed IP Dome (Part 2) GV-FD1200 GV-FD1210 GV-FD1500 GV-FD1510 GV-FD2400 1/2.7’’ Image GV-FD2410 Format GV-FD2500 GV-FD2510 GV-FD3400 GV-FD3410 1/2.5’’ GV-FD5300 GV-FD1200 86° ~ 32° GV-FD1210 GV-FD1500 90° ~ 32° GV-FD1510 GV-FD2400 82° ~ 30° Horizontal GV-FD2410 GV-FD2500 103° ~ 36° GV-FD2510 GV-FD3400 86°...
  • Page 650 Auto Focus GV-FD1210 Focus GV-FD1510 3X Optical Zoom Zoom GV-FD2410 GV-FD2510 Iris DC drive Operation GV-FD3410 Focus GV-FD5300 Zoom Manual (w/lock) Iris IR LED Quantity 10 IR LEDs GV-FD1200 15 m (50 ft) GV-FD1210 GV-FD1500 GV-FD1510 GV-FD2400 Max. IR GV-FD2410 30 m (98.4 ft) Distance GV-FD3400...
  • Page 651 Specifications: Fixed IP Dome (Part 2) Operation H.264, MJPEG Video Compression Video Stream Dual streams from H.264 or MJPEG GV-FD1200 GV-FD1210 30 fps at 1280 x 1024 GV-FD1500 GV-FD1510 GV-FD2400 Frame GV-FD2410 30 fps at 1920 x 1080 Rate GV-FD2500 GV-FD2510 GV-FD3400 20 fps at 2048 x 1536...
  • Page 652 Video Resolution 1280 x 960, 640 x 480, 320 x 240 1280 x 720, 640 x 360, 448 x 252 Main 16:9 GV-FD1200 Stream 1280 x 1024, 640 x 512, GV-FD1210 320 x 256 GV-FD1500 640 x 480, 320 x 240 GV-FD1510 16:9 640 x 360, 448 x 252...
  • Page 653 Specifications: Fixed IP Dome (Part 2) 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 Main Stream 1920 x 1080, 1280 x 720, 16:9 640 x 360, 448 x 252 GV-FD5300 1280 x 1024, 640 x 512, 320 x 256 640 x 480, 320 x 240 16:9...
  • Page 654 1 Out (Stereo pohone jack, 3.5 mm / 0.14”) Digital I/O 3-pin terminal block, pitch 2.5 mm / 0.1” Local Micro SD card slot (SD/SDHC, version 2.0 Connectors Storage only, Class 10) BNC connector (640 x 480 resolution) TV-Out 2 LEDs: Power, Status LED Indicator Note: 1.
  • Page 655 Specifications: Fixed IP Dome (Part 2) GV-FD1500 GV-FD1510 Regulatory CE, FCC, RCM, RoHS compliant GV-FD2500 GV-FD2510 Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PD End-Span PoE Power Supply Type PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts Web Interface Installation Web-based configuration...
  • Page 656 Application GV-NVR, GV-System, GV-Backup Center, GV- Network Storage Recording Server GV-Eye for Android smartphone, tablet, iPhone, Smart Device Access iPod Touch and iPad Live Viewing IE, mobile phone GV-Control Center, GV-Center V2, CMS Server support GV-VSM Note: For the GV-Backup Center and GV-Recording Server supported firmware versions, please see Appendix D.
  • Page 657 Specifications: Cube Camera Specifications: Cube Camera Camera Image Sensor 1/2.5’’ progressive scan CMOS GV-CB120 1280 (H) x 1024 (V) GV-CBW120 Picture Elements GV-CB220 1920 (H) x 1080 (V) GV-CBW220 Color 0.15 Lux Minimum Illumination 0.10 Lux Automatic, Manual (1/5 ~ 1/8000 sec) Shutter Speed White Balance Automatic, Manual (2800 ~ 8500K)
  • Page 658 Mount M12 mm Image Format 1/3’’ GV-CB120 67° GV-CBW120 Horizontal GV-CB220 77° GV-CBW220 Operation Fixed (Focus / Zoom / Iris) Operation H.264, MJPEG Video Compression Dual streams from H.264 or MJPEG Video Stream GV-CB120 30 fps at 1280 x 1024 GV-CBW120 Frame Rate GV-CB220...
  • Page 659 Specifications: Cube Camera Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252 1280 x 1024, 640 x 512, 320 x 256 GV-CB120 640 x 480, 320 x 240 GV-CBW120 Sub Stream 16:9...
  • Page 660 Regulatory CE, FCC, C-Tick, RoHS compliant IMPORTANT: Be sure to use the GeoVision power adapter to power up the camera. To use your own power cable, make sure you look up the power source value indicated at the camera’s back panel.
  • Page 661 Specifications: Cube Camera Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change video quality, bandwidth control, image Access from Web snapshot, , audio, Picture in Picture, Picture Browser and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Digital PTZ Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /...
  • Page 662 Specifications: Advanced Cube Camera Camera Image Sensor 1/2.5’’ progressive scan CMOS GV-CA120 1280 (H) x 1024 (V) GV-CAW120 Picture Elements GV-CA220 1920 (H) x 1080 (V) GV-CAW220 Color 0.15 Lux Minimum 0.10 Lux Illumination LED on 0 Lux Automatic, Manual (1/5 ~ 1/8000 sec) Shutter Speed White Balance Automatic, Manual (2800 ~ 8500K)
  • Page 663 Specifications: Advanced Cube Camera Image Format 1/3’’ GV-CA120 67° GV-CAW120 Horizontal GV-CA220 77° GV-CAW220 Operation Fixed (Focus / Zoom / Iris) Operation H.264, MJPEG Video Compression Dual streams from H.264 or MJPEG Video Stream GV-CA120 30 fps at 1280 x 1024 GV-CAW120 Frame Rate GV-CA220...
  • Page 664 Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252 1280 x 1024, 640 x 512, 320 x 256 GV-CA120 GV-CAW120 640 x 480, 320 x 240 Sub Stream 16:9 640 x 360, 448 x 252...
  • Page 665 Specifications: Advanced Cube Camera Mechanical Temperature Detector Power DC Jack / PoE (only for CA120/CA220) Ethernet Ethernet (10/100 Base-T), RJ-45 cable Connectors Audio Built-in speaker & microphone Micro SD card slot Local Storage (SD/SDHC, version 2.0 only, Class 10) LED Indicator 4 LEDs: Status x 3, LAN / Wi-Fi PIR Sensor Built-in...
  • Page 666 Power over Ethernet IEEE 802.3af Class 3 Power over Ethernet PoE Standard / PD End-Span PoE Power Supply Type PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change...
  • Page 667 Specifications: Advanced Cube Camera GV-Control Center, GV-Center V2, CMS Server Support GV-VSM All specifications are subject to change without prior notice...
