Summary of Contents for Advantech AIMB-701

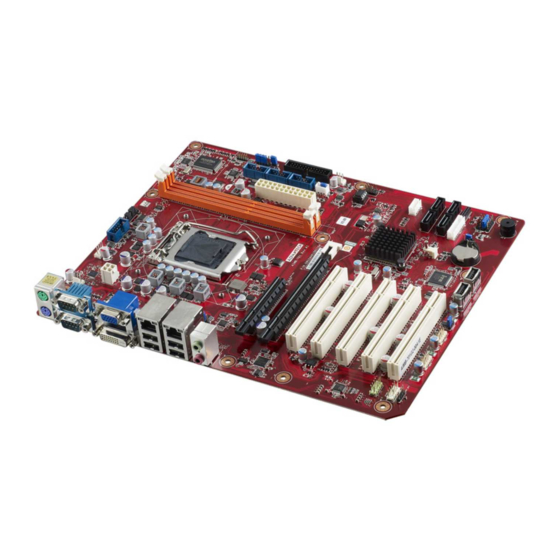

- Page 1 User Manual AIMB-701 ® ™ LGA1155 Intel Core i7/i5/i3/ Pentium ATX with DVI/VGA, Dual GbE LAN...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 Whether your new Advantech equipment is destined for the labo- ratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Advantech has come to be known.
-
Page 4: Declaration Of Conformity
Caution! There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the man- ufacturer. Discard used batteries according to the manufacturer's instructions. AIMB-701 User Manual... - Page 5 D3US56082XH12AA SEC 113 HCK0 K4B2G0846C 256x8 NA 4GB DDR3 1600 TS512MLK64V6N MICRON IUM22 D9PFJ Transcend 2GB DDR3 1600 TS256MLK64V6N MICRONIRM72D9PFJ 8GB DDR3-1600 XQ16B8NG-9-AV AIMB-701 Feature Comparison AIMB-701G2-00A1E AIMB-701VG-00A1E Chipset Memory Non-ECC DDR3 1066/1333/1600 Non-ECC DDR3 1066/1333/1600 SW RAID None None DVI-D...
- Page 6 It should be free of marks and scratches and in perfect working order upon receipt. As you unpack the AIMB-701, check it for signs of ship- ping damage. (For example, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet the specifications, notify our service department or your local sales representative immediately.
-
Page 7: Table Of Contents
Board Layout: Jumper and Connector Locations........6 Figure 1.1 Jumper and Connector Locations....... 6 Figure 1.2 I/O connectors ............6 AIMB-701 Block Diagram................7 Figure 1.3 AIMB-701 Block Diagram ........... 7 Safety Precautions ..................7 Jumper Settings ..................8 1.8.1 How to set jumpers ............... - Page 8 Figure 3.23PCI Express Configuration ........47 Figure 3.24USB Configuration............ 48 Figure 3.25PCH Azalia ............... 49 3.5.2 System Agent (SA) Configuration..........49 Figure 3.26System Agent (SA) Configuration ......49 Figure 3.27Graphics Configuration..........50 Figure 3.28LCD Control.............. 51 AIMB-701 User Manual viii...
- Page 9 Table B.7: External Keyboard Connector (KBMS2)....79 Infrared (IR) connector (JIR1) ..............79 Table B.8: Infrared Connector (JIR1)......... 79 System Fan Power Connector (SYSFAN1/SYSFAN2) ......79 Table B.9: Fan Power Connector (SYSFAN1/SYSFAN2) ..79 B.10 Power LED and Keyboard Lock (JFP3) ..........80 AIMB-701 User Manual...
- Page 10 Table B.23:SPI_CN1:SPI fresh card pin connector ....84 B.24 System I/O Ports..................85 Table B.24:System I/O ports............85 B.25 Interrupt Assignments ................85 Table B.25:Interrupt assignments..........85 B.26 1st MB Memory Map................86 Table B.26:1st MB memory map ..........86 AIMB-701 User Manual...
-
Page 11: Chapter 1 Hardware Configuration
Chapter Hardware Configuration... -
Page 12: Introduction
® By using the Intel H61 chipset, the AIMB-701 offers one PCIe x8 slot with x1 or x4 link, one PCIe x16 slot and a variety of features such as 4 onboard SATA II with AHCI support; 10 USB 2.0 connectors and HD Audio. Besides, AIMB-701 also offers five 32-bit 33 MHz PCI slots via PCIe to PCI bridge IC and arbiter. -
Page 13: Specifications
PS/2 keyboard and mouse. USB port: Supports up to 10 USB 2.0 ports with transmission rates up to 480 Mbps GPIO: AIMB-701 supports 8-bit GPIO from super I/O for general purpose con- trol application. 1.3.4 Graphics ... -
Page 14: Ethernet Lan
Board weight: 0.5 kg (1.68 lb) Jumpers and Connectors Connectors on the AIMB-701 motherboard link it to external devices such as hard disk drives and a keyboard. In addition, the board has a number of jumpers that are used to configure your system for your application. - Page 15 USB port 1~4 and KBMS1/KBMS2 power source switch between JUSBPWR1 +5 VSB and +5 V USB port 5/6/7/8/9/10 power source switch between +5 VSB and JUSBPWR2 +5 V GPIO1 8 bit GPIO from super I/O SMBUS1 SM Bus from PCH AIMB-701 User Manual...
-
Page 16: Board Layout: Jumper And Connector Locations
JUSBPWR2 COM3 USB56 CPUFAN1 FPAUD1 JUSBPWR1 USB78 ATX12V1 SYS_FAN1 SPDIF_OUT1 KBMS2 LANLED1 KBMS1 PCI1 PCI2 PCI3 PCI4 PCI5 COM12 AUDIO1 PCIEX16_1 VGA1+DVI1 LAN1_USB12 PCIEX8_1 LAN2_USB34 Figure 1.1 Jumper and Connector Locations AIMB-701G2-00A1E AIMB-701VG-00A1E Figure 1.2 I/O connectors AIMB-701 User Manual... -
Page 17: Aimb-701 Block Diagram
2 RS 232 Nuvoton NCT6776 1 LPT Figure 1.3 AIMB-701 Block Diagram Safety Precautions Warning! Always completely disconnect the power cord from your chassis when- ever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sud- den power surges. -
Page 18: Jumper Settings
1.8.2 CMOS clear (JCMOS1) The AIMB-701 motherboard contains a jumper that can erase CMOS data and reset the system BIOS information. Normally this jumper should be set with pins 1-2 closed. If you want to reset the CMOS data, set J1 to 2-3 closed for just a few sec- onds, and then move the jumper back to 1-2 closed. -
Page 19: Watchdog Timer Output (Jwdt1)
1.8.3 Watchdog timer output (JWDT1) The AIMB-701 contains a watchdog timer that will reset the CPU. This feature means the AIMB-701 will recover from a software failure or an EMI problem. The JWDT1 jumper settings control the outcome of what the computer will do in the event the watchdog timer is tripped. -
Page 20: System Memory
1.11 Cache Memory The AIMB-701 supports a CPU with one of the following built-in full speed L3 caches: The built-in third-level cache in the processor yields much higher performance than conventional external cache memories. -
Page 21: Chapter 2 Connecting Peripherals
Chapter Connecting Peripherals... -
Page 22: Introduction
Parallel Port (LPT1) LPT1 The parallel port is normally used to connect the motherboard to a printer. The AIMB- 701 includes an onboard parallel port, accessed through a 25-pin flat-cable connec- tor, LPT1. AIMB-701 User Manual... -
Page 23: Usb Ports (Lan1_Usb12, Lan2_Usb3/4, Usb5/6, Usb7/8, Usb9/10)13
480 Mbps and fuse protection are supported. The USB interface can be disabled in the system BIOS setup. The AIMB-701 is equipped with one or two high-performance 1000 Mbps Ethernet LANs. They are supported by all major network operating systems. The RJ-45 jacks on the rear plate provide convenient 1000Base-T operation. -
Page 24: Usb And Ps2 Power Switch
8,9,10 JUSBPWR1 JUSBPWR2 AIMB-701 allows user to set USB and PS/2 power between +5VSB and +5V. When the jumper is set as +5V, the board doesn't support ACPI S3/S4 mode. Note! When USB and PS/2 power is switched to +5V, it can't be connected with powered KVM. -
Page 25: Vga Connector And Dvi-D Connector (Vga1+Dvi1)
VGA Connector and DVI-D Connector (VGA1+DVI1) VGA1 DVI1 VGA+DVI1 The AIMB-701 includes both VGA and DVI-D interface that can drive conventional CRT and LCD displays. Pin assignments of VGA1 and DVI1 are detailed in Appendix AIMB-701 User Manual... -
Page 26: Serial Ports (Com1, Com2, Com3, Com4, Com5 & Com6)
COM6 COM12 The AIMB-701 offers Six serial ports (two on the rear panel and four onboard) for G2 version and two serial port for VG version. JSETCOM3 is used to select the RS232/ 422/485 mode for COM3 on G2 version. These ports can connect to a serial mouse, printer or communications network. -
Page 27: Ps/2 Keyboard And Mouse Connector (Kbms1)
PS/2 keyboard and mouse connections. External Keyboard & Mouse (KBMS2) KBMS2 There is also an extra onboard external keyboard and mouse connector on the moth- erboard. This gives system integrators greater flexibility in designing their systems. AIMB-701 User Manual... -
Page 28: Cpu Fan Connector (Cpufan1)
If a fan is used, this connector supports cooling fans that draw up to 500 mA (6 W). 2.10 System FAN Connector (SYSFAN1 and SYSFAN2) SYS_FAN1 SYSFAN1 SYS_FAN2 SYSFAN2 If a fan is used, this connector supports cooling fans that draw up to 500 mA (6 W). AIMB-701 User Manual... -
Page 29: Front Panel Connectors (Jfp1, Jfp2 & Jfp3)
2.11 Front Panel Connectors (JFP1, JFP2 & JFP3) There are several external switches and LEDs to monitor and control the AIMB-701. JFP1+JFP2 JFP3 PWRSW RESET JFP1 SNMP SM_BUS JPF2 SPEAKER PWRLED & KEYLOCK JFP3 2.11.1 Power LED and Keyboard Lock (JFP3) JFP3 is a 5-pin connector for the power LED. -
Page 30: Snmp Sm_Bus Connector (Jfp2 Pins 8 & 11)
2.11.4 SNMP SM_Bus connector (JFP2 pins 8 & 11) AIMB-701 supports Advantech SNMP-1000 module for providing a platform indepen- dent system management. When you're installing SNMP-1000 module on AIMB-701, please connect it to pins 8 and 11 of JFP2. 2.11.5 ATX Soft Power Switch (JFP1 pins 3 &... -
Page 31: 8-Pin Alarm Board Connector (Volt1)
2.13 8-pin Alarm Board Connector (VOLT1) VOLT1 VOLT1 connects to the alarm board of Advantech chassis. These alarm boards give warnings if a power supply or fan fails, if the chassis overheats, or if the backplane malfunctions. 2.14 Case Open Connector (JCASE1) JCASE1 JCASE1 is for chassis with a case open sensor. -
Page 32: Front Panel Lan Indicator Connector (Lan_Led1)
2.15 Front Panel LAN Indicator Connector (LAN_LED1) Table 2.2: Front Panel LAN Indicator Connector LAN Mode Indicator G-LAN Link ON Green ON G-LAN Active Green Flash G-LAN Link Off Green OFF LANLED1 AIMB-701 User Manual... -
Page 33: Serial Ata Interface (Sata1, Sata2, Sata3, Sata4)
SATA2 SATA3 SATA4 SATA1 AIMB-701 four high performance serial ATA II interfaces port (up to 300 MB/s, black connector) for both G2 and VG version with long, thin, easy-to-run SATA cables. Note! AIMB-701 on board SATA only supports Fedora 14 and 15 and SATA mode in BIOS should be set as AHCI mode. -
Page 34: Pcie X16 Expansion Slot (Pciex16_1)
2.18 PCIe x16 Expansion Slot (PCIEX16_1) PCIEX16_1 The AIMB-701 provides a PCIe x16 slot for users to install add-on VGA cards when their applications require higher graphics performance than the CPU embedded graphics controller can provide. 2.19 PCIEX8_1 PCIEX8_1 The AIMB-701 provides a PCIe x8 slot with x4(VG version) or x1(G2 version) link for users to install add-on I/O cards. -
Page 35: Auxiliary 4-Pin Power Connector (Atx12V1)
12 V power to ensure the stable operation of the system. ATX12V1 2.21 SPI Flash connector(SPI_CN1) SPI flash card pin header which can flash BIOS while AIMB-701 can not be power on and ensures platform integrity. SPI_CN1 AIMB-701 User Manual... - Page 36 AIMB-701 User Manual...
-
Page 37: Bios Operation
Chapter BIOS Operation... -
Page 38: Introduction
The Setup program uses a number of menus for making changes and turning the special features on or off. This chapter describes the basic navigation of the AIMB-701 setup screens. Figure 3.1 Main setup screen AMI’s BIOS ROM has a built-in Setup program that allows users to modify the basic... -
Page 39: Main Menu
Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. AIMB-701 User Manual... -
Page 40: Advanced Bios Features Setup
Advanced BIOS Features Setup Select the Advanced tab from the AIMB-701 setup screen to enter the Advanced BIOS setup screen. You can select any of the items in the left frame of the screen, such as CPU configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>... -
Page 41: Pci Subsystem Settings
64 bit PCI decoding. PCI Latency Timer Value in units of PCI clocks for PCI device latency timer register. VGA Palette Snoop This item is designed to solve problems caused by some non-standard VGA cards. AIMB-701 User Manual... -
Page 42: Figure 3.5 Pci Express Setting
This item is to allow user to define numbers of retry attempts software will take to retrain the link if previous training attempt was unsuccessful. Link Training Time out To define number of microseconds waiting for "Link Training", and the value range is from 10 to 1000 uS. AIMB-701 User Manual... -
Page 43: Acpi Settings
Enable Hibernation "Enable” or “disable" Hibernation. ACPI Sleep State Specifies the ACPI sleep state when the system enters suspend. Lock Legacy Resources "Enable" or "Disable" Lock Legacy Resources. S3 Video Report "Enable" or "Disable" S3 Video report AIMB-701 User Manual... -
Page 44: S5 Rtc Wake Settings
3.4.2 S5 RTC Wake Settings Figure 3.7 S5 RTC Wake Settings Wake system with Fixed Time Enable or disable system wake on alarm event. When this item is enabled, system will wake on the Day:Hr:Min:Sec specified. AIMB-701 User Manual... -
Page 45: Cpu Configuration
This feature is used to enable or disable the Intel Virtualization Technology (IVT) extension. It allows multiple operating systems to run simultaneously on the same system. It does this by creating virtual machines, each running its own x86 operating system. AIMB-701 User Manual... -
Page 46: Sata Configuration
3.4.4 SATA Configuration Figure 3.9 SATA Configuration SATA Controller(s) This item is to enable or disable SATA devices. SATA Mode Selection It may be set as IDE or AHCI when SATA Controllers are enabled. AIMB-701 User Manual... -
Page 47: Usb Configuration
This item appears only when you set the Device power-up delay item to [manual]. Mass Storage Devices Mass storage device emulation type. "Auto" will enumerate devices according to their media formats. Optical drive is emulated as "CDROM", and drives with no media will be emulated according to a drive type. AIMB-701 User Manual... -
Page 48: Super Io Configuration
30 seconds to power on after a power failure. On the other hand, the system will auto power on if power is restored within 30 seconds, before 5VSB actually drops, even if "Restore AC Power Loss" is set to "power off". AIMB-701 User Manual... -
Page 49: Figure 3.12Serial Port 1 Configuration
Figure 3.12 Serial Port 1 Configuration Figure 3.13 Parallel Configuration Serial Port 1 Configuration Serial Port “Enable” or “disable” Serial Port 1. AIMB-701 User Manual... -
Page 50: Figure 3.14Serial Port 3 Configuration
To change the printer port mode. Figure 3.14 Serial Port 3 Configuration Serial Port “Enable” or “disable” Serial Port 3. Change Settings Select optimal settings for serial port 3. RS485 AUTO FLOW Select RS485 auto flow control function for serial port 3. AIMB-701 User Manual... -
Page 51: Figure 3.15Serial Port 4~6 Configuration
Figure 3.15 Serial Port 4~6 Configuration Serial Port “Enable” or “disable” Serial Port 4~6. Change Settings Select optimal settings for serial port 4~6. Figure 3.16 Digital I/O Configuration AIMB-701 User Manual... -
Page 52: H/W Monitor
Use this to set the ACPI shutdown temperature threshold. When the system reaches the shutdown temperature, it will be automatically shut down by ACPI OS to protect the system from overheat damage. Smart Fan Mode Configuration “Enable” or “Disable” CPU FAN and System FAN Mode to SMART FAN setting. AIMB-701 User Manual... -
Page 53: Figure 3.18Smart Fan Mode Configuration
Figure 3.18 Smart Fan Mode Configuration CPU Smart Fan To enable or disable CPU smart fan. System Smart Fan To enable or disable system smart fan1. Chassis Smart Fan To enable or disable system smart fan2. AIMB-701 User Manual... -
Page 54: Cpu Ppm Configuration
Enable/disable CPU C3(ACPI C2) report to OS CPU CPU C6 Report Enable/disable CPU C6(ACPI C3) report to OS CPU CPU C7 Report Enable/disable CPU C7(ACPI C3) report to OS CPU ACPI T State Enable/disable ACPI T state AIMB-701 User Manual... -
Page 55: Chipset
Chipset Figure 3.20 Chipset 3.5.1 PCH-IO Configuration Figure 3.21 PCH-IO Configuration AIMB-701 User Manual... -
Page 56: Figure 3.22Pci Express Configuration
To select AC power state when power is re-applied after a power failure. Figure 3.22 PCI Express Configuration PCI Express Clock Gating Enable or disable PCI Express Clock Gating for each port Subtractive Decode Enable or disable PCI Express Subtractive Decode. AIMB-701 User Manual... -
Page 57: Figure 3.23Pci Express Configuration
Enable or disable Root PCI Express System Error on Fatal Error. SENFE Enable or disable Root PCI Express System Error on Non-Fatal Error. SECE Enable or disable Root PCI Express System Error on Correctable Error. PME SCI Enable or disable PCI Express PME SCI. AIMB-701 User Manual... -
Page 58: Figure 3.24Usb Configuration
Prefetchable Memory Range for this Root Bridge. Reserved I/O Reserved I/O (4K/8K/12K/16K/20K) Range for Figure 3.24 USB Configuration EHCI1 and EHCI2 “Enable” or “Disable” EHCI Controller 1 or 2. USB Ports Pre-Port Disable Control To enable or disable USB port#1~10. AIMB-701 User Manual... -
Page 59: System Agent (Sa) Configuration
Figure 3.25 PCH Azalia Azalia Control detection of Azalia device. 3.5.2 System Agent (SA) Configuration Figure 3.26 System Agent (SA) Configuration AIMB-701 User Manual... -
Page 60: Figure 3.27Graphics Configuration
This item is to select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. DVMT Total Gfx Mem This item is to select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device. AIMB-701 User Manual... -
Page 61: Figure 3.28Lcd Control
Figure 3.28 LCD Control Primary IGFX Boot Display To select the video device which will be activated during post. There are three options, [VBIOS Default], [CRT], or [DVI] for G2 sku. AIMB-701 User Manual... -
Page 62: Figure 3.29Nb Pcie Configuration
To control ASPM support for the PEG Device , and this item has no effect if PEG is not the currently active device. Detect Non-Compliance Device Detect Non-Compliance PCI Express Device in PEG. De-emphasis control To configure the De-emphasis control on PEG. AIMB-701 User Manual... -
Page 63: Figure 3.30Memory Information
3.5.2.3 Memory Configuration Figure 3.30 Memory Information Memory Frequency Limiter Maximum memory frequency. There are four options as [Auto], [1067], [1333], or [1600] when installing with Intel 3rd Core i processor. AIMB-701 User Manual... -
Page 64: Boot
This item is a BIOS reaction on INT19 trapping by Option ROM. When it's set as "Immediate", the trap will be executed right away. When it's set as "Postponed", the trap will be executed during legacy boot. Boot Option Priorities Choose boot priority from boot device. AIMB-701 User Manual... -
Page 65: Security
Security Figure 3.32 Security Select Security Setup from the AIMB-701 Setup main BIOS setup menu. All Security Setup options, such as password protection, are described in this section. To access the sub menu for the following items, select the item and press <Enter>. -
Page 66: Save & Exit
Select this option to quit Setup and reset computer without making any permanent changes to the system configuration. Save Changes Select this option to save your changes. Discard Changes Select this option to discard your changes. Restore Defaults Select this option to restore BIOS configuration as origin. AIMB-701 User Manual... - Page 67 This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of the available file system devic. *When you do some critical changes, the system will still reboot even you choose "Save changes and exit". AIMB-701 User Manual...
- Page 68 AIMB-701 User Manual...
-
Page 69: Chapter 4 Chipset Software Installation Utility
Chapter Chipset Software Installation Utility... -
Page 70: Before You Begin
Before you begin To facilitate the installation of the enhanced display drivers and utility software, read the instructions in this chapter carefully. The drivers for the AIMB-701 are located on the software installation CD. Note! The files on the software installation CD are compressed. Do not attempt to install the drivers by copying the files manually. -
Page 71: Windows Xp / Windows 7 Driver Setup
Insert the driver CD into your system's CD-ROM drive. You can see the driver folders items. Move the mouse cursor over the folder "01-Chipset". In CSI folder, you can click find an executable file to complete the implement of the driver Click setup to execute program. AIMB-701 User Manual... - Page 72 AIMB-701 User Manual...
-
Page 73: Chapter 5 Vga Setup
Chapter VGA Setup... -
Page 74: Introduction
Insert the driver CD into your system's CD-ROM drive. You can see the driver folders items. Navigate to the "02-Graphic" folder and click the executable file to complete the installation of the drivers for Windows 7, XP. AIMB-701 User Manual... -
Page 75: Chapter 6 Lan Configuration
Chapter LAN Configuration... -
Page 76: Introduction
Introduction The AIMB-701 has dual Gigabit Ethernet LANs via dedicated PCI Express x1 lanes (Intel 82579V (LAN1) and 82583V (LAN2)) that offer bandwidth of up to 500 MB/sec, eliminating the bottleneck of network data flow and incorporating Gigabit Ethernet at 1000 Mbps. - Page 77 Appendix Programming the Watchdog Timer...
-
Page 78: Appendix A Programming The Watchdog Timer
The AIMB-701’s watchdog timer can be used to monitor system software operation and take corrective action if the software fails to function within the programmed period. This section describes the operation of the watchdog timer and how to pro- gram it. - Page 79 Unlock NCT6776F Select register of watchdog timer Enable the function of the watchdog timer Use the function of the watchdog timer Lock NCT6776F AIMB-701 User Manual...
-
Page 80: Example Programs
Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx in al,dx Or al,08h Out dx,al ;----------------------------------------------------------- Dec dx; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------- AIMB-701 User Manual... - Page 81 Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------- Dec dx ; Set minute as counting unit Mov al,0f5h Out dx, al Inc dx In al,dx Or al, 08h AIMB-701 User Manual...
- Page 82 Dec dx ; Enable watchdog timer to be reset by mouse Mov al,0f7h Out dx,al Inc dx In al,dx Or al,80h Out dx,al ;----------------------------------------------------------- Dec dx ; lock NCT6776F Mov al,0aah Out dx,al Enable watchdog timer to be reset by keyboard AIMB-701 User Manual...
- Page 83 Mov dx,2eh ; unlock NCT6776F Mov al,87h Out dx,al Out dx,al ;----------------------------------------------------------- Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------- Dec dx ; Enable the function of watchdog timer Mov al,30h AIMB-701 User Manual...
- Page 84 Dec dx ; Generate a time-out signal Mov al,0f7h Out dx,al ;Write 1 to bit 5 of F7 register Inc dx In al,dx Or al,20h Out dx,al ;----------------------------------------------------------- Dec dx ; lock NCT6776F Mov al,0aah Out dx,al AIMB-701 User Manual...
-
Page 85: Appendix B I/O Pin Assignments
Appendix I/O Pin Assignments... -
Page 86: Parallel Port (Lpt1)
Parallel Port (LPT1) Table B.1: Parallel Port (LPT1) Signal Signal STROBE* AUTOFD* ERR* INIT* SLCTINI* ACK* BUSY SLCT USB Header (USB56, USB78) USB56 USB78 Table B.2: USB Header (USB56,USB78) Signal Signal USB_VCC5 USB_VCC5 USB_D- USB_D- USB_D+ USB_D+ AIMB-701 User Manual... -
Page 87: Vga Connector (Vga1)
VGA Connector (VGA1) Table B.3: VGA Connector (VGA1) Signal Signal GREEN BLUE H-SYNC V-SYNC RS-232 Interface (COM4~6) Table B.4: RS-232 Interface (COM4~6) Signal AIMB-701 User Manual... -
Page 88: Rs-232 Interface (Com3)
RS-232 Interface (COM3) Table B.5: RS232/422/485 Interface (COM3) RS232 RS422 RS485 Signal Signal Signal DATA- DATA+ PS/2 Keyboard and Mouse Connector (KBMS1) Table B.6: Keyboard and Mouse Connector (KBMS1) Signal KB DATA KB VCC KB CLK M_DATA M_VCC M_CLK AIMB-701 User Manual... -
Page 89: External Keyboard Connector (Kbms2)
KB CLK KB DATA MS DATA MS CLK Infrared (IR) connector (JIR1) Table B.8: Infrared Connector (JIR1) Signal +5 V IRRX IRTX System Fan Power Connector (SYSFAN1/ SYSFAN2) Table B.9: Fan Power Connector (SYSFAN1/SYSFAN2) Signal +12 V DETECT AIMB-701 User Manual... -
Page 90: Power Led And Keyboard Lock (Jfp3)
Table B.10: Power LED and Keyboard Lock (JFP3) Function LED power (3.3 V) Ground #keylock Ground B.11 External Speaker Connector (JFP2) Table B.11: External Speaker Connector (JFP2) Function SPK_VCC SPK_OBS SPK_BUZ SPK_OUT B.12 Reset Connector (JFP1) Table B.12: Reset Connector (JFP1) Signal RESET AIMB-701 User Manual... -
Page 91: Hdd Led Connector (Jfp2)
Table B.14: ATX Soft Power Switch (JFP1) Signal PWR-BTN B.15 H/W Monitor Alarm (JOBS1) Table B.15: H/W Monitor Alarm (JOBS1) Signal Error Beep OBS Beep alarm B.16 SNMP SM_BUS Bus Connector (JFP2) Table B.16: SM Bus Connector (JFP2) Signal SMB_DATA SMB_CLK AIMB-701 User Manual... -
Page 92: Usb/Lan Ports (Lan1_Usb12 And Lan2_Usb34)
Table B.17: USB Port Signal Signal VCC_DUAL Data0+ Data0- Table B.18: Giga LAN 10/100/1000 Base-T RJ-45 port Signal Signal MID0+ MID2+ MID0- MID2+ MID1+ MID3+ MID1- MID3+ B.18 Line Out, Mic IN Connector (AUDIO1) Line Out MIC In AIMB-701 User Manual... -
Page 93: Front Panel Audio Connector (Fpaud1)
Front Panel Audio Connector (FPAUD1) Table B.19: Front Panel Audio Connector (FPAUD1) Signal MIC2_L AGND MIC2_R PRESENSE LIN2_R MIC_DEC FIO_JD LIN2_L LINEOUT2_DEC B.20 8-pin Alarm Board Connector (VOLT1) Table B.20: 8-pin Alarm Board Connector (VOLT1) Signal Signal 5VSB VCC3 -12V +12V AIMB-701 User Manual... -
Page 94: Case Open Connector (Jcase1)
Table B.22: LAN LED Connector (LANLED1) Signal Signal LAN1_LINK/ACT LAN2_LINK/ACT 3VDUAL 3VDUAL LAN1_LINK1000 LAN2_LINK1000 LAN1_LINK100 LAN2_LINK100 3VDUAL B.23 SPI_CN1: SPI flash card pin connector Table B.23: SPI_CN1:SPI fresh card pin connector Signal Signal +3VSB SPI_CS# SPI_CLK SPI_MISO SPI_MOSI AIMB-701 User Manual... -
Page 95: System I/O Ports
PS/2 mouse IRQ13 INT from co-processor IRQ14 Available IRQ15 Available IRQ3 Serial communication port 2 IRQ4 Serial communication port 1 IRQ5 Serial communication port 3/ Serial communication port 4 IRQ6 Available IRQ7 Parallel port 1 (print port) AIMB-701 User Manual... -
Page 96: 1St Mb Memory Map
1st MB Memory Map Table B.26: 1st MB memory map Addr. range (Hex) Device E0000h - FFFFFh BIOS CC000h - DFFFFh Unused C0000h - CBFFFh VGA BIOS A0000h - BFFFFh Video Memory 00000h - 9FFFFh Base memory AIMB-701 User Manual... - Page 97 AIMB-701 User Manual...
- Page 98 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2012...
