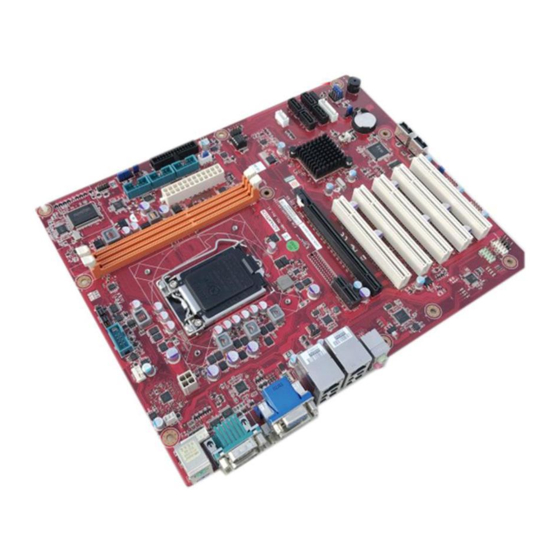

Advantech AIMB-701 LGA1155 Startup Manual

AIMB-701 LGA1155 Intel® Core™ i7/i5/i3/Pentium
ATX with DVI/VGA, Dual GbE LAN
Startup Manual
Packing List
Before you begin installing your card, please make sure
that the following items have been shipped:
• 1 AIMB-701 Startup Manual
• 1 Driver CD (user's manual is included)
• 2 Serial ATA HDD data cables
• 1 Serial ATA HDD power cable
• 1 I/O port bracket
• 1 Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at http://
www.adobe.com/downloads/ (Acrobat is a
trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://www.advantech.com/service/
This manual is for the AIMB-701 series Rev. A1.
Part No. 2006070111
Printed in China
Standard SBC Functions
• CPU: LGA1155 Intel
• BIOS: AMI 64 Mb SPI BIOS
• Chipset: Intel H61 PCH
• System memory: Up to 16 GB with two 240-pin DIMM
• SATA interface: Four on-board Serial ATAII connectors
• Serial ports: Up to six serial ports: COM1, COM2 and
• Parallel port: One parallel port, which supports SPP/
• Keyboard/mouse connector: Supports standard PS/2
• Watchdog timer: 255 timer level intervals
• USB 2.0: Supports ten USB 2.0 ports

VGA Interface

• Chipset: CPU integrated Intel HD graphics controller
• Display Memory: 1 GB maximum shared memory with 2
• Resolution: Supports DVI up to 1920 x 1200 resolution@

Ethernet interface

• Interface: 10/100/1000 Mbps
• Controller: LAN1: Intel

Mechanical and Environmental

• Dimensions (L x W): 304.8 x 244 mm (12" x 9.6")
• Power supply voltage: +3.3 V, +5 V, +12 V, 5 Vsb
• Power consumption: Maximum: +5 V at 1.80A, +3.3 V at
• Operating temperature: 0 ~ 60° C (Depends on CPU
• Weight: 0.5 kg (weight of board)
2nd Edition
January 2016
Specifications
2
® nd
Pentium
®
sockets. Supports dual channel DDR3 1066/1333/1600
SDRAM
support data transmission rate up to 300 MB/s. All four
SATAII ports support Advanced Host Controller Interface
(AHCI) technology
COM4 ~ 6 are RS-232; COM3 is RS-232/422/485 with
auto flow control support.
EPP/ECP modes
keyboard and mouse
GB and above system memory installed
60 Hz refresh rate (G2 version)
Supports RGB up to 2048 x 1536 resolution @ 75 Hz
refresh rate
®
(G2 version only)
1.01 A, +12 V at 5.48 A, +5 VSB at 1.76 A (Intel i7 2600
3.4 GHz processor, 4 GB UNB DDR3 Memory x2pcs)
speed and cooler solution)
AIMB-701 Startup Manual 1
/3 generation Core™ i7/i5/i3/
rd
82579V; LAN2: Intel 82583V
®
