Summary of Contents for Equator EZ 4000 CV

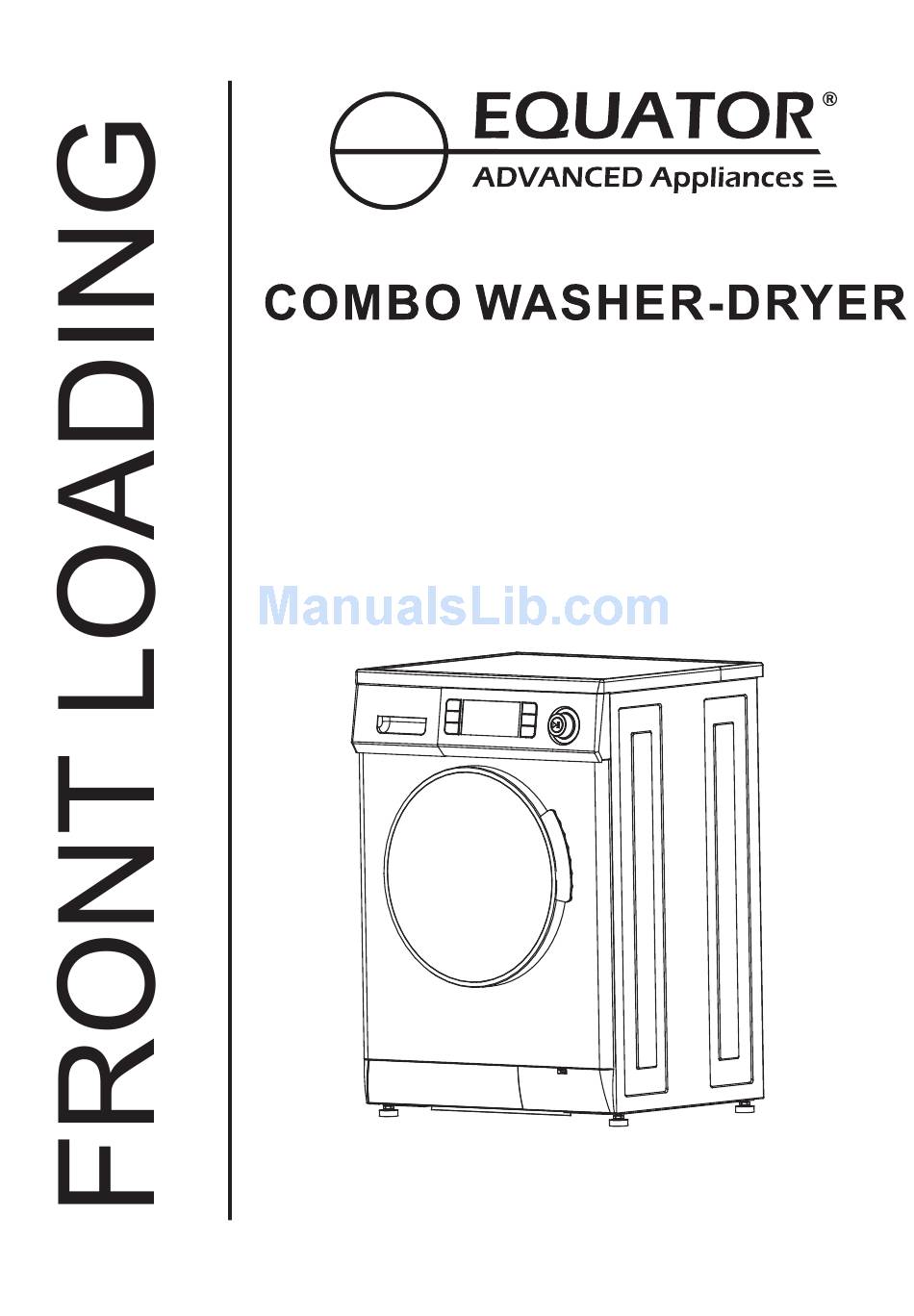

- Page 1 SUPER COMBO OWNER’S MANUAL...
-
Page 2: Table Of Contents
Warranty……………………………………………………………………………...1 …………………………………………………………………..2 Introduction ………………………………………………………………………….3 Important Safety Instructions ………………………………………………………4 Safety ..........……………………………………………5 Diagram of the Combo …………………………………………………………..6 Installation Instructions …………………………………………………………..7 Electrical ..... ……………………………………………………………..9 Plumbing ......………………………………………………………….10 Ventilation Instructions Program Selection Chart ………………………………………………………….15 Operating Instructions ... …………………………………………………………..16 Understanding Fabric Care Labels ……………………………………....19 Winterizing your Combo ...……………………………………….………………... -
Page 3: Warranty
EXCLUSIONS In no event shall Equator Appliances be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts of God. This warranty does not cover service calls which do not involve defective costs for a service call which does not involve defective workmanship or materials will be the responsibility of the consumer -owner. - Page 4 Since it is responsibility of the consumer-owner to establish the warranty period by verifying the original purchase date, the Equator Advanced Appliances recommends that a receipt, delivery slip or some other appropriate payment record be kept for that purpose. Remember ts with the Consolidated Brands.
-
Page 5: Introduction
INTRODUCTION Congratulations on your new Super Combo. In addition to its contemporary d esign, this is a highly sophisticated engineered product that will give you many years of satisfaction. Here are some of the best reasons for buying your Combo 1. -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and that of your children Your Combo Washer-Dryer has been built in compliance with safety regulations, WARNING o reduce the risk of fire, electric shock, or injury to persons when – T using your appliance, follow basic precautions, including the following: 1. -
Page 7: Safety
SAFETY The model number of this product may be found on the back of the unit; the serial number of the label CAUTION affixed to the back of the unit. You should note the model and serial numbers of RISK OF ELECTRIC SHOCK DO NOT OPEN this unit in the space provided. -
Page 8: Diagram Of The Combo
DIAGRAM OF THE COMBO WASHER-DRYER Drain Hose Power Cord Control Panel Drum Detergent Door Dispenser Shipping Rod Adjustable Feet Factory-supplied Parts U-Connector for Drain hose Cap for shipping rod hole (2) Inlet hose (2) -
Page 9: Installation Instructions
Factory-supplied equipment DANGER ！ ！ Inside the drum there is a packet of accessory parts supplied with your washer. Check that all the Frozen hoses can tear/burst. Do not install the accessory parts supplied for your model are there. If washing machine outdoors or in an area exposed any parts are missing contact your dealer. - Page 10 UNPACKING, LEVELING & POSITIONING -Dryer is undamaged. If you have any doubt, -Dryer and call Customer Service. Keep all packing parts (plastic bag, foam rubber, screws, etc.) out of the reach of children since they could be dangerous. Important -Dryer consists of a free floating drum that is affixed with shipping rods at the back of the cabinet (Fig.1) during transport.
-
Page 11: Electrical
ELECTRICAL CONNECTION Connect the plug to a power outlet – 110V/60Hz with minimum 15 Amps. Make sure that the voltage and frequency available correspond with those stated on the serial number plate located on the machine. Do not use adaptors or extension cords since they could result in overheating and burn out. -
Page 12: Plumbing
PLUMBING CONNECTING TO THE WATER FAUCET Please read the following steps carefully 1. Connect the straight end of the hot-water hose to the hot-water faucet (Fig.5) 2. Connect the straight end of the cold-water hose to the cold-water faucet (Fig.5) 3. - Page 13 Connecting the dryer vent duct the machine vents the moist hot air out of venting function, the unit and requires a vent duct to be installed. connector 1(Fig.8). Fig.8 INSTALLATION INSTRUCTIONS FOR EXHAUST IMPORTANT: Installation and service must be performed by a qualified installer. Please have a qualified service agent install your dryer.
- Page 14 SEPARATION OF TURNS Separate all turns by at least 3ft. (1m) of straight duct, including distance between last turn and dampened wall cap. If two turns must be closer than 3ft. (1m) deduct 10ft. (3m) from the maximum lengths shown in the table for each occurrence. TURNS OTHER THAN 90°...
- Page 15 RECESSED, CLOSET AND ALCOVE INSTALLATION The installation spacing is in inches and is the minimum acceptable. Other installations must use the minimum dimension indicated. Minimum clearances between dryer cabin et and adjacent walls are: 2″ either side and 3″ front and rear. Minimum vertical space from floor to overhead cabinets, etc.
- Page 16 SPECIAL INSTALLATION REQUIREMENTS Minimum clearances to combustible surfaces: 2’’ clearance both sides and 3’’ rear. The dryer must be exhausted to the outdoors with the termination securely fastened to the mobile home EXHAUST INFORMATION structure. (See section.) The exhaust MUST NOT be terminated beneath the m obile home.
-
Page 17: Program Selection Chart
PROGRAM SELECTION CHART Suggested Description of Program Features Drying heat load and times Thick cottons Hot water wash Full heat – 1 Heavy (towels, jeans) 1000 rpm spin 60 minutes Mixed cottons Hot water wash Full heat 2 – Towels (t-shirts, jeans) 1000 rpm spin 60 minutes... -
Page 18: Operating Instructions
1. Make sure the Combo Washer-Dryer is turned off. (Power Indicator light should be off). 2. Separate clothes by type, color and degree of soiling. 3. Load clothes of the selected type loosely into the drum. If you are only washing clothes, you can fill the drum. -
Page 19: Wash Functions
WASH FUNCTIONS Prewash button Press this button to add pre wash cycle to the wash program, if the laundry to be washed is heavy or dirty. Water Level Press this button to change the initial water level of the selected program. button Delay Start Press this button to select the delay time options from 1 to 24 hours in one hour... - Page 20 Selecting the correct drying time, Use the following table as a guide: Max load Drying Knob Fabric Load (lbs) Sector (minutes) Laundry of Cottons Full Heat Cottons Only terry towels Full Heat Mixed fabric Sheets or shirts Half Heat 80-90 (cotton+ polyster) Pajamas.
-
Page 21: Understanding Fabric Care Labels
The symbols on labels of your garments will help you in choosing the suitable wash program, the right temperature, wash cycles, and ironing methods. Don’t forget to give a glance to these useful indications! Machine Wash Cycle Permanent Press/ Do not wring Hand wash Do not wash Normal/... -
Page 22: Maintenance
MAINTENANCE Your -Dryer has been designed to operate with easy maintenance. Follow these simple maintenance procedures to obtain optimum performance: 1. Ensure that your machine was installed according to the correct installation procedures detailed in this Manual. 2. Do not use solvents either to clean the machine or to wash clothes. 3. -
Page 23: Stain Removal Chart
Blood Cosmetics: eye shadow, lipstick, liquid make-up, mascara, powder, pancake make-up or rouge detergent into any remaining stain. Rinse. If stain persists, put a few drops of ammonia on Apply undiluted liquid detergent to stain, or stain and repeat detergent treatment. Rinse. If dampen stain and rub in soap or detergent necessary bleach. - Page 24 NOTE: Some inks cannot be removed. Apply commercial rust remover, according to Ketchup Equator Advanced Appliances’s directions. Rinse. Or, if safe for fabric, boil stained article Scrape of excess. Soak in cold water 30 in solution of 4 teaspoons of cream of tartar to minutes.
-
Page 25: Troubleshooting
TROUBLESHOOTING In most cases, when your washer-dryer fails to work, the problems arising can be easily solved without having to call for a technician. Before calling for assistance, always check these points. The washer-dryer fails to start Is the plug correctly inserted into the socket? Is there electricity in the house? Is the door closed properly? Is the start button pressed? - Page 26 TROUBLESHOOTING The washer-dryer is not drying efficiently Is the end of the drain hose under water? Is the drain pump obstructed? Is the drum overloaded? Is the cold water faucet open? Is low-sudsing detergent being used? Is fabric softener being used?
