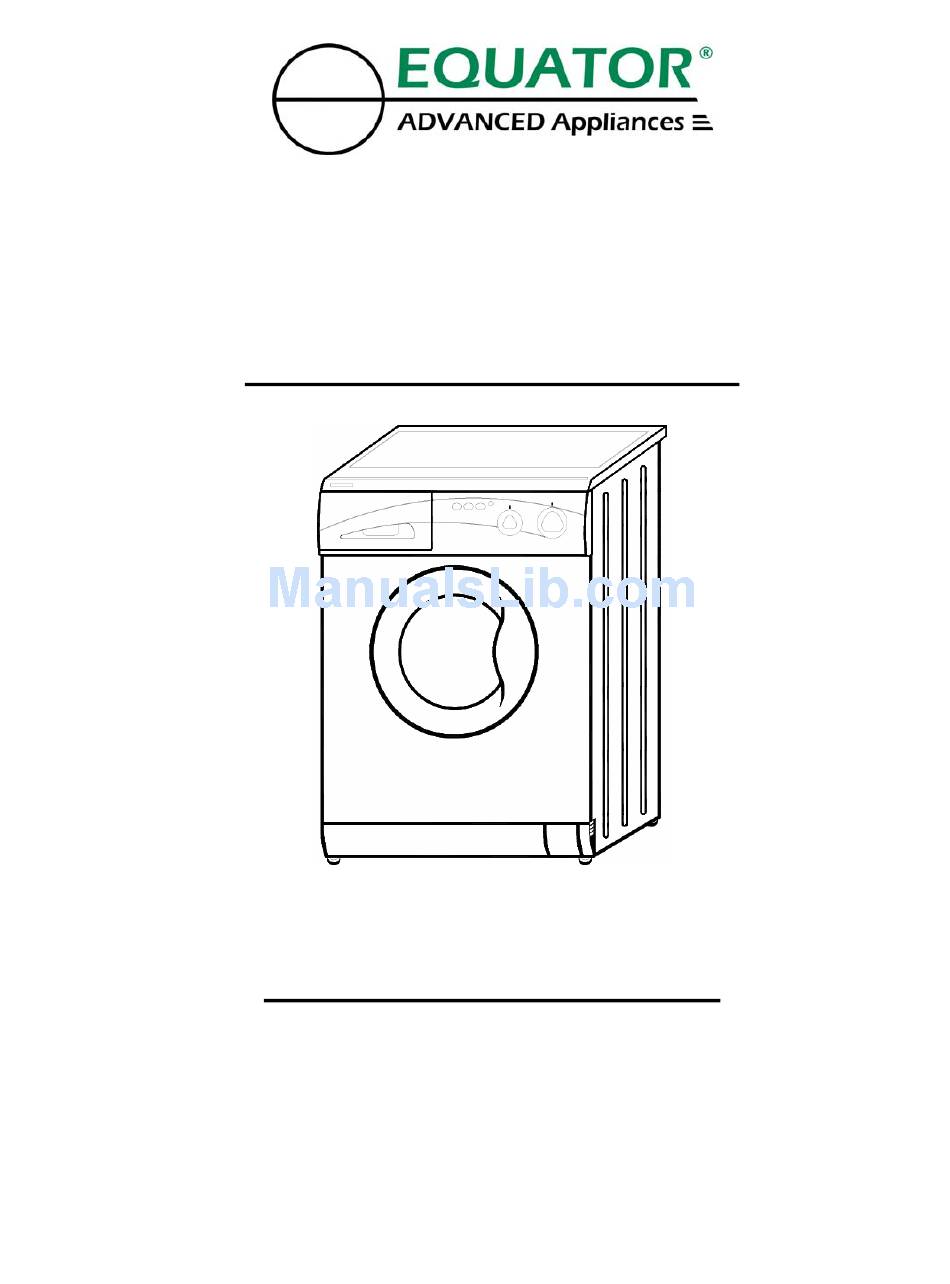

- Page 1 SPARE PARTS CATALOG Fourth Edition – February 2006 LAUNDRY PRODUCTS Combo Washer Dryer MODELS EZ3600CEE / EZ3600C / EZ2500C / EZ1500...
-
Page 2: Table Of Contents
ADVANCED Appliances TABLE OF CONTENTS • CABINET…………………………………………………………………………. • TUB & DRUM………………..………………………….………………….. • CONTROLS………………………………………………………………………… • WATER INLETS…………………………………………………………….. • VENTILATION……………………………………………………………….. Spare parts list : EZ3600CEE / EZ3600C / EZ2500C / EZ1500 3 - 5 6 - 8 9 -10 11-12 13-14 Page 2... -
Page 3: Cabinet
EQUATOR ADVANCED Appliances Spare parts list : EZ3600CEE / EZ3600C / EZ2500C / EZ1500 EXPLODED VIEW 1: CABINET Page 3... - Page 4 114300741/050555 114300781/058947 112990079/050557 112990007/041572 112990083/058945 114200666/041573 114200675/058944 114200608/050556 113800431/036014 113900489/036015 EZ3600CEE / EZ3600C / EZ2500C / EZ1500 DESCRIPTION TOP PANEL-3600CEE/3600C/1500 TOP PANEL-2500C Top Decorative trim-ALL Electronic module assembly-ALL Junction Block -3600CEE/3600C/1500 Junction Block2500C Drain Support "U" Connector-ALL Back Panel-3600CEE/3600C/1500 Back Panel-2500C...
- Page 5 114400211/041579 956333616/042564 112903121/041581 111901190/066924 111901172/066917 112700001/053409 111901116/043768 116103096/068887 930046335/073098 920143233/065342 EZ3600CEE / EZ3600C / EZ2500C / EZ1500 DESCRIPTION Drain Filter Door-ALL Leveling Leg-ALL DOOR SWITCH-ALL Hook Stop Plate-ALL 35 Clamp-ALL Door Flange-1500/2500C/3600C Door flange-3600CEE Outer Door TRIM-2500C/3600C/3600CEE Door Handle 2500/3600 CEE/3600 C...
- Page 6 EQUATOR ADVANCED Appliances Spare parts list : EZ3600CEE / EZ3600C / EZ2500C / EZ1500 EXPLODED VIEW 2: TUB & DRUM Page 6...
-
Page 7: Tub & Drum
113300551/050572 114900291/058973 114900257/041587 992400243/050573 113200489/036022 113200497/068166 111600694/036065 119200763/069192 EZ3600CEE / EZ3600C / EZ2500C / EZ1500 DESCRIPTION PORTHOLE DIAPHRAGM - 3600C/3600CEE/1500 Porthole Diaphragm for 2500C Clamp-Cabinet& Boot-ALL Front Counter Weight-3600 C/3600 CEE Front counter weight-2500C Front counter weight-2500C Rubber Block (ALL) - Page 8 114300772/053396 995700012/041611 995700014/073181 111901185/052724 111901186/050578 116190223/068941 119504498/069308 940018501/050607 113390244/050582 113900494/041598 113900495/041599 EZ3600CEE / EZ3600C / EZ2500C / EZ1500 DESCRIPTION Tub Assy-2500C(069213) Tub Assy-3600CEE/3600C Clamp-ALL Hose-Tub to Drain Filter-3600C/2500C/1500 Hose Tub Filter-3600CEE Screw 8x15-3600C/2500C/1500 Screw-3600CEE/3600C/1500 Motor Support Bracket-3600C/3600CEE/1500 Motor Support Front-2500...
- Page 9 EQUATOR ADVANCED Appliances Spare parts list : EZ3600CEE / EZ3600C / EZ2500C / EZ1500 EXPLODED VIEW 3 : CONTROLS Page 9...
-
Page 10: Controls
112605851/067629 112605545/067560 112605546/067561 112605474/067554 116102684/036124 116102685/036126 116102965/068851 116103107/068891 116102961/068849 116102964/068850 116103032/068871 116102761/036683 EZ3600CEE / EZ3600C / EZ2500C / EZ1500 Table 3 - Controls DESCRIPTION Control Panel-3600C/2500C/1500 Control Panel-3600CEE Knobs-ALL Push button-ALL Detergent Drawer-ALL Siphon-3600CEE/3600C/1500 Siphon-3600CEE/3600C/1500 Siphon-2500C Drawer Handle-3600CEE Drawer Handle-3600C... - Page 11 EQUATOR ADVANCED Appliances Spare parts list : EZ3600CEE / EZ3600C / EZ2500C / EZ1500 EXPLODED VIEW 4: WATER INLETS Page 11...
-
Page 12: Water Inlets
114300680/036717 114300754/050591 113200490/068163 114300731/041629 114300740/050592 114300761/041628 113200495/054734 114300718/035954 114300683/035955 112901982/035956 EZ3600CEE / EZ3600C / EZ2500C / EZ1500 DESCRIPTION Valve Hot-2500C Valve hot 1500/3600C Valve Hot 3600CEE Gasket-Inlet Hose-ALL Inlet Hose-ALL Cold Water Valve-2500C Cold Water Valve-1500 Cold Water Valve-3600CEE/3600C F-Connector-2500 C F-Connector-3600CEE/3600C/1500 Soap Disp. - Page 13 EQUATOR ADVANCED Appliances Spare parts list : EZ3600CEE / EZ3600C / EZ2500C / EZ1500 EXPLODED VIEW 5: VENTILATION Page 13...
-
Page 14: Ventilation
111901086/036080 114200653/041619 113300547/041620 113300553/050601 116590714/069003 186820052/053146 186240099/041622 111901110/041623 119503931/041624 114200662/041625 116102693/053147 EZ3600CEE / EZ3600C / EZ2500C / EZ1500 DESCRIPTION PORTHOLE DIAPHRAGM-3600CEE/3600C/1500 Porthole Diaphragm-2500C GASKET-ALL CLAMP-3600CEE/3600C/1500 Lower heater housing-3600CEE/3600C/1500 Lower heater housing-2500C Impeller assy-ALL GASKET-ALL Upper heater housing-3600CEE/3600C/1500 Upper heater housing-2500 C... - Page 15 EQUATOR ADVANCED Appliances Spare parts list : EZ3600CEE / EZ3600C / EZ2500C / EZ1500 COMPANY INFORMATION EQUATOR CONTACT NUMBERS SERVICE, PARTS, ACCESSORIES & DETERGENT ORDERING: (800) 776-3538 TECHNICAL SUPPORT: (888) 935-1565 Page 15...
