Equator EZ 1710 V Owner's Manual

Front loading combo washer-dryer
Hide thumbs Also See for EZ 1710 V:
Table of Contents

Advertisement

Quick Links

See also: Troubleshooting Manual , Service Manual
Combo Washer-Dryer
EZ 3710 CEE
EZ 1710 V
Owner's Manual
Colors: Platinum & White

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ 1710 V and is the answer not in the manual?

Questions and answers

Related Manuals for Equator EZ 1710 V

Summary of Contents for Equator EZ 1710 V

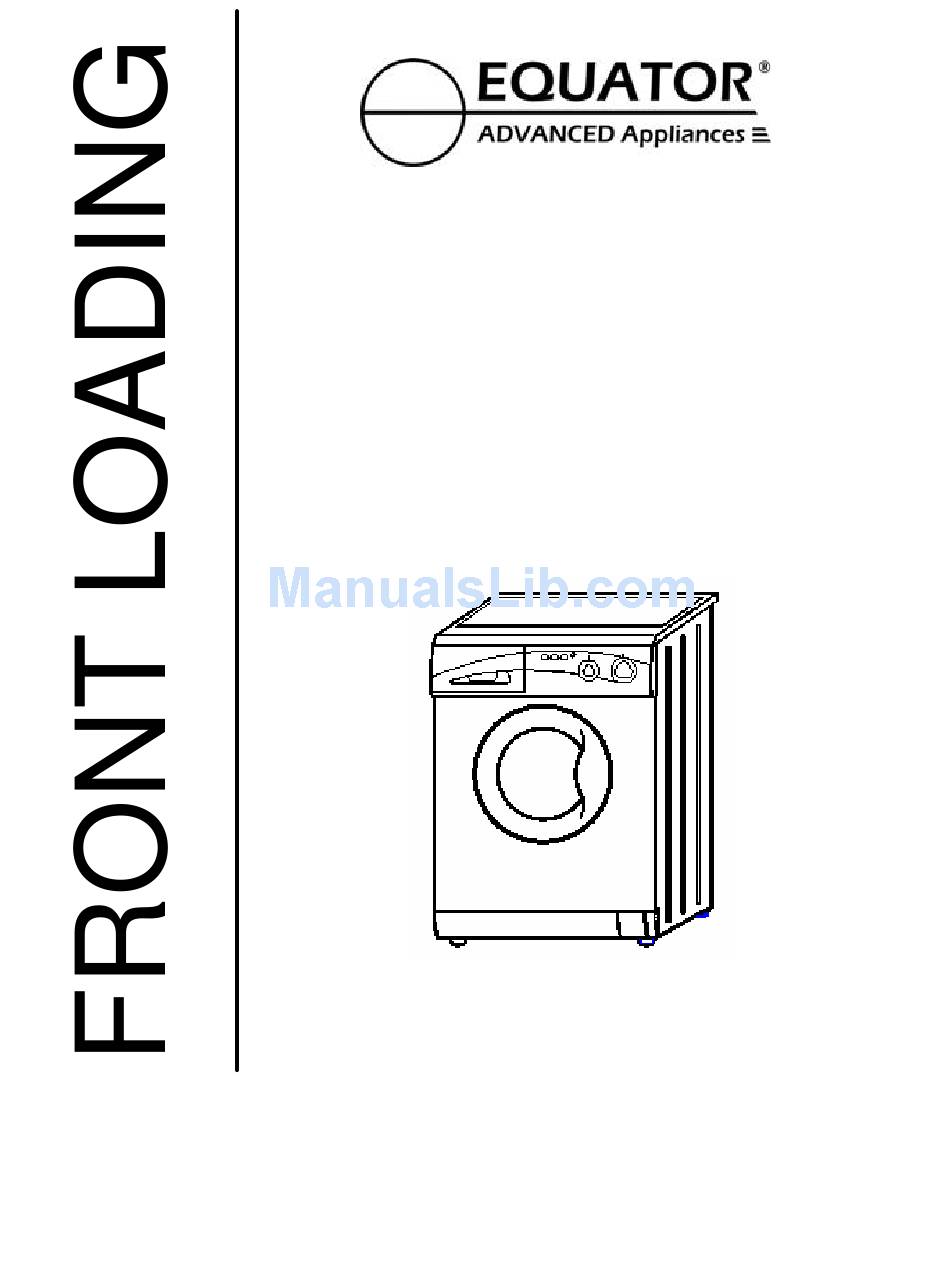

  • Page 1 Combo Washer-Dryer EZ 3710 CEE EZ 1710 V Owner’s Manual Colors: Platinum & White...

  • Page 2: Table Of Contents

    Program Selection Chart ………………………………………………………….15 How to dry ………………………………………………………………………….16 Stain removal Chart ………………………………………………………….17-18 Maintenance ……………………………………………………………………….20 Technical Data …………………………………………………………………….20 Troubleshooting .………………………………………………….……………… 21 Company Information …………………………………………………………….22 Please read the Owner’s Manual carefully before using your new Equator Washer-Dryer Combo Washer- Dryer Owner’s Manual...

  • Page 3: Warranty Information

    Canada, for a period of one year from the date of original purchase. For commercial use, the product is warranteed for a period of 90 days. During this period, Equator Corporation will provide all labor and parts necessary to correct such defect, free of charge, if the appliance has been installed and operated in accordance with Equator Corporation’s written...

  • Page 4: Warranty

    Remember to send in your Warranty Registration Card so that a proof of your purchase exists with Equator. You can also register online or by calling Equator Customer Service at 1-800 -776 -3538. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

  • Page 5: Introduction

    Congratulations on your new Equator Washer-Dryer. In addition to its award winning design, this is a highly sophisticated engineered product that will give you many years of satisfaction. Here are 10 of the best reasons for buying your Equator Washer-Dryer 1.

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Your safety and that of you children Your washing machine has been built in compliance with safety regulations, to protect you and all your family. WARNING o reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: 1.

  • Page 7: Dryer Efficiency

    Your Washer-Dryer operates on 110 volts and has a dryer heat element (The EZ 3710 CEE is 1,000 watt ; EZ 1710 V is 1200 watt ). It will take a longer time to dry clothes than a traditional dryer (which operates on 220 volts, 5,000 watts).

  • Page 8: Pre-Installation

    Please, ensure that the instructions are followed. If you should need any further advice or assistance, please, contact the dealer where your machine was purchased, or call Equator Customer Service at 1-800-776-3538 .
  • Page 9 Control panel Dryer knob Washer knob Detergent dispenser Door Adjustable feet Coin trap Combo Washer- Dryer Owner’s Manual...

  • Page 10: Installation

    Remove the packing and check that the Washer-Dryer is undamaged. If you have any doubt, do not use the Washer-Dryer and call Equator Customer Service. Keep all packing parts (plastic bag, foam rubber, screws, etc.) out of the reach of children since they could be dangerous.

  • Page 11: Connecting The Drain Hose

    This appliance m ust be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a power cord having an equipment-grounding conductor a nd a grounding plug.
  • Page 12 Connection the vent hose For EZ 1710 V, the machine vents the moist hot air out of the unit and require a vent hose to be installed, To install the vent hose, Screw the vent hose 2 into the flange 1(Fig.5).

  • Page 13: Control Panel

    CONTROL PANEL A Washer knob B Dryer knob C Detergent dispenser D Power button Combo Washer- Dryer Owner’s Manual E ½ load button F No spin button G Power indicator light Turn washer knob clock-wise, to choose wash cycle. Turn dryer knob to set minutes for drying. The left side is full heat ( 250°...
  • Page 14 The detergent dispenser has 4 compartments, marked 1, 2, A, C. 1. Pre-wash detergent 2. Wash detergent A. Fabric softener (e.g. Downy C. Bleach (e.g. Clorox Power button. Pressed in for ON Not pressed for OFF 1/2 Load button. If you have half a load or a light load, press this button. No spin button.

  • Page 15: Operating Instructions

    Warning — to reduce the risk of fire, electric shock, or injury to person, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. OPERATING INSTRUCTIONS 1. Make sure Washer-Dryer is turned off. (Indicator light should be off). 2. Separate clothes into cottons, permanent press and delicates. 3.

  • Page 16: Program Selection Chart

    PROGRAM SELECTION CHART Type of Program Fabric 1 - Prewash 2 - Heavy Cottons 3 - Normal 4 - Fast 5 - Super Permanent 6 - Standard Press 7 - Express 8 - Delicates Delicates SPIN SPEEDS Cottons High spin Permanent Press Medium spin Delicates...

  • Page 17: How To Dry

    Combined (Wash & Dry) • Look at table A to the side and follow the instructions provided for MAX load to have an automatic washing and drying cycle. • Follow the instructions for wash only (see page14, the section "Starting the Washer-Dryer") •...

  • Page 18: Stain Removal Chart

    STAIN REMOVAL CHART Blood Rinse or soak fresh stain in cold water. Work detergent into any remaining stain. Rinse. If stain persists, put a few drops of ammonia on stain and repeat detergent treatment. Rinse. If necessary bleach. Candle Wax Scrape off excess.
  • Page 19 Grease or Oil Scrape away excess. Rub detergent paste or a general purpose liquid household cleaner into stain, rinse with hot water. If stain remains, sponge thoroughly with a grease solvent. Dry. Repeat if necessary. To remove yellow stain, use a chlorine or oxygen bleach. Ink.

  • Page 20: Understanding Fabric Care Labels

    Note: When placing unit into service allow unit to operate for one complete cycle before doing laundry to ensure all antifreeze has been purged from the unit. If you have any further questions pertaining to this matter please call Equator Technical Support Toll free at (800) 776-3538.

  • Page 21: Maintenance

    The Equator Washer-Dryer has been designed to ope rate without complicated maintenance. Follow these simple maintenance procedures for good results: 1. Ensure that your machine was installed according to the correct installation procedures detailed in this Manual. 2. Do not use solvents either to clean the machine or to wash clothes.

  • Page 22: Troubleshooting

    Is the drain hose kinked? There are too many suds in the drum Is low -sudsing detergent being used? It is recommended to use Equator detergent. Is the correct amount of detergent being used? The washer-dryer vibrates too much during the spin cycle...

  • Page 23: Company Information

    COMPANY INFORMATION EQUATOR CONTACT NUMBERS SERVICE: (800) 776-3538 PARTS, ACCESSORIES & DETERGENT ORDERING: (888) 483-9627 TECHNICAL SUPPORT: (888) 935-1565 Equator Corporation Equator Plaza, 2801 W Sam Houston Pkwy N, Houston, Texas 77043-1611 Phone (800) 935-1955 • Fax (713) 464-2151 All rights reserved.
