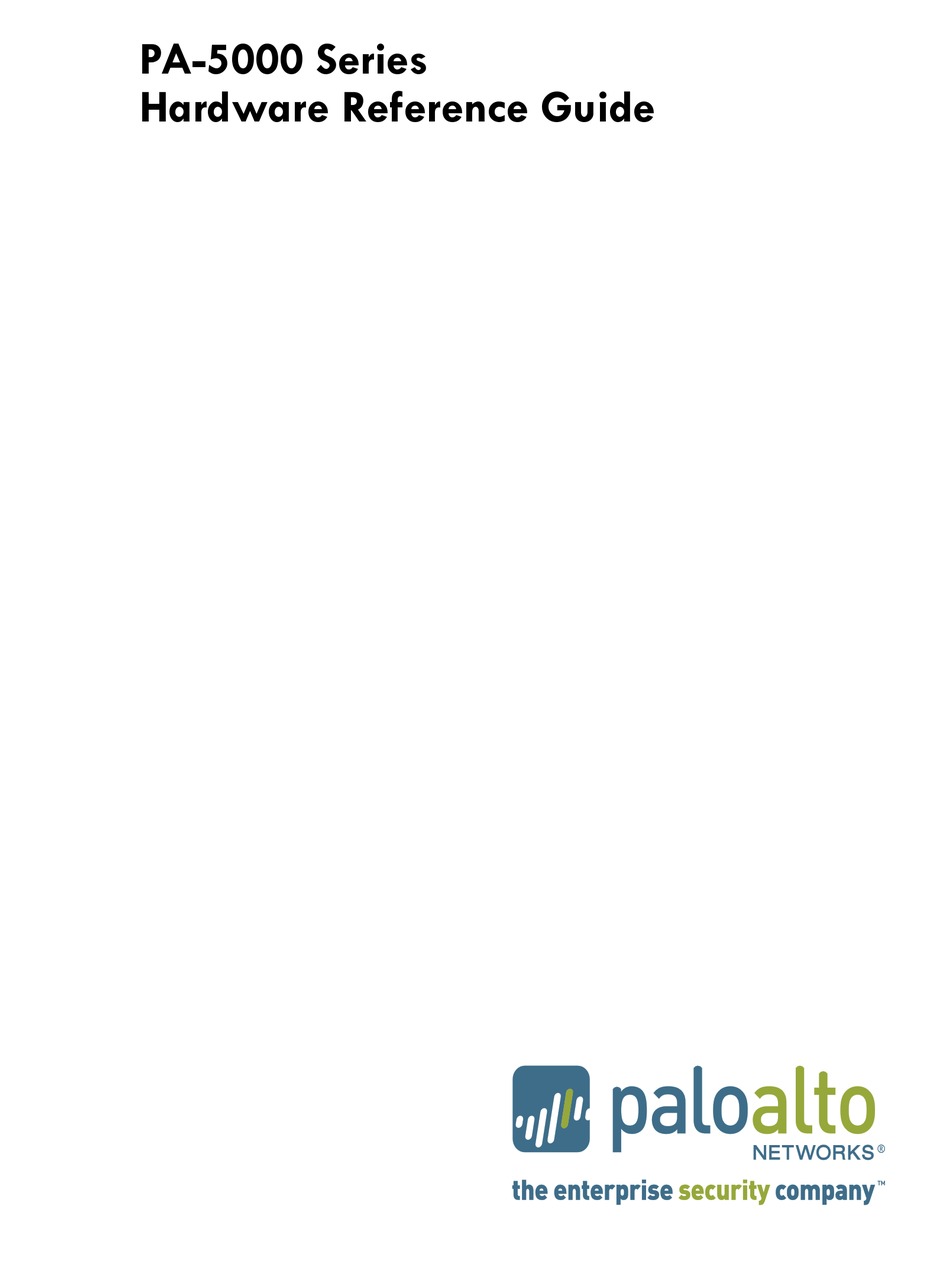

- Page 1 PA-5000 Series Hardware Reference Guide...
-
Page 2: About This Guide
About this Guide This guide describes the PA-5000 Series firewall hardware, provides instructions on installing the hardware, describes how to perform maintenance procedures, and provides product specifications. This guide is intended for system administrators responsible for installing and maintaining the PA-5000 Series firewall. -
Page 3: Table Of Contents
May 29, 2015 - Palo Alto Networks COMPANY CONFIDENTIAL Table of Contents Chapter 1 Overview ..........Front Panel . - Page 4 Chapter 4 Specifications ..........Physical Specifications .
-
Page 5: Overview
May 29, 2015 - Palo Alto Networks COMPANY CONFIDENTIAL Chapter 1 Overview This chapter describes the features of the front and back panel of the PA-5000 Series firewall. For more information, refer to the following topics: • “Front Panel” on page 6 •... -
Page 6: Front Panel
Front Panel Front Panel Figure 1 shows the front panel of the PA-5060 and PA-5050 and Table 1 describes the front panel features. Ethernet SFP+ ports ports ports port 2 LEDs ALARM FANS PWR 1 TEMP PWR 2 PA-5060 CONSOLE Management Management port... - Page 7 Front Panel Figure 2 shows the front panel of the PA-5020 Series and Table 2 describes the front panel features. Ethernet ports ports port 2 LEDs ALARM FANS PWR 1 TEMP PWR 2 PA-5060 CONSOLE Management Management port port 1 ports console port Figure 2.
-
Page 8: Back Panel
Back Panel Back Panel Figure 3 shows the back panel of the PA-5000 Series and Table 3 describes the back panel features. Fan tray Hard drive bay Power supplies Figure 3. Back Panel Table 3. Back Panel Features Item Description Power supplies 2 redundant, hot-swappable power supplies. -
Page 9: Installing The Hardware
PA-7050 does not have a warranty seal. Before You Begin • It is recommended that two people be available to mount the PA-5000 Series in a 19-inch rack. • Have a Phillips head screwdriver available. -
Page 10: Equipment Rack Installation
Before installing the hardware, read the information in “Cautions and Warnings” on page 15. Figure 4 illustrates how rack mounting brackets are attached to the PA-5000 Series. You can attach the brackets using the holes at the front or the midpoint of the unit. -
Page 11: Connecting Cables To The Device
Align the mounting holes on the side of the device with holes in the rack rail. Make sure that rack rail holes are selected so that the PA-5000 Series is level. Insert mounting screws into the aligned holes. Tighten with a Phillips head screwdriver. -
Page 12: Connecting Power
Figure 7. Power Connection for the PA-5000 Series To power up the PA-5000 Series, attach a power cable to each of the power supplies and plug each into a grounded wall outlet. The device has no power switch and is automatically powered when one or more power cables are connected to the device and to an AC power source. -
Page 13: Connecting A Dc Power Supply
WARNING: You must shut off the electric current to the DC feed wires before connecting or disconnecting the wires to the power supplies. Figure 8 shows the DC power connections for the PA-5000 Series. Wind the power wires around the screws and tighten to secure. The -48VDC connection is on the left and the 0VDC connection is on the right, as labeled when facing the power supply. - Page 14 Connecting Power 14 • Installing the Hardware Palo Alto Networks...
-
Page 15: Maintaining The Hardware
May 29, 2015 - Palo Alto Networks COMPANY CONFIDENTIAL Chapter 3 Maintaining the Hardware This chapter describes how to replace power supplies, interpret LEDs, and troubleshoot hardware problems. Before continuing, read “Cautions and Warnings” on page 15. For information on servicing the hardware, refer to the following topics: •... -
Page 16: Dc Power Related Cautions/Warnings
Cautions and Warnings CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS" (Cl. 1.7.15) French Translation: ATTENTION: RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UN MODÈLE DE TYPE INCORRECT. METTEZ AU REBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS (CL. - Page 17 Cautions and Warnings CAUTION: All devices that use DC power are intended for installation in restricted access areas only. A restricted access area is where access can be gained only by service personnel through the use of a special tool, lock and key, or other means of security, and is controlled by the authority responsible for the location.
-
Page 18: Interpreting Status Leds
“Interpreting the Port LEDs” on page 19 • “Interpreting the Power Supply LED” on page 20 Interpreting the Device LEDs Figure 9 shows the LED dashboard on the front panel of the PA-5000 Series, and Table 4 describes the LED functions and states. ALARM FANS... -
Page 19: Interpreting The Port Leds
Shows green if there is a network link. Right Blinks green if there is transmit (TX) network activity. Table 7 describes the LEDs for the PA-5000 Series Management port. Refer to Figure 1 and Figure 2. Table 7. PA-5000 Series Management and HA1 Port LEDs Description... -
Page 20: Interpreting The Power Supply Led
Interpreting the Power Supply LED The PA-5000 Series firewall has two power supplies and each power supply has an LED located above the power cord to indicate status. Table 8 describes the LEDs located on the back of each power supply. -
Page 21: Replacing A Dc Power Supply
To replace the DC PWR1 or PWR2 power supply: While the PA-5000 Series is running, loosen the screws that secure the power wires and remove the wires from the power supply that you need to replace, as shown in Figure 11. -
Page 22: Replacing A Hard Disk Or Solid State Drive
Figure 12. DC Power Supply Replacement Replacing a Hard Disk or Solid State Drive The PA-5000 Series firewall has a bay that contains two 2.5-inch Serial Advanced Technology Attachment (SATA) hard disk drives or solid state drives (SSD). You must power down the firewall to replace either of the drives. - Page 23 Replacing a Hard Disk or Solid State Drive Figure 13. Loosening the Thumbnail Screws for the Drive Bay Remove the metal plate that covers the disk drive bay. Push the button to the right of the drive to disengage the lever and release the drive. Figure 14.
-
Page 24: Choosing System Options For The Drive
Replacing a Hard Disk or Solid State Drive Slide the replacement drive in, label side up, gently pushing it in until the lever begins to close. Gently close the lever until it clicks into place. Figure 16. Replacing a Drive Replace the metal plate and secure the thumb screws using a flat or Phillips head screw driver. -
Page 25: Replacing The Fan Tray And Air Filter
Replacing the Fan Tray and Air Filter required to select which drive is primary and then given the option to reboot. Upon rebooting, the system will add the secondary drive to the primary drive’s RAID array and then the system behavior will be the same as if an identical drive was replaced. - Page 26 Replacing the Fan Tray and Air Filter Remove the metal plate that covers the fan tray. Hold the fan tray handle and slide the tray out. The air filter slides out along with the fan tray. Figure 18. Removing the Fan Tray and Air Filter Slide the replacement fan tray in until it engages.
-
Page 27: Replacing The Air Filter
Replacing the Fan Tray and Air Filter Replacing the Air Filter Inspect the air filter on a periodic basis. A dirty air filter restricts airflow in the unit, reducing the ventilation and effective cooling of the system. To maintain optimum system operation, Palo Alto Networks recommends that you replace the filter every 6 months. - Page 28 Replacing the Fan Tray and Air Filter 28 • Maintaining the Hardware Palo Alto Networks...
-
Page 29: Chapter 4 Specifications
May 29, 2015 - Palo Alto Networks COMPANY CONFIDENTIAL Chapter 4 Specifications This chapter provides specifications for the PA-5000 Series firewall. For more information, refer to the following topics: • “Physical Specifications” in the next section • “Interface Specifications” on page 30 •... -
Page 30: Interface Specifications
Interface Specifications Interface Specifications Table 10 lists the interfaces for the PA-5000 Series. Table 10. Interface Specifications Specification Description Ethernet ports 12 RJ-45 10/100/1000 ports for network traffic. SFP ports Eight Small Form-Factor Pluggable (SFP) ports for network traffic. SFP+ ports PA-5060/PA-5050 only: Four 10 Gigabit Small Form-Factor Pluggable (SFP+) ports for network traffic. -
Page 31: Environmental Specifications
Environmental Specifications Environmental Specifications Table 12 lists environmental specifications for the PA-5000 Series. Table 12. Environmental Specifications Specification Description Operating temperature range 0° to 40° C (Verified by NEBs compliance testing up to 50C) Storage temperature range -20° to 70° C... - Page 32 Environmental Specifications 32 • Specifications Palo Alto Networks...
-
Page 33: Compliance Statement
This section describes the Network Equipment Building System (NEBS) requirements for the PA-5000 Series. • The PA-5000 Series is intended to be installed in a Network Telecommunication Facilities (Central Office) as part of a Common Bonding Network (CNB). • The battery return (BR) input terminals are considered to be an Isolated DC return (DC-1). -
Page 34: Vcci Statement
VCCI Statement VCCI Statement This section provides the compliance statement for the Voluntary Control Council for Interference by Information Technology Equipment (VCCI), which governs radio frequency emissions in Japan. The following information is in accordance to VCCI Class A requirements Translation: This is a Class A product.
