3. Overview

3.1. Introducing the Grid PV System

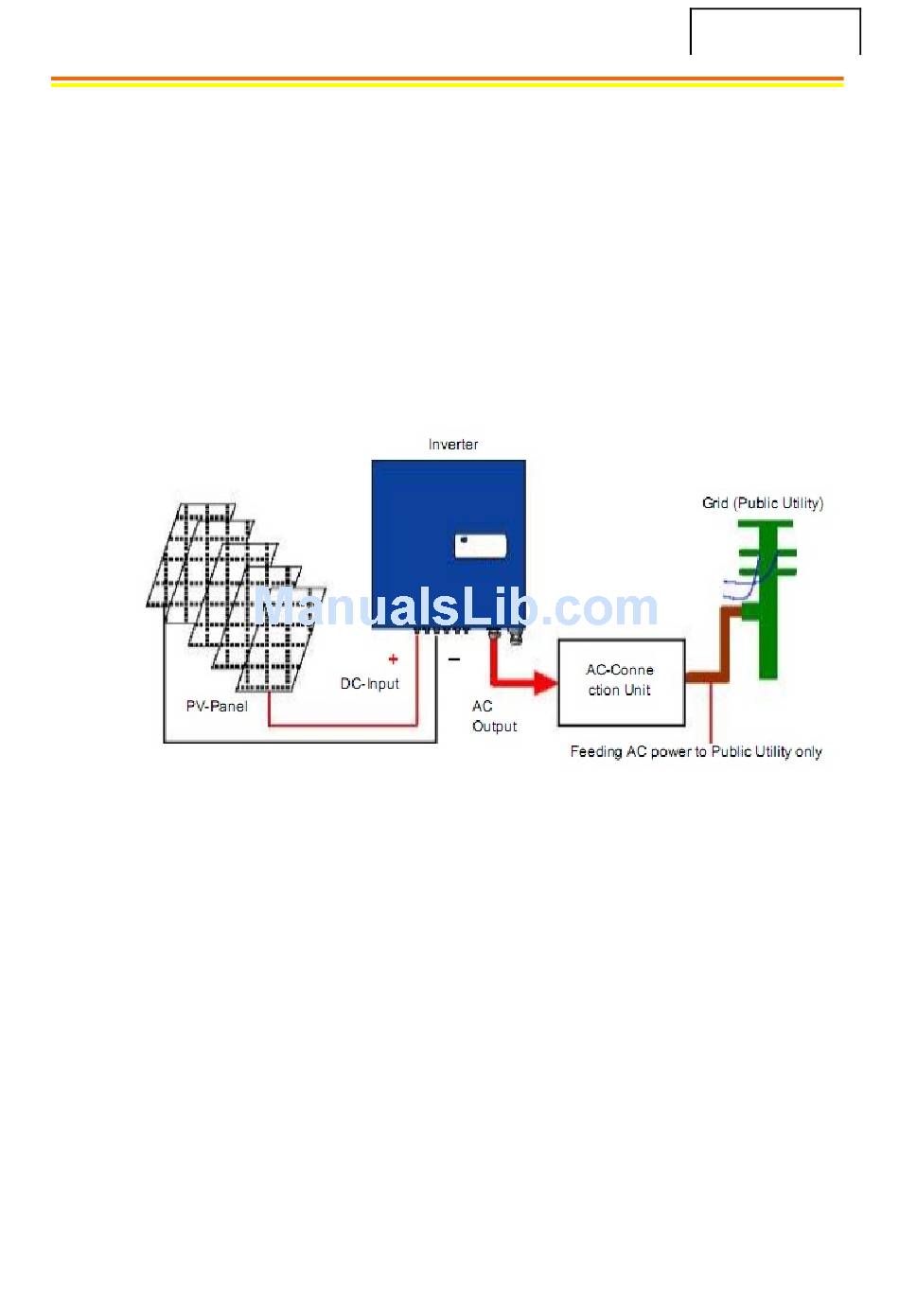

The Grid PV System is mainly composed of 4 parts: the PV-panels, the
PV-Inverter, the AC-Connection Unit (the connection Interface) and a
connection to the Public Utility.
When a PV-panel is exposed to sunlight and connected to an inverter, it
generates DC power. The PV-Inverter converts DC to AC and feeds in
to the Public Utility via the AC-Connection unit.
PV-Panel
Inverter
_
+
DC-Input
AC
Output
6
Brightens your future
Grid (Public Utility)
AC-Conne
ction Unit
Feeding AC power to Public Utility only
