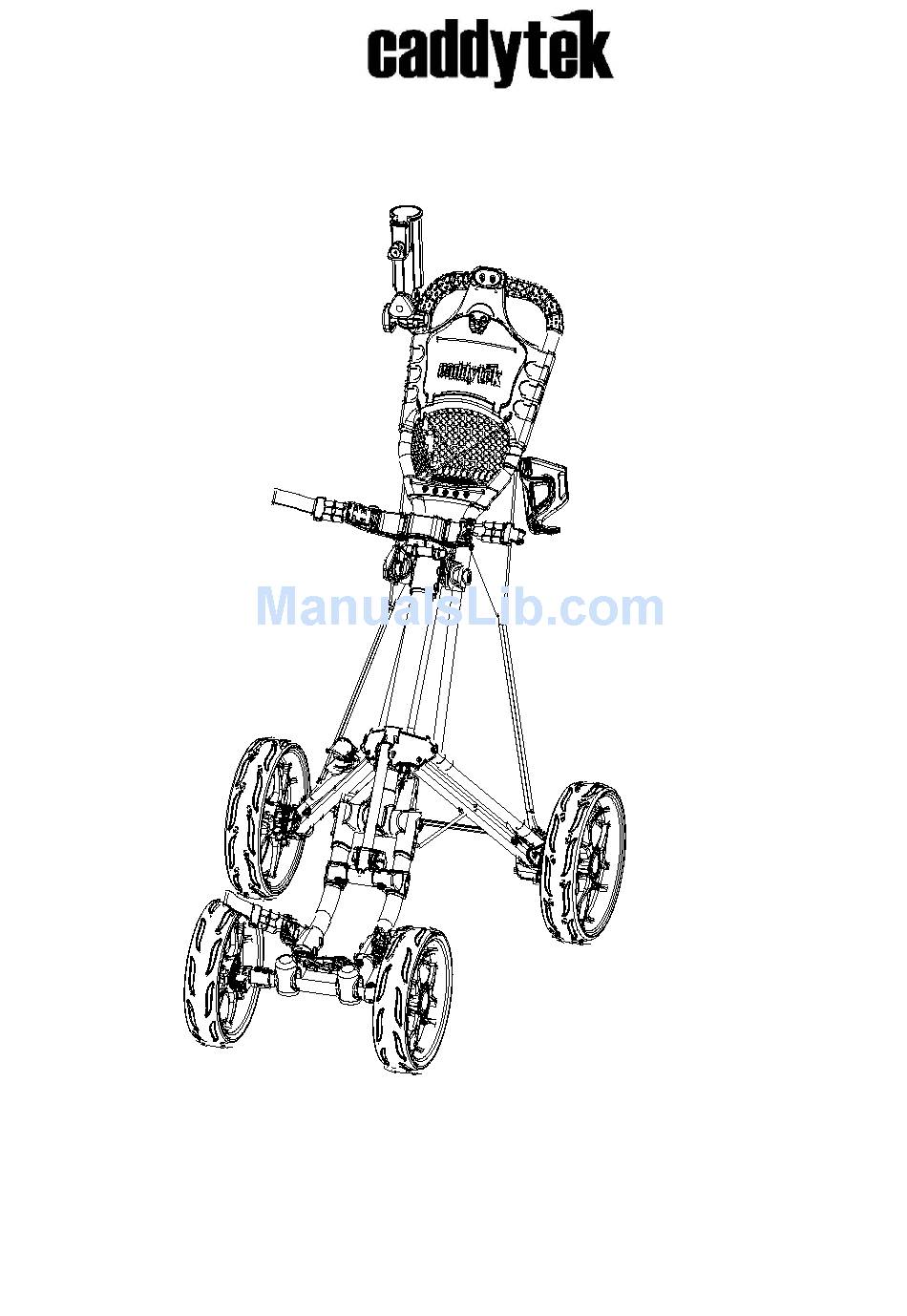

- Page 1 One-click folding 4-wheel golf push cart Model: CaddyCruiser ONE V3 User Manual...
- Page 2 CaddyTek Inc. 20153 Paseo Del Prado Walnut, CA 91789, USA Tel: 909-895-6478 www.caddytek.com Service/Technical support: 800-630-0968...
- Page 3 WARNING: FOR YOUR OWN SAFETY, PLEASE REVIEW THESE WARNINGS AND KEEP THIS USER GUIDE FOR FUTURE REFERENCE. ●Before using this golf cart, please read and understand the important instructions and warnings in this user guide. ●AVOID INJURY by always following the instructions carefully. ●AVOID INJURY by keeping clear of moving parts while adjusting, folding or unfolding this cart.
-
Page 4: Package Contents
6. This user manual 7. Hangtags on the handle 8. Tools for adjustment In case any of the above items are missing or damaged, please call 909-895-6478 or email service@caddytek.com to report. Parts identification: A: PVC handle grip B: Scorecard holder assembly C. -
Page 5: Install Wheels
Extending the cart Fig. 1 Fig. 2 Simply pull the handle and upper bag bracket Lift the upper bag bracket as shown in Fig. 2 to extend the cart. (Shake as shown in Fig. 1. the cart slightly to release the main frame from the holding slot if necessary.) Unfolding motion Install wheels... - Page 6 Folding the cart Fig. 5 Fig. 6 Turn the red knob as shown in Fig. 5 to release and tighten To achieve the optimal folded size, adjust the the handle. handle to the 2 highest location marked by the small label near red knob as shown in Fig. 6. Cart folding red button Fig.
- Page 7 Install umbrella holder Fig. 11 Fig. 12 Fig. 13 To store: To put in use: Attach the umbrella holder to the storage Simply attach the umbrella holder rack on the right leg frame as in Fig. 13. onto the cart as in Fig. 11 & 12. Use the brake Install drink holder Fig.
-
Page 8: Front Wheel Alignment
Front wheel alignment Right Left Fig. Fig. Alignment adjusting screws A/B Fig. 18 Hex wrench If the cart veers to the left, please use the hex wrench to turn screw A counterclockwise and Screw B clockwise to adjust the alignment. If the cart veers to the right, please use the hex wrench to turn screw A clockwise and screw B counterclockwise to adjust the alignment. -
Page 9: Warranty
Normal wear and fading of products is not considered a manufacturer's defect. This warranty does not apply to claim of damage to items used in connection with CaddyTek Inc. products. In the case of deterioration due to normal use we will repair the item for a normal charge.
