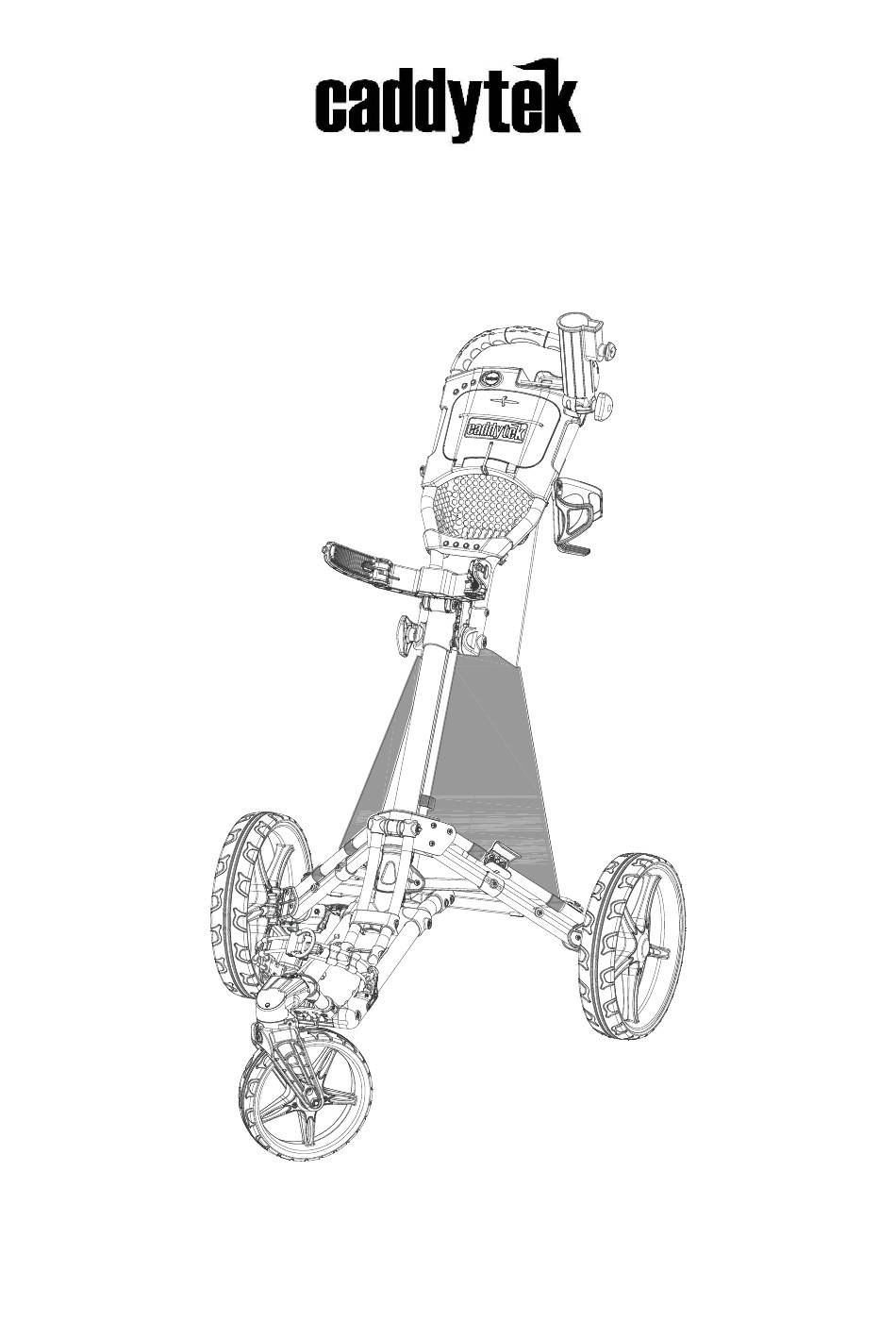

- Page 1 CaddyLite ONE – User’s Manual...
- Page 2 CaddyTek Inc. 2075 S. Atlantic Blvd., # C Monterey Park, CA 91754, USA www.caddytek.com...
- Page 3 WARNING: FOR YOUR OWN SAFETY, PLEASE REVIEW THESE WARNINGS AND KEEP THIS USER GUIDE FOR FUTURE REFERENCE. ●Before using this golf cart, please read and understand the important instructions and warnings in this user guide. ●AVOID injury by always following the folding and unfolding the cart instructions carefully ●AVOID INJURY by keeping clear of moving parts while adjusting, folding or unfolding this cart.
- Page 4 4. Umbrella holder 5. Drink holder 6. This user manual 7. Tools for adjustment In case any of the above items are missing or damaged, please call 800-906-6918 or email service caddytek@gmail.com to report. Parts identification: PVC handle grip Umbrella holder...
- Page 5 Assembly the cart Fig. 1 Fig. 2 button button Simply pull the handle and Press the button on both Lift the upper bag bracket upper bag bracket as shown in sides of the golf bag holder as shown in Fig. 1. Fig.
- Page 6 Folding push button Folding the cart Fig. 6 Fig. 7 Handle height adjusting knob Make sure the handle height adjusting knob is fully tighten .Slightly lift up the handle as Fig. 6 then press the folding button and push the handle downward as shown in Fig. 7 , Fig. 8 to fold the cart till the main frame clicks into the holding slot as in Fig.
- Page 7 Fig. 13 Fig. 14 Fig. 12 Simply push the golf bag holder wings inward to closed wings as shown in Fig12, then fold the upper bracket as shown in Fig13/14. Elastic rope Fig. 16 Fig. 15 To secure the folded cart with the lower bag holder elastic rope as shown in Fig.15/16. Upper Golf Bag Holder Bracket Release Release...
-
Page 8: Umbrella Holder
Install the drink holder Fixed block on base notch Slot on Hole 1 Hole 2 Hole 2 Fig. 19 Fig. 20 Fig. 21 When installing the drink holder as Fig.19, align the smallest part of the slot on the holder with the fixed blocks. Then pull horizontally to fit the holder on the base as Fig.20 &... - Page 9 To open the scorecard Bag Holder Strap Length Adjustment holder cover Fig. 29 Fig. 27 Fig. 28 Refer to the Fig. 27 & Fig.28: Press the button to open the 1. Pull the elastic strap out of the strap buckle as in fig. 27. scorecard holder cover as Fig.29.
-
Page 10: Warranty
This warranty does not apply to claim of damage to items used in connection with CaddyTek Inc. products. In the case of deterioration due to normal use we will repair the item for a normal charge. CaddyTek Inc. is the sole judge of any claim or warranty.
