Package contents:
1. The main frame of the cart
2. Two front wheels 26.6 cm (10.5 in.) and 2 rear wheels 29.2 cm (11.5 in.)
3. Umbrella holder
4. Basket (pre-installed on the cart)
5. Drink holder
6. This user manual
7. Hangtags on the handle
8. Tools for adjustment
In case any of the above items are missing or damaged, please call 909-895-6478 or email
service@caddytek.com to report.

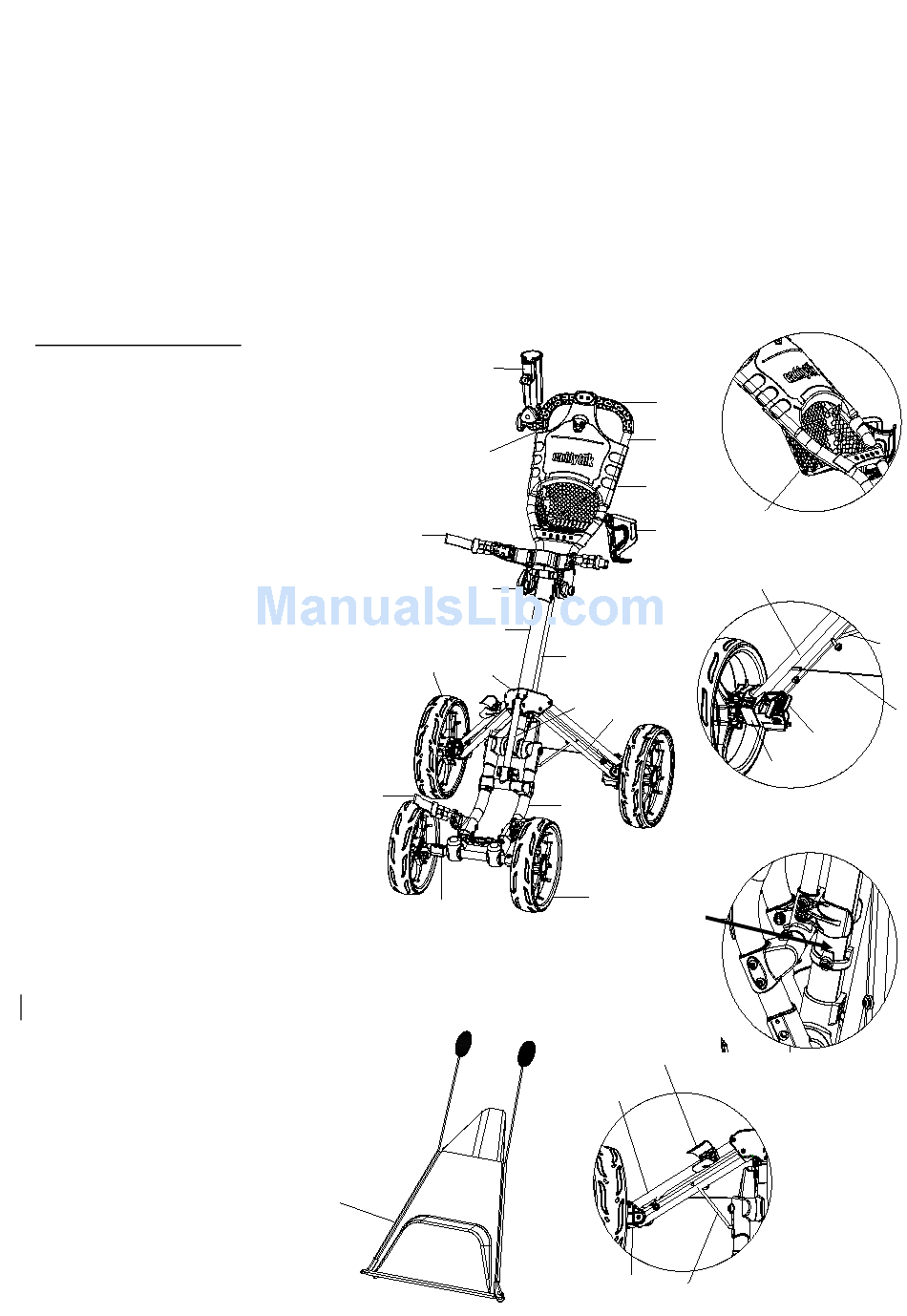

Parts identification:
A: PVC handle grip
B: Scorecard holder assembly
C. Handle frame
D: Upper bag holder bracket assembly
E: Adjustable handle mechanism
F: Main connecting rod
G: Main frame
H: Leg bracket
I:
2 holes right leg frame
J: 4 holes leg frame
K: 2 holes left leg frame
L: Left stabilization bar
L1: Right stabilization bar
M: Footbrake assembly
N: Left rear wheel holder
N1: Right rear wheel holder
O: Holding slot for folded cart frame
P: Supporting cable
Q: Sub-connecting rods
R: Front wheel fork assembly
S: Rear wheel assembly
T:
Lower bag holder bracket assembly
U: Front wheel lock mechanism
V: Front wheel assembly
W: Umbrella holder base
X: Umbrella holder
Y: Basket with cooler
Y1: Handle mesh net
Z: Drink holder
Z1: Umbrella holder storage rack
X
W
D
E
G
S
H
T
U
Y
A
C
B
Y1
Z
F
Q
J
R
V
O
Z1
K
N
L
I
L1
P
M
N1
