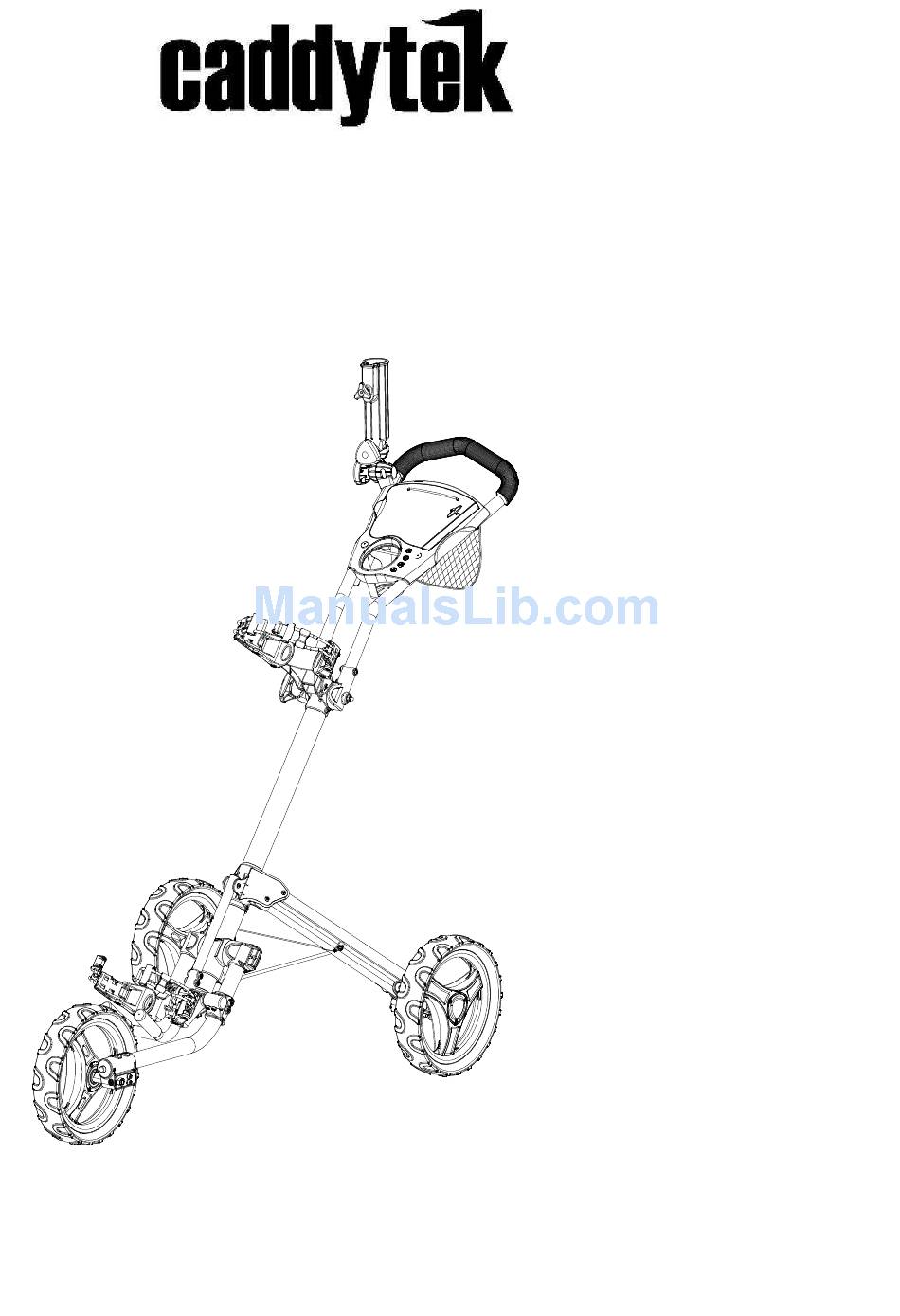

- Page 1 Quad-Fold Deluxe Golf Push Cart Model: CaddyLite 13.5 User’s Manual Ver.1...
- Page 2 WARNING: FOR YOUR OWN SAFETY, PLEASE REVIEW THESE WARNINGS AND KEEP THIS USER GUIDE FOR FUTURE REFERENCE. ●Before using this golf cart, please read and understand the important instructions and warnings in this user guide. ●AVOID INJURY by always following the folding and unfolding the cart instructions carefully.
- Page 3 Unfolding the cart Fig.2 Fig.1 Step1: Adjust the Step2: Unlock the upper bracket to lower red buckle to proper position as release front wheel in fig.1 fork as in fig. 2 Fig.3 Step 3: Push the front wheel fork downward until the support bracket clicks and then lock the red buckle as in fig.
- Page 4 Folding the cart Step 1: Press the red button and rotate the front wheel counterclockwise 180 degrees to outside of the cart as in fig. 6 Fig.6 Step 2: Release the lower Fig.7 red buckle, fold the front wheel folk till it click to position.
- Page 5 Umbrella Holder Assembly Fig.c Fig.b Fig.a Fig.d To put in use: To store: Simply attach the umbrella Attach the umbrella holder to holder onto the cart as in fig. the storage rack on the handle a&b as in fig. c & d Install and Remove the main wheels &...
- Page 6 2.Adjust the strap to desired length. 3.Push the elastic strap back to the strap buckle as in Fig.j. WARRANTY CaddyTek Inc. warrants its products to be free of defects and workmanship for one year from the date of purchase. We will either repair or replace defective products at our option.
- Page 8 Caddytek Inc. 20153 Paseo Del Prado Walnut, CA 91789, USA...
- Page 9 Package contents: 1.The main frame of the cart with the front wheel 2.Two main wheels 3.Umbrella holder 4.This user’s manual 5.Hangtag on the handle 6.Tools for adjustment In case any of above item is missing or damaged, please call 909-895-6478 Part Identification: Foam grip B: Umbrella holder...
- Page 10 Fig.5 Fig.4 Step 4: Push the red Step 5: Release the handle button to rotate the front buckle, adjust handle to wheel clockwise 180 desired position, then tighten degrees to the inner side the button as in fig. 5 of the cart as in fig. 4 The cart now is ready for use.
- Page 11 Step 3: Push the upper Fig.9 bag holder bracket downward to the folding position as in fig. 9 Step 4: Release the upper red button to fold the Fig.10 handle downward then tighten it as in Fig.10...
- Page 12 Front Wheel Alignment Fig.e Fig.f Fig.g If the cart veers to the right: Step 1: Face the front wheel of the cart and use the provided Allen wrench to loose the two side screws as in Fig.e. Step 2: Then use the Allen wrench to adjust the front bolt clockwise until the front wheel is centered as in Fig.f.
