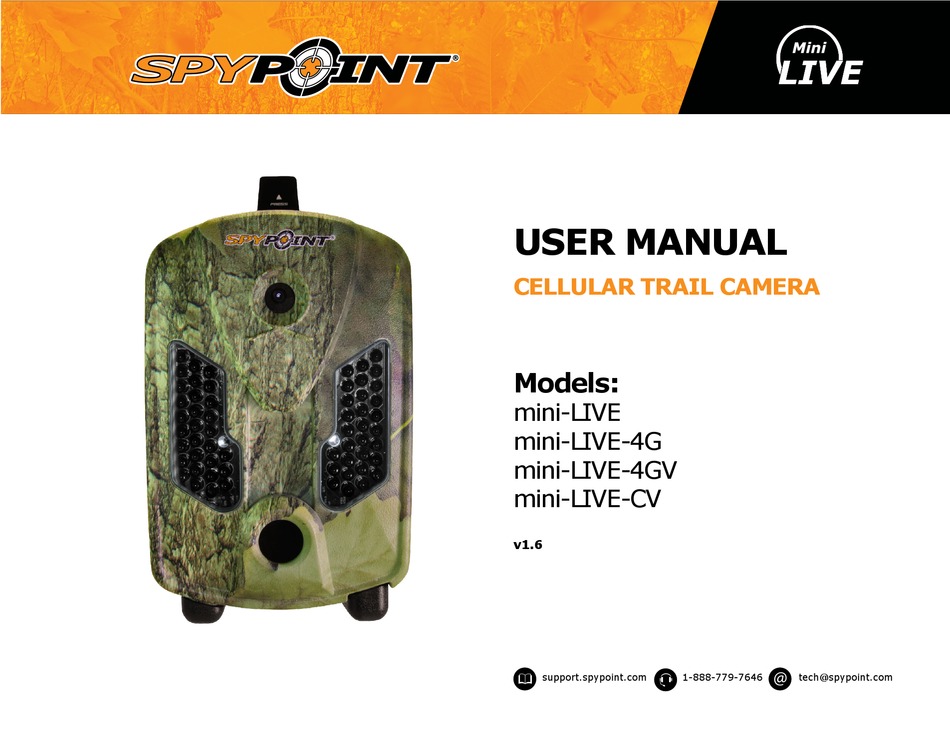

- Page 1 USER MANUAL CELLULAR TRAIL CAMERA Models: mini-LIVE mini-LIVE-4G mini-LIVE-4GV mini-LIVE-CV v1.6 support.spypoint.com 1-888-779-7646 tech@spypoint.com ...
- Page 2 This manual will guide you through all the features of your device GG Telecom’s mission is to offer products that are easy so that you will get optimal use out of your SPYPOINT product. to use, innovative, affordable and of exceptional quality.
-
Page 3: Table Of Contents
Table of contents Mini Package contents ..............4 Components ................5 Power ..................7 Mounting bracket ..............8 Memory card ................8 SIM CARD (mini-LIVE/mini-LIVE-4G) ..........8 BUSY LED ..................8 Settings ..................9 Sound recording ..............14 (mini-LIVE-4G/mini-LIVE-4GV/mini-LIVE-CV) File transfer to a computer ............15 Troubleshooting ..............16 Error messages................17 Available accessories ...............18... -
Page 4: Package Contents
Haut-parleur (mini-LIVE-4G LIT-09 de SPYPOINT ou 6 piles AA alcalines. Hauteur d’installation recommandée : environ 1 mètre du sol. mini-LIVE-4GV et mini-LIVE-CV) C’est pourquoi il est important d’être vigilant Ne pas installer la caméra face au soleil. -
Page 5: Components
BUSY LED USB port Slot for installation strap Test light Viewing screen SD card slot Tripod mount Light sensor Navigation buttons SIM card slot (mini-LIVE, mini-LIVE-4G) Battery case Microphone Built-in speaker (mini-LIVE-4G, mini-LIVE-4GV Fresnel lens (mini-LIVE-4G, mini-LIVE-4GV mini-LIVE-CV) mini-LIVE-CV) Power button... - Page 6 Image sensor and infrared filter. Microphone Records sound in video mode. (mini-LIVE-4G Invisible LEDs Night lighting to obtain black and white photos mini-LIVE-4GV, mini- and videos. LIVE-CV) Test light Flashes in TEST mode when there is detec- Power button Press the button to turn on or off the camera.
-
Page 7: Power
12V cable. Then, the camera can be reinstalled in the mounting bracket. The battery compartment adapts to SPYPOINT LIT-09 lithium battery pack or 6 AA alkaline batteries. Therefore, it is important to be careful while inserting AA batteries. -
Page 8: Mounting Bracket
SD/SDHC memory cards, up to 32 GB capacity (sold separately). SIM CARD (mini-LIVE/mini-LIVE-4G) When the camera is turned on and no memory card is used, the camera The use of a SIM card is required to take advantage of the cellular features beeps. -
Page 9: Settings
Settings Mini Use the and buttons to navigate in the interface and modify the selection, VIEW the OK button to select and the button to return to the previous menu. Allows the user to view or delete recorded photos and videos on the camera screen. - Page 10 Settings Mini PHOTO SETTINGS TIME LAPSE SETTINGS Sets the options of the PHOTO mode. Sets the options of the TIME LAPSE mode. Delay: Interval: (10s/1m/3m/5m/10m/15m/30m) (30s/1m/3m/5m/15m/30m/1h) Allows the user to choose the time interval between each detection before Allows the camera to take photos at regular preset intervals.
- Page 11 - To complete, select OK on the keyboard and press OK. An MMS plan is required, available from a compatible cellular service Provider: provider. Activation procedure available at spypoint.com/activation. (mini-LIVE, mini-LIVE 4G) The provider selected must correspond with the SIM card used in the camera.
- Page 12 Allows the user to choose the size of the photos sent. Large: 640X480 (mySPYPOINT/MMS/EMAILS) Provisioning (Mini-LIVE-4GV / Mini-LIVE-CV only) Thumbnails: 160X120 (mySPYPOINT) Allows the camera to collect the necessary information for cellular network Note: For MMS and Email modes, photos are always sent in large format.
- Page 13 LIT-09 charger Debug mode (Yes/No) Allows the user to change the power source (AA batteries, Lithium battery pack, External 12V or Solar panel) see p.7 for more details. This option gives additional information to allow SPYPOINT technicians to solve potential problems.
-
Page 14: Sound Recording
Sound recording (mini-LIVE-4G/mini-LIVE-4GV/ mini-LIVE-CV) Mini The SPYPOINT camera offers the possibility to record sound in VIDEO mode. When the VIDEO mode is selected, the camera automatically records the sound. Under the camera, there is a rubber cap with the inscription MIC. If the user does not want to record the sound, the rubber cap needs to stay in place. -
Page 15: File Transfer To A Computer
File transfer to a computer Mini To transfer photos/videos to a computer: 1. Turn on the camera. Note that the camera has to be turned on in order for the computer to recognize the SD card. 2. Connect the USB cable from the camera to a computer. It is recommended to use the supplied cable. -
Page 16: Troubleshooting
(Mini- activation procedure). LIVE-4GV and • Make sure you are in the Verizon coverage zone. The camera beeps • Insert a memory card. mini-LIVE-CV The camera does • Remove the batteries and reinstall them. only) not respond • Replace alkaline batteries or recharge the lithium battery pack. -
Page 17: Error Messages
(Mini-LIVE / Mini-LIVE-4G only) No SIM card The SIM card is missing or defective. (Mini- LIVE / Mini-LIVE-4G only) The SIM card is defective. Bad SIM (Mini-LIVE / Mini-LIVE-4G only) SIM card locked To unlock the SIM card, contact the cellular service provider. -
Page 18: Available Accessories
Available accessories Mini obtain more information available accessories, www.spypoint.com. Here are the main accessories available: Rechargeable 12V battery, Solar panel POWER charger & housing kit #SP-12V, Solar panel with #KIT-12V, 12-volt 7.0Ah rechar- adjustable steel mounting kit. geable battery with... - Page 19 #TP-CAM, SPYPOINT Lightweight tripod, in black aluminum, with a unique anchor system and a remo- vable quick release plate. Max. height: 4.9 ft (1.5 m), min. height: 1.7 ft (0.5 m), max. load weight: 11 lbs (5 kg). Fits most SPYPOINT products.
-
Page 20: Specifications Mini-Live
Specifications (mini-LIVE) Mini Photo recording Night time illumination system LEDs 62 LEDs Photo resolution 8 MP Type Invisible LEDs File format Exposure Automatic infrared level adjustment Time lapse mode Predefined intervals from 30 s to 1 h Optical field of view... -
Page 21: Mini-Live-4G
Specifications (mini-LIVE-4G) Mini Photo recording Detection system Motion sensor Photo resolution 10 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Time lapse mode Predefined intervals from 30 s to 1 h Delay between each detection... -
Page 22: Mini-Live-4Gv
Specifications (mini-LIVE-4GV) Mini Photo recording Detection system Motion sensor Photo resolution 10 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Time lapse mode Predefined intervals from 30 s to 1 h Delay between each detection... -
Page 23: Mini-Live-Cv
Specifications (mini-LIVE-CV) Photo recording Detection system Motion sensor Photo resolution 8 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Time lapse mode Predefined intervals from 30 s to 1 h Delay between each detection... -
Page 24: Regulation
Hereby, GG Telecom declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 99/5/EC. The user can obtain a copy of the Declaration of Conformity by email at info@spypoint.com. -
Page 25: Limited Warranty
Limited warranty and repair This SPYPOINT product designed by GG Telecom, is covered by a one (1) INSTRUCTIONS FOR REPAIR SERVICE year warranty on material and workmanship starting from the original date GG Telecom will repair the product without charge or replace it at its discre- of purchase.
