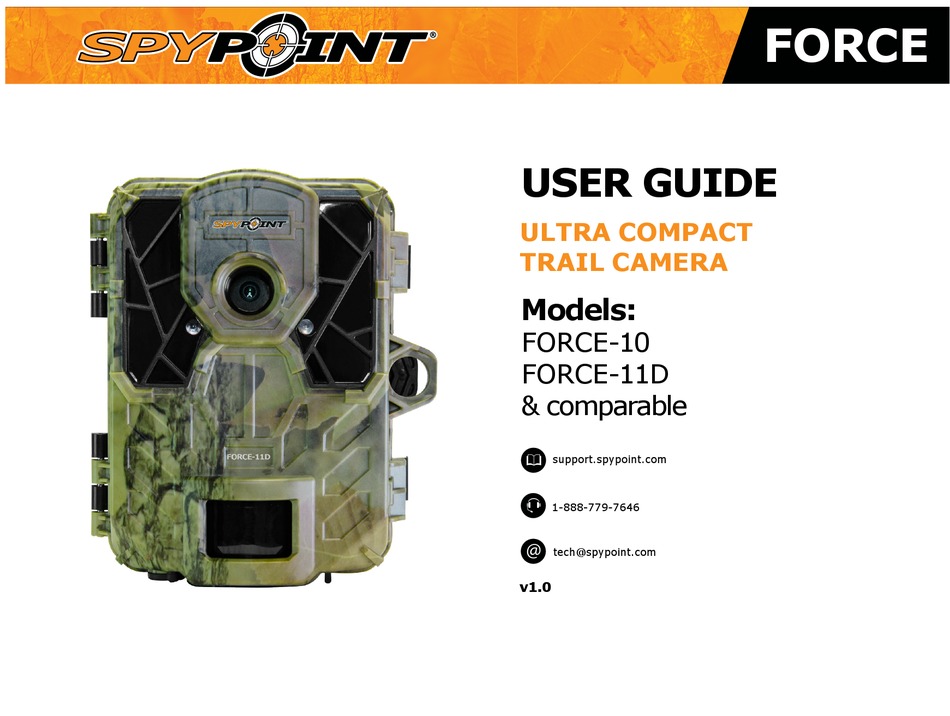

- Page 1 USER GUIDE UltRa coMpact tRaIl caMERa Models: Force-10 Force-11D & comparable support.spypoint.com 1-888-779-7646 tech@spypoint.com v1.0...
- Page 2 This manual will guide you through all the features of your device shipped all over the world and the market never stops growing. so that you will get optimal use out of your SPYPoINT product. our Prosperous and respected, GG Telecom is a company that constantly priority is to provide outstanding customer service.
-
Page 3: Table Of Contents
Table of contents FORCE components ................. 4 Specifications Force-10 ..................6 Force-11D ..................7 power ................... 8 Memory card & Busy lED .............. 9 Settings ..................10 Installation & Mounting bracket ..........14 file transfer to a computer ............15 available accessories ..............16 troubleshooting ................17... -
Page 4: Components
Photo lens Navigation buttons Microphone Test light oN / oFF switch BUSY LeD cable lock hole Configuration screen Slot for installation strap Light sensor (Force-10 & comparable) Tripod mount Motion sensor Viewing screen Battery case (Force-11D & comparable) SD card slot... - Page 5 Configuration screen Allows the user to configure the settings of the Motion sensor Expands the detection area and increases the (Force-10 & comparable ) camera through the main menu. sensitivity of the camera’s motion sensor. Viewign screen Allows the user to access the main menu and...
-
Page 6: Specifications Force-10
FORCE Specifications foRcE-10 photo recording Detection system Motion sensor Photo resolution 10 MP Detection angle 55° File format Detection range Adjustable from 5 to 80 ft Time lapse mode Predefined intervals from 30 s to 1 h Delay between each detection... -
Page 7: Force-11D
FORCE Specifications foRcE-11D photo recording Detection system Motion sensor Photo resolution 11 MP Detection angle 55° File format Detection range Adjustable from 5 to 80 ft Time lapse mode Predefined intervals from 30 s to 1 h Delay between each detection Adjustable from 10 s to 30 min Multi-shot mode Up to 6 photos per detection... -
Page 8: Power
BattERy pack This SPYPoINT camera can be powered by a rechar- geable lithium battery pack LIT-09/LIT-c-8 (sold separately). This type of battery is less affected by cold temperatures and lasts up to 3 times longer... -
Page 9: Memory Card & Busy Led
note: This SPYPOINT camera is equiped with continuous file recording. When the memory card is full, the camera will continue to record photos or videos by deleting the first recorded files. -
Page 10: Settings
FORCE Settings Use the and buttons to navigate in the interface and modify the selection, Selected photo / total number of photos the oK button to select and the button to return to the previous menu. The play icon indicates that this element is a video StaRt caMERa The white outline indicates which photo is selected Allows the user to start the camera in either, PHoTo,... - Page 11 FORCE Settings TIMe LAPSe SeTTINGS PHoTo SeTTINGS Sets the options of the TIMe LAPSe mode. Sets the options of the PHoTo mode. Interval: Recommended settings (30s/1m/3m/5m/15m/30m/1h) The camera can be configured for usage in trails. This situation usually Allows the camera to take photos at regular preset intervals.
- Page 12 FORCE Settings GeNerAL SeTTINGS Sets the general options of the camera. Quality: Device name (normal/high) Allows naming the camera with the electronic keyboard to identify it Allow the user to set the photo quality. clearly. This option is particularly useful for users with more than one camera.
- Page 13 Blur reduction * Available for photos only (Force-10 & comparable don't have the Blur reduction option) temp. units: (°c/°f) Allows the user to select the temperature display. about the device: Allows the user to displays system information:...
-
Page 14: Installation & Mounting Bracket
FORCE Installation & Mounting bracket InStallatIon MoUntInG BRackEt Recommended installation height: To remove the camera from the mounting bracket: The camera should be installed at the same height as the animal’s mid-body. 1. Push the tab to release the camera from the mounting bracket. Ideal installation for quality pictures &... -
Page 15: File Transfer To A Computer
FORCE File transfer to a computer To transfer photos/videos to a computer: • Turn OFF the camera. • Remove the SD card from the camera. • Insert the SD card into the computer slot, or use a memory card adaptor. •... -
Page 16: Available Accessories
12V battery to a camera. by bears or other animals. Fits all can rotate 360° and tilt approx +/- PoINT cameras. 42 LeD SPYPoINT cameras. 90°. Also available in black. ULTRA HIGH SPEED/ULTRA HAUTE VITESSE 16 GB Memory Card Carte Mémoire... -
Page 17: Troubleshooting
FORCE Troubleshooting No person/animal • Sunrise or sunset can trigger the sensor. Camera Issue Possible solutions on photos must be re-orientated. Impossible to turn • Verify if there are batteries in the camera. • At night, the motion detector may detect beyond the on the camera •... -
Page 18: Limited Warranty
InStRUctIonS foR REpaIR SERVIcE This SPYPoINT product designed by GG Telecom, is covered by a one (1) GG Telecom will repair the product or replace it at its discretion with an year warranty on material and workmanship starting from the original date equivalent product without charge if covered by the warranty described of purchase. -
Page 19: Regulation
FORCE regulations fcc REGUlatIonS Fcc Part l5 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal communications commission (Fcc) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
