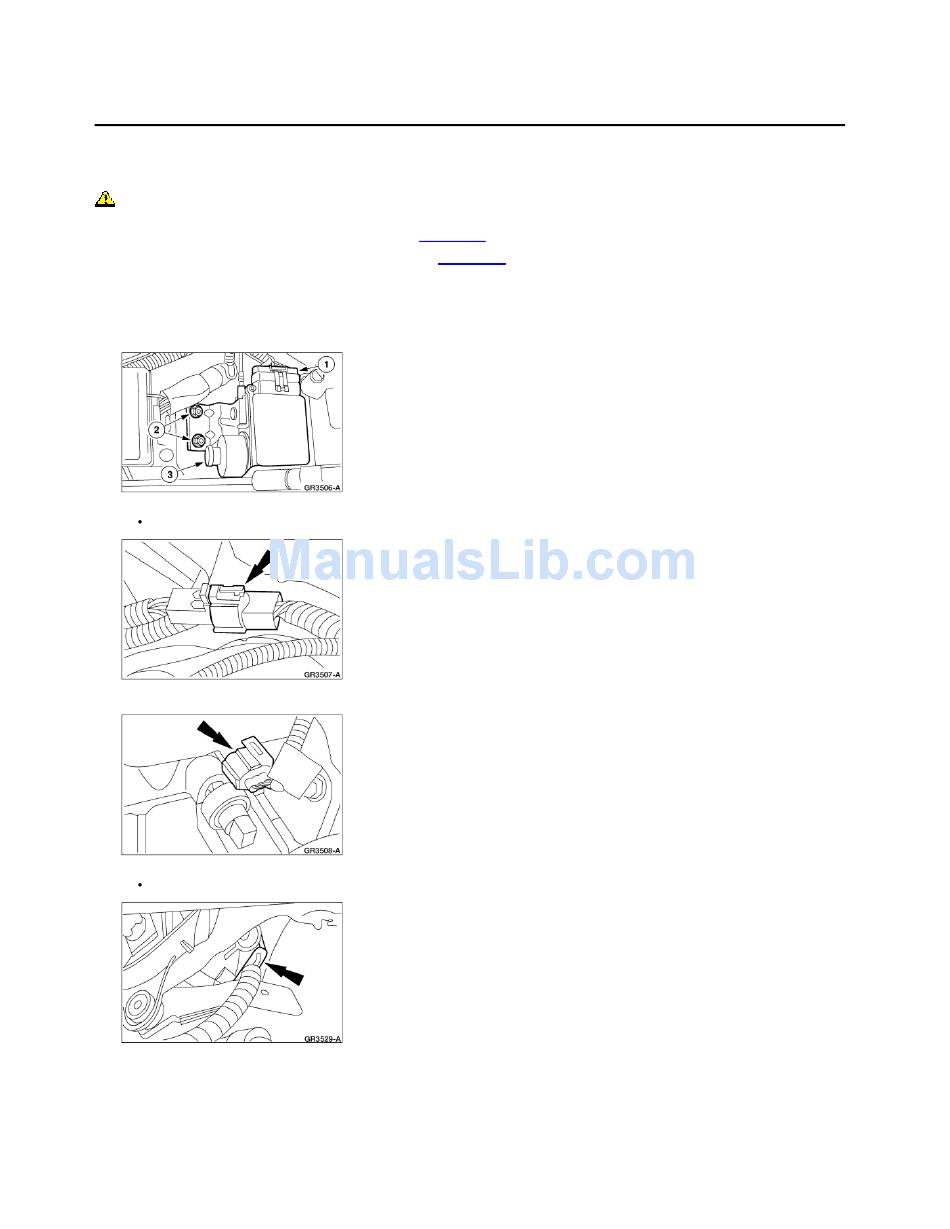

2000 Crown Victoria/Grand Marquis Workshop Manual
SECTION 501-12: Instrument Panel and Console
REMOVAL AND INSTALLATION
Instrument Panel
Removal
CAUTION: Electronic modules are sensitive to static electrical charges. Avoid exposing any modules to static electrical charges, as this may cause damage to the
modules.
1. Remove the driver side air bag module. For additional information, refer to
2. Remove the passenger side air bag module. For additional information, refer to
3. Close the glove compartment.
4. Position the speed control servo aside.
1. Disconnect the electrical connector.
2. Remove the nuts.
3. Position the speed control servo aside.
5. Disconnect the LH engine compartment in-line electrical connector.
Release the wiring harness locators.
6. Disconnect the brake fluid sensor electrical connector.
7. Disconnect the windshield wiper motor electrical connector.
Release the wiring harness locators.
8. Disconnect the LH engine compartment in-line electrical connectors.
http://www.fordtechservice.dealerconnection.com/pubs/content/~WSYA/~MUS~LEN/20/...
Section
501-20B.
Section
501-20B.
Page 1 of 17
2000 Crown Victoria/Grand Marquis Workshop Manual
Procedure revision date: 06/21/1999
8/20/2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2000 Crown Victoria and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ford 2000 Crown Victoria

  • Page 1 2000 Crown Victoria/Grand Marquis Workshop Manual Page 1 of 17 SECTION 501-12: Instrument Panel and Console 2000 Crown Victoria/Grand Marquis Workshop Manual REMOVAL AND INSTALLATION Procedure revision date: 06/21/1999 Instrument Panel Removal CAUTION: Electronic modules are sensitive to static electrical charges. Avoid exposing any modules to static electrical charges, as this may cause damage to the modules.
  • Page 2 2000 Crown Victoria/Grand Marquis Workshop Manual Page 2 of 17 9. Unseat the LH wiring harness grommet. 10. Disconnect the blower motor electrical connector. 11. Disconnect the A/C pressure cut-off switch electrical connector. 12. Disconnect the RH engine compartment in-line wiring harness connectors.
  • Page 3 2000 Crown Victoria/Grand Marquis Workshop Manual Page 3 of 17 14. Disconnect the blower motor controller electrical connector. Release the wiring harness locators. 15. Remove the RH front wheel and tire assembly. For additional information, refer to Section 204-04. 16. Remove the upper front fender splash shield bolts.
  • Page 4 2000 Crown Victoria/Grand Marquis Workshop Manual Page 4 of 17 21. Install the RH front wheel and tire assembly. For additional information, refer to Section 204-04. 22. Remove the RH instrument panel lower insulator. 1. Remove the pin-type retainers. 2. Release the locking tab.
  • Page 5 2000 Crown Victoria/Grand Marquis Workshop Manual Page 5 of 17 27. Remove the RH ground bolts. 28. Disconnect the RH bulkhead electrical connectors. 1. Loosen the bolt. 2. Disconnect the RH bulkhead electrical connectors. 29. If equipped, disconnect the electronic automatic temperature control (EATC) hose from the evaporator housing.
  • Page 6 2000 Crown Victoria/Grand Marquis Workshop Manual Page 6 of 17 32. Remove the center carpet insert. 1. Remove the two pin-type retainers. 2. Remove the center carpet insert. 33. Disconnect the climate control head vacuum harness connector. 34. Remove the instrument panel tunnel brace.
  • Page 7 2000 Crown Victoria/Grand Marquis Workshop Manual Page 7 of 17 38. Disconnect the parking brake release vacuum connector. 39. Disconnect the vacuum connector. 40. Position the steering column brace aside. 1. Remove the nut. 2. Position the steering column brace aside.
  • Page 8 2000 Crown Victoria/Grand Marquis Workshop Manual Page 8 of 17 43. Remove the LH ground bolt. 44. Disconnect the LH wiring harness connectors. 45. Remove the instrument panel defroster opening grille. If equipped, disconnect the electrical connectors. 46. Remove the three instrument panel cowl top screws.
  • Page 9 2000 Crown Victoria/Grand Marquis Workshop Manual Page 9 of 17 48. Remove the upper LH instrument panel cowl side nut. 49. Remove the lower LH instrument panel cowl side bolt. 50. NOTE: Two technicians are required to carry out this step.
  • Page 10 2000 Crown Victoria/Grand Marquis Workshop Manual Page 10 of 17 5. Install the three instrument panel cowl top screws. 6. Install the instrument panel defroster opening grille. If equipped, connect the electrical connectors. 7. Connect the LH wiring harness connectors.
  • Page 11 2000 Crown Victoria/Grand Marquis Workshop Manual Page 11 of 17 10. Connect the intermediate shaft to the steering column. 1. Connect the intermediate shaft to the steering column. 2. Install the pinch bolt. 11. Install the steering column brace. 1. Position the steering column brace.
  • Page 12 2000 Crown Victoria/Grand Marquis Workshop Manual Page 12 of 17 15. Install the instrument panel lower steering column cover. 1. Position the instrument panel lower steering column cover. 2. Install the screws. 16. Install the LH instrument panel insulator. 1. Position the LH instrument panel insulator.
  • Page 13 2000 Crown Victoria/Grand Marquis Workshop Manual Page 13 of 17 20. Feed the RH wiring harness through the dash panel and seat the wiring grommet. 21. Install the LH and RH door weatherstrip seals. 22. If equipped, connect the EATC hose to the evaporator housing.
  • Page 14 2000 Crown Victoria/Grand Marquis Workshop Manual Page 14 of 17 25. Connect the antenna cable in-line connector. 26. Connect the ECS module electrical connector. 1. Connect the ECS module electrical connector. 2. Install the ECS module electrical connector locking clip.
  • Page 15 2000 Crown Victoria/Grand Marquis Workshop Manual Page 15 of 17 32. Install the upper front fender splash shield. Install the bolts. 33. Install the lower front fender splash shield locator and bolt. 34. Install the RH front wheel and tire assembly. For additional information, refer to Section 204-04.
  • Page 16 2000 Crown Victoria/Grand Marquis Workshop Manual Page 16 of 17 38. Connect the A/C pressure cut-off switch electrical connector. 39. Connect the blower motor electrical connector. 40. Seat the LH wiring harness grommet. 41. Connect the LH engine compartment in-line electrical connectors.
  • Page 17 2000 Crown Victoria/Grand Marquis Workshop Manual Page 17 of 17 43. Connect the brake fluid sensor electrical connector. 44. Connect the LH engine compartment in-line electrical connector. Engage the wiring harness locators. 45. Install the speed control servo. 1. Position the speed control servo.
