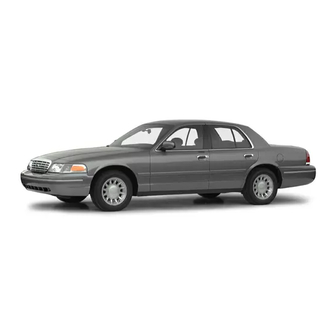

Ford 2000 Crown Victoria Owner's Manual

Ford motor company 2000 ford crown victoria owner's guide

Hide thumbs Also See for 2000 Crown Victoria:

Workshop manual (17 pages)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

Table Of Contents

225

Table of Contents

Quick Links

Need help?

Do you have a question about the 2000 Crown Victoria and is the answer not in the manual?

Questions and answers

Summary of Contents for Ford 2000 Crown Victoria

Page 1 All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Page 2: Introduction
Introduction The following warning may be required by California law: CALIFORNIA Proposition 65 Warning Engine exhaust, some if its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm. ICONS Indicates a safety alert.
Page 3 INFORMATION ABOUT THIS GUIDE The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation. SPECIAL NOTICES Notice to owners of Severe Duty vehicles Before you drive your vehicle, be sure to read the “Severe Duty Owner’s...
Page 4 Introduction These are some of the symbols you may see on your vehicle. Safety Alert Fasten Safety Belt Air Bag-Side Child Seat Installation Warning Brake System Brake Fluid - Non-Petroleum Based Master Lighting Switch Fog Lamps-Front Fuel Pump Reset Windshield Defrost/Demist Power Windows Front/Rear...
Page 5 Child Safety Door Lock/Unlock Panic Alarm Engine Coolant Do Not Open When Hot Avoid Smoking, Flames, or Sparks Explosive Gas Power Steering Fluid Emission System Passenger Compartment Air Filter Vehicle Symbol Glossary Interior Luggage Compartment Release Symbol Engine Oil Engine Coolant Temperature Battery Battery Acid...
Page 6: Instrumentation
Instrumentation Instrument panel Headlamp control (pg. 24) PANEL AUTO LAMP PUSH INTERIOR R.DEF. Rear window defroster control (pg. 25) Turn signal and wiper/washer control (pg. 63) * if equipped dimmer switch (pg. 24) Driver air bag (pg. 105) CHECK ENGINE VOLTS FUEL <...
Page 7 Gearshift with O/D control (pg. 128) COAST Climate control systems (pg. 26) VOL - PUSH ON BASS TREB FADE SEEK SIDE SCAN TUNE Clock (pg. 34) Instrumentation Electronic sound system (pg. 35) TAPE 1 - 2 Traction control switch* (pg. 123)
Page 8: Warning Lights And Chimes
Instrumentation WARNING LIGHTS AND CHIMES Standard instrument cluster TRAC CHECK FUEL ENGINE CNTL VOLTS FUEL < FUEL FILL DOOR Optional instrument cluster Low fuel (if equipped) Illuminates as an early reminder of a low fuel condition indicated on the fuel gauge (refer to Fuel gauge in this chapter for more information).
Page 9 Instrumentation Check engine Your vehicle is equipped with a computer that monitors the engine’s CHECK emission control system. This ENGINE system is commonly known as the On Board Diagnostics System (OBD II). This OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards.
Page 10 Instrumentation Light is blinking: Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity. Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
Page 11 Brake system warning Standard instrument cluster Optional instrument cluster Momentarily illuminates when the ignition is turned to the ON position. Also illuminates if the parking brake is engaged. If brake warning lamp does not illuminate at these times, seek service immediately.
Page 12 Instrumentation Charging system Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service. Engine oil pressure (if equipped) Illuminates when the oil pressure falls below the normal range.
Page 13 O/D off Standard instrument cluster Optional instrument cluster Illuminates when the Transmission Control Switch (TCS), refer to Overdrive control in the Controls and Features chapter, has been pushed turning the transmission overdrive function OFF. When the light is on, the transmission does not operate in the overdrive mode, refer to the Driving chapter for transmission function and operation.
Page 14 Instrumentation Door ajar Illuminates when one of the doors is not completely shut and the ignition is turned to ON. With the ignition ON, this light will flash five times and sound a tone for one second, then remain on (if a door is open). Low washer fluid Momentarily illuminates when the ignition is turned to ON and will...
Page 15: Fuel Gauge
Headlamps on warning chime Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened. GAUGES Standard instrument cluster gauges TRAC CHECK CNTL FUEL ENGINE VOLTS FUEL...
Page 16 Instrumentation Standard instrument cluster Optional instrument cluster A minimum of four gallons must be added or removed from the fuel tank in order for the gauge to instantaneously update. If less than four gallons is added, the gauge will take between five to ten minutes to update.
Page 17 Optional instrument cluster Odometer Registers the total kilometers (miles) of the vehicle. Standard instrument cluster Optional instrument cluster Refer to Electronic Message Center for information on how to switch the display from metric to English measurements. Instrumentation 60 70 0 0 0 0 0 0 0 km/h km/h km/h...
Page 18 Instrumentation Trip odometer Registers the kilometers (miles) of individual journeys. To reset, depress the control. Refer to Electronic Message Center for Trip A and Trip B features on the optional instrument cluster. Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H”...
Page 19 Optional instrument cluster This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate. If the gauge enters the red section, the engine coolant and Check Engine/Service Engine Soon indicators illuminate, refer to What you should know about fail-safe cooling in the Maintenance and care chapter.
Page 20 Instrumentation Add oil if needed (refer to Engine oil in the Maintenance and care chapter). If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician. ELECTRONIC MESSAGE CENTER The electronic message center only works when the ignition is in the ON position.
Page 21 Press this control to switch the electronic instrument cluster display and the message center display from metric to English units. Select Each press of the SELECT control will select a different function. Press the right side of the control to advance the function to the right, and press the left side of the control to advance the function to the left.
Page 22 Instrumentation Remember to turn the ignition OFF when refueling your vehicle. Otherwise, the display will not show the addition of fuel for a few miles. At least four gallons of fuel must be added for the fuel gauge to immediately show the new fuel level. The DTE function will flash for 5 seconds and sound a tone for 1 second when you have approximately: 80 km (50 miles) left before you run out of fuel...
Page 23 Press the RESET control while AVG ECON is displayed to reset the function. The average displayed is the average since the last reset. TRIP A and TRIP B These two functions allow you to see how far you have traveled since you last reset.
Page 24: Controls And Features
Controls and features PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel during headlight and parklamp operation. Push up to brighten. Push down to dim. HEADLAMP CONTROL Rotate the headlamp control to the first position to turn on the parking lamps.
Page 25 High beams Push forward to activate. Pull toward you to deactivate. Flash to pass Pull toward you to activate and release to deactivate. AUTOLAMP CONTROL (IF EQUIPPED) The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.
Page 26 Controls and features Press the rear defroster control to clear the rear window of thin ice and fog. A small LED will illuminate when the rear defroster is activated. The ignition must be in the ON position to operate the rear window defroster.
Page 27 Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle. MAX A/C-Uses recirculated air to cool the vehicle.
Page 28 Controls and features To prevent humidity buildup inside the vehicle, do not drive with the climate control system in the OFF or MAX A/C position. Do not put objects under the front seat that will interfere with the airflow to the back seats. Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield).
Page 29 Turning the EATC on Press AUTOMATIC, any of the override controls or the fan speed control. The EATC will only operate when the vehicle is running. Turning the EATC off Press OFF. The Outside Temperature function will continue to operate until the ignition is turned off.
Page 30 Controls and features To control the temperature, select any temperature between 18°C (65°F) and 29°C (85°F) by pressing the blue (cooler) or red (warmer) buttons. For continuous maximum cooling, push the blue button until 16°C (60°F) is shown in the display window. The EATC will continue maximum cooling (disregarding the displayed temperature) until a warmer temperature is selected by pressing the red button.
Page 31 Fan speed ( When AUTOMATIC is pressed, fan speed is adjusted automatically for existing conditions. You can override fan speed at any time. To control fan speed manually, use the thumbwheel to cancel automatic fan speed operation. Rotate the thumbwheel up for higher fan speed or down for lower fan speed.
Page 32 Controls and features economical and will cool the inside of the vehicle faster. Airflow is from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle. NORM A/C-Uses outside air to cool the vehicle. The temperature display will remain the same and air will be cooled based on the selected temperature.
Page 33 Displaying outside temperature Press OUTSIDE TEMP to display the outside air temperature. It will be displayed until OUTSIDE TEMP is pressed again. If the selected temperature is changed while the outside temperature is displayed, the new temperature will be displayed for four seconds after it is changed, then the outside temperature will return to the window.
Page 34 Controls and features Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield). If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you drive for two or three minutes with the windows open.
Page 35 USING YOUR AUDIO SYSTEM AM/FM Stereo PUSH Volume/power control Press the control to turn the audio system on or off. Turn the control to raise or lower volume. Controls and features TONE TONE VOL SEEK TUNE AM/FM PUSH PUSH...
Page 36 Controls and features If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. AM/FM select The AM/FM select control works in radio mode.
Page 37 Radio station memory preset The radio is equipped with four station memory preset controls. These controls can be used to select up to four preset AM stations and eight FM stations (four in FM1 and four in FM2). Setting memory preset stations 1.
Page 38 Controls and features Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers. Press the TONE control three times, then use the volume knob to adjust the desired level. Speaker fade adjust (if equipped) Speaker sound can be adjusted between the front and rear speakers.
Page 39 Controls and features Volume/power control Press the control to turn the audio VOL - PUSH ON system on or off. Turn the control to raise or lower volume. VOL - PUSH ON If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal”...
Page 40 Controls and features Tune adjust The tune control works in radio mode. Tune adjust in radio mode Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.
Page 41 Controls and features Setting memory preset stations 1. Select the frequency band with the AM or the FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.
Page 42 Controls and features Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers. Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers. Tape select To enter tape mode while in radio mode, press the TAPE AMS control.
Page 43 selection). The tape deck stops and returns to play mode when the AMS circuit senses a blank section on the tape. In order to ensure proper operation of the AMS feature, the tape MUST have a blank section of at least four seconds duration between programs. Rewind The rewind control works in tape mode.
Page 44: Setting The Clock
Controls and features Setting the clock Your vehicle is equipped with a separate instrument panel mounted clock. Please refer to Clock in this chapter for instructions on setting the clock. AM/FM Stereo / Single CD Radio VOL - PUSH ON BASS SEEK TUNE...
Page 45 If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. AM/FM select The AM/FM select control works in radio and CD modes.
Page 46 Controls and features Seek function The seek function control works in radio, CD or CD changer mode (if equipped). Seek function in radio mode Press to find the next listenable station down the frequency band. Press to find the next listenable station up the frequency band.
Page 47 Controls and features Setting memory preset stations 1. Select the frequency band with the AM/FM select control. 2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station. 3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.
Page 48 Controls and features Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers. Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers. CD select To begin CD play (if CD[s] are loaded), press the CD control.
Page 49 Fast forward The fast forward control works in CD mode. To fast forward in CD changer mode, press the CD control (preset Press the control again to deactivate fast forward mode. Eject function Press the control to stop and eject a Compression feature Compression adjust brings soft and loud CD passages together for a...
Page 50 Controls and features Premium AM/FM Stereo/Cassette (CD Changer Compatible) PUSH ON TAPE MUTE Your audio system is equipped with selective lighting, a unique lighting strategy. This lighting feature is operable when the headlamps are illuminated. During the operation of any selected mode, lighting for the individual function controls will either illuminate or turn off.
Page 51 Turn the control to raise or lower volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. AM/FM select The AM/FM select control works in radio, tape and CD modes (if...
Page 52 Controls and features disc unless the CD changer is in shuffle mode.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs. Press to select the next disc in the CD changer. Hold the control to fast-forward through the remaining discs.
Page 53 Controls and features Scan function in radio mode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode. Scan function in tape mode Press the SCAN control to hear a short sampling of all selections on the tape.
Page 54 Controls and features Starting autoset memory preset 1. Select a frequency using the AM/FM select controls. 2. Press the AUTO control. 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing.
Page 55 Speaker fade adjust Speaker sound can be adjusted between the front and rear speakers. Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers. Tape/CD select To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control.
Page 56 Controls and features In CD mode, pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action. Tape direction select Press SIDE 1–2 to play the alternate side of a tape.
Page 57 shuffle feature continues to the next disc after all tracks are played. Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again. Mute mode Press the control to mute the playing media.
Page 58 Controls and features Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections: Classic Country Info Jazz Oldies R & B Religious Rock Soft...
Page 59 CD changer (if equipped) The CD changer is located in one of the following locations: in the trunk in the center console under the driver’s seat 1. Slide the door to access the CD changer magazine. 2. Press to eject the magazine. 3.
Page 60 Controls and features If you pull too hard on the disc holder, the disc holder may come completely out of the magazine. If this happens, reinsert the disc holder back into the magazine while pressing on the lever (A). 5. Line up the CD with the groove of the disc holder.
Page 61 The CD magazine may be inserted or ejected with the radio power off. ONLY use the magazine supplied with the CD changer, other types will damage the unit. Keep the CD changer door closed. Coins and foreign objects will damage the CD player and void your audio system warranty.
Page 62 Controls and features Do not insert more than one disc into each slot of the CD changer magazine. Cleaning cassette player (if equipped) Clean the tape player head with a cassette cleaning cartridge after 10 to 12 hours of play in order to maintain the best sound and operation. Cassette and cassette player care Use only cassettes that are 90 minutes long or less.
Page 63 Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed. The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.
Page 64 Controls and features POSITIONS OF THE IGNITION 1. ACCESSORY, allows the electrical accessories such as the radio to operate while the engine is not running. 2. LOCK, locks the steering wheel, automatic transmission gearshift lever and allows key removal. 3. OFF, shuts off the engine and all accessories without locking the steering wheel.
Page 65 OVERDRIVE CONTROL Activating overdrive (Overdrive) is the normal drive position for the best fuel economy. The overdrive function allows automatic upshifts and downshifts through all available gears. Deactivating overdrive Press the Transmission Control Switch (TCS) located on the end of the gearshift lever.
Page 66 Controls and features Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved. Do not shift the gearshift lever into N (Neutral) with the speed control on. To turn speed control off Press OFF or Turn off the vehicle ignition.
Page 67 If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RES/RSM/RESUME will re-engage it. Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.
Page 68 Controls and features Depress the brake pedal. When the desired vehicle speed is reached, press SET/SET ACC/ SET ACCEL. To disengage speed control Depress the brake pedal. Disengaging the speed control will not erase the previously programmed set speed. Pressing OFF will erase the previously programmed set speed.
Page 69 To return to a previously set speed Press RES/RSM/RESUME. For RES/RSM/RESUME to operate, the vehicle speed must be faster than 48 km/h (30 mph). Indicator light (if equipped) This light comes on when either the SET ACC/SET ACCEL or RES/RSM/ RESUME controls are pressed.
Page 70 Controls and features Programming 1. Prepare for programming the HomeLink Universal Transceiver by erasing the three factory default codes by holding down the two outside buttons until the red light begins to flash after 20 seconds. Release both buttons. 2. Hold the end of your hand-held transmitter 5–14 cm (2–5 inches) away from the HomeLink Universal Transceiver surface (located on your visor) while keeping the red light in...
Page 71 To program your hand-held transmitters: continue to hold the button on the HomeLink Universal Transceiver. press and re-press the hand-held transmitter button every two seconds until the red light changes from a slow to a fast flash. Operating the HomeLink Universal Transceiver Once programmed, the HomeLink Universal Transceiver can be used in place of hand-held transmitters.
Page 72 Controls and features 3. Press and release the programmed HomeLink button. Press and release the HomeLink button a second time to complete the training process. (Some garage door openers may require this procedure to be done a third time to complete the training). The 2nd or 3rd press from step 3 will activate the door.
Page 73 Controls and features AUTOMATIC DIMMING INSIDE REAR VIEW MIRROR (IF EQUIPPED) Your vehicle is equipped with an inside rear view mirror which has an auto-dimming function. The electronic day/night mirror will change from the normal state to the non-glare state when bright lights (glare) reach the mirror.
Page 74 Controls and features Compass zone adjustment 1. Determine which compass zone you are in by referring to the zone map. 2. With the compass display turned on, press and hold the COMP side of the control for no more than six seconds until the zone selection number appears in the mirror COMP...
Page 75 2. Press and hold the COMP side of the control for approximately six seconds until “C” appears in the mirror display. 3. Drive the vehicle slowly (less than 5 km/h [3 mph]) in circles or on your everyday routine until the display reads a direction.
Page 76 Controls and features Press the bottom portion of the rocker switch to open. Express down Press AUTO and release quickly. The window will open fully. Depress again to stop window operation. Window lock The window lock feature allows only the driver to operate the power windows.
Page 77 Controls and features POWER DOOR LOCKS Press U to unlock all doors and L to lock all doors. Smart locks With the key in the ignition, in any switch position, and either the driver’s or passenger’s door open, the doors cannot be locked using the front door lock switches.
Page 78 Controls and features 2. Move the control in the direction you wish to tilt the mirror. 3. Return to the center position to lock mirrors in place. CHILDPROOF DOOR LOCKS When these locks are set, the rear doors cannot be opened from the inside.
Page 79 Controls and features REMOTE ENTRY SYSTEM (IF EQUIPPED) The remote entry system allows you to lock or unlock all vehicle doors without a key. The remote entry features only operate with the ignition in the OFF position. If there is any potential remote keyless entry problem with your vehicle, ensure ALL key fobs (remote entry transmitters) are brought to the dealership, to aid in troubleshooting.
Page 80 Controls and features You must complete steps 1-7 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait 30 seconds. 1. Turn the ignition key to ON. 2. Press the power door unlock control on the door panel three times. 3.
Page 81 Controls and features Automatic door locks can be turned on/off with the keyless entry keypad through the following procedure: You must complete steps 1-5 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait 30 seconds.
Page 82 Controls and features Opening the trunk Press the control once to open the trunk. Ensure that the trunk is closed and latched before driving your vehicle. Failure to latch the trunk may cause objects to fall out of the trunk or block the rear view.
Page 83 The inside lights will not turn off if: they have been turned on with the dimmer control or any door is open. The battery saver will shut off the interior lamps 30 minutes after the last door is closed or after 10 minutes if the door is left open. Replacing the battery The remote transmitter is powered by one coin type three-volt lithium battery CR2032 or equivalent.
Page 84 Controls and features Replacing lost transmitters Take all your vehicle’s transmitters to your dealer if service is required. If you purchase additional transmitters (up to four may be programmed into memory), perform the following procedure: To reprogram the transmitters yourself, place the key in the ignition and turn from OFF to ON four times in rapid succession within 3 seconds.
Page 85 If a problem occurs, turn ignition OFF and restart the engine with all other objects on the key ring held away from the ignition key. Check to make sure the encoded ignition key is an approved Ford encoded ignition key.
Page 86 Controls and features You will need to have two previously programmed coded keys and the new unprogrammed SecuriLock implementation of each step in the procedure. Please read and understand the entire procedure before you begin. 1. Insert the first previously programmed coded key into the ignition and turn the ignition from OFF to ON (maintain ignition in ON for at least one second).
Page 87 See also Remote entry system in this chapter for more information. Your vehicle has a factory-set 5–digit code that operates the keyless entry system. You can also program your own 5–digit personal entry code. The factory-set code is located: on the owner’s wallet card in the glove compartment taped to the computer module When pressing the controls on the keyless entry keypad, press the middle of the controls to ensure a good activation.
Page 88 Controls and features Erasing personal code To erase all of the personal entry codes programmed to a vehicle: 1. Enter the factory-set code. 2. Press 1/2 within 5 seconds of step 3. Press and hold 1/2 for two seconds. All of the vehicle doors will lock and then unlock to confirm erasure.
Page 89 Controls and features Locking doors with the keyless entry system It is not necessary to enter the factory-set code prior to locking all doors. To lock the doors: Press 7/8 and 9/0 at the same time. 7 8 9 0 INTERIOR LUGGAGE COMPARTMENT RELEASE (IF EQUIPPED) Your vehicle is equipped with a mechanical interior luggage compartment release handle that provides a means of escape for children and adults in...
Page 90 Controls and features Keep vehicle doors and luggage compartment locked and keep keys out of a child’s reach. Unsupervised children could lock themselves in an open trunk and risk injury. Children should be taught not to play in vehicles. On hot days, the temperature in the trunk or vehicle interior can rise very quickly.
Page 91: Seating And Safety Restraints
SEATING Head restraints Your vehicle’s seats may be equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of a rear collision. To properly adjust your head restraints, lift the head restraint so that it is located directly behind your head or as close to that position as possible.
Page 92 Seating and safety restraints Lift handle to move seat forward or backward. Pull lever up to adjust seatback. Using the manual recline function (if equipped) Never adjust the driver’s seat or seatback when the vehicle is moving. Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or sudden stop.
Page 93 To adjust the front seatback using the manual recliner: Lift and hold the handle located on the side of the seat. Lean against the seatback to adjust it to your desired position. You can recline the seat back or bring it forward. Release the handle when the desired position has been reached.
Page 94 Seating and safety restraints Press to move the seat forward or backward. Press to move the front portion of the seat cushion up or down. Press to move the rear portion of the seat cushion up or down. Adjusting the power seats – seat mounted controls Never adjust the driver’s seat or seatback when the vehicle is moving.
Page 95 Reclining the seatback can reduce the effectiveness of the seat’s safety belt in the event of a collision. The power seat controls are located on the side of the driver’s seat. Press to raise or lower the seat, or to move the seat forward or backward.
Page 96 Seating and safety restraints All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an air bag SRS is provided. It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed.
Page 97 2. To unfasten, push the release button and remove the tongue from the buckle. The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front passenger and rear seat outboard safety belts have two types of locking modes described below: Vehicle sensitive mode The vehicle sensitive mode is the normal retractor mode, allowing free shoulder belt length adjustment to your movements and locking in...
Page 98 Seating and safety restraints How to use the automatic locking mode Buckle the combination lap and shoulder belt. Grasp the shoulder portion and pull downward until the entire belt is extracted. Allow the belt to retract. As the belt retracts, you will hear a clicking sound.
Page 99 Front safety belt height adjustment Your vehicle has safety belt height adjustments for the driver and front passenger. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder. To lower the shoulder belt height, push the button and slide the height adjuster down.
Page 100 Seating and safety restraints Insert the tongue into the correct buckle (the buckle closest to the direction the tongue is coming from). To lengthen the belt, turn the tongue at a right angle to the belt and pull across your lap until it reaches the buckle.
Page 101 Conditions of operation If... The driver’s safety belt is not buckled before the ignition switch is turned to the ON position... The driver’s safety belt is buckled while the indicator light is illuminated and the warning chime is sounding... The driver’s safety belt is buckled before the ignition switch is turned to the ON position...
Page 102 I’m not going far 3 of 4 fatal crashes occur within 25 miles of home. Belts are Ford designs its safety belts to enhance comfort. If uncomfortable you are uncomfortable - try different positions for the safety belt upper anchorage and seatback which should be as upright as possible;...
Page 103 One time disable Anytime the safety belt is buckled and then unbuckled during an ignition ON cycle, Belt Minder will be disabled for that ignition cycle only. Deactivating/activating the belt minder feature Read steps 1 - 9 thoroughly before proceeding with the deactivation/ activation programming procedure.
Page 104 (if equipped), shoulder belt guide on seatback (if equipped), child safety seat tether bracket assemblies (if equipped), and attaching hardware, should be inspected after a collision. Ford recommends that all safety belt assemblies used in vehicles involved in a collision be replaced.
Page 105 This information will assist Ford in the servicing of your vehicle and may help Ford better understand real world collisions and further improve the safety of future vehicles.
Page 106 Do not attempt to service, repair, or modify the Air Bag Supplemental Restraint System or its fuses. See your Ford or Lincoln-Mercury dealer. Modifications to the front end of the vehicle, including frame, bumper, front end body structure and tow hooks may effect the performance of the air bag sensors increasing the risk of injury.
Page 107 Children and air bags For additional important safety information, read all information on safety restraints in this guide. Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position.
Page 108 Seating and safety restraints The air bags inflate and deflate rapidly upon activation. After air bag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (e.g., baking soda) that result from the combustion process that inflates the...
Page 109 and the electrical wiring which connects the components. The diagnostic module monitors its own internal circuits and the supplemental air bag electrical system warning (including the impact sensors), the system wiring, the air bag system readiness light, the air bag back up power and the air bag ignitors. Determining if the system is operational The SRS uses a readiness light in the instrument cluster or a tone to indicate the condition of the system.
Page 110 To improve the fit of lap and shoulder belts on children who have outgrown child safety seats, Ford recommends use of a belt-positioning booster seat that is labelled as conforming to all Federal motor vehicle safety standards. Belt-positioning booster seats raise the child and provide a shorter, firmer seating cushion that encourages safer seating posture and better fit of lap and shoulder belts on the child.
Page 111 A belt-positioning booster should be used if the shoulder belt rests in front of the child’s face or neck, or if the lap belt does not fit snugly on both thighs, or if the thighs are too short to let the child sit all the way back on the seat cushion when the lower legs hang over the edge of the seat cushion.
Page 112 (passenger side front and outboard rear seating positions) (if equipped). Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position which is capable of providing a tether anchorage. For more information on top tether straps, refer to Attaching safety seats with tether straps.
Page 113 Seating and safety restraints 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions.
Page 114 Seating and safety restraints 5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is extracted and a click is heard. 6. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.
Page 115 Installing child safety seats in the lap belt seating positions 1. Lengthen the lap belt. To lengthen the belt, hold the tongue so that its bottom is perpendicular to the direction of webbing while sliding the tongue up the webbing. 2.
Page 116 Seating and safety restraints 1. Position the child safety seat on the passenger seat cushion. 2. Route the child safety seat tether strap over the back of the seat. For vehicles with adjustable head restraints, route the tether strap under the head restraint and between the head restraint posts, otherwise route the tether strap over the top of the seatback.
Page 117 PREPARING TO START YOUR VEHICLE Engine starting is controlled by the powertrain control system. This system meets all Canadian Interference-Causing Equipment standard requirements regulating the impulse electrical field strength of radio noise. When starting a fuel-injected engine, avoid pressing the accelerator before or during starting.
Page 118 Starting 3. Make sure the parking brake is set. 4. Make sure the gearshift is in P (Park). 5. Turn the key to 4 (ON) without turning the key to 5 (START). If there is difficulty in turning the key, firmly rotate the steering wheel left and right until the key turns freely.
Page 119 STARTING THE ENGINE 1. Turn the key to 5 (START) without pressing the accelerator pedal and release as soon as the engine starts. The key will return to 4 (ON). 2. If the temperature is above –12°C (10°F) and the engine does not start within five seconds on the first try, turn the key to OFF, wait 10 seconds and try again.
Page 120 Starting Guarding against exhaust fumes Although odorless and colorless, carbon monoxide is present in exhaust fumes. Take precautions to avoid its dangerous effects. If you ever smell exhaust fumes of any kind inside your vehicle, have your dealer inspect and fix your vehicle immediately. Do not drive if you smell exhaust fumes.
Page 121: Driving
Driving BRAKES Your service brakes are self-adjusting. Refer to the scheduled maintenance guide for scheduled maintenance. Occasional brake noise is normal and often does not indicate a performance concern with the vehicle’s brake system. In normal operation, automotive brake systems may emit occasional or intermittent squeal or groan noises when the brakes are applied.
Page 122 Driving ABS warning lamp warning lamp in the instrument cluster momentarily illuminates when the ignition is turned to the ON position. If the light does not illuminate momentarily at start up, remains on or continues to flash, the ABS needs to be serviced. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the...
Page 123 The BRAKE warning lamp in the instrument cluster illuminates and remains illuminated (when the ignition is turned ON) until the parking brake is fully released. Always set the parking brake fully and make sure the gearshift is latched in P (Park). Turn off the ignition whenever you leave your vehicle.
Page 124 Driving The system operates by detecting and controlling wheel spin. The system borrows many of the electronic and mechanical elements already present in the anti-lock braking system (ABS). Wheel-speed sensors allow excess rear wheel spin to be detected by the Traction Control portion of the ABS computer.
Page 125 The Traction Control key from OFF to ON until you deactivate the system using the traction control switch in the glove compartment. STEERING Your vehicle is equipped with power steering. Power steering uses energy from the engine to help steer the vehicle. To prevent damage to the power steering pump: Never hold the steering wheel to the extreme right or the extreme left for more than a few seconds when the engine is running.
Page 126 Driving This system keeps the rear of your vehicle at a constant level by automatically adding air or releasing air from the springs. If you exceed the load limit, the rear air suspension may not operate. The air suspension shut-off switch is located on the left side of the trunk.
Page 127 If your vehicle gets stuck in mud or snow it may be rocked out by shifting from forward and reverse gears, stopping between shifts, in a steady pattern. Press lightly on the accelerator in each gear. Do not rock the vehicle if the engine is not at normal operating temperature or damage to the transmission may occur.
Page 128 Driving R (Reverse) With the gearshift lever in R (Reverse), the vehicle will move backward. Always come to a complete stop before shifting into and out of R (Reverse). N (Neutral) With the gearshift lever in N (Neutral), the vehicle can be started and is free to roll.
Page 129 Each time the vehicle is started, the transmission will automatically return to normal Overdrive mode. Every time the vehicle is shut off and restarted, you must press the transmission control switch to cancel overdrive operation if the Overdrive mode is not desired. 2 (Second) Use 2 (Second) to start-up on slippery roads or to provide...
Page 130 Driving Payload: Combined maximum allowable weight of cargo, passengers and optional equipment. The payload equals the gross vehicle weight rating minus base curb weight. GVW (Gross Vehicle Weight): Base curb weight plus payload weight. The GVW is not a limit or a specification. GVWR (Gross Vehicle Weight Rating): Maximum total weight of the base vehicle, passengers, optional equipment and cargo.
Page 131 limitations. Replacement tires with a higher limit than the originals do not increase the GVWR and GAWR limitations. The Certification Label, found on the inside pillar of the driver’s door, lists several important vehicle weight rating limitations. Before adding any additional equipment, refer to these limitations. If you are adding weight to the front of your vehicle, (potentially including weight added to the cab), the weight added should not exceed the front axle reserve capacity (FARC).
Page 132 Driving Preparing to tow Use the proper equipment for towing a trailer, and make sure it is properly attached to your vehicle. See your dealer or a reliable trailer dealer if you require assistance. Hitches Do not use hitches that clamp onto the vehicle bumper. Use a load carrying hitch.
Page 133 Consult your local motor vehicle speed regulations for towing a trailer. Use a lower gear when towing up or down steep hills. This will eliminate excessive downshifting and upshifting for optimum fuel economy and transmission cooling. Anticipate stops and brake gradually. Exceeding the GCWR rating may cause internal transmission damage and void your warranty coverage.
Page 134 Maximum distance is 80 km (50 miles). If a distance of 80 km (50 miles) or a speed of 56 km/h (35 mph) must be exceeded, you must disconnect the driveshaft. Ford recommends the driveshaft be removed/installed only by a qualified technician. See your local dealer for driveshaft removal/installation.
Page 135 Driving DRIVING THROUGH WATER Do not drive quickly through standing water, especially if the depth is unknown. Traction or brake capability may be limited and if the ignition system gets wet, your engine may stall. Water may also enter your engine’s air intake and severely damage your engine.
Page 136: Roadside Emergencies
Roadside emergencies GETTING ROADSIDE ASSISTANCE To fully assist you should you have a vehicle concern, Ford offers a complimentary roadside assistance program. This program is separate from the New Vehicle Limited Warranty. The service is available: 24–hours, seven days a week for the Basic warranty period (Canada) or New Vehicle Limited Warranty period (U.S.) of three years or 60,000 km (36,000 miles),...
Page 137 Roadside coverage beyond basic warranty In the United States, you may purchase additional roadside assistance coverage beyond this period through the Ford Auto Club by contacting your Ford or Lincoln Mercury dealer. HAZARD FLASHER Use only in an emergency to warn traffic of vehicle breakdown, approaching danger, etc.
Page 138 Roadside emergencies The fuel pump shut-off switch is located on the left side of the trunk behind the trunk liner. Use the following procedure to reset the fuel pump shut-off switch. 1. Turn the ignition to the OFF position. 2. Check the fuel system for leaks. 3.
Page 139 Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. Standard fuse amperage rating and color Fuse Mini Rating Fuses Grey Violet Pink...
Page 140 Roadside emergencies The fuses are coded as follows. Fuse/Relay Fuse Amp Location Rating — Passenger Compartment Fuse Panel Description Brake Pedal Position (BPP) Switch, Multi-Function Switch, Speed Control Wiper Control Module, Windshield Wiper Motor Not Used Lighting Control Module, Main Light Switch Backup Lamps, Variable Assist Power Steering (VAPS), Turn Signals, Air Suspension, Daytime Running Lamps,...
Page 141: Power Distribution Box
Fuse/Relay Fuse Amp Location Rating 18A CB 20A CB Power distribution box The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads. Always disconnect the battery before servicing high current fuses.
Page 142 Roadside emergencies The high-current fuses are coded as follows. Fuse/Relay Fuse Amp Location Rating 20A* 30A* 25A* 30A* 15A* 20A* 20A CB 30A** 50A** 50A** 40A** Power Distribution Box Description Electric Fuel Pump Relay Generator, Starter Relay, Fuses 15 and 18 Radio, CD Changer, Subwoofer Amplifier Police Power Relay Horn Relay...
Page 143: Changing The Tires
Fuse/Relay Fuse Amp Location Rating 30A** 50A** 40A** 50A** 50A** 30A CB Relay 1 — Relay 2 — Relay 3 — Relay 4 — * Mini Fuses ** Maxi Fuses Relays Relays are located in the power distribution box and should be replaced by qualified technicians.
Page 144 Roadside emergencies When driving with the temporary spare tire do not: exceed 80 km/h (50 mph) under any circumstances load the vehicle beyond maximum vehicle load rating listed on the Safety Compliance Label tow a trailer use tire chains drive through an automatic car wash, because of the vehicle’s reduced ground clearance try to repair the temporary spare tire or remove it from its wheel use the wheel for any other type of vehicle...
Page 145 5. Loosen each wheel lug nut one-half turn counterclockwise but do not remove them until the wheel is raised off the ground. Refer to Anti-theft lug nuts for information on removing anti-theft lug nuts. On vehicles equipped with Air Suspension, turn OFF the Air Suspension switch prior to jacking, hoisting or towing your vehicle.
Page 146 If you lose the key, send the registration card to the manufacturer (not the dealer) to get a replacement key. If the lug wrench/lug nut key assembly is lost, see your nearest Ford or Lincoln/Mercury dealer who has access to the master set of keys. Do not...
Page 147 To remove the anti-theft lug nut: 1. Insert the key over the locking lug nut. Make sure you hold the key square to the lug nut. If you hold the key at an angle, you could damage the key and the lug nut. 2.
Page 148 Roadside emergencies 3. Park the booster vehicle close to the hood of the disabled vehicle making sure the two vehicles do not touch. Set the parking brake on both vehicles and stay clear of the engine cooling fan and other moving parts.
Page 149 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 4. Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor/fuel injection system.
Page 150 Roadside emergencies Jump starting 1. Start the engine of the booster vehicle and run the engine at moderately increased speed. 2. Start the engine of the disabled vehicle. 3. Once the disabled vehicle has been started, run both engines for an additional three minutes before disconnecting the jumper cables.
Page 151 Roadside emergencies 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery. After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions.
Page 152 It is recommended that your vehicle be towed with a wheel lift or flatbed equipment. Do not tow with a slingbelt. Ford Motor Company has not approved a slingbelt towing procedure.
Page 153: Maintenance And Care
SERVICE RECOMMENDATIONS To help you service your vehicle: We highlight do-it-yourself items in the engine compartment for easy location. We provide a Scheduled Maintenance Guide which makes tracking routine service easy. If your vehicle requires professional service, your dealership can provide necessary parts and service.
Page 154 Maintenance and care Working with the engine off 1. Set the parking brake and ensure the gearshift is securely latched in P (Park). 2. Turn off the engine and remove the key. 3. Block the wheels to prevent the vehicle from moving unexpectedly. Working with the engine on 1.
Page 155 Maintenance and care IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT 4.6L SOHC V8 engine 1. Brake fluid reservoir 2. Engine oil dipstick 3. Engine oil filler cap 4. Windshield washer fluid reservoir 5. Air filter assembly 6. Power steering fluid reservoir 7.
Page 156 Maintenance and care ENGINE OIL Checking the engine oil Refer to the Scheduled Maintenance Guide for the appropriate intervals for checking the engine oil. 1. Make sure the vehicle is on level ground. 2. Turn the engine off and wait a few minutes for the oil to drain into the oil pan.
Page 157: Adding Engine Oil
If the oil level is within this range, the oil level is acceptable. DO NOT ADD OIL. If the oil level is below this mark, engine oil must be added to raise the level within the normal operating range. If required, add engine oil to the engine.
Page 158 Change your engine oil and filter according to the appropriate schedule listed in the Scheduled Maintenance Guide. Ford production and aftermarket (Motorcraft) oil filters are designed for added engine protection and long life. If a replacement oil filter is used that does not meet Ford material and design specifications, start-up engine noises or knock may be experienced.
Page 159 4. Use only brake fluids certified to meet Ford specifications. Refer to Lubricant specifications in the Capacities and specifications chapter. DOT 3 fluid is recommended. However, if DOT 3 is not available, DOT 4 fluid can be used.
Page 160 In very cold weather, do not fill the reservoir all the way. Only use a washer fluid that meets Ford specifications. Refer to Lubricant specifications in the Capacities and specifications chapter. State or local regulations on volatile organic compounds may restrict the use of methanol, a common windshield washer antifreeze additive.
Page 161 Adding engine coolant Use only Ford Premium Engine Coolant E2FZ-19549-AA (in Canada, Motorcraft CXC-10) or a premium engine coolant that meets Ford specification ESE-M97B44-A. Maintenance and care...
Page 162 Maintenance and care DO NOT USE Ford Extended Life Engine Coolant F6AZ-19544-AA (orange in color). DO NOT USE a DEX-COOL engine coolant or an equivalent engine coolant that meets Ford specification WSS-M97B44-D. DO NOT USE alcohol or methanol antifreeze or any engine coolants mixed with alcohol or methanol antifreeze.
Page 163 4. When you are sure that all the pressure has been released, use the cloth to turn it counterclockwise and remove the cap. Recycled engine coolant Ford Motor Company recommends the use of a recycled engine coolant produced by Ford-approved processes. Not all coolant recycling processes produce coolant which meets Ford specification ESE-M97B44-A.
Page 164 Maintenance and care Severe climates If you drive in extremely cold climates (less than –36° C [–34° F]): it may be necessary to increase the coolant concentration above 50%. NEVER increase the coolant concentration above 60%. increased engine coolant concentrations above 60% will decrease the overheat protection characteristics of the engine coolant and may cause engine damage.
Page 165 How fail-safe cooling works Standard cluster Optional cluster If the engine begins to overheat: the engine coolant temperature gauge will move to the H (hot) area (if your vehicle is equipped with analog gauges). the engine coolant temperature gauge will illuminate all eight bars and a tone will sound every five seconds for one minute (if your vehicle is equipped with digital gauges).
Page 166 Maintenance and care Continued operation will increase the engine temperature: symbol will begin to flash. if your vehicle is equipped with digital gauges, the gauge bars will flash and a tone will sound every five seconds for one minute. the engine will completely shut down, causing steering and braking effort to increase.
Page 167 Maintenance and care CHECKING AND ADDING POWER STEERING FLUID Check the power steering fluid. Refer to the Scheduled Maintenance Guide for the service interval schedules. If adding fluid is necessary, use only MERCON ATF. 1. Start the engine and let it run until it reaches normal operating temperature (the engine coolant temperature gauge indicator will be near the center of the normal area between H and C).
Page 168 Maintenance and care Automatic transmission fluid expands when warmed. To obtain an accurate fluid check, drive the vehicle until it is at normal operating temperature (approximately 30 km [20 miles]). If your vehicle has been operated for an extended period at high speeds, in city traffic during hot weather or pulling a trailer, the vehicle should be turned off for about 30 minutes to allow fluid to cool before checking.
Page 169 Maintenance and care The transmission fluid should be in this range if at normal operating temperature (66°C-77°C [150°F-170°F]). The transmission fluid should be in this range if at ambient temperature (10°C-35°C [50°F-95°F]). High fluid level Fluid levels above the safe range may result in transmission failure.
Page 170 Maintenance and care BATTERY Your vehicle is equipped with a Motorcraft maintenance-free battery which normally does not require additional water during its life of service. However, for severe usage or in high temperature climates, check the battery electrolyte level. Refer to the Scheduled Maintenance Guide for the service interval schedules.
Page 171 When lifting a plastic-cased battery, excessive pressure on the end walls could cause acid to flow through the vent caps, resulting in personal injury and/or damage to the vehicle or battery. Lift the battery with a battery carrier or with your hands on opposite corners.
Page 172 Maintenance and care Always dispose of automotive batteries in a responsible manner. Follow your local authorized standards for disposal. Call your local authorized recycling center to find out more about recycling automotive batteries. AIR FILTER MAINTENANCE Refer to the Scheduled Maintenance Guide for the appropriate intervals for changing the air filter element.
Page 173 6. Install a new air filter element. Be careful not to crimp the filter element edges between the air filter housing and cover. This could cause filter damage and allow unfiltered air to enter the engine if not properly seated. 7.
Page 174 10 to 12 inches or limited production tires as defined in Title 49 Code of Federal Regulations Part 575.104(c)(2). U.S. Department of Transportation-Tire quality grades: The U.S. Department of Transportation requires Ford to give you the following information about tire grades exactly as the government has written it.
Page 175 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the government course as a tire graded 100.
Page 176 Maintenance and care SERVICING YOUR TIRES Checking the tire pressure Use an accurate tire pressure gauge. Check the tire pressure when tires are cold, after the vehicle has been parked for at least one hour or has been driven less than 5 km (3 miles).
Page 177 If you do not follow these precautions, your vehicle may not drive properly and safely. Make sure that all replacement tires are of the same size, type, load-carrying capacity and tread design (e.g., “All Terrain”, etc.), as originally offered by Ford. Maintenance and care...
Page 178 Maintenance and care Failure to follow these precautions may adversely affect the handling of the vehicle and make it easier for the driver to lose control and roll over. Tires that are larger or smaller than your vehicle’s original tires may also affect the accuracy of your speedometer.
Page 179 The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap. Otherwise, fuel may spray out and injure you or others. If you do not use the proper fuel filler cap, excessive pressure or vacuum in the fuel tank may damage the fuel system or cause the fuel system to work improperly in a collision, which may result in...
Page 180 Maintenance and care Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes, remove contact lenses (if worn), flush with water for 15 minutes and seek medical attention. Failure to seek proper medical attention could lead to permanent injury. Fuels can also be harmful if absorbed through the skin.
Page 181 The customer warranty may be void for any damage to the fuel tank or fuel system if the correct genuine Ford or Motorcraft fuel filler cap is not used. The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap.
Page 182 World-wide Fuel Charter. Cleaner air Ford approves the use of reformulated “cleaner-burning” gasolines to improve air quality. These gasolines may contain oxygenates up to 10% ethanol or 15% MTBE. Running out of fuel Avoid running out of fuel because this situation may have an adverse affect on powertrain components.
Page 183 If you have run out of fuel: You may need to cycle the ignition from OFF to ON several times after refueling, to allow the fuel system to pump the fuel from the tank to the engine. Your “Check Engine” indicator may come on. For more information on the “Check Engine”...
Page 184 Maintenance and care For consistent results when filling the fuel tank: Use the same filling rate setting (low — medium — high) each time the tank is filled. Allow three automatic click-offs when filling. Always use fuel with the recommended octane rating. Use a known quality gasoline, preferably a national brand.
Page 185 Habits Smooth, moderate operation can yield up to 10% savings in fuel. Steady speeds without stopping will usually give the best fuel economy. Idling for long periods of time (greater than one minute) may waste fuel. Anticipate stopping; slowing down may eliminate the need to stop. Sudden or hard accelerations may reduce fuel economy.
Page 186 Maintenance and care Carrying unnecessary weight may reduce fuel economy (approximately 0.4 km/L [1 mpg] is lost for every 180 kg [400 lb] of weight carried). Adding certain accessories to your vehicle (for example bug deflectors, rollbars/light bars, running boards, ski/luggage racks) may reduce fuel economy.
Page 187 Guide are essential to the life and performance of your vehicle and to its emissions system. If other than Ford, Motorcraft or Ford-authorized parts are used for maintenance replacements or for service of components affecting emission control, such non-Ford parts should be equivalent to genuine Ford Motor Company parts in performance and durability.
Page 188 Maintenance and care If the vehicle’s powertrain system or its battery has just been serviced, the on-board diagnostics system is reset to a “not ready for I/M test” condition. To ready the on-board diagnostics system for I/M testing, a minimum of 30 minutes of city and highway driving is necessary as described below: First, at least 10 minutes of driving on an expressway or highway.
Page 189 3. Disconnect the electrical connector from the bulb by pulling rearward. 4. Remove the bulb retaining ring by rotating it counterclockwise (when viewed from the rear) to free it from the bulb socket, and slide the ring off the plastic base. Keep the ring to retain the new bulb.
Page 190 Maintenance and care 5. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again. Replacing front parking lamp/turn signal bulbs The park/turn lamp bulbs can be replaced with out removing the headlamp assembly.
Page 191 Maintenance and care 1. Open the trunk and carefully pull the carpet away to expose the plastic retainer. 2. Remove plastic retainer to expose the lamp assembly hardware. 3. Remove three nut and washer assemblies and the lamp assembly from the vehicle. 4.
Page 192 Maintenance and care Replacing license plate lamp bulbs 1. Remove two screws, grommets and the license plate lamp assembly from the trunk lid. 2. Carefully pull the bulb from the socket and push in the new bulb. 3. Install the lamp assembly on trunk lid with two grommets, ensuring the grommets are pushed all the way in to the trunk lid and...
Page 193 If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician. CLEANING AND CARING FOR YOUR VEHICLE Refer to the Customer Assistance chapter for a list of Ford-approved cleaners, polishes and waxes. Maintenance and care...
Page 194 Maintenance and care Washing your vehicle Wash your vehicle regularly with cold or lukewarm water. Never use strong detergents or soap. If your vehicle is particularly dirty, use a quality car wash detergent. Always use a clean sponge, washing glove or similar device and plenty of water for best results.
Page 195 Cleaning the exterior lamps Wash with the same detergent as the exterior of your vehicle. If necessary, use a tar remover such as Ford Extra Strength Tar and Road Oil Remover (B7A-19520–AA).
Page 196 Ford Ultra-Clear Spray Glass Cleaner, (E4AZ-19C507–AA), available from your Ford Dealer. Do not use abrasive cleansers on glass as they may cause scratches. The windshield or rear window is clean if beads do not form when you rinse it with water.
Page 197 Cover the highlighted areas to prevent water damage when cleaning the engine. Never wash or rinse the engine while it is running; water in the running engine may cause internal damage. Cleaning the instrument panel Clean with a damp cloth, then dry with a dry cloth. Avoid cleaner or polish that increases the gloss of the upper portion of the instrument panel.
Page 198 Maintenance and care Cleaning the instrument cluster lens Clean with a damp cloth, then dry with a dry cloth. Do not use household or glass cleaners as these may damage the lens. Cleaning seats equipped with side air bags Remove dust and loose dirt with a whisk broom or a vacuum cleaner. Remove fresh spots immediately.
Page 199 For tougher soiling concerns, Ford recommends using the Deluxe Leather Care Kit F8AZ-19G253–AA, which is available from your Ford Dealer. This mild cleaner and special pad, cleans the leather and maintains its natural beauty. Follow the instructions on the cleaner label.
Page 200: Capacities And Specifications
Rear axle lubricant Windshield washer fluid Use only brake fluids certified to meet Ford specifications. Refer to Lubricant Specifications in this chapter. DOT 3 fluid is recommended. However, if DOT 3 is not available, DOT 4 fluid can be used.
Page 201 Police Package refill capacity-12.1L (12.8 quarts). Use Ford Premium Engine Coolant (green in color). DO NOT USE Ford Extended Life Engine Coolant (orange in color). Refer to Adding engine coolant, in the Maintenance and Care chapter.
Page 202 Windshield Washer Concentrate Use only brake fluids certified to meet Ford specifications. DOT 3 fluid is recommended. However, if DOT 3 is not available, DOT 4 fluid can be used. Add 118 ml (4 oz.) of Additive Friction Modifier C8AZ-19B546-A or equivalent meeting Ford specification EST-M2C118-A for complete refill of Traction-Lok rear axles.
Page 203 ENGINE DATA Engine Cubic inches Required fuel Firing order Spark plug gap Ignition system Compression ratio VEHICLE DIMENSIONS Vehicle dimensions (1) Overall length (2) Overall width (3) Overall height (4) Wheelbase (5) Track - Front (5) Track - Rear Capacities and specifications 4.6L V8 engine 87 octane 1-3-7-2-6-5-4-8...
Page 204: Certification Label
Certification Label may be located. The Certification Label is located on the front door latch pillar on the driver’s side. MFD. BY FORD MOTOR CO. IN U.S.A. DATE: XXXXX FGAWR: XXXXXX/XXXXXXX THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR VEHICLE SAFETY STANDARDS IN EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.
Page 205 Capacities and specifications Vehicle identification number The vehicle identification number is attached to a metal tag and is located on the driver side XXXXXXXXXXXXXXXXX instrument panel. (Please note that in the graphic XXXX is representative of your vehicle identification number.) Engine number The engine number (the last eight numbers of the vehicle identification number) is stamped on the engine block, transmission, frame and...
Page 206: Customer Assistance
5,000 participating Ford or Lincoln/Mercury and Ford of Canada dealers. If you did not take advantage of the Ford Extended Service Plan at the time of purchasing your vehicle, you may still be eligible. Please contact your dealer for further information. Since this information is subject to change, please ask your dealer for complete details about Ford Extended Service Plan coverage options.
Page 207 Away from home If you own a Ford or Mercury vehicle and are away from home when your vehicle needs service, or if you need more help than the dealership could provide, after following the steps described above, contact the Ford Customer Assistance Center to find an authorized dealership to help you.
Page 208 Ford Motor Company of Canada, Limited P.O. Box 2000 Oakville, Ontario L6J 5E4 1-800-565-3673 (FORD) In order to help you service your Ford or Lincoln Mercury vehicle, please have the following information available when contacting a Customer Assistance Center: Your telephone number (home and business)
Page 209 Ford Motor Company vehicles The Dispute Settlement Board may not be available in all states. Ford Motor Company reserves the right to change eligibility limitations, modify procedures and/or to discontinue this service without notice and without incurring obligations per applicable state law.
Page 210 Ford Motor Company...
Page 211 After a case is reviewed, the Board mails you a decision letter and a form on which to accept or reject the Board’s decision. The decisions of the Board are binding on Ford (and, in some cases, on the dealer) but not on consumers who are free to pursue other remedies available to them under state or federal law.
Page 212 UTILIZING THE MEDIATION/ARBITRATION PROGRAM (CANADA ONLY) In those cases where you continue to feel that the efforts by Ford and the dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation/arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 213 If your vehicle must be serviced while you are traveling or living in Central or South America, the Caribbean, or the Middle East, contact the nearest Ford dealership. If the dealership cannot help you, write or call: FORD MOTOR COMPANY...
Page 214 Customer assistance Ford Deluxe Leather and Vinyl Cleaner (not available in Canada) Motorcraft Vinyl Cleaner (Canada only) Ford Extra Strength Tar and Road Oil Remover* (not available in Canada) Ford Extra Strength Upholstery Cleaner (Canada only) Ford Extra Strength Upholstery Cleaner (not available in Canada)
Page 215 Comfort and convenience Cargo nets Engine block heaters Travel equipment Daytime running lights Heavy-duty battery Protection and appearance equipment Air bag anti-theft locks Carpet floor mats Cleaners, waxes and polishes Flat splash guards Front end covers Lubricants and oils Molded splash guards Molded vinyl floor mats Touch-up paint Universal floor mats...
Page 216 (Citizens band [CB] transceivers, garage door openers and other transmitters with outputs of five watts or less will not ordinarily affect your vehicle’s operation.) Ford cannot assume responsibility for any adverse effects or damage that may result from the use of such equipment. ORDERING ADDITIONAL OWNER’S LITERATURE...
Page 217: Reporting Safety Defects
However, NHTSA cannot become involved in individual problems between you, your dealer or Ford Motor Company. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1–800–424–9393 (202–366–0123 in the Washington D.C.
Page 218: Index
Index Air bag supplemental restraint system ...105 and child safety seats ...107 description ...105 disposal ...109 driver air bag ...107 indicator light ...10,109 operation ...107 passenger air bag ...107 Air cleaner filter ...172,200 Air conditioning ...26 automatic temperature control system ...28 Air suspension ...125 description ...125 warning light ...12...
Page 219 ...10 refill capacities ...163,200 specifications ...201,203 Cruise control (see Speed control) ...65 Customer Assistance ...136 Ford accessories for your vehicle ...213 Ford Extended Service Plan ...206 Getting assistance outside the U.S. and Canada ...212 Getting roadside assistance ...136 Getting the service you need ...206...
Page 220 Index quality ...182 running out of fuel ...182 safety information relating to automotive fuels ...178 Fuses ...138,139 Garage door opener ...69 Gas cap (see Fuel cap) ...180 Gas mileage (see Fuel economy) ...183 Gauges ...15 battery voltage gauge ...19 engine coolant temperature gauge ...18 engine oil pressure gauge ...19 fuel gauge ...15...
Page 221 anti-lock brakes (ABS) ...11,122 brake ...11 charging system ...12 check engine ...9 high beam ...11 low coolant ...10 low fuel ...8 oil pressure ...12 overdrive off ...13 safety belt ...10 speed control ...69 traction control active ...13 turn signal indicator ...11 Load limits ...129 GAWR ...129 GVWR ...129...
Page 222 Index Specification chart, lubricants ...201,203 Speed control ...65 Speedometer ...16 Starting your vehicle ...117,119 jump starting ...147 Steering speed sensitive ...125 Steering wheel tilting ...64 Tilt steering wheel ...64 Tires ...143,174,175,176 changing ...143,144 checking the pressure ...176 replacing ...177 rotating ...176 snow tires and chains ...178 tire grades ...175 treadwear ...175...
Page 224: Filling Station Information
Power steering fluid capacity Use Ford Premium Engine Coolant (green in color). DO NOT USE Ford Extended Life Engine Coolant (orange in color). Refer to Adding engine coolant, in the Maintenance and Care chapter. Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are indicated on the dipstick or on the dipstick handle.
