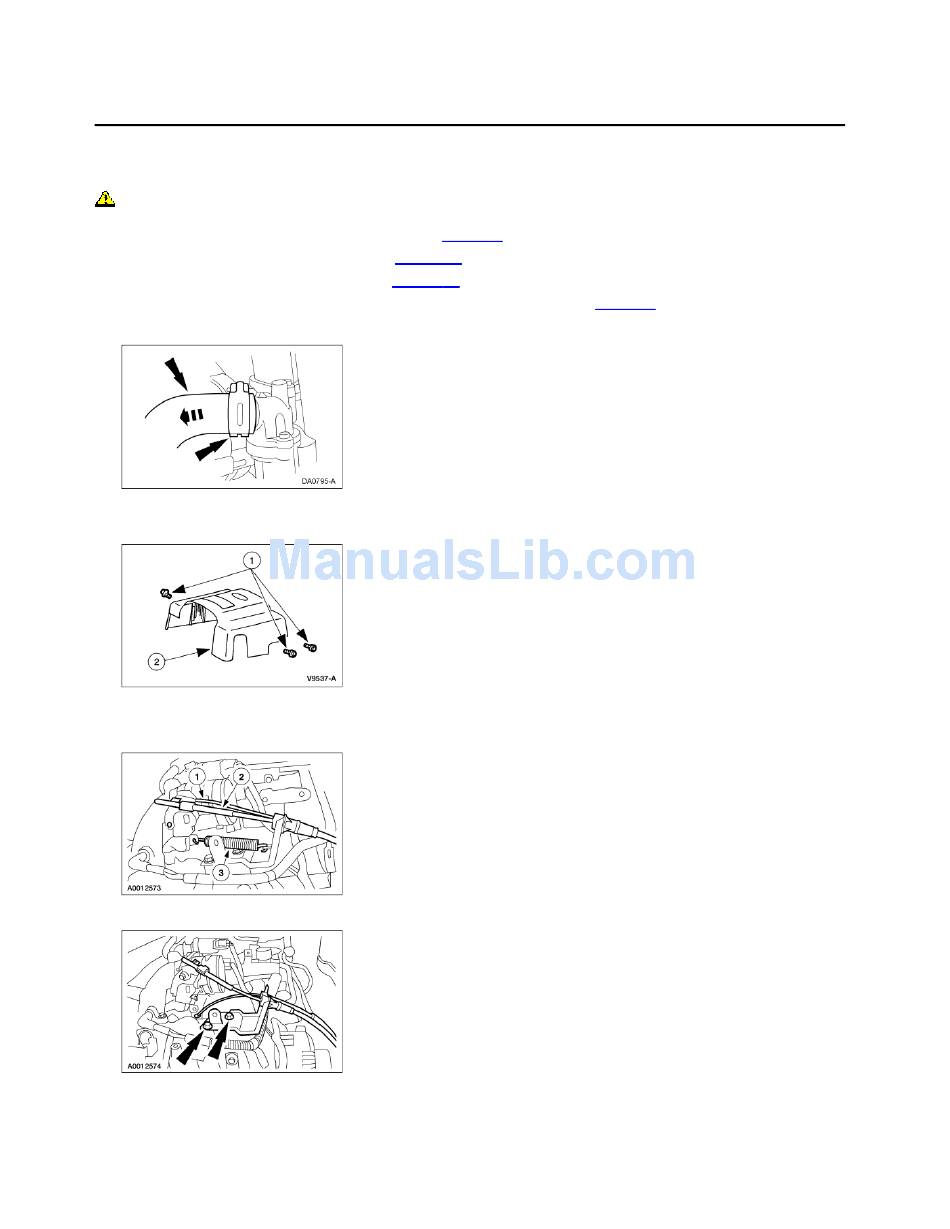

2000 F-150 Workshop Manual
SECTION 303-01B: Engine — 4.6L and 5.4L
IN-VEHICLE REPAIR
Intake Manifold — 5.4L
Removal
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always
present and can be ignited. Failure to follow these instructions may result in personal injury.
1. Disconnect the battery ground cable (14301). For additional information, refer to
2. Relieve the fuel system pressure. For additional information, refer to
3. Drain the engine cooling system. For additional information, refer to
4. Remove the engine air cleaner (ACL)(9600) and the air cleaner outlet tube (9B659). For additional information, refer to
5. Compress and slide the hose clamp and disconnect the upper radiator hose.
6. Remove the accelerator cable snow shield.
1. Remove the bolts.
2. Remove the accelerator cable snow shield.
7. Disconnect the throttle body cam.
1. Disconnect the accelerator cable (9A758).
2. Disconnect the speed control actuator cable.
3. Remove the accelerator return spring.
8. Remove the accelerator cable bracket bolts and position the bracket and cables aside.
9. Disconnect the vapor management valve hose.
http://www.fordtechservice.dealerconnection.com/pubs/content/~WSY1/~MUS~LEN/20/S...
Section
414-01.
Section
310-00A.
Section
303-03A.
Page 1 of 12
2000 F-150 Workshop Manual
Procedure revision date: 07/04/2003
Section
303-12.
8/18/2011
