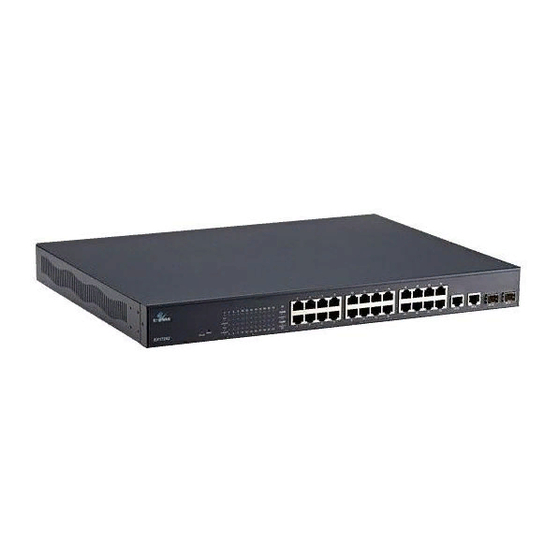

EtherWAN EX17242 Installation Manual

EX17242 Web-Smart Switch Installation Guide
1
Unpacking
Unpack the items. Your package should include:
One EX17242 Web-Smart switch
Ø
Ø One external power adapter
Rack-mounting hardware brackets
Ø
Ø One CD containing this user's guide
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2
What Else You Need
Category 5 or better Ethernet cables
Ø
Ø Small form-factor pluggable (SFP) laser
optical transceiver modules
Ø Notebook PC with Ethernet (RJ-45) Interface
and installed Web browser
3

Select a Location

Desktop installations: Mount on a flat table
Ø
or shelf surface.
Rack installations: Use a 19-inch (48.3-
Ø
centimeter) EIA standard equipment rack
that is grounded and physically secure.
Ø Identify a power source within 6 feet (1.8
meters).
Ø Choose a dry area with ambient temperature
between 0 and 40ºC (32 and 104ºF).
Do not cover fans on the rear and side.
Ø
EX17242 rev. 1.0
8/25/2014
Keep away from heat sources, sunlight, warm
Ø
air exhausts, hot-air vents, and heaters.
Be sure there is adequate airflow.
Ø
Ø Keep the switch at least 6 ft (1.83 m) away
from the nearest source of electromagnetic
noise, such as a photocopy machine.
4
Connect to the Data Ports
Twenty-Four 10/100 Mbps RJ-45 Ports
The switch provides 24 10/100 Mbps RJ-45 ports
that can connect to Power over Ethernet (PoE)
devices, such as an IP surveillance camera or a
Voice Over Internet Protocol (VoIP) phone.
A.
Insert one end of a Category 5 or better
Ethernet cable into a switch port.
B.
Connect the other end into the Ethernet port
of the device.
C.
Repeat steps A and B for each additional
device you want to connect to the switch.
Two 1 Gbps Combo/SFP Ports
The switch provides two 1 Gbps combo/SFP
interfaces as RJ-45 ports and SFP ports. These
ports can connect to network devices such as a
computer, printer, network video recorder
©
Copyright 2014 EtherWAN Systems, Inc.
All Rights Reserved
(NVR), network storage, or they can connect to
the network itself.
RJ-45 ports accommodate Category 5 or better
Ethernet cables. SFP ports accommodate
standard SFP modules; wear an ESD-preventive
wrist strap before connecting SFP modules.

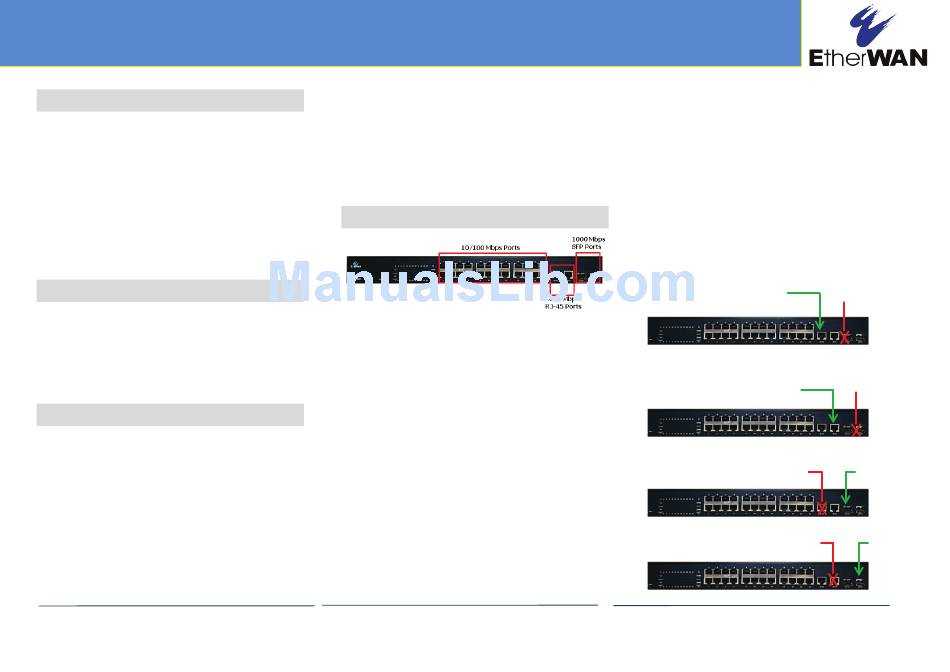

These 1 Gbps interface combo ports operate in
"either/or" fashion. This means that attaching to
either a 1 Gbps RJ-45 or SFP port renders the
equivalent partner 1 Gbps port unavailable. See
the examples below.
Connecting ...makes this
to this port... port unavailable
Connecting
to this port...
This port is
unavailable when...
This port is
unavailable when...
Continued on next page
...makes this
port unavailable
...connecting
to this port
...connecting
to this port
