EtherWAN EX17242 Installation Manual

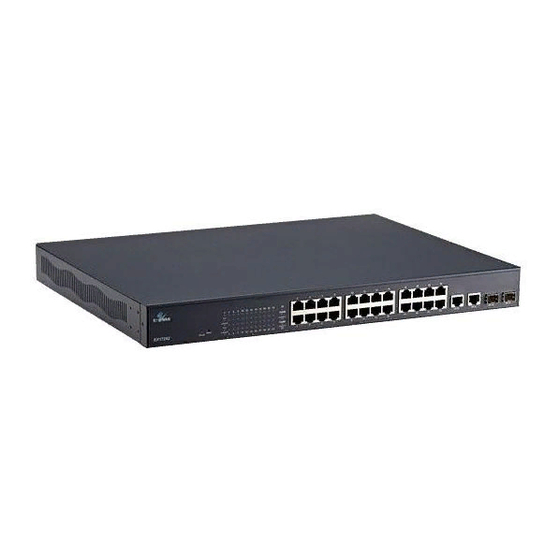

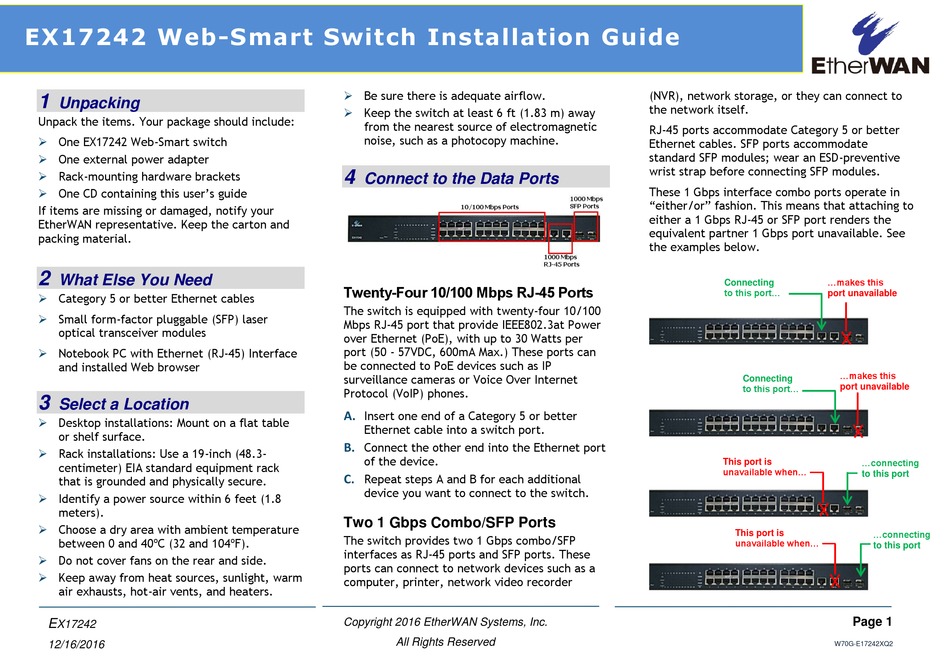

EX17242 Web-Smart Switch Installation Guide
1

Unpacking

Unpack the items. Your package should include:
One EX17242 Web-Smart switch

 One external power adapter
 Rack-mounting hardware brackets
 One CD containing this user's guide
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2

What Else You Need

 Category 5 or better Ethernet cables
Small form-factor pluggable (SFP) laser

optical transceiver modules
Notebook PC with Ethernet (RJ-45) Interface

and installed Web browser
3

Select a Location

 Desktop installations: Mount on a flat table
or shelf surface.
 Rack installations: Use a 19-inch (48.3-
centimeter) EIA standard equipment rack
that is grounded and physically secure.
Identify a power source within 6 feet (1.8

meters).
Choose a dry area with ambient temperature

between 0 and 40ºC (32 and 104ºF).
Do not cover fans on the rear and side.

Keep away from heat sources, sunlight, warm

air exhausts, hot-air vents, and heaters.
E
X17242
12/16/2016
Be sure there is adequate airflow.

Keep the switch at least 6 ft (1.83 m) away

from the nearest source of electromagnetic
noise, such as a photocopy machine.
4

Connect to the Data Ports

Twenty-Four 10/100 Mbps RJ-45 Ports
The switch is equipped with twenty-four 10/100
Mbps RJ-45 port that provide IEEE802.3at Power
over Ethernet (PoE), with up to 30 Watts per
port (50 - 57VDC, 600mA Max.) These ports can
be connected to PoE devices such as IP
surveillance cameras or Voice Over Internet
Protocol (VoIP) phones.
Insert one end of a Category 5 or better
A.
Ethernet cable into a switch port.
Connect the other end into the Ethernet port
B.
of the device.
Repeat steps A and B for each additional
C.
device you want to connect to the switch.
Two 1 Gbps Combo/SFP Ports
The switch provides two 1 Gbps combo/SFP
interfaces as RJ-45 ports and SFP ports. These
ports can connect to network devices such as a
computer, printer, network video recorder
Copyright 2016 EtherWAN Systems, Inc.
All Rights Reserved
(NVR), network storage, or they can connect to
the network itself.
RJ-45 ports accommodate Category 5 or better
Ethernet cables. SFP ports accommodate
standard SFP modules; wear an ESD-preventive
wrist strap before connecting SFP modules.
These 1 Gbps interface combo ports operate in
"either/or" fashion. This means that attaching to
either a 1 Gbps RJ-45 or SFP port renders the
equivalent partner 1 Gbps port unavailable. See
the examples below.
...makes this
Connecting
to this port...
port unavailable
Connecting
to this port...
This port is
unavailable when...
This port is
unavailable when...
...makes this
port unavailable
...connecting
to this port
...connecting
to this port
Page 1
W70G-E17242XQ2
