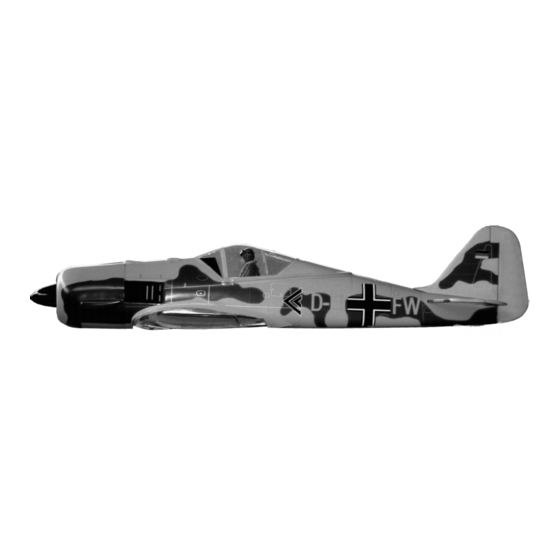

45 Class FOCKE-WULF 2-cycle engine 70 Class FW - 190A 4-cycle engine Or Electric equivalent RADIO CONTROL MODEL VQA0450L VQA044G/Y INSTRUCTION MANUAL 46~50 Wingspan approx. 59 in. (7.45cc) (1500mm) Fuselage length approx 43 in. 6 lb. 60~70 (1090mm) (2700g) (11.5cc) Warning: This radio control model is not a toy.
Page 2
REQUIRED FOR OPERATION (Purchase separately) 10.5x6 for .40 - 2 cycle engine Silicone tube 11x6 for .46 - 2 cycle engine 12x6 for .60 - 4 cycle engine Extension for aileron 12x7 for .70 - 4 cycle engine servo, retract servo and power pack Retract landing gear...
Page 3
Bottom view 1- Retract landing gear / Fahwerk Ansicht von unten Trial fit the push rod into the wing. Join the pushrod to the retract gear arm and trial fit the retract into the wing. 3x12mm screw 3x12mm schraube After checking that the retract works smoothly, fix the retract on the wing with 3x12mm screws Retract pushrod Fahrwerkanlenkgestange...
Page 4
4- Servo mount / Servohalterung Retract servo mount (plywood A,B,C) Einziehfahrwerk servohalterung FWU1 Schneiden Sie etwas Folie weg Cut away only FWU2 the covering CENTER FWU2 WING FWU1 SECTION BOTTOM Install the retract servo onto the retract 5- Retract servo / Einziehfahrwerk servo servo mount and secure it in place with four screw (included with radio set).
Page 5
7- Fixed gear / Landegestange Landegestänge Main gear (left) Kunststoffstreifen 3x10mm Plastic strap Befestigungsklötze Gear mount für Landegestänge Main gear (right) (hard wood) Gear mount Landegestänge (hard wood) Ply gear mount plate Square plastic Ply gear mount plate Plastic strap Kunststoffstreifen Main landing gear 3x10mm...
Page 6
10- Vertical stabilizer / Hohenleitwerk 1-Trial fit the vertical stabilizer in place . Check the alignment of the Cut away only vertical stabilizer. When you are satisfied with the alignment, use a the covering pencil to trace around the right and left of the stabilizer where it both side* meets the fuselage.
Page 7
NOTE: Place of servos may be Rudder servo(not include) 13- Servo change depend of engine Seitenruderservo (Four-stoke or two-stroke engine) Throttle servo(not included) Drosselservo Switch installation Switch collar Switch hole Elevator servo(not included) Bottom view Switch pushrod (not included) Hohenruderservo Ansicht von unten Connector 14- Linkages / Ruderanlenkung...
Page 8
Gear Ansicht von Bottom view 15- Tail wheel / Spornrad Tail wheel mount unten Horn Bottom view Collar Gewindestift Ansicht von unten 9/16”(14mm) Tail gear mount 5/16”(8mm) Fuselage Rudder Horn 3x12mm screw 1.5mm Side view 1.5mm Piece of fuel tube (not included) NOTE: Check the wheel turns freely.
Page 9
IN CASE OF TWO-STROKE ENGINE 18- Engine / Motor 2-Takt In case of two-stroke engine with hang muffler. Silencer extension adaptor (not include) In case of two-stroke engine with the silencer extension adapter. In case of two-stroke engine with side silencer. Secure the engine with four 3x25mm screw Plywood motor FRONT-VIEW...
Page 10
20- Li-Po battery stand installation Remove the magnetic battery hatch out of the fuselage. Battery hatch Akkuklappe SIDE-VIEW / Seitenansicht Put the battery stand into the fuselage as show (left). Secure the battery stand to the fuselage using the CA glue (below). Li-Po battery stand Li-Po battery stand (3mm plywood)
Page 11
22- Cowling / Motorhaube 2.5x10mm screw ..4 Adhesive Attach the board or transparent plastic on the side of the fuselage tape with the adhesive tape as show. Using a pencil or felt tipped pen trace around the engine head where it meet the cowl.
Page 12
27- Decor / Aufkleber VQAO44G/Y Note: Cut out the stickers and apply them in the proper area. Do not peel the backing paper off all at once. Peel off one corner of the backing and cut off with scissors. Arrange sticker on model and when satisfied adhere the corner without backing.
