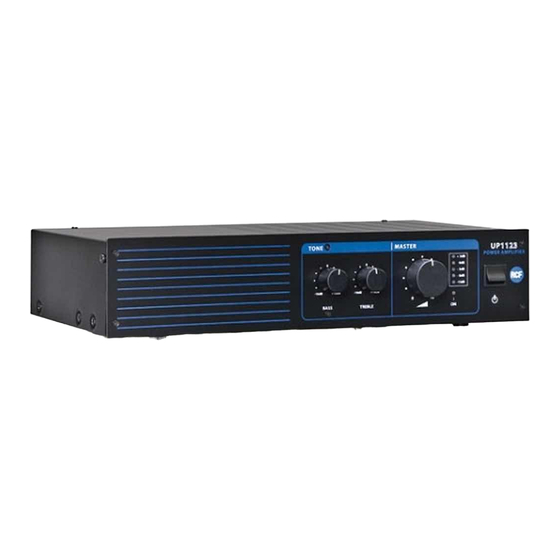

Summary of Contents for RCF UP1123

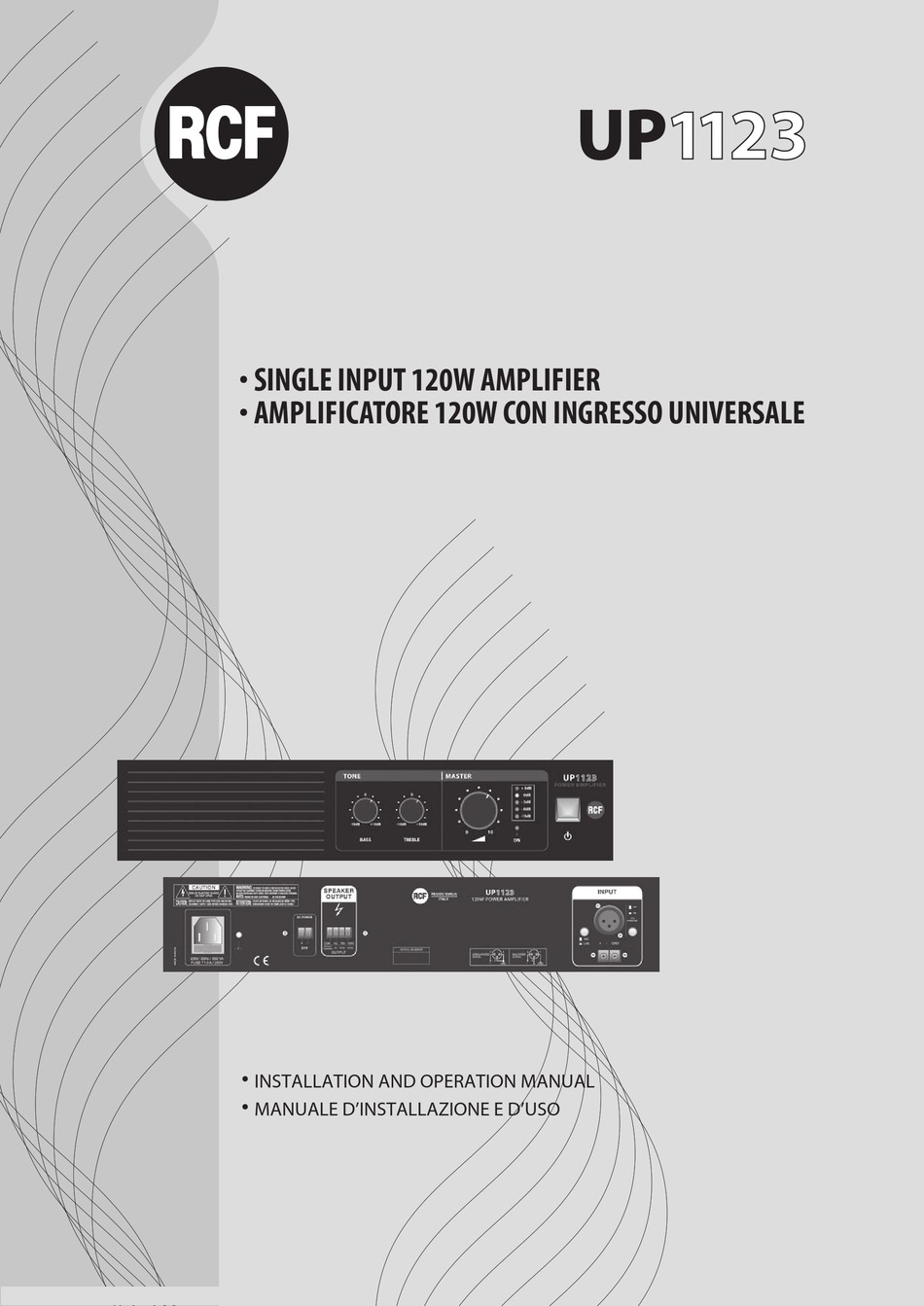

  • Page 1 � ������ ����� ���� ��������� � ������������� ���� ��� �������� ���������� � ������������ ��� ��������� ������ � ������� ��������������� � �����...
  • Page 2: Avvertenze Per La Sicurezza

    L’installazione e l’utilizzo errati del prodotto esimono la RCF S.p.A. da ogni responsabilità. ATTENZIONE: Per prevenire i rischi di fiamme o scosse elettriche, non esporre mai questo prodotto alla pioggia o all’umidità...
  • Page 3: Note Importanti

    Verificare inoltre l’idoneità del supporto (parete, soffitto, struttura ecc., al quale è ancorato il prodotto) e dei componenti utilizzati per il fissaggio (tasselli, viti, staffe non fornite da RCF ecc.) che devono garantire la sicurezza dell’impianto / installazione nel tempo, anche considerando, ad esempio, vibrazioni meccaniche normalmente generate da un trasduttore.
  • Page 4: Disimballo Ed Installazione

    RCF S.p.A. Vi ringrazia per l’acquisto di questo prodotto, realizzato in modo da garantirne l’affidabilità e prestazioni elevate. DISIMBALLO ED INSTALLAZIONE Si consiglia di dedicare alcuni minuti di tempo alla lettura di questo manuale per assicurare la corretta installazione del prodotto e conoscerne le caratteristiche.
  • Page 5 CONNESSIONE DELLE USCITE DI POTENZA USCITE A TENSIONE COSTANTE 70 / 100 V (ALTA IMPEDENZA) • Ogni diffusore deve avere un trasformatore di linea con tensione d’ingresso uguale a quella della linea (70 / 100 V); • la somma delle potenze di tutti i diffusori collegati non deve essere superiore a quella massima erogabile dall’amplificatore.
  • Page 6: Pannello Frontale

    PANNELLO FRONTALE TONE MASTER POWER AMPLIFIER • + 3dB - 3dB - 8dB -13dB -10dB +10dB -10dB +10dB BASS TREBLE 1) Controlli di tono:“BASS” (100 Hz ± 10 dB);“TREBLE” (10 kHz ± 10 dB). Nell’utilizzo dell’amplificatore collegato a diffusori a tromba privi del condensatore di protezione,si raccomanda di attenuare sensibilmente soprattutto le basse frequenze (controllo –BASS), in modo tale da limitare l’escursione e la dissipazione termica del trasduttore.
  • Page 7: Dati Tecnici

    6) Ingresso alimentazione in corrente continua con tensione 24 V. L’amplificatore non incorpora funzioni di carica e/o mantenimento in carica delle batterie connesse. 7) Morsetto per la messa a terra dell’apparecchio. 8) Connettore per l’alimentazione principale con fusibile (nota: il tipo di fusibile da utilizzarsi è specificato sul pannello posteriore).
  • Page 8 TONE MASTER POWER AMPLIFIER • + 3dB - 3dB - 8dB -13dB -10dB +10dB -10dB +10dB BASS TREBLE 24V dc SPEAKER INPUT REGGIO EMILIA OUTPUT ITALY 120W POWER AMPLIFIER DC POWER  Minimum 4 40,8 83,3 Impedance SERIAL NUMBER UNBALANCED BALANCED SIGNAL SIGNAL...
  • Page 9: Important Notes

    RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.
  • Page 10: Operating Precautions

    (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.
  • Page 11: Unpacking And Installation

    RCF S.p.A. would like to thank you for having purchased this product, which has been designed to guarantee reliability and high performance. UNPACKING AND INSTALLATION We recommend you take a few minutes to read this manual to ensure the correct product installation and become familiar with its features.
  • Page 12: Output Connection

    OUTPUT CONNECTION 70 / 100 V CONSTANT VOLTAGE OUTPUTS (HIGH IMPEDANCE) Each speaker must have a line transformer with the input voltage equal to the line voltage (70 / 100 V); The loudspeakers total power must not be higher than the maximum power the amplifier can deliver.
  • Page 13: Rear Panel

    FRONT PANEL TONE MASTER POWER AMPLIFIER • + 3dB - 3dB - 8dB -13dB -10dB +10dB -10dB +10dB BASS TREBLE 1) Tone controls: BASS (100 Hz ± 10 dB); TREBLE (10 kHz ± 10 dB). When using the amplifier connected to horn speakers without protective capacitor, we recommend you significantly attenuate the low frequencies (BASS control) to limit the excursion and heat dissipation of transducers.
  • Page 14: Specifications

    SPECIFICATIONS UP 1123 MODEL Nominal power: 120 W Loudspeaker outputs: 100V (83.33 Ω), 70 V (40.9 Ω), 4 Ω Input sensitivity (MIC / LINE): - MIC: 1.5 mV (-54 dBu), balanced - LINE: 300 mV (-8 dBu), balanced Input impedance: - MIC: 2.4 kΩ...
  • Page 15 TONE MASTER POWER AMPLIFIER • + 3dB - 3dB - 8dB -13dB -10dB +10dB -10dB +10dB BASS TREBLE 24V dc SPEAKER INPUT REGGIO EMILIA OUTPUT ITALY 120W POWER AMPLIFIER DC POWER  Minimum 4 40,8 83,3 Impedance SERIAL NUMBER UNBALANCED BALANCED SIGNAL SIGNAL...
  • Page 16 ��� ��� ��� ���������� �� � ����� ��������� ������ ������ � ����� ����� ��� ���� ������ ���� ��� ���� ������ ������� ����������� ���������� ������ �������� ������ ��� ���������� ��� ������ �������� ��� ����� �� ���� ������������� ������� ����� ������� ����� ��������� ������ �� ���������� ����...
