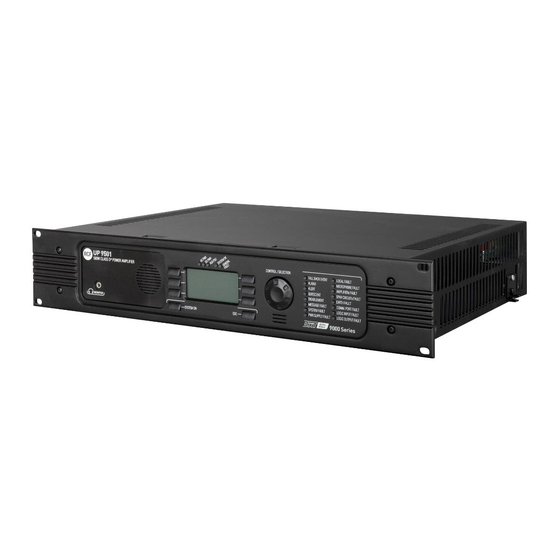

RCF UP 9501 User Manual
  1. Manuals
  2. Brands
  3. RCF Manuals
  4. Amplifier
  5. UP 9501
  6. User manual

RCF UP 9501 User Manual

Hide thumbs Also See for UP 9501:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
UP 9501
- DXT 9000
SYSTEM AMPLIFIERS
UP 9502
UP 9504

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UP 9501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RCF UP 9501

Summary of Contents for RCF UP 9501

  • Page 1 USER MANUAL UP 9501 - DXT 9000 SYSTEM AMPLIFIERS UP 9502 UP 9504...

  • Page 3: Table Of Contents

    USE AS GENERIC AMPLIFIER AUDIO SET MENU CALIBRAT MENU ROUTING MENU SYSTEM MENU INFO MENU DISPLAY TEXT MESSAGES INTERNAL JUMPER SETTINGS CONNECTION EXAMPLE SPARE AMPLIFIER (UP 9501) CONNECTION EXAMPLE GUIDANCE ON THE MEASUREMENT OF THE SPEAKER LINE IMPEDANCE SPECIFICATIONS APPENDIX...

  • Page 4: Safety Precautions

    RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product. WARNING: To prevent the risk of fire or electric shock, never expose this product to rain or humidity.

  • Page 5: Notes About Audio Signal Cables

    (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.

  • Page 6: Dxt 9000 System Description

    A system that requires a higher output power or a larger number of zones can be obtained by adding one or more system amplifiers model UP 9501 (1 x 500 W), UP 9502 (2 x 250 W) or UP 9504 (4 x 125 W) to the MX 9502 / MX 9504, connected through the dedicated RCF FLEXCOM data-link port.
  • Page 7 Each component has its own digital address. DXT 9000 includes high quality digital components already in use for RCF professional audio systems, obtaining high performances and qualifying the DXT 9000 system for installations in places that require a very good sound reproduction, such as theatres and auditoriums.
  • Page 8 MUSIC SOURCES EXAMPLE: SYSTEM WITH MU 9186 MAIN UNIT FALLBACK EMERGENCY MIC. PAGING MIC. 100 V / 70 V LOUDSPEAKERS LINES BM 9802 BM 9804 FIRE ALARM + BE 9808 SYSTEM UP 9501 UP 9502 MU 9186 MUSIC SOURCES UP 9504...
  • Page 9 EXAMPLE: SYSTEM WITH NETWORK FALLBACK EMERGENCY MIC. PAGING MIC. BM 9802 BM 9804 FIRE ALARM + BE 9808 SYSTEM UP 9501 100 V / 70 V LOUDSPEAKER LINES MU 9186/R UP 9502 MUSIC SOURCES FALLBACK EMERGENCY FIRE ALARM MIC. SYSTEM 100 V / 70 V LOUDSPEAKERS LINES PAGING MIC.

  • Page 10: Up 9500 Series Amplifier Main Features

    Every amplified output is a monitored 100 V / 70 V loudspeaker line. The only model UP 9501 (1 x 500 W) can be set as the spare amplifier (for one or more amplifiers) that automatically replaces the faulty one.

  • Page 11: Installation Into A 19" Rack Cabinet

    BLOCK DIAGRAM INSTALLATION INTO A 19” RACK CABINET Fix every amplifier to the front side of a 19” rack cabinet through 4 screws. UP 9500 series amplifiers have forced ventilation controlled by a thermostat and can be stacked without spaces or ventilation panels. Air ventilation is horizontal, so it is necessary to keep open the lateral sides.

  • Page 12: Front Panel

    FRONT PANEL 9 10 SYSTEM ON button: press and hold to turn amplifier on (when off). This button also works as fault acknowledge: press it to remove the displayed fault indication. SYSTEM ON 48 V buTTon does noT Turn The uniT off o swiTch The uniT off make sure The dc power supply...
  • Page 13 ÷ LEDs T works as SILK SCREEN COLOUR Generic INDICATION (WHEN LIT) FURTHER INFORMATION amplifier The mains power (AC) is present If the LED is off, the mains power is AC PWR Green and the respective fuse is intact. not available (or out of range). 48 V dc power supply is present If the LED is off, 48 V dc is not DC PWR...
  • Page 14 t works as SILK SCREEN COLOUR GENErIC INDICATION (WHEN LIT) FURTHER INFORMATION amplIfIEr The alert message is currently played. This LED also indicates the play of a message from a ALERT Yellow microphone or an external source activated as ALERT (GPI set to ALERT).
  • Page 15 t works as SILK SCREEN COLOUR GENErIC INDICATION (WHEN LIT) FURTHER INFORMATION amplIfIEr This indication depends on either a broken / short-circuited cable or no COMM. PORT Hardware / RS 485 serial port (for Yellow data transmission (for example, due FAULT linking to a fire alarm system) fault.

  • Page 16: Rear Panel

    REAR PANEL UP 9501 31 30 UP 9502 31 30 UP 9504 MAX OUTPUT POWER 500 W RMS Series EN54-16 MINIMUM LOAD IMPEDANCE 70 V (20 Ω) - 100 V (40 Ω) COMPLIANCE STICKER 4x125W CLASS D POWER AMPLIFIER LINE A...
  • Page 17 For monitoring purposes, the two CMD contacts should normally be powered by 24 V dc (voltage available from the 24 V DC . FALL BACK input state depends on presence and polarity of the voltage at the two CMD contacts. STATE VOLTAGE AT THE CMD CONTACTS DESCRIPTION...
  • Page 18 LOGIC INPUT 1 ÷ 8 STATES: STATE DETECTED RESISTANCE VALUE (R) OPEN Open line or too high resistance R > 15 kΩ SHORT Short-circuit or too low resistance R < 390 Ω IDLE Used logic input, but inactive 3.4 kΩ < R < 15 kΩ ACTIVE Activated logic input 390 Ω...
  • Page 19 POWER 15 A max 115/230V ~ 50-60Hz - 60 W max (UP 9501) SPEAKER LINE OUT WARN I N G Two 100 V / 70 V loudspeaker line outputs (LINE A1 and LINE A2) of the internal 500 W AC VOLTAG E S E L E C TO R amplifier.

  • Page 20: Loudspeaker Connection

    Every loudspeaker shall have a matching transformer, which input is suitable for the line voltage (70 / 100 V). The output voltage setting (either 100 V or 70 V) can only be made by an authorised RCF service centre. UP 9501 Connect the positive wire of the loudspeaker line to the ‘+’...

  • Page 21: Operating As Dxt 9000 System Components

    OPERATING AS DXT 9000 SYSTEM COMPONENTS If used as DXT 9000 system components, UP 9501, UP 9502 and UP 9504 amplifiers are controlled by the main unit (MU 9186, MX 9502, MX 9504) to which they are linked and their displays indicate REMOTE CONTROLLED.

  • Page 22: Audio Set Menu

    Functions managed by each menu are briefly described in the following table: MENU DESCRIPTION AUDIO SET Input / output / monitor settings. CALIBRAT Amplifier calibration. ------ ROUTING Audio matrix. SYSTEM LED test, system reset and shutting down. Information about the device, its internal amplifiers and its INFO firmware.
  • Page 23 PARAMETERS FREQ Centre frequency setting. BAND n (I, II, III) GAIN Gain setting. BYPASS EQ Select either ON (equalizer bypassed) or OFF (equalizer inserted). LO CUT (hi-pass filter) Filter that cuts low frequencies below the cutoff frequency. It has a single parameter: the cutoff frequency. 5-BAND EQ The five bands are semi-parametric equalizers that allow to choose the centre frequency and adjust its level.
  • Page 24 LEVEL Audio input level setting. AUDIO SET > OUTPUT AUDIO SET > OUTPUT SUBMENU SUBMENU Audio output parameter settings. Select an audio output among OUT 1, 2, 3, 4, to access its parameter list. Select MUTE ALL to mute or UNMUTE ALL to unmute all audio outputs. 5-BAND EQ The five bands are semi-parametric equalizers that allow to choose the centre frequency and adjust its level.

  • Page 25: Calibrat Menu

    CALIBRAT MENU Calibration of each audio output (necessary for detecting line faults). Select one of the audio output OUT 1/2/3/4 (that correspond to its respective internal amplifier) to carry out its calibration. ROUTING MENU Menu concerning the audio matrix, where to match sources and destinations. After selecting an audio output (OUT 1, OUT 2, OUT 3, OUT 4), use the CONTROL SELECTION encoder to choose an audio channel (to be sent to the selected output)

  • Page 26: Display Text Messages

    DISPLAY TEXT MESSAGES DISPLAY TEXT MESSAGES DESCRIPTION REMOTE CONTROLLED Device controlled by a DXT 9000 system main unit. AC NOT AVAILABLE Mains AC power supply not available. AC HIGH Mains AC power supply: too high voltage. AC LOW Mains AC power supply: too low voltage. AC FUSE FLT Mains AC power supply: blown or not present fuse.

  • Page 27: Internal Jumper Settings

    INTERNAL JUMPER SETTINGS ImportaNt: inTernal jumper seTTinG shall be carried ouT only by eiTher or an auThorised serVice cenTre Remove the lid and look at the back GPI / GPO board (in this drawing, the 10 jumpers are marked in grey inside the rectangle): ZOOM: BC position: the two resistors for monitoring are not AB position: the two resistors for monitoring are...

  • Page 28: Connection Example

    CONNECTION EXAMPLE MU 9186 MU 9186/R MX 950x UP 950x BUS IN – BUS OUT...

  • Page 29: Spare Amplifier (Up 9501) Connection Example

    SPARE AMPLIFIER (UP 9501) CONNECTION EXAMPLE UP 9501 / 9502 / 9504 UP 9501 / 9502 / 9504 SPARE UP 9501...

  • Page 30: Guidance On The Measurement Of The Speaker Line Impedance

    GUIDANCE ON THE MEASUREMENT OF THE SPEAKER LINE IMPEDANCE In the DXT 9000 system, monitoring of the integrity of speaker lines is made through impedance measurement at subsonic frequency (20 Hz). This method was chosen because of its good stability and accuracy of calculated values, which avoids false line fault reports that often occur with impedance measurements faster at supersonic frequencies, but more prone to interferences and errors.
  • Page 31 Amplifiers are protected and designed to operate at their maximum rated power. The best impedance range (Zmon), in which its measurement is more stable, immune to errors and repeatable, is from 50% to 100% of the load corresponding to the maximum power of the channel. With 100 V lines: 1 x 500 W →...
  • Page 32 The following formula is basically the calculation of the impedances in parallel: Zmaxend Ztot Znoend = Zmaxend – Ztot NotE: 20 h The line impedance here is considered aT The frequency of which is noT equal To The one measured by an impedance meTer aT The percentage difference between the two impedances is 7.14%, so it is necessary to set the tolerance to the 5% option.
  • Page 33 The total impedance (Ztot) resulting from the parallel between the load impedance already present in the line (Zline) and EOL (Zeol = 200 Ω) is easily obtainable by the following formula: Zline Zeol Ztot = Zline – Zeol NotE: (Zline) 20 h The line impedance here is considered aT The frequency of...

  • Page 34: Specifications

    - Load minimum impedance for each amplifier: [100 V] 20 Ω (UP 9501), 40 Ω (UP 9502), 80 Ω (UP 9504) [ 70 V] 10 Ω (UP 9501), 20 Ω (UP 9502), 40 Ω (UP 9504) - Loudspeaker line outputs:...

  • Page 35: Appendix

    - Dimensions (w, h, d): 485 mm, 88 mm, 365 mm (19” rack - 2 units) - Net weight: 7.8 kg (UP 9501), 8.0 kg (UP 9502), 8.3 kg (UP 9504) APPENDIX DXT 9000 - COMPLIANCE OPTION LIST WITH EN 54-16 REQUIREMENTS Audible warning 7.6.2...
  • Page 36 0068 RCF S.p.A. - Via Raffaello 13, 42124 Reggio Emilia, ITALY 0068-CPR-002/2014 EN 54-16:2008 Voice alarm control and indicating equipment for fire detection and fire alarm systems for buildings DXT 9000 Provided options: Audible warnings 7.6.2 Manual silencing of the voice alarm condition 7.7.2...
  • Page 40 Except possible errors and omissions. RCF S.p.A. reserves the right to make modifications without prior notice. HEADQUARTERS: RCF S.p.A. Italy tel. +39 0522 274 411 e-mail: info@rcf.it RCF UK tel. 0844 745 1234 Int. +44 870 626 3142 e-mail: info@rcfaudio.co.uk RCF France tel.
