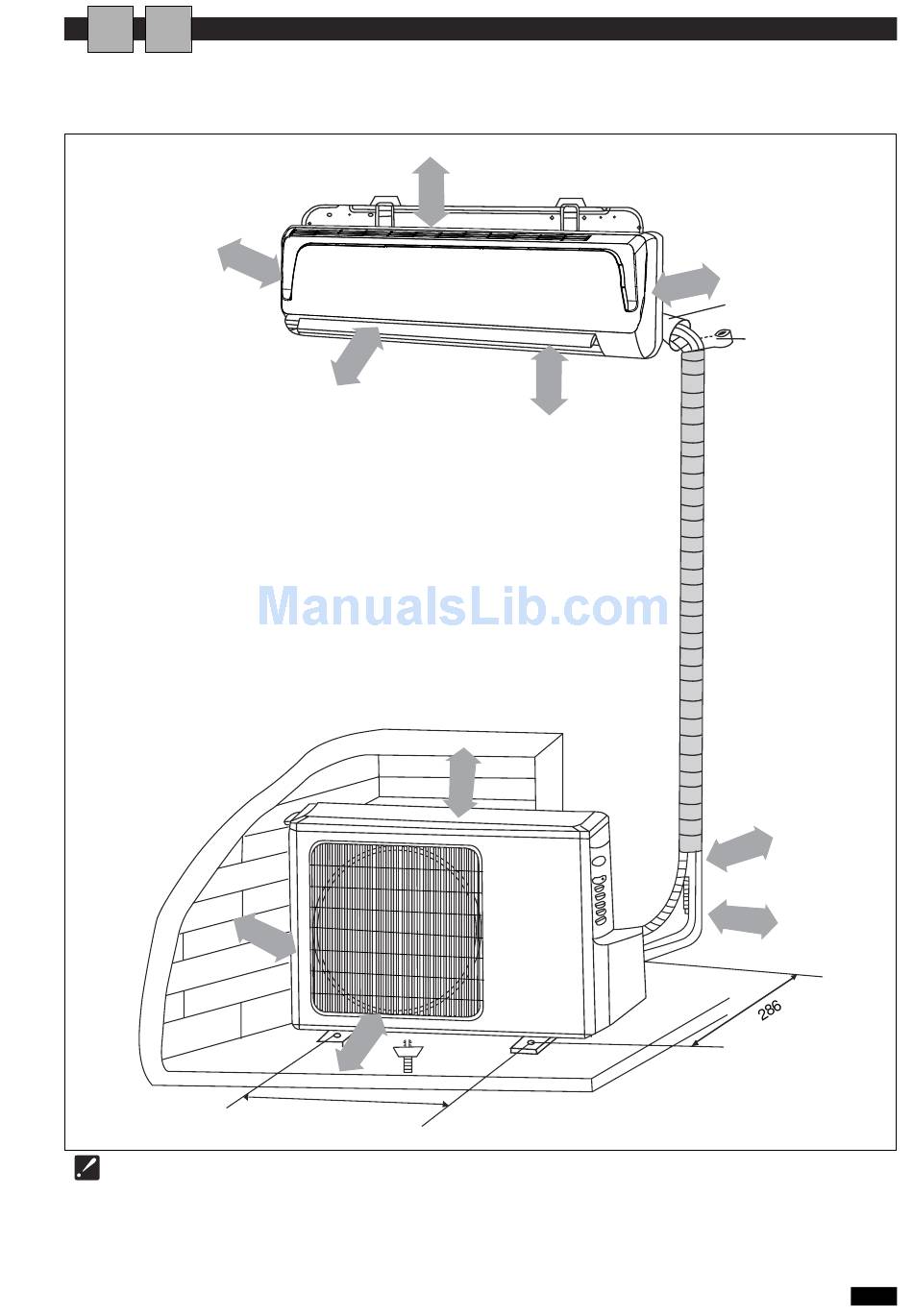

INSTALLATION DIAGRAM
The distance from
the wall must be
greater than 150mm
The distance from the
wall must be greater
than 300mm
The distance of the air
outlet from the wall
must be greater than
2000mm
The above figure represents a simplified lay-
out of the appliance and may not correspond
to the appearance of the unit actually pur-
chased.
SINGLE SPLIT
The clearance of the
air outlet must be at
least 300mm
The distance from the
wall must be greater
than 500mm
540

INSTALLATION INSTRUCTIONS

The distance from the ceiling must be
greater than 150mm
The distance from the floor
must be greater than 2500mm
The distance from the
wall must be greater
than 150mm
Flexible sleeve
Insulation tape
The distance between
the air inlet and the
wall must be greater
than 300mm
The distance from the
wall must be greater
than 500mm
