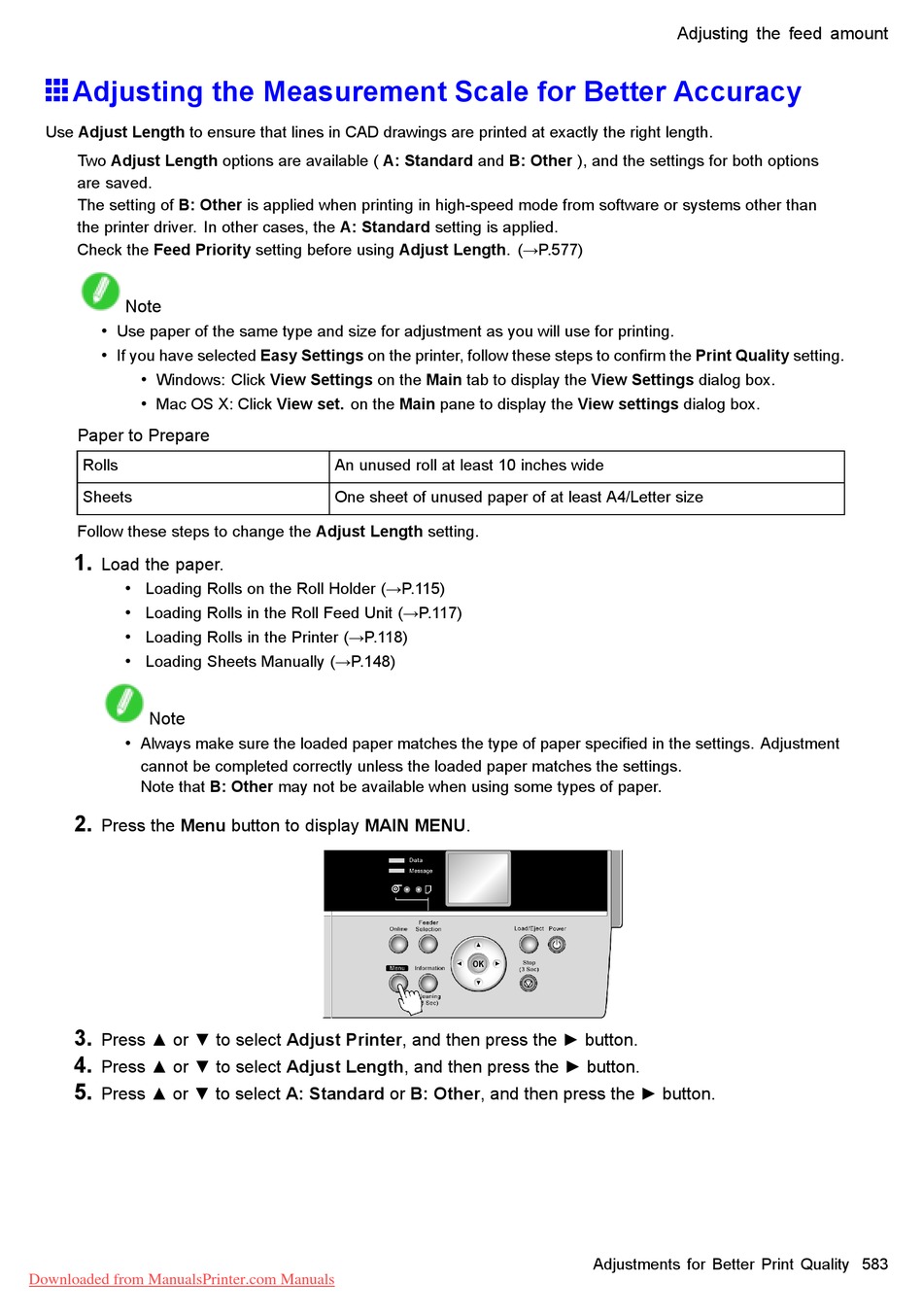

Adjusting the Measurement Scale for Better Accuracy

Use Adjust Length to ensure that lines in CAD drawings are printed at exactly the right length.
Two Adjust Length options are available ( A: Standard and B: Other ), and the settings for both options
are saved.
The setting of B: Other is applied when printing in high-speed mode from software or systems other than
the printer driver. In other cases, the A: Standard setting is applied.
Check the Feed Priority setting before using Adjust Length. (→P.577)
Note
•
Use paper of the same type and size for adjustment as you will use for printing.
•
If you have selected Easy Settings on the printer, follow these steps to conrm the Print Quality setting.
•
Windows: Click View Settings on the Main tab to display the View Settings dialog box.
•
Mac OS X: Click View set. on the Main pane to display the View settings dialog box.
Paper to Prepare
Rolls
Sheets
Follow these steps to change the Adjust Length setting.
1.
Load the paper.
•
Loading Rolls on the Roll Holder (→P.115)
•
Loading Rolls in the Roll Feed Unit (→P.117)
•
Loading Rolls in the Printer (→P.118)
•
Loading Sheets Manually (→P.148)
Note
•
Always make sure the loaded paper matches the type of paper specied in the settings. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.
Note that B: Other may not be available when using some types of paper.
2.
Press the Menu button to display MAIN MENU.
3.
Press ▲ or ▼ to select Adjust Printer, and then press the ► button.
4.
Press ▲ or ▼ to select Adjust Length, and then press the ► button.
5.
Press ▲ or ▼ to select A: Standard or B: Other, and then press the ► button.
Downloaded from ManualsPrinter.com Manuals
An unused roll at least 10 inches wide
One sheet of unused paper of at least A4/Letter size
Adjusting the feed amount
Adjustments for Better Print Quality 583
