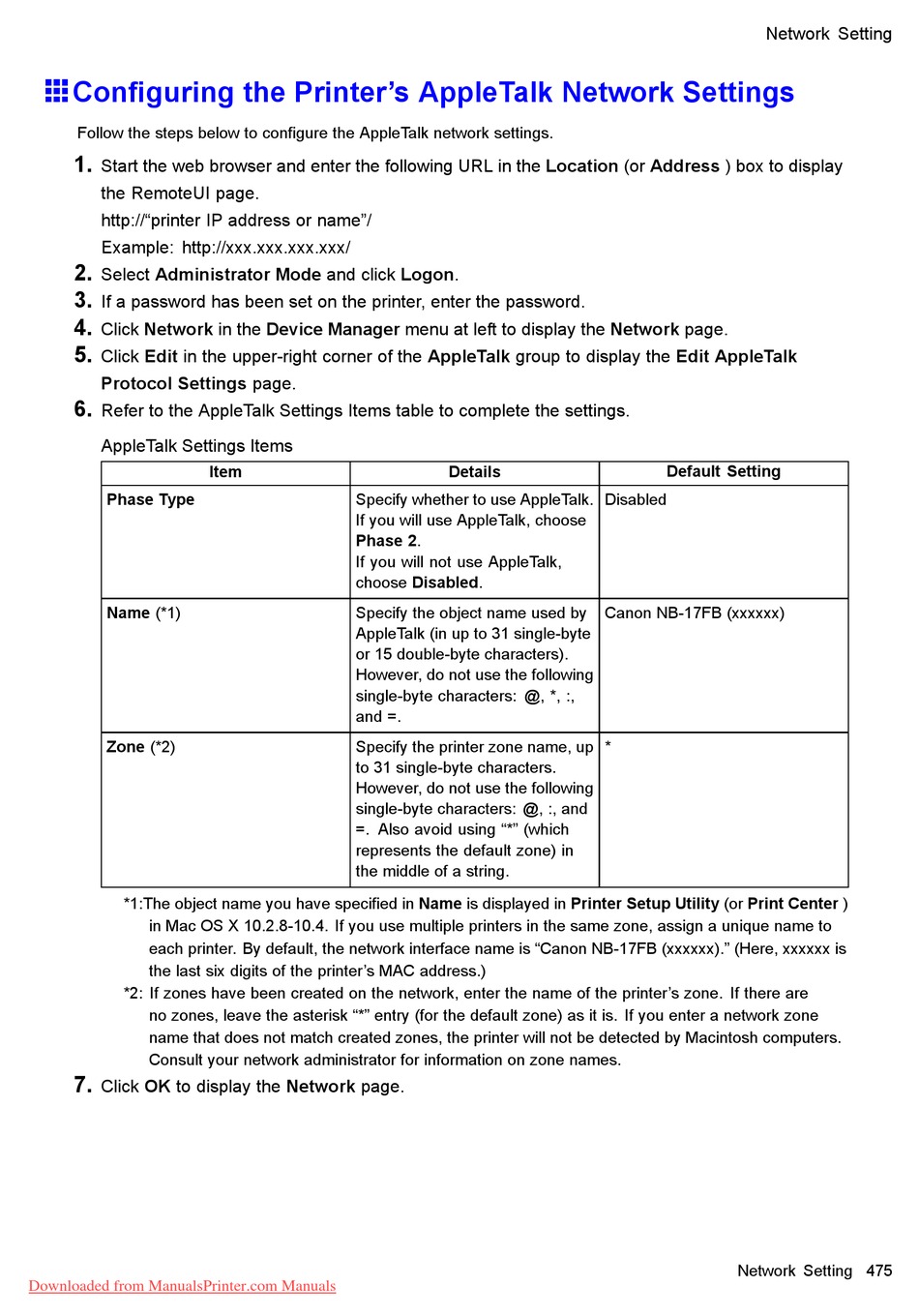

Conguring the Printer's AppleTalk Network Settings
Follow the steps below to congure the AppleTalk network settings.
1.
Start the web browser and enter the following URL in the Location (or Address ) box to display
the RemoteUI page.
http://"printer IP address or name"/
Example: http://xxx.xxx.xxx.xxx/
2.
Select Administrator Mode and click Logon.
3.
If a password has been set on the printer, enter the password.
4.
Click Network in the Device Manager menu at left to display the Network page.
5.
Click Edit in the upper-right corner of the AppleTalk group to display the Edit AppleTalk
Protocol Settings page.
6.
Refer to the AppleTalk Settings Items table to complete the settings.
AppleTalk Settings Items
Phase Type
Name (*1)
Zone (*2)
*1:The object name you have specied in Name is displayed in Printer Setup Utility (or Print Center )
in Mac OS X 10.2.8-10.4. If you use multiple printers in the same zone, assign a unique name to
each printer. By default, the network interface name is "Canon NB-17FB (xxxxxx)." (Here, xxxxxx is
the last six digits of the printer's MAC address.)
*2: If zones have been created on the network, enter the name of the printer's zone. If there are
no zones, leave the asterisk "*" entry (for the default zone) as it is. If you enter a network zone
name that does not match created zones, the printer will not be detected by Macintosh computers.
Consult your network administrator for information on zone names.
7.
Click OK to display the Network page.
Downloaded from ManualsPrinter.com Manuals
Item
Specify whether to use AppleTalk.
If you will use AppleTalk, choose
Phase 2.
If you will not use AppleTalk,
choose Disabled.
Specify the object name used by
AppleTalk (in up to 31 single-byte
or 15 double-byte characters).
However, do not use the following
single-byte characters: @, *, :,
and =.
Specify the printer zone name, up
to 31 single-byte characters.
However, do not use the following
single-byte characters: @, :, and
=. Also avoid using "*" (which
represents the default zone) in
the middle of a string.
Details
Disabled
Canon NB-17FB (xxxxxx)
*
Network Setting
Default Setting
Network Setting 475
