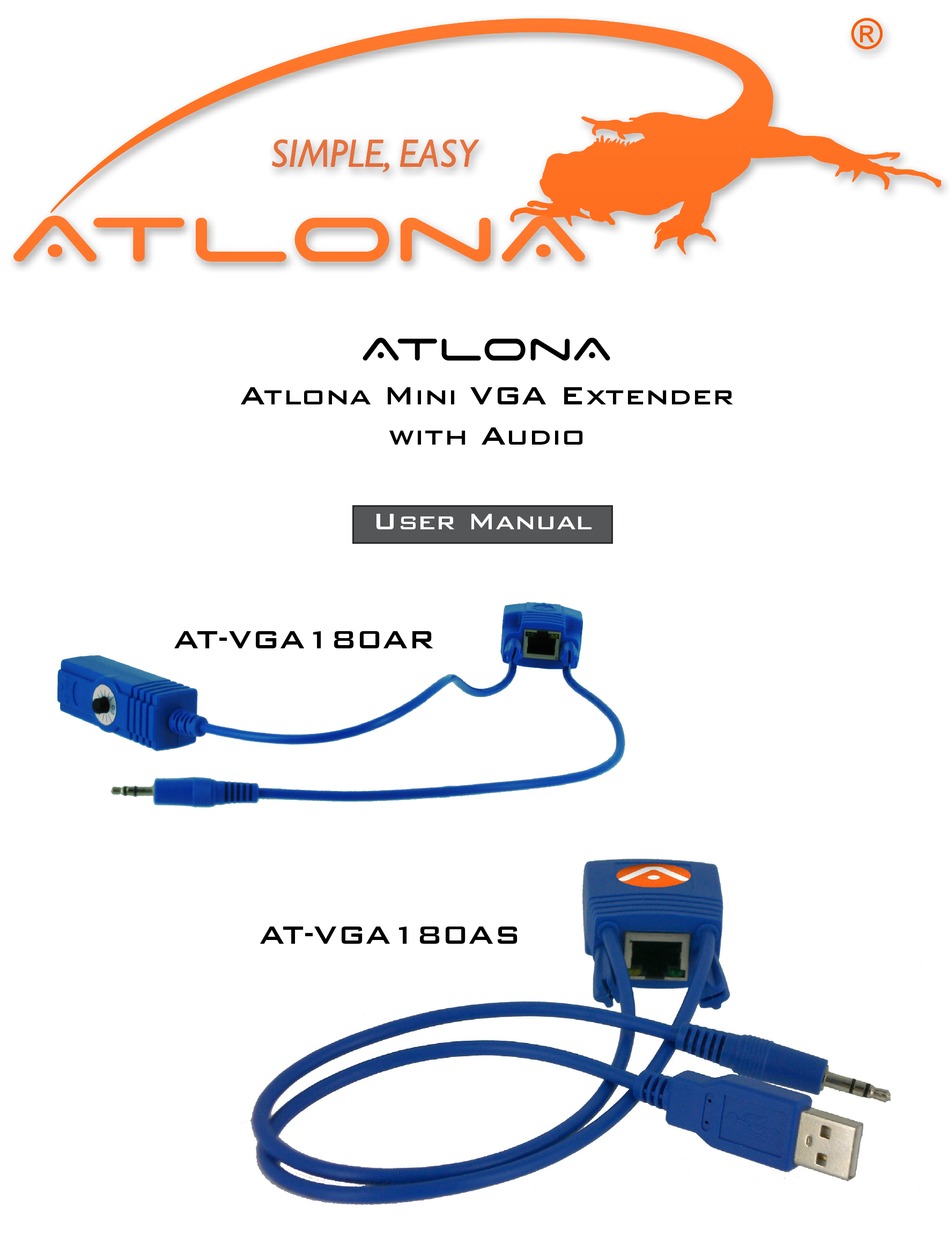

- Page 1 AtlonA Atlona Mini VGA Extender with Audio User Manual AT-VGA180AR AT-VGA180AS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Package Contents ..........1 2. Introduction ..........1 3. Key Features ..........1 4. Panel Description ..........2 5. Installation and Operation ..........2 6. Specification ..........5 7. Safety Information ..........6 8. Warranty ..........7 9. -
Page 3: Package Contents
Package Contents 1. AT-VGA180ASR x 1 ( sender AT-VGA180AS and receiver AT-VGA180AR units ) 2. M-F VGA cable x 1 3. M-F VGA adapter x 1 4. Universal Power Adapter x 1 5. User manual x 1 Introduction AT-VGA180ASR is the smallest AV Extender in the industry; the main body is as big as a VGA connector and able to transmit VGA + Audio by a single Cat5e cable up to 180m. -
Page 4: Panel Description
To Audio Output To USB Power(DC5V) Rj-45 System Link V&H Sync Activity Blinking : No signal LED ON : Active Video Focus AT-VGA180AR Power Jack To Monitor To Speaker Installation and Operation 1. AT-VGA180AS Single-Port Transmitter Installation: 1) Connecting Transmitter: Take AT-VGA180AS and connect uvw to computer’s VGA, Audio and USB port. The Transmitter will take the DC5V power from computer’s USB port and if your computer or VGA player doesn’t have... - Page 5 M-F VGA Connector Audio 2. Receiver AT-VGA180AR installation and UTP Connection 1) Power Up: Plug power adapter to the Receiver and connect to monitor and speaker. The LED above RJ-45 port should blink to indicate the unconnected status of AV signal.
- Page 6 Receiver should work now and the LEDs above RJ-45 port should remain ON. You can adjust the FOCUS control of Receiver to have the best VGA display. Projector Video Monitor & Speaker One-Port miniTransmitter Use Cat5e/5e/6 One-Port cable up to 180m mini Receiver Audio Installation Diagram of Receiver AT-VGA180AR...
-
Page 7: Specification
3. Other Integration and Application: Please contact your local dealer or distributor for further information. Specication Model AT-VGA180AS AT-VGA180AR Description Super Mini AV Transmitter Super Mini AV Receiver AV Input VGA x 1, Audio x 1 RJ45 x 1... -
Page 8: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 9: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 10: Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
