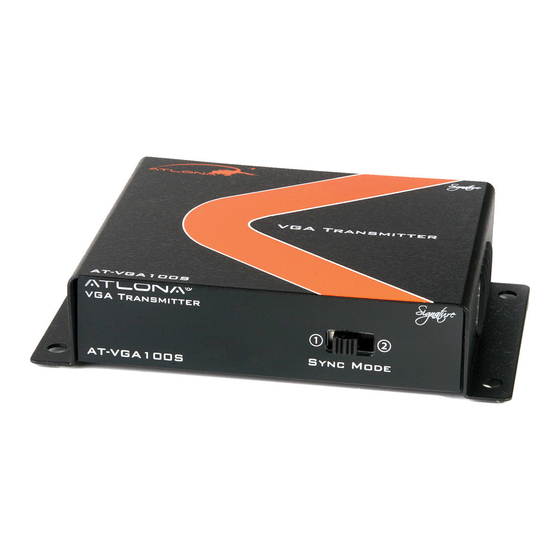

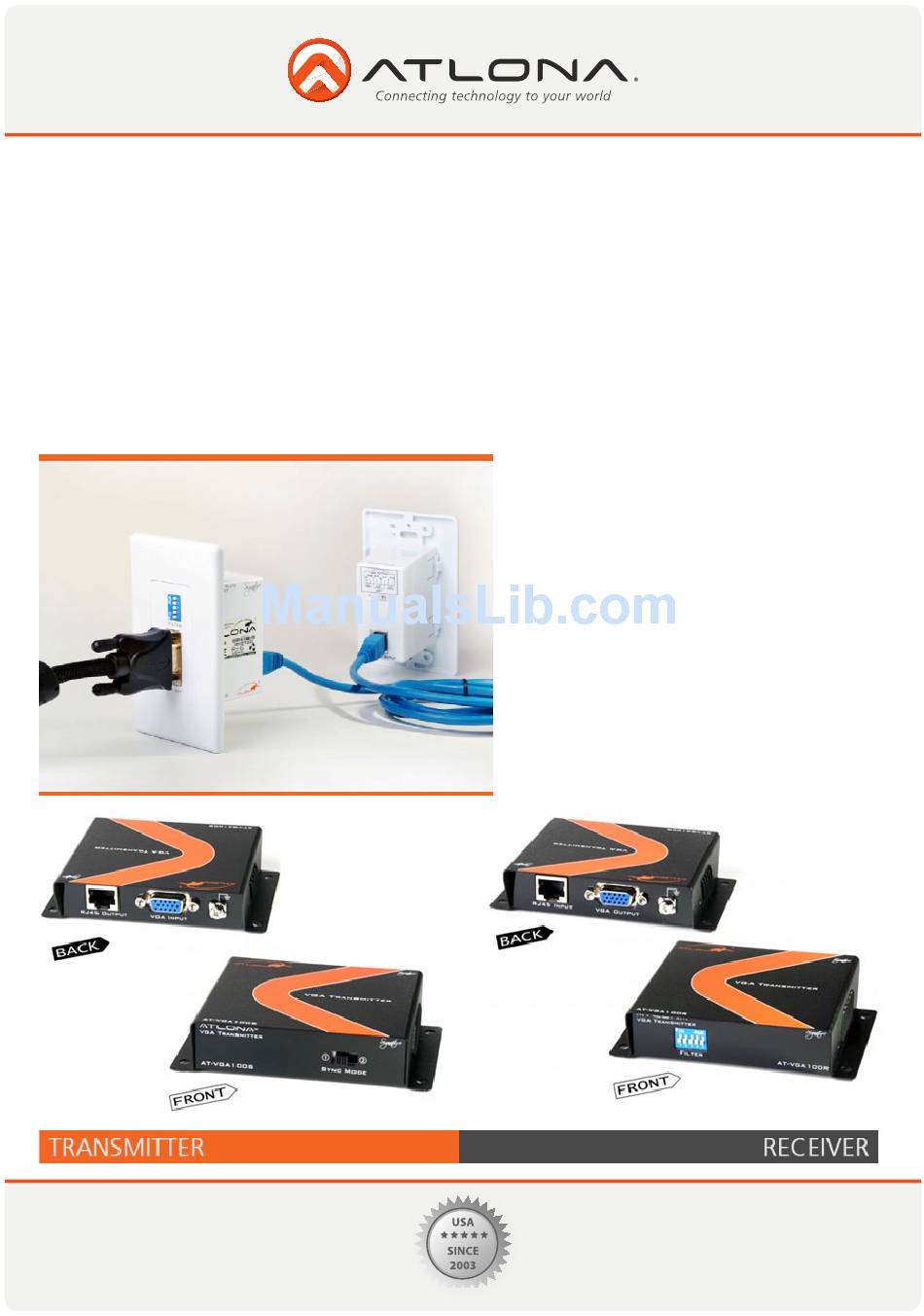

- Page 1 User Manual Passive VGA Extender with Wall Plate or Box options up to 330ft over 1 x CAT5/6/7 Cable AT-VGA100-SR and AT-WPVGA-SR AT-WPVGA-SR AT-VGA100-SR Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
7. Dip Switch ..........4 8. Troubleshooting ..........4 9. STP Connector ..........5 10. Wiring Configuration ..........6 11. Safety Information ..........7 12. Warranty ..........8 13. Atlona Product Registration ..........9 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION The Atlona passive VGA Extenders over 1 x CAT5/6/7 cable up to the distance of 330ft with resolutions up to 1280x1024. The Atlona VGA Extenders are a perfect way of extending video signal away from the computer. The advanced design allows no limitations or delays when using extender versus a direct connection to the computer. -
Page 4: Specification
• Make sure to use a cable tester to check all wires are correctly terminated. (Incorrect Termination may cause damage to the receiving module) • Once connected, please refer to the Mode and Dip switch configuration Transmitter: ANY TRANSMITTER IS COMPATIBLE WITH ANY RECEIVER Receiver: Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Mode Selection
If you are terminating STP cable with a plastic CAT5 or CAT6 connector, please separate ground wire and con- nect it to the Ground connection on the receiver module. STP (Shielded Twisted Pair) Cable is recommended Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Stp Connector
Step # 2 ground cable (folded) - Must touch the Metal Housing STP RJ45 connector (Metal Housing) STP Connector is not used: Step # 1 ground cable Shielded Twisted pair cable (STP cable) Step # 2 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Wiring Configuration
Data Cable 1. Orange-white Keyboard Clock 2. Orange Keyboard Data 3. Green-white Power 1 4. BlueG round 1 5. Blue-white Power 2 6. Green Ground 2 7. Brown-white Mouse Clock 8. Brown Mouse Data Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
It may also cause damage to your AT-VGA100. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 10: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
