GB
Origo
250/300/400
Bruksanvisning
Brugsanvisning
Bruksanvisning
Käyttöohjeet
Instruction manual
Betriebsanweisung
Manuel d΄instructions
Gebruiksaanwijzing
0700 160 033
TM
Arc
Instrucciones de uso
Instruzioni per l΄uso
Manual de instruções
Οδηγίες χρήσεως
Инструкция
Instrukcja obslugi
Návod k používání
Kezelési utasítások
Valid
for
ES B
A
serial
no.
316-xxx-xxxx
Advertisement
Table of Contents
Related Manuals for ESAB Origo Arc 250
Summary of Contents for ESAB Origo Arc 250
- Page 1 ES B Origo 250/300/400 Bruksanvisning Instrucciones de uso Brugsanvisning Instruzioni per l΄uso Bruksanvisning Manual de instruções Käyttöohjeet Οδηγίες χρήσεως Instruction manual Инструкция Betriebsanweisung Instrukcja obslugi Manuel d΄instructions Návod k používání Gebruiksaanwijzing Kezelési utasítások 0700 160 033 Valid serial 316-xxx-xxxx...
- Page 2 DIRECTIVE ..................36 SAFETY....................36 INTRODUCTION ................38 3.1 Equipment ................... 38 3.2 Field of application ..............38 TECHNICAL DATA ................38 4.1 Static characteristics ..............39 INSTALLATION .................. 40 5.1 Placing ..................40 5.2 Lifting instructions ................ 40 5.3 Mains power supply ..............40 OPERATION ..................
-
Page 3: Declaration Of Conformity
Fax: +46 584 411924 SAFETY Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. -
Page 4: Fire Hazard
WARNING ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAUTIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE BASED ON MANUFACTURER’S HAZARD DATA. ELECTRICAL SHOCK - Can kill • Install and earth the welding unit in accordance with applicable standards. •... -
Page 5: Technical Data

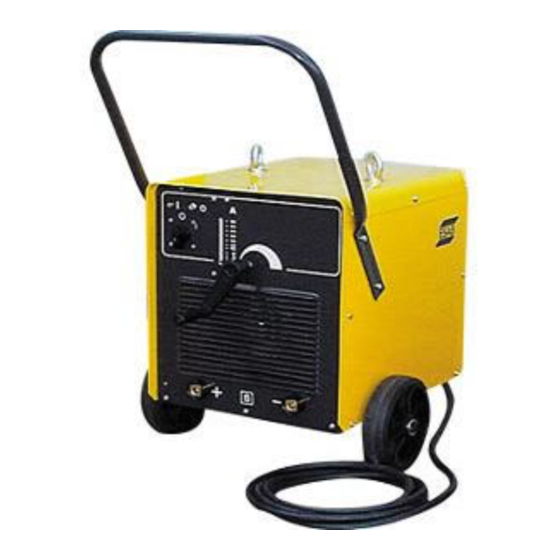

INTRODUCTION Origo Arc250, Origo Arc300 and Origo Arc400 are moving core power sources intended for welding with coated electrodes (MMAwelding). Equipment The welding power source is delivered complete with mains cable (5 metres) and instruction manual. Field of application The welding power source supply direct current, which allows you to weld most alloyed and non-alloyed steels, stainless steel and cast iron. -
Page 6: Installation
Static characteristics Origo Arc250 Origo Arc300 Origo Arc400 INSTALLATION The installation must be executed by a professional. WARNING! This product is intended for industrial use. In a domestic environment this product may cause radio interference. It is the user's responsibility to take adequate precautions. - Page 7 Note! Connect the power source to the electricity mains with a network impedance Zmax or lower. If the network impedance is higher, there is a risk of flicker in the illuminators. Zmax ( Ω ) Origo Arc250 0,18 Origo Arc300 0,11 Origo Arc400...
-
Page 8: Operation
50/60 Hz 50 Hz 60 Hz 50 Hz 60 Hz Origo Arc300 Mains voltage (V) 400-415 440-460 Max. eff. supply current (A) 36 Fuse slow (A) Mains cable area (mm 4x2,5 4x2,5 Origo Arc400 50/60 Hz 50 Hz 60 Hz 50 Hz 60 Hz Mains voltage (V) -
Page 9: Fault Tracing
It is the obligation of the service unit which has carried out the service or repair work to make sure that the product still conforms to the said standard. Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list.
