〈1〉 〈2〉
〈4〉
HOLE "D"
HOLE "C"

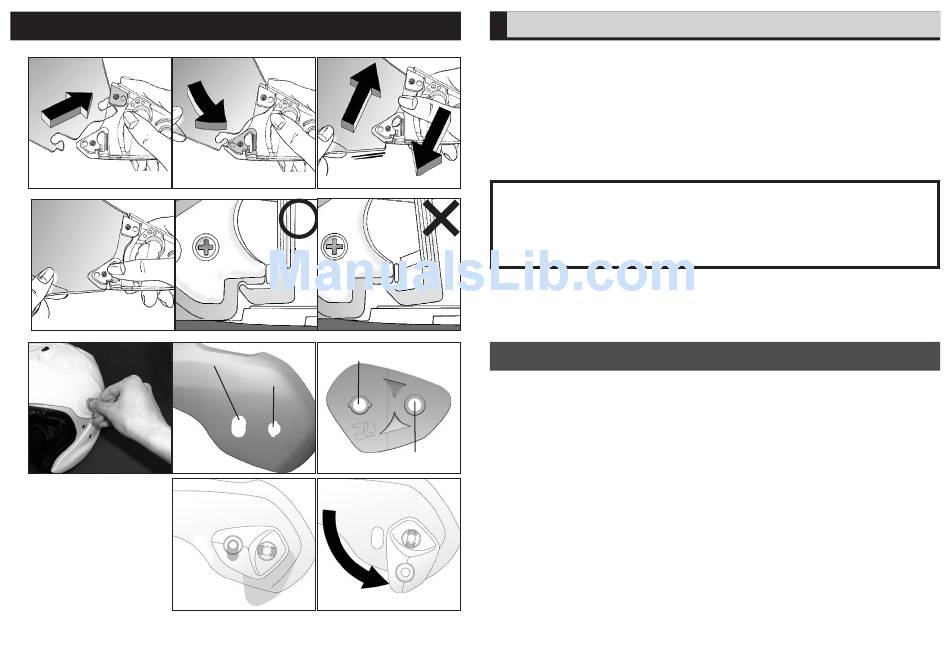

To replace the shield holding arms, first slip the upper slot of the shield
into the upper bracket of the shield holding arm <1>, next slip the lower
slot of the shield into the lower bracket of the shield holding arm <2>,
then slide the shield holding arm downward until it is fully snapped into
place <3>. Be sure the lock lever at the lower bracket returns to the
correct position as illustrated <4>.
〈3〉
WARNING:
if the lock lever at the lower bracket is not in the correct position the
shield may come off when you try to replace the shield or when you
operate your motorcycle.
SLEEVE "A"

TO REMOVE/REPLACE SHIELD/PEAK

X-TEND CT / X-TEND RAM CT / CT-Z

To remove shield/peak, remove two screws from each side of the peak
with flat blade screwdriver or coin. Please note that the pressure plate is
attached to the peak at the rear hole "C". In order to remove the pressure
plate, rotate the front sleeve "B" downward until the rear sleeve "A"
SLEEVE "B"
releases.
DOWNWARD
