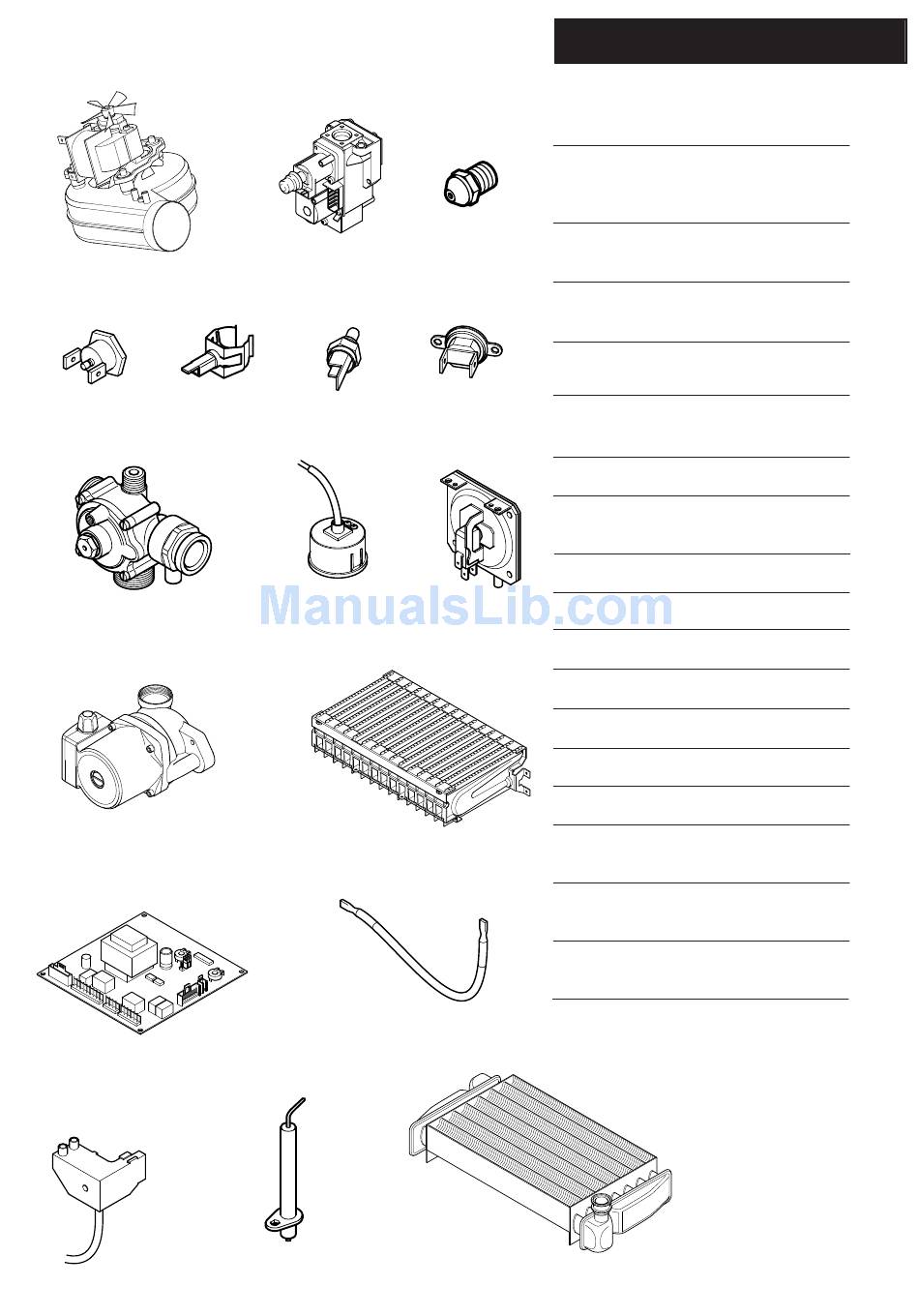

16.0 Short Part List
Key G.C. Description
No. No.
22 Fan (18 HE)
Fan (24 HE)
Fan (28 HE)
23 Pressure Switch (18 HE)
Pressure Switch (24 & 28 HE)
32 Heat Exchanger (18 HE)
Heat Exchanger (24 & 28 HE)
41 Burner (18 HE)
Burner (24 & 28 HE)
44 Injector 1.18 (18 & 24 HE)
Injector 1.25 (28 HE)
59 E66 408 Electrode Lead
63 E66 411 Spark or Sensing
Electrode
72 E66 539 Pump
102 Hydraulic Outlet Assy
131 342 571 Temperature Sensor
135 E66 439 Safety Thermostat
140 Gas Valve
154 PCB
169 E66 453 Pressure Gauge
528 Return Heating
Temperature Sensor
371 Igniter/Gas Valve
Cable
333 Flue Overheat
Thermostat
Manufacturers
Part No.
5113278
5112627
5112430
5113280
248466
5113284
5112431
5113286
5112770
247439
5112376
248037
247384
248042
248490
247394
248079
5107339
5112380
248090
248497
5112385
5112395
