Benchmark MAIN Installation & Service Instructions Manual page 24

Cut the same
amount off the
Air Duct &
Flue Duct
Fig. 14
24
© Baxi Heating UK Ltd 2007
Approx
1425mm
Air Duct
Flue Duct
Push Fit Adaptor
Flue Deflector
Fig. 13
Fig. 13a

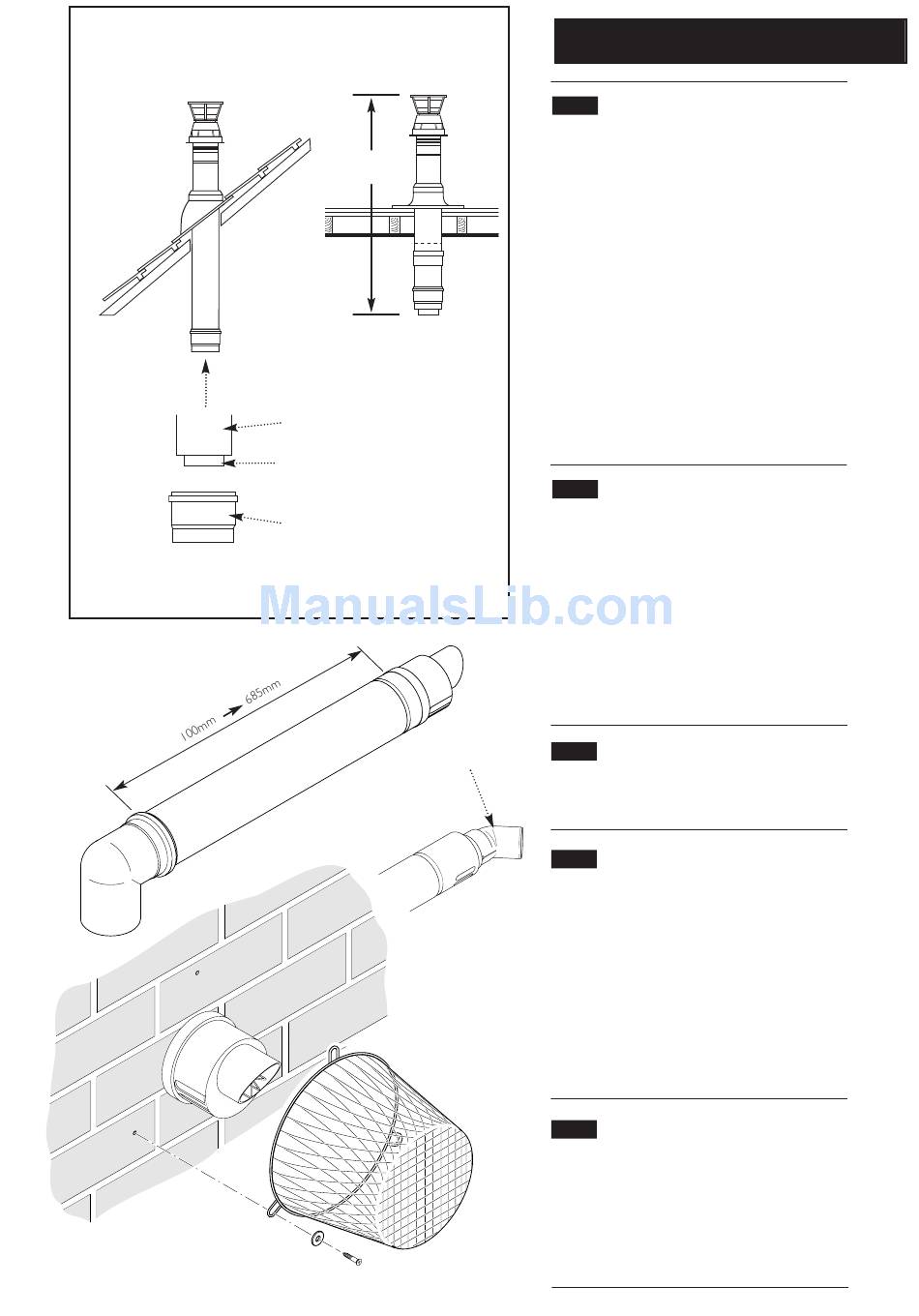

8.0 Flue Options
8.6 For Roof Terminals
1. In the case of a pitched roof 25 - 50 degrees, position the lead
tile to replace/flash over existing roof tiling. Make an aperture in
the roof suitable for the lower tube of the roof terminal and
ensure the integrity of the roof cover is maintained. The adjustable
plastic collar can either be positioned on the lead tile or the lower
tube of the roof terminal prior to the final positioning of the
vertical flue through the tile. Check the collar is correctly located
to suit required roof pitch (either 25° to 38° or 37° to 50°). From
inside the roof adjust the flue to a vertical position and secure to
the roof structure with the clamp supplied.
2. For flat roof installations the aluminium flashing must be
incorporated into the roof covering and the appropriate aperture
made in the roof decking. The vertical flue is lowered onto the
flashing making sure the collar of the flue locates securely with the
flashing. (A mastic seal may be necessary). From inside the roof,
adjust the flue to a vertical position and secure to the roof
structure with the clamp supplied.
8.7 Flue Dimensions
The standard horizontal flue kit allows for flue lengths between
100mm and 685mm from elbow to terminal (Fig. 13).
The maximum permissible equivalent flue length is:
System 18 HE 5 metres
System 24 HE 4 metres
System 28 HE 3 metres
NOTE: Each additional 45° of flue bend will account for an
equivalent flue length of 0.5m.
eg. 45° = 0.5m, 90° = 2 x 45° = 1m etc.
8.8 Flue Trim
1. The rubber flue trim supplied may be fitted to either the
outside wall or on the inner wall of installation.
8.9 Terminal Guard (Fig. 14)
1. When codes of practice dictate the use of terminal guards, they
can be obtained from most Plumbers' and Builders' Merchants.
2. There must be a clearance of at least 50mm between any part
of the terminal and the guard.
3. When ordering a terminal guard, quote the appliance name and
model number.
4. The flue terminal guard should be positioned centrally over the
terminal and fixed as illustrated.
8.10 Flue Deflector (Fig. 13a)
1. If required a flue deflector is available from your Potterton
stockist.
2. Push the flue deflector over the teminal end and rotate to the
optimum angle for deflecting plume. Secure the deflector to the
terminal with screws provided.
