Installation Requirements; Tools And Parts - Jenn-Air JS42NXFXDW Installation Manual

IMPORTANT:
Installer: Leave Installation Instructions with the homeowner.
Homeowner: Keep Installation Instructions for future
reference. Save these Installation Instructions for the local
electrical inspector's use.
TOOLS NEEDED:
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Cordless drill
Drill bits
Two adjustable
wrenches
Phillips screwdriver
Small level
³⁄₃₂" Allen wrench
(panel kits only)
PARTS NEEDED:
Six #8 x 3" (7.6 cm) wood screws (longer screws may be needed)
One or two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) wood board(s)
Custom wood overlay panels - consult a qualified
cabinetmaker or carpenter to make the custom wood panels.
See "Custom Wood Overlay Panels" for more information.
Panel kits - See "36" Models or 42" French Door Models" for
panel kit information.
Flexible, codes approved water supply tubing, a ferrule, a
union and a ¹⁄₄" (6.35 mm) compression fitting.

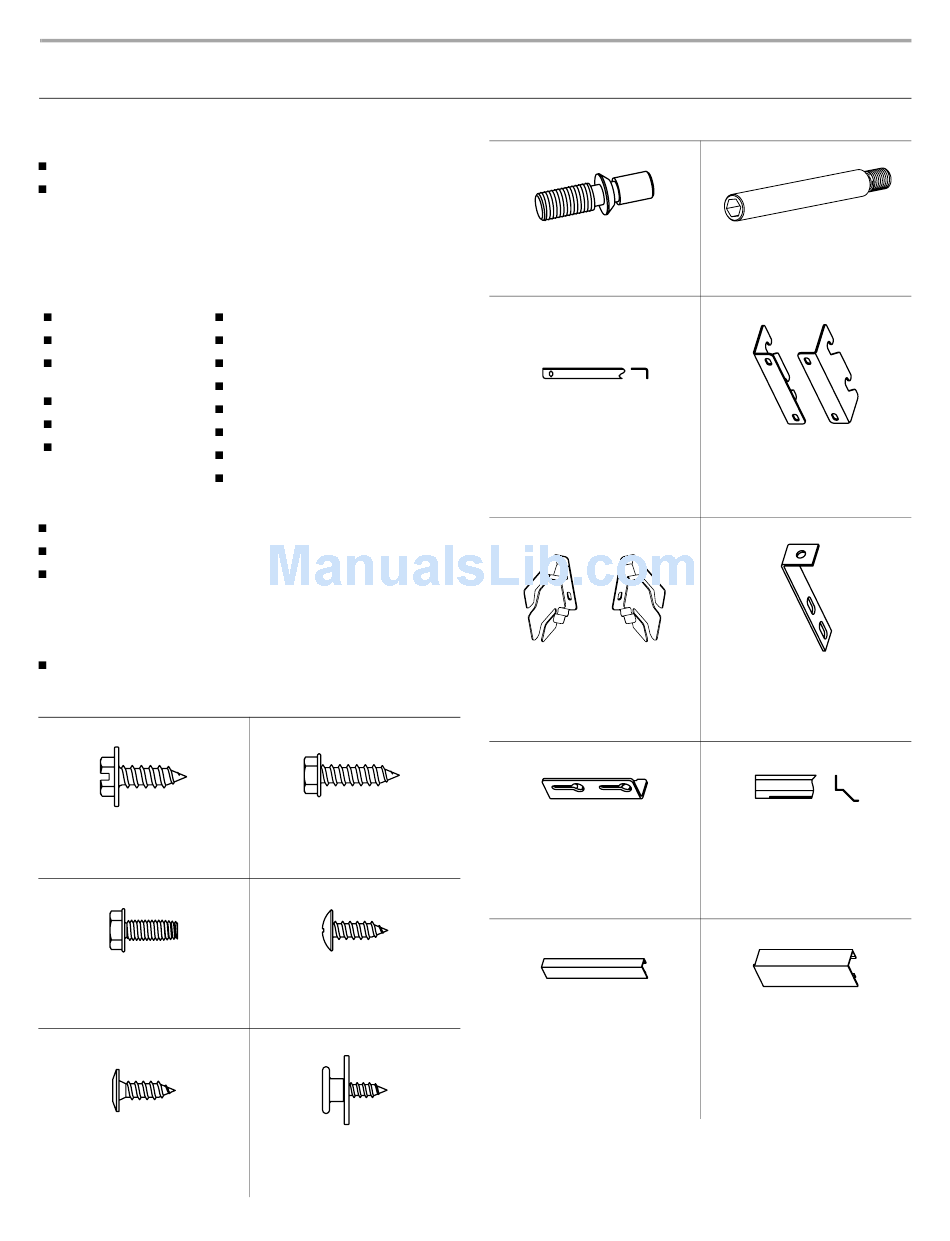

PARTS PROVIDED:
Slotted hex head screw
W10141645 (21)
Hex head blunt screw
W10142233 (4)
Phillips head flat screw
8281251 (28)
6

INSTALLATION REQUIREMENTS

Tools and Parts

¹¹⁄₃₂" nut driver
³⁄₈" and ¹⁄₂" open-end wrenches
⁵⁄₃₂" and ³⁄₁₆" Allen wrench
¹⁄₄" and ⁵⁄₁₆" socket drivers
Tape measure
Utility knife
Tape (painters)
Appliance dolly
Hex head pointed screw
W10141189 (4)
Round head screw
1163283 (24)
Door panel stud
W10129563
Door Adjustment Pin
W10234194
Drawer Panel Bracket
W10203457
Integrated Grille Bracket
W10260890 - Left
W10260891 - Right
Panel top bracket
W10192849
RC Hinge Cover Trim
W10199873 - 42" SxS
W10199875 - 48" SxS
W10202875 - 36" BM (Right)
W10202510 - 42" FDBM (Right)
Door Stop Pin
W10234202
Standard Grille Bracket
W10182743 - Left
W10182741 - Right
"L" Bracket
W10234199
Grille Trim
W10250961 - 36" BM
W10250962 - 42" BM, SxS
W10250963 - 48" SxS
FC Hinge Cover Trim
W10199886 - 42" SxS
W10199888 - 48" SxS
W10202877 - 36" BM (Left)
W10202511 - 42" FDBM (Left)
