Warning
Never attempt to dismantle any part of the
suspension units, as all units contain
pressurised oil. Skin and eye damage can
result from contact with the pressurised oil.

Suspension Adjustment

Front Suspension
The front suspension is factory set and is not
adjustable.

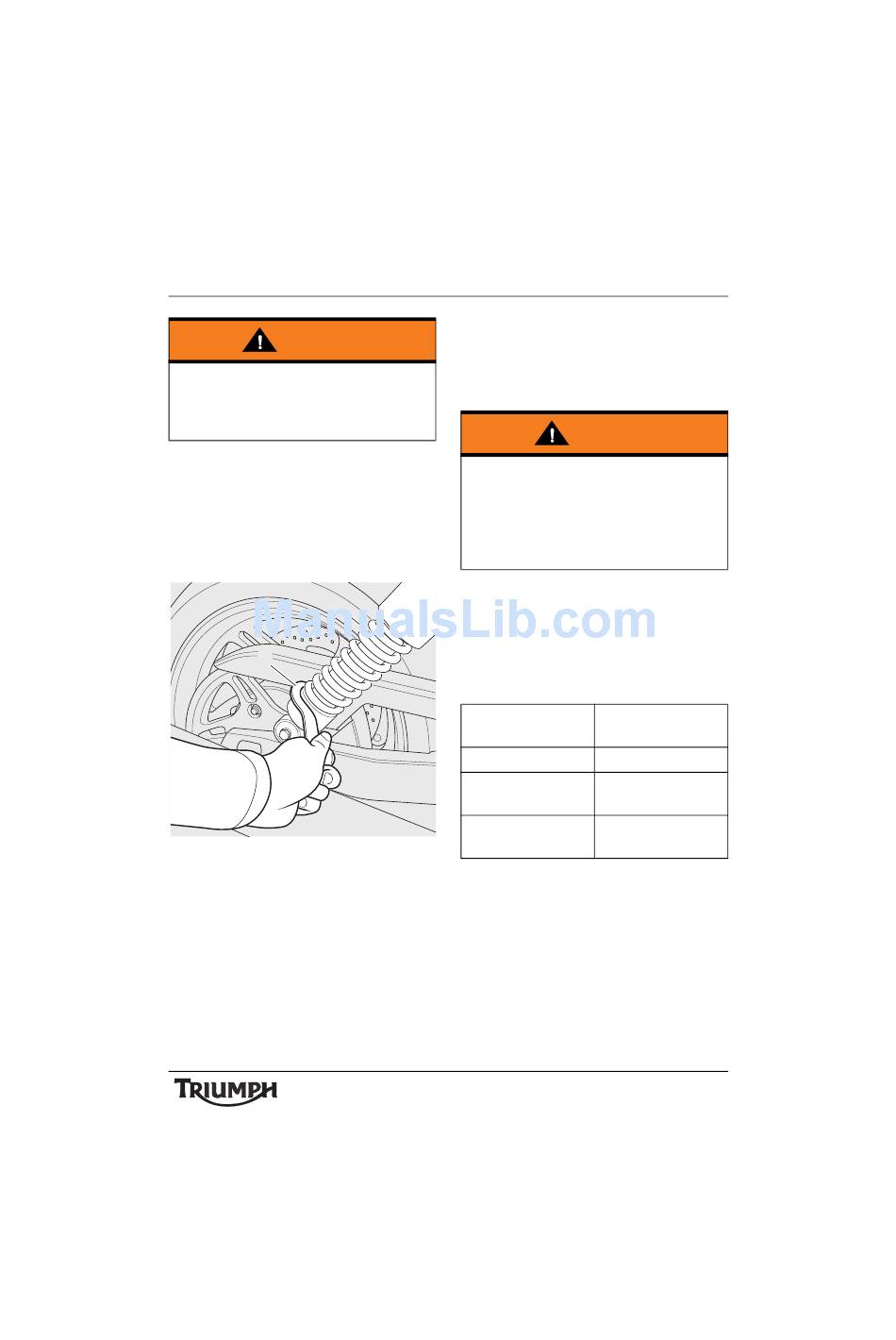

Rear Suspension
1
2
cfgr
1.
Rear suspension unit
2. Adjustment tool
The rear suspension is adjustable for pre-load
only.
For Thunderbird LT only: Remove the
panniers (see page 44).
To change the rear suspension spring pre-
load setting, insert the adjustment tool
located in the base of the pillion seat into the
hole provided in the adjuster ring.
Maintenance and Adjustment
Turn the adjuster ring clockwise to increase
spring
pre-load,
and
decrease spring pre-load. When delivered
from the factory, the pre-load adjuster will be
set at position 1.
Warning
Ensure that the adjusters are set to the
same setting on both rear suspension
units. Settings that vary from left to right
may affect handling and stability resulting
in loss of motorcycle control and an
accident.

Suggested Suspension Settings

Adjuster settings are counted from position
one with position one being with the adjuster
turned fully anti-clockwise. There are five
positions in total. Position 1 gives the
minimum amount of spring pre-load.
Riding
Condition
Rider only
Rider and
passenger
Rider, passenger
and luggage
Note:
The details given in the table are
only a guide. Setting requirements
may vary for rider and passenger
weight and personal preferences.
For Thunderbird LT only: Refit the panniers
(see page 45).
anti-clockwise
to
Suspension
Preload Setting
Position 1
Position 5
Position 5
89
