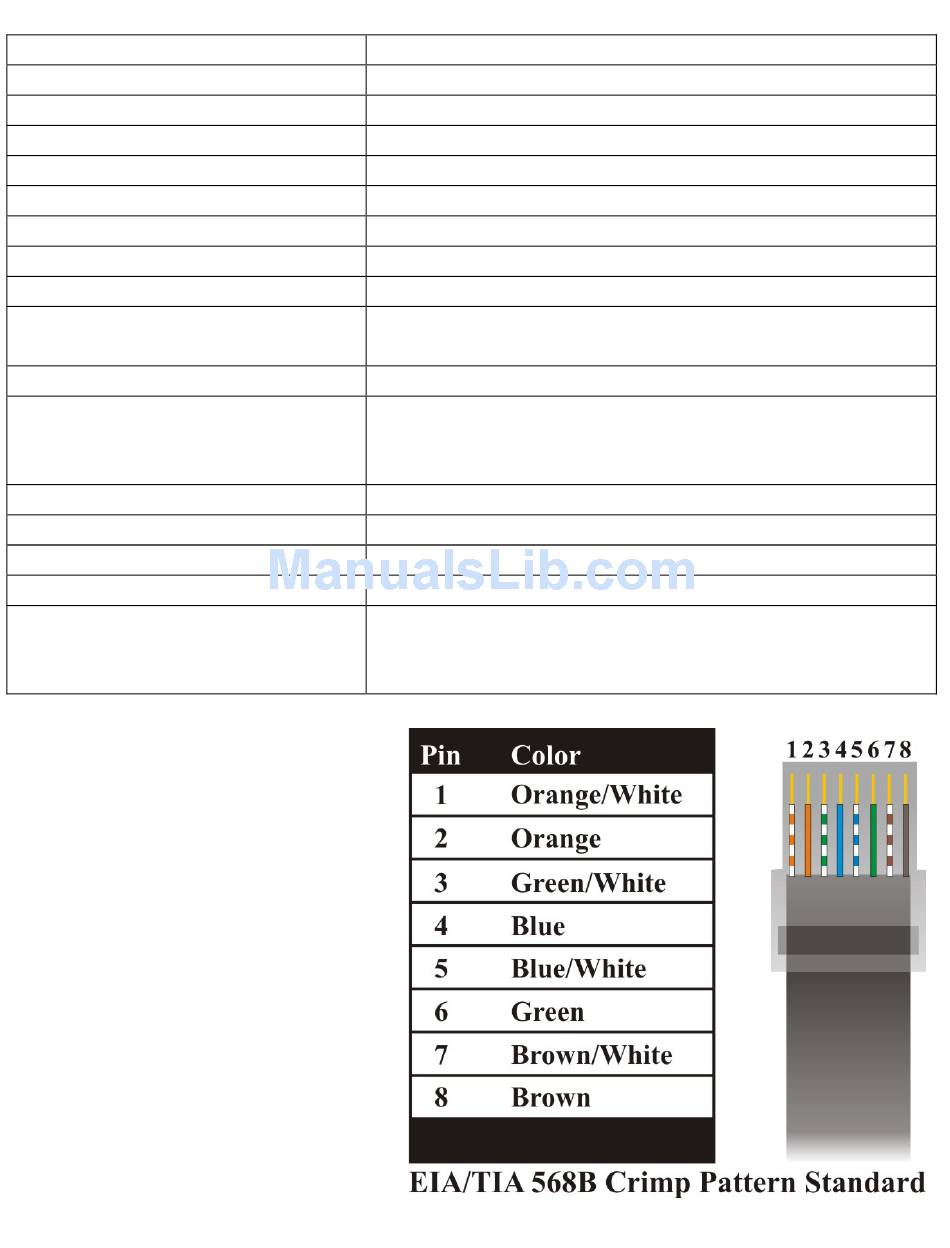

Intelix DIGI-HDMI-HR Installation Manual page 4

Technical Specifications
Video Amplifier Bandwidth
Supported Video Resolutions
Max Recommended Distance
Input Video Signal
Input DDC Signal
Input Unit Connectors
Output Unit Connectors
Cabling
Power
Power Connector
Dimensions
Temperature
Shipping Weight
Warranty
Regulatory
Intelix Part Number
Ordering Information
The Intelix DIGI-HDMI-HR conforms
to HDMI and HDCP specifications.
Intelix does not guarantee operation
with devices that do not conform to
these specifications. The Intelix DIGI-
HDMI-HR passes HDCP signals and
does not manipulate them in any way.
Distances and picture quality may be
affected by cable grade, cable quality,
source and destination equipment, RF and
electrical interference, and cable patches.
Intelix specifications are based on
straight-through cabling with standard-
grade Cat 5e.
1.65 Gbps
480i, 480p, 576i, 576p, 720p, 1080i
150 feet
1.2 volts p-p
5.0 volts p-p (TTL)
(1) Type A HDMI connector to (2) RJ45s
(2) RJ45s to (1) Type A HDMI connector
Two individual runs of Cat 5e or Cat 6
External 5 VDC
Powered on either send or receive end; side mounted
connector
3.25" x 1.75" x 0.88"
Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: up to 95%
1 lb.
2 years
CE, RoHS
DIGI-HDMI-HR
DIGI-HDMI-HR package includes one send unit, one
receive unit, two mounting brackets and one power
supply
